GDJ150L-GKTEYW (2015)
Toyota Land Cruiser Prado
Production
Jun 2015
-
Aug 2017
Engine
1GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1506- )GDJ15#..LHD

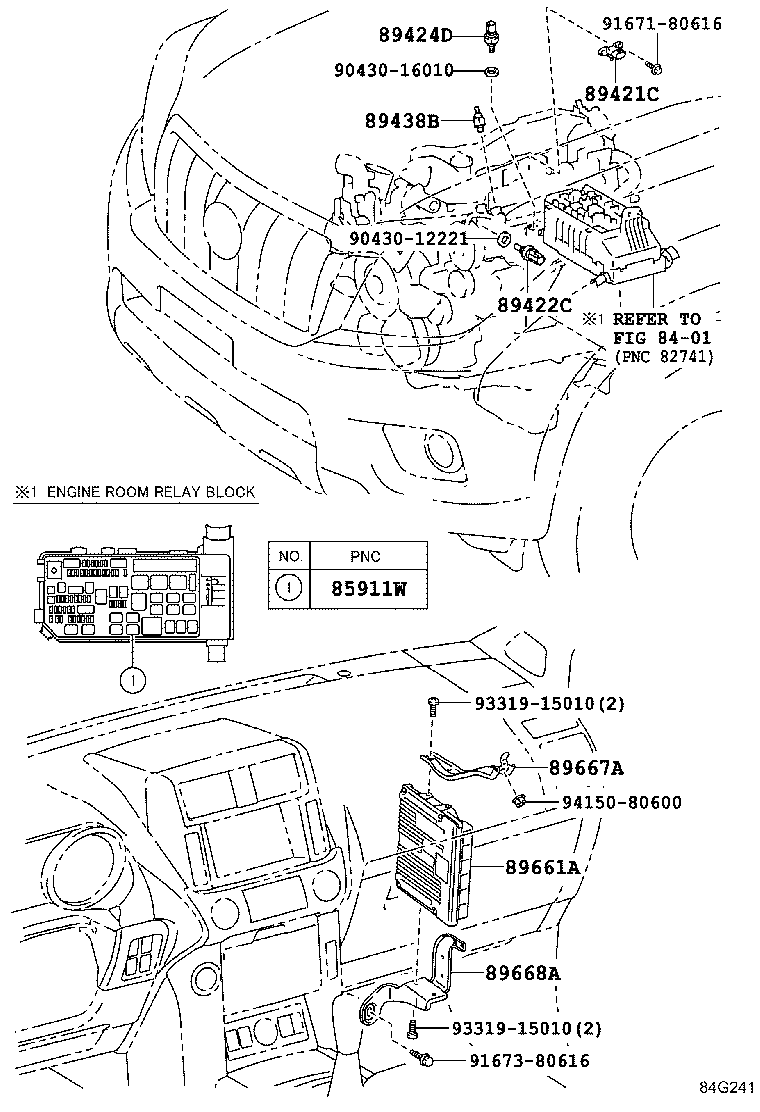

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85911W - RELAY, ELECTRONIC DRIVER UNIT | ||||
| 90987-02027 |
GDJ150..LHD..6FC UKRAINE SPEC |
1 | ||
| 90987-02027 |
GDJ150..LHD..6FC RUSSIA SPEC |
1 | ||
| 90987-02027 |
GDJ150..LHD SERBIA,MONTENEGRO SPEC |
1 | ||
| 89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO) | ||||
| 89421-71030 |
GDJ15# |
1 | ||
| 89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE | ||||
| 89422-33030 |
GDJ15#,KDJ150 |
1 | ||
| 89424D - SENSOR, INLET AIR TEMPERATURE | ||||
| 89424-60010 |
GDJ15#,KDJ15# |
1 | ||
| 89438B - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-71010 |
GDJ15#,KDJ150 |
1 | ||
| 89438-33010 |
GDJ15#,KDJ15# |
1 | ||
| 89661A - COMPUTER, ENGINE CONTROL | ||||
| 89666-60C40 |
GDJ15#..6FC |
1 | ||
| 89666-60C30 |
GDJ15#..6F |
1 | ||
| 89666-60C20 |
GDJ150..LHD..6FC RUSSIA SPEC |
1 | ||
| 89666-60C20 |
GDJ150..LHD..6FC UKRAINE SPEC |
1 | ||
| 89666-60C10 |
GDJ150..LHD..6F SERBIA,MONTENEGRO SPEC |
1 | ||
| 89666-60C31 |
GDJ15#..6F |
1 | ||
| 89666-60C20 |
GDJ150..LHD..6FC SERBIA,MONTENEGRO SPEC |
1 | ||
| 89666-60C41 |
GDJ15#..6FC |
1 | ||
| 89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1 | ||||
| 89667-60290 |
GDJ15# |
1 | ||
| 89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-60300 |
GDJ15#..LHD |
1 | ||
| Common parts | ||||
| 90430-12221 | ||||
| 90430-16010 | ||||
| 91671-80616 | ||||
| 91673-80616 | ||||
| 93319-15010 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
