VZJ95R-GKPNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9906)

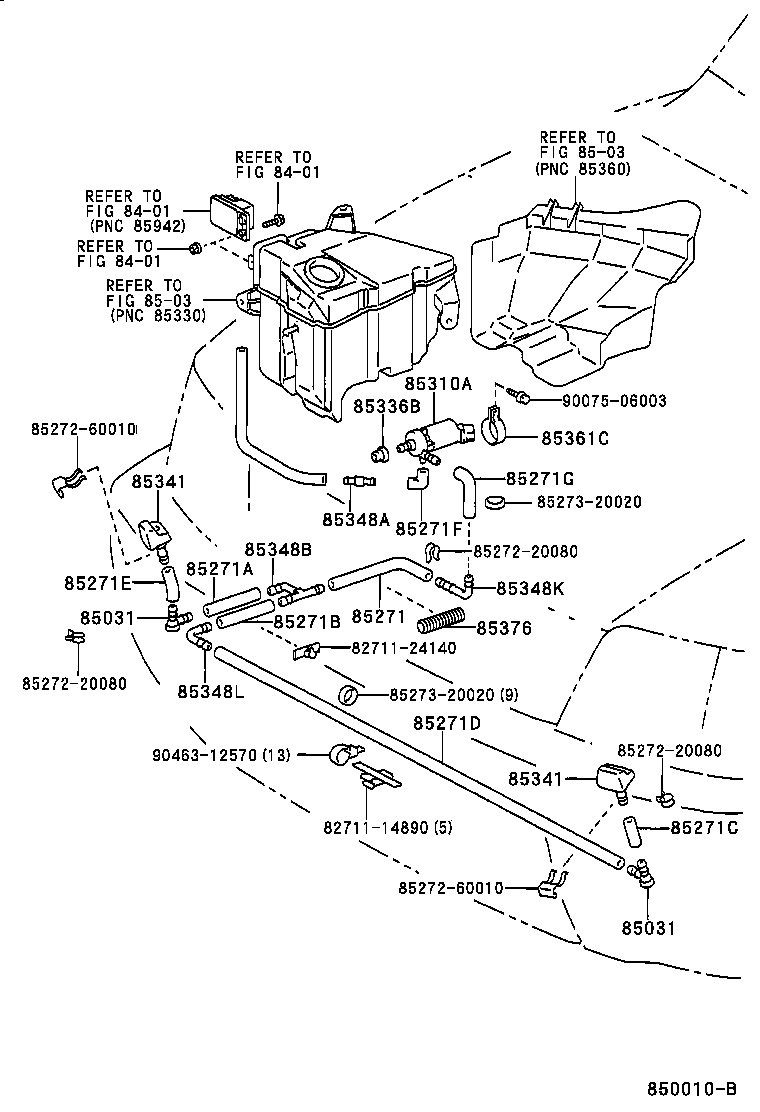

Click highlighted areas on diagram

diagram 8271114890 8271124140 8401 8401 8401 8503 8503 85031 85031 85271 85271A 85271B 85271C 85271D 85271E 85271F 85271G 8527220080 8527220080 8527220080 8527260010 8527260010 8527320020 8527320020 85310A 85336B 85341 85341 85348A 85348B 85348K 85348L 85361C 85376 9007506003 9046312570
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

KZJ9#,VZJ9#

 2
85299-33020

KDJ9#,KZJ9#,VZJ9#

RH

 1
85031-30020

KDJ9#,KZJ9#,VZJ9#

LH

 1
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

KZJ9#,VZJ9#

 2
85299-33020

KDJ9#,KZJ9#,VZJ9#

RH

 1
85031-30020

KDJ9#,KZJ9#,VZJ9#

LH

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85275-41030

KZJ9#,VZJ9#

 1
85275-41030

KDJ9#,KZJ9#,VZJ9#

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85375-14400

KZJ9#,VZJ9#

L=170

 1
90445-14048

KDJ9#,KZJ9#,VZJ9#

L=150

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-14400

KZJ9#,VZJ9#

L=170

 1
90445-14059

KDJ9#,KZJ9#,VZJ9#

L=190

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
90445-14071

KDJ9#,KZJ9#,VZJ9#

L=50

 1
90445-14071

KZJ9#,VZJ9#

L=50

 1
85271D - HOSE, HEADLAMP CLEANER, NO.5
85275-60340

KZJ9#,VZJ9#

L=1190

 1
90445-14072

KDJ9#,KZJ9#,VZJ9#

*H,L=1150

 1
85271E - HOSE, HEADLAMP CLEANER, NO.6
90445-14055

KZJ9#,VZJ9#

*H,L=60

 1
90445-14071

KDJ9#,KZJ9#,VZJ9#

L=50

 1
85271F - HOSE, HEADLAMP CLEANER, NO.7
85336-12230

KZJ9#,VZJ9#

L=15

 1
85375-32011

KDJ9#,KZJ9#,VZJ9#

L=35

 1
85336-12230

KDJ9#,KZJ9#,VZJ9#

L=15

 1
85271G - HOSE, HEAD LAMP
85375-32180

KZJ9#,VZJ9#

 1
85375-32180

KDJ9#,KZJ9#,VZJ9#

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85280-30020

KZJ9#,VZJ9#

 1
85280-30020

KDJ9#,KZJ9#,VZJ9#

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

KDJ9#,KZJ9#,VZJ9#

 1
85336-10010

KZJ9#,VZJ9#

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-60040

KZJ9#,VZJ9#

 2
85044-60080

KDJ9#,KZJ9#,VZJ9#

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-60040

KZJ9#,VZJ9#

 2
85044-60080

KDJ9#,KZJ9#,VZJ9#

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85349-89122

KZJ9#,VZJ9#

 1
85349-89122

KDJ9#,KZJ9#,VZJ9#

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85279-33020

KDJ9#,KZJ9#,VZJ9#

 1
85279-33020

KZJ9#,VZJ9#

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85279-30010

KZJ9#,VZJ9#

 1
85279-30010

KDJ9#,KZJ9#,VZJ9#

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85379-22080

KDJ9#,KZJ9#,VZJ9#

 2
85379-95A09

KZJ9#,VZJ9#

 1
85361C - BRACKET, WASHER
85361-33020

KDJ9#,KZJ9#,VZJ9#

 1
85361-33020

KZJ9#,VZJ9#

 1
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376-12090

KZJ9#,VZJ9#

 1
Common parts
82711-14890
82711-24140
85272-20080
85272-60010
85273-20020
90075-06003
90463-12570
Linked diagrams
8401
8503

(9906- )

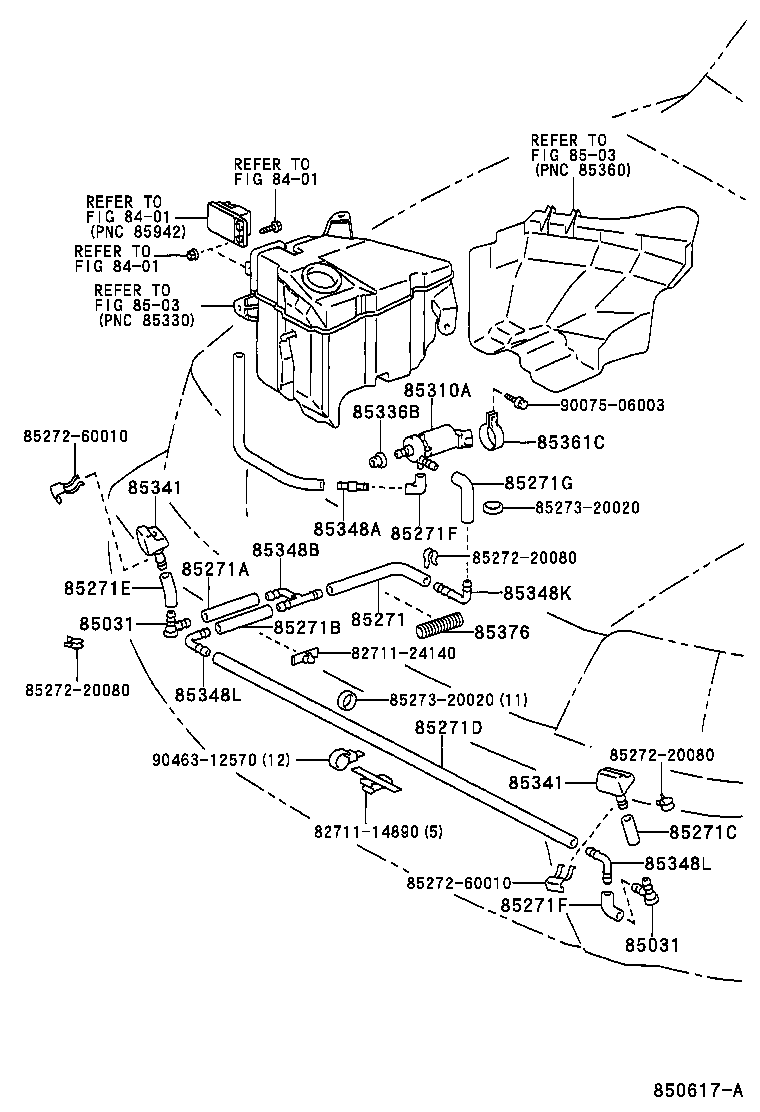

Click highlighted areas on diagram

diagram 8271114890 8271124140 8401 8401 8401 8503 8503 85031 85031 85271 85271A 85271B 85271C 85271D 85271E 85271F 85271F 85271G 8527220080 8527220080 8527220080 8527260010 8527260010 8527320020 8527320020 85310A 85336B 85341 85341 85348A 85348B 85348K 85348L 85348L 85361C 85376 9007506003 9046312570
Part # Description Qty Price
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

KZJ9#,VZJ9#

 2
85299-33020

KDJ9#,KZJ9#,VZJ9#

RH

 1
85031-30020

KDJ9#,KZJ9#,VZJ9#

LH

 1
85031 - VALVE, HEADLAMP CLEANER WASHER HOSE
85031-30020

KZJ9#,VZJ9#

 2
85299-33020

KDJ9#,KZJ9#,VZJ9#

RH

 1
85031-30020

KDJ9#,KZJ9#,VZJ9#

LH

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
85275-41030

KZJ9#,VZJ9#

 1
85275-41030

KDJ9#,KZJ9#,VZJ9#

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
85375-14400

KZJ9#,VZJ9#

L=170

 1
90445-14048

KDJ9#,KZJ9#,VZJ9#

L=150

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-14400

KZJ9#,VZJ9#

L=170

 1
90445-14059

KDJ9#,KZJ9#,VZJ9#

L=190

 1
85271C - HOSE, HEADLAMP CLEANER, NO.4
90445-14071

KDJ9#,KZJ9#,VZJ9#

L=50

 1
90445-14071

KZJ9#,VZJ9#

L=50

 1
85271D - HOSE, HEADLAMP CLEANER, NO.5
85275-60340

KZJ9#,VZJ9#

L=1190

 1
90445-14072

KDJ9#,KZJ9#,VZJ9#

*H,L=1150

 1
85271E - HOSE, HEADLAMP CLEANER, NO.6
90445-14055

KZJ9#,VZJ9#

*H,L=60

 1
90445-14071

KDJ9#,KZJ9#,VZJ9#

L=50

 1
85271F - HOSE, HEADLAMP CLEANER, NO.7
85336-12230

KZJ9#,VZJ9#

L=15

 1
85375-32011

KDJ9#,KZJ9#,VZJ9#

L=35

 1
85336-12230

KDJ9#,KZJ9#,VZJ9#

L=15

 1
85271F - HOSE, HEADLAMP CLEANER, NO.7
85336-12230

KZJ9#,VZJ9#

L=15

 1
85375-32011

KDJ9#,KZJ9#,VZJ9#

L=35

 1
85336-12230

KDJ9#,KZJ9#,VZJ9#

L=15

 1
85271G - HOSE, HEAD LAMP
85375-32180

KZJ9#,VZJ9#

 1
85375-32180

KDJ9#,KZJ9#,VZJ9#

 1
85310A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER WASHER
85280-30020

KZJ9#,VZJ9#

 1
85280-30020

KDJ9#,KZJ9#,VZJ9#

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
85336-10010

KDJ9#,KZJ9#,VZJ9#

 1
85336-10010

KZJ9#,VZJ9#

 1
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-60040

KZJ9#,VZJ9#

 2
85044-60080

KDJ9#,KZJ9#,VZJ9#

 2
85341 - NOZZLE, HEADLAMP CLEANER WASHER
85044-60040

KZJ9#,VZJ9#

 2
85044-60080

KDJ9#,KZJ9#,VZJ9#

 2
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85349-89122

KZJ9#,VZJ9#

 1
85349-89122

KDJ9#,KZJ9#,VZJ9#

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85279-33020

KDJ9#,KZJ9#,VZJ9#

 1
85279-33020

KZJ9#,VZJ9#

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85279-30010

KZJ9#,VZJ9#

 1
85279-30010

KDJ9#,KZJ9#,VZJ9#

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85379-22080

KDJ9#,KZJ9#,VZJ9#

 2
85379-95A09

KZJ9#,VZJ9#

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85379-22080

KDJ9#,KZJ9#,VZJ9#

 2
85379-95A09

KZJ9#,VZJ9#

 1
85361C - BRACKET, WASHER
85361-33020

KDJ9#,KZJ9#,VZJ9#

 1
85361-33020

KZJ9#,VZJ9#

 1
85376 - PROTECTOR, HEADLAMP CLEANER HOSE, NO.1
85376-12090

KZJ9#,VZJ9#

 1
Common parts
82711-14890
82711-24140
85272-20080
85272-60010
85273-20020
90075-06003
90463-12570
Linked diagrams
8401
8503
