VZJ95R-GKPNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

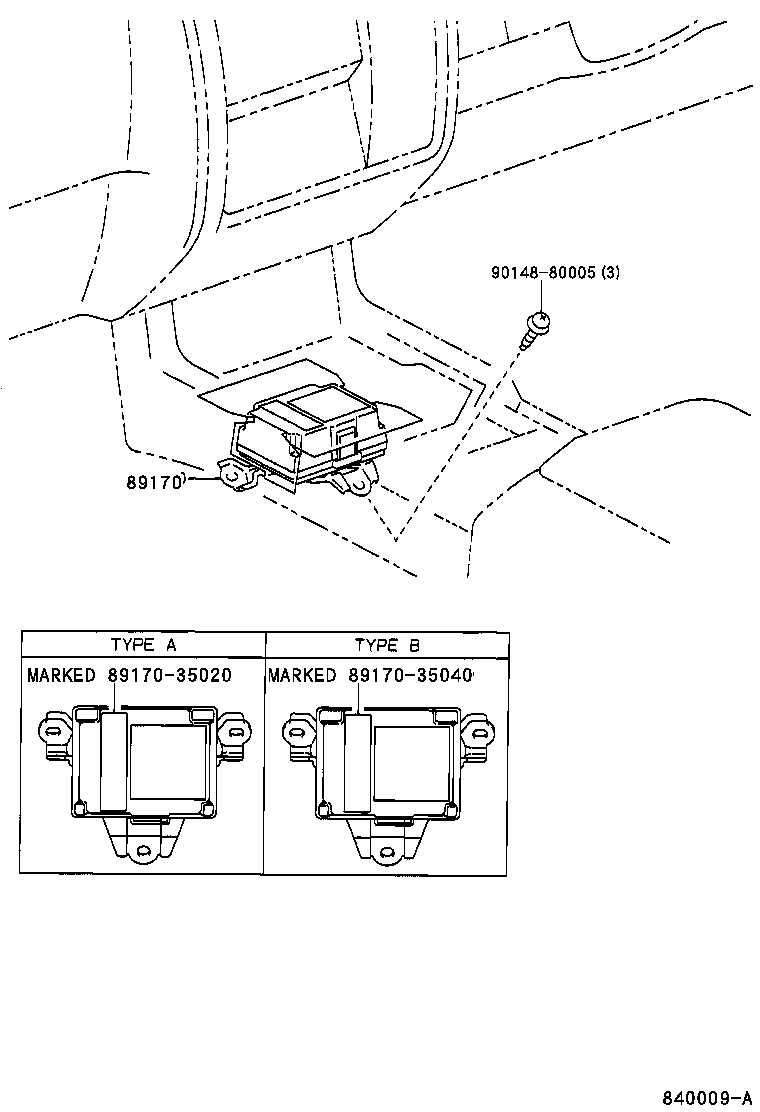

ILLUST NO. 1 OF 2(9604- )

Click highlighted areas on diagram

diagram 89170 9014880005
Part # Description Qty Price
89170 - SENSOR ASSY, AIR BAG
89170-60090

KZJ9#,VZJ9#

 1
89170-35040

KZJ9#,VZJ9#

TYPE B:REFER TO ILLUSTRATION

 1
89170-35040

KZJ9#,VZJ9#

 1
89170-60090

KDJ9#,KZJ9#,VZJ9#

 1
89170-35020

KZJ9#,VZJ9#

TYPE A:REFER TO ILLUSTRATION

 1
Common parts
90148-80005

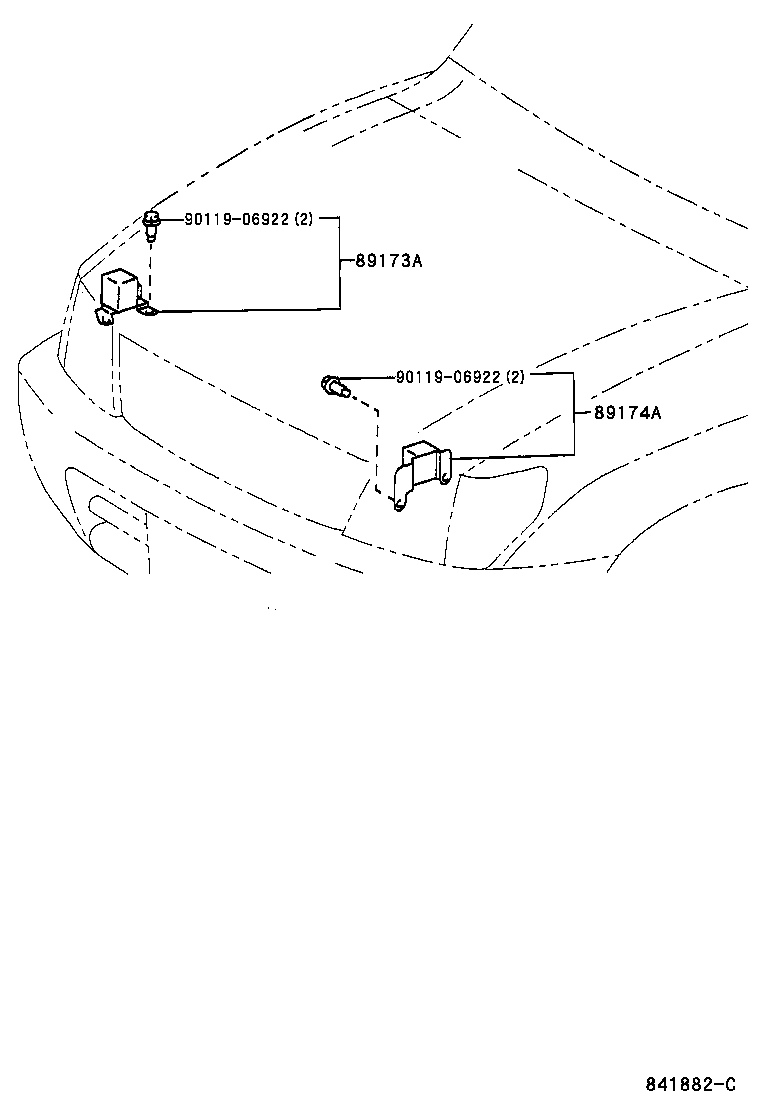

ILLUST NO. 2 OF 2(9801- )

Click highlighted areas on diagram

diagram 89173A 89174A 9011906922 9011906922
Part # Description Qty Price
89173A - SENSOR, AIR BAG, FRONT RH
89173-69025

VZJ9#

 1
89173-69025

VZJ9#

 1
89174A - SENSOR, AIR BAG, FRONT LH
89174-69025

KZJ9#,VZJ9#

 1
89174-69025

KDJ9#,KZJ9#,VZJ9#

 1
Common parts
90119-06922
