VZJ95R-GKPNKW (1996)
Toyota Land Cruiser 90

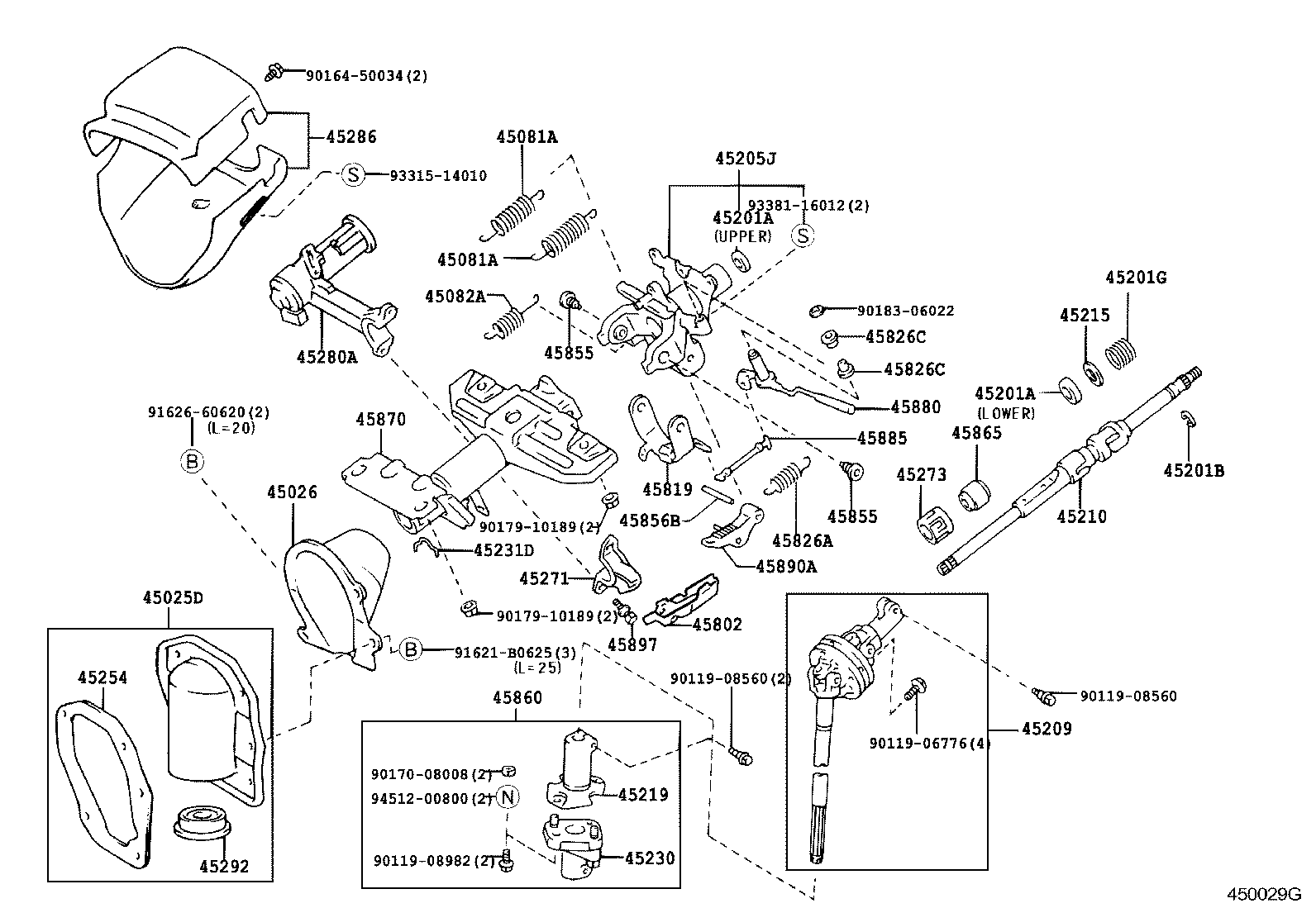

(9604-9801)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35280 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45025-35340 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45025-35340 |
KDJ9#,KZJ95,VZJ95..RHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-35030 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45026-35030 |
KDJ9#,KZJ95,VZJ95..RHD |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90506-25006 |
KZJ9#,VZJ9# |
2 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90506-25006 |
KZJ9#,VZJ9# |
2 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90507-16024 |
KZJ9#,VZJ9# |
1 | ||
| 90507-16024 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18009 |
KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KDJ9#,KZJ9#,VZJ9# LOWER |
1 | ||
| 90363-18009 |
KDJ9#,KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KZJ9#,VZJ9# LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18009 |
KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KDJ9#,KZJ9#,VZJ9# LOWER |
1 | ||
| 90363-18009 |
KDJ9#,KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KZJ9#,VZJ9# LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# T=1.20 |
1 | ||
| 90520-17042 |
KZJ9#,VZJ9# T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
KZJ9#,VZJ9# |
1 | ||
| 90501-40017 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-35260 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45205-35300 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45205-35260 |
KZJ9#,VZJ9# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45290-60020 |
KZJ9#,VZJ9# |
1 | ||
| 45290-60030 |
KZJ9#,VZJ9# |
1 | ||
| 45290-60030 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45290-60040 |
KZJ9#,VZJ9# |
1 | ||
| 45290-60021 |
KZJ9#,VZJ9# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35221 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45210-35221 |
KZJ9#,VZJ9# |
1 | ||
| 45210-35210 |
KZJ9#,VZJ9# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45215-12010 |
KZJ9#,VZJ9# |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45209-35100 |
KZJ9#,VZJ9# |
1 | ||
| 45209-35101 |
KZJ9#,VZJ9# |
1 | ||
| 45209-35101 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35090 |
KZJ9#,VZJ9# |
1 | ||
| 45230-35090 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45231D - RING, HOLE SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90521-01005 |
KZJ9#,VZJ9# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35150 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45254-35150 |
KDJ9#,KZJ95,VZJ95..RHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12080 |
KZJ9#,VZJ9# |
1 | ||
| 45271-12080 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
KZJ9#,VZJ9# |
1 | ||
| 45273-16020 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45273-16020 |
KZJ9#,VZJ9# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60420 |
KZJ9#,VZJ9# |
1 | ||
| 45280-60430 |
KZJ9#,VZJ9# W(ENGINE IMMOBILIZER SYSTEM & TILT STEERING) OR W(UNLOCK WARNING & TILT STTERING) |
1 | ||
| 45280-60430 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# W(ENGINE IMMOBILIZER SYSTEM & TILT STEERING) OR W(UNLOCK WARNING & TILT STTERING) |
1 | ||
| 45280-60420 |
KZJ95,VZJ9#;KZJ90..LHD..MTM |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-60949B1 |
KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60949E0 |
KZJ90,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 45286-60949B1 |
KDJ9#,KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60949E0 |
KDJ9#,VZJ95..RHD OAK,TRIM40,41 |
1 | ||
| 45286-60949E0 |
KDJ9#,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35090 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45292-35080 |
KZJ9#,VZJ9# |
1 | ||
| 45292-35090 |
KZJ9#,VZJ9# |
1 | ||
| 45802 - PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1 | ||||
| 45802-12020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45802-12020 |
KZJ9#,VZJ9# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-35010 |
KZJ9#,VZJ9# |
1 | ||
| 45819-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90905-07012 |
KZJ9#,VZJ9# |
1 | ||
| 90905-07012 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90389-08120 |
KZJ9#,VZJ9# |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90389-08120 |
KZJ9#,VZJ9# |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
KDJ9#,KZJ9#,VZJ9# OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,VZJ9# OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
KDJ9#,KZJ9#,VZJ9# OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,VZJ9# OD=10 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-42010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45856-42010 |
KZJ9#,VZJ9# |
1 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35171 |
KZJ9#,VZJ9# |
1 | ||
| 45860-35170 |
KZJ9#,VZJ9# |
1 | ||
| 45860-35171 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45865 - COLLAR, STEERING MAIN SHAFT | ||||
| 45865-12050 |
KZJ9#,VZJ9# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-35340 |
KZJ9#,VZJ9# |
1 | ||
| 45870-35360 |
KZJ9#,VZJ9# |
1 | ||
| 45870-35360 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45880-60020 |
KZJ9#,VZJ9# |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
KZJ9#,VZJ9# |
1 | ||
| 45885-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45890-35010 |
KZJ9#,VZJ9# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KZJ9#,VZJ9# |
2 | ||
| 45897-12020 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
2 | ||
| Common parts | ||||
| 90119-06776 | ||||
| 90119-08560 | ||||
| 90119-08982 | ||||
| 90164-50034 | ||||
| 90170-08008 | ||||
| 90179-10189 | ||||
| 90183-06022 | ||||
| 91621-B0625 | ||||
| 91626-60620 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 94512-00800 | ||||

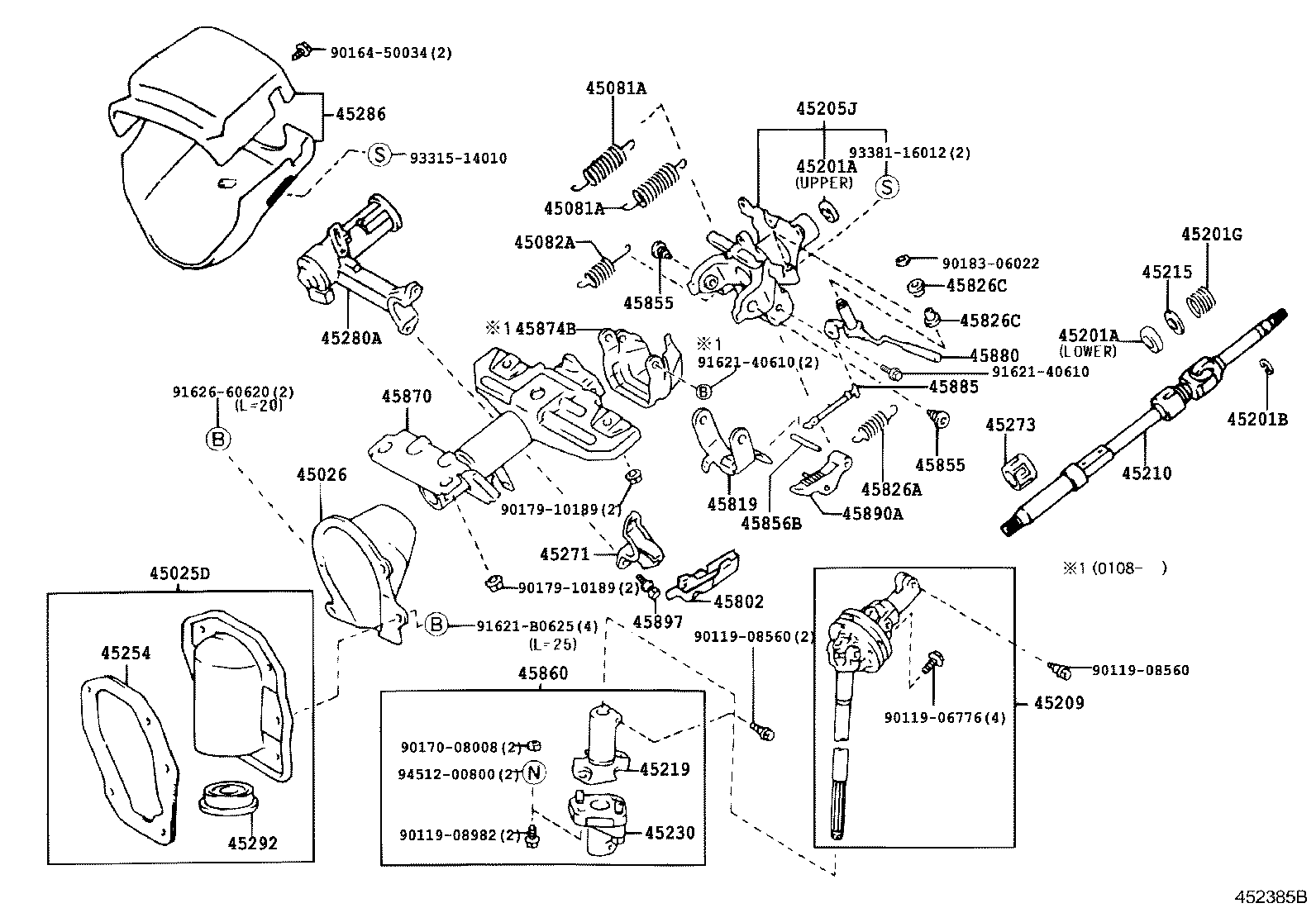

(9801- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 45025D - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.1 | ||||
| 45025-35280 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45025-35340 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45025-35340 |
KDJ9#,KZJ95,VZJ95..RHD |
1 | ||
| 45026 - COVER SUB-ASSY, STEERING COLUMN HOLE, NO.2 | ||||
| 45026-35030 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45026-35030 |
KDJ9#,KZJ95,VZJ95..RHD |
1 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90506-25006 |
KZJ9#,VZJ9# |
2 | ||
| 45081A - SPRING, TENSION(FOR TILT STEERING) | ||||
| 90506-25006 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90506-25006 |
KZJ9#,VZJ9# |
2 | ||
| 45082A - SPRING, TORSION(FOR TILT STEERING RETURN) | ||||
| 90507-16024 |
KZJ9#,VZJ9# |
1 | ||
| 90507-16024 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18009 |
KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KDJ9#,KZJ9#,VZJ9# LOWER |
1 | ||
| 90363-18009 |
KDJ9#,KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KZJ9#,VZJ9# LOWER |
1 | ||
| 45201A - BEARING(FOR STEERING MAIN SHAFT) | ||||
| 90363-18009 |
KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KDJ9#,KZJ9#,VZJ9# LOWER |
1 | ||
| 90363-18009 |
KDJ9#,KZJ9#,VZJ9# UPPER |
1 | ||
| 90363-18011 |
KZJ9#,VZJ9# LOWER |
1 | ||
| 45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT) | ||||
| 90520-17042 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# T=1.20 |
1 | ||
| 90520-17042 |
KZJ9#,VZJ9# T=1.20 |
1 | ||
| 45201G - SPRING, COMPRESSION(FOR STEERING MAIN SHAFT) | ||||
| 90501-40017 |
KZJ9#,VZJ9# |
1 | ||
| 90501-40017 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45205J - TUBE SUB-ASSY, STEERING COLUMN, UPPER | ||||
| 45205-35260 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45205-35300 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45205-35260 |
KZJ9#,VZJ9# |
1 | ||
| 45209 - YOKE SUB-ASSY, STEERING SLIDING | ||||
| 45290-60020 |
KZJ9#,VZJ9# |
1 | ||
| 45290-60030 |
KZJ9#,VZJ9# |
1 | ||
| 45290-60030 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45290-60040 |
KZJ9#,VZJ9# |
1 | ||
| 45290-60021 |
KZJ9#,VZJ9# |
1 | ||
| 45210 - SHAFT ASSY, STEERING MAIN | ||||
| 45210-35221 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45210-35221 |
KZJ9#,VZJ9# |
1 | ||
| 45210-35210 |
KZJ9#,VZJ9# |
1 | ||
| 45215 - COLLAR, MAIN SHAFT BEARING THRUST | ||||
| 45215-12010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45215-12010 |
KZJ9#,VZJ9# |
1 | ||
| 45219 - YOKE, STEERING SLIDING | ||||
| 45209-35100 |
KZJ9#,VZJ9# |
1 | ||
| 45209-35101 |
KZJ9#,VZJ9# |
1 | ||
| 45209-35101 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45230 - COUPLING ASSY, FLEXIBLE | ||||
| 45230-35090 |
KZJ9#,VZJ9# |
1 | ||
| 45230-35090 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45254 - SHIELD, STEERING COLUMN HOLE | ||||
| 45254-35150 |
KZJ9#,VZJ95..RHD |
1 | ||
| 45254-35150 |
KDJ9#,KZJ95,VZJ95..RHD |
1 | ||
| 45271 - CLAMP, STEERING COLUMN, UPPER | ||||
| 45271-12080 |
KZJ9#,VZJ9# |
1 | ||
| 45271-12080 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45273 - BUSH, STEERING MAIN SHAFT | ||||
| 45273-16010 |
KZJ9#,VZJ9# |
1 | ||
| 45273-16020 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45273-16020 |
KZJ9#,VZJ9# |
1 | ||
| 45280A - BRACKET ASSY, STEERING COLUMN, UPPER | ||||
| 45280-60420 |
KZJ9#,VZJ9# |
1 | ||
| 45280-60430 |
KZJ9#,VZJ9# W(ENGINE IMMOBILIZER SYSTEM & TILT STEERING) OR W(UNLOCK WARNING & TILT STTERING) |
1 | ||
| 45280-60430 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# W(ENGINE IMMOBILIZER SYSTEM & TILT STEERING) OR W(UNLOCK WARNING & TILT STTERING) |
1 | ||
| 45280-60420 |
KZJ95,VZJ9#;KZJ90..LHD..MTM |
1 | ||
| 45286 - COVER, STEERING COLUMN | ||||
| 45286-60949B1 |
KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60949E0 |
KZJ90,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 45286-60949B1 |
KDJ9#,KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 45286-60949E0 |
KDJ9#,VZJ95..RHD OAK,TRIM40,41 |
1 | ||
| 45286-60949E0 |
KDJ9#,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 45292 - SEAL, MAIN SHAFT LOWER DUST | ||||
| 45292-35090 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45292-35080 |
KZJ9#,VZJ9# |
1 | ||
| 45292-35090 |
KZJ9#,VZJ9# |
1 | ||
| 45802 - PROTECTOR SUB-ASSY, STEERING COLUMN, NO.1 | ||||
| 45802-12020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45802-12020 |
KZJ9#,VZJ9# |
1 | ||
| 45819 - RETAINER, TILT LEVER | ||||
| 45819-35010 |
KZJ9#,VZJ9# |
1 | ||
| 45819-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45826A - SPRING, TENSION(FOR STEERING TILT LEVER) | ||||
| 90905-07012 |
KZJ9#,VZJ9# |
1 | ||
| 90905-07012 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90389-08120 |
KZJ9#,VZJ9# |
2 | ||
| 45826C - BUSH(FOR STEERING TILT LEVER) | ||||
| 90389-08120 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90389-08120 |
KZJ9#,VZJ9# |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
KDJ9#,KZJ9#,VZJ9# OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,VZJ9# OD=10 |
2 | ||
| 45855 - BOLT, TILT STEERING, NO.1 | ||||
| 45855-35010 |
KDJ9#,KZJ9#,VZJ9# OD=10 |
2 | ||
| 45855-35010 |
KZJ9#,VZJ9# OD=10 |
2 | ||
| 45856B - SHAFT, T1LT STEERING, NO.2 | ||||
| 45856-42010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45856-42010 |
KZJ9#,VZJ9# |
1 | ||
| 45860 - SHAFT ASSY, STEERING INTERMEDIATE, NO.2 | ||||
| 45860-35171 |
KZJ9#,VZJ9# |
1 | ||
| 45860-35170 |
KZJ9#,VZJ9# |
1 | ||
| 45860-35171 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45870 - TUBE ASSY, STEERING COLUMN | ||||
| 45870-35340 |
KZJ9#,VZJ9# |
1 | ||
| 45870-35360 |
KZJ9#,VZJ9# |
1 | ||
| 45870-35360 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 45874B - PROTECTOR, STEERING COLUMN, NO.1 | ||||
| 45874-35040 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45880 - LEVER ASSY, STEERING TILT | ||||
| 45880-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45880-60020 |
KZJ9#,VZJ9# |
1 | ||
| 45885 - LINK, TILT LEVER | ||||
| 45885-35010 |
KZJ9#,VZJ9# |
1 | ||
| 45885-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45890A - PAWL ASSY, TILT STEERING | ||||
| 45890-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 45890-35010 |
KZJ9#,VZJ9# |
1 | ||
| 45897 - BOLT, STEERING LOCK SET | ||||
| 45897-12020 |
KZJ9#,VZJ9# |
2 | ||
| 45897-12020 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
2 | ||
| Common parts | ||||
| 90119-06776 | ||||
| 90119-08560 | ||||
| 90119-08982 | ||||
| 90164-50034 | ||||
| 90170-08008 | ||||
| 90179-10189 | ||||
| 90183-06022 | ||||
| 91621-40610 | ||||
| 91621-B0625 | ||||
| 91626-60620 | ||||
| 93315-14010 | ||||
| 93381-16012 | ||||
| 94512-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
