VZJ95L-GKPNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

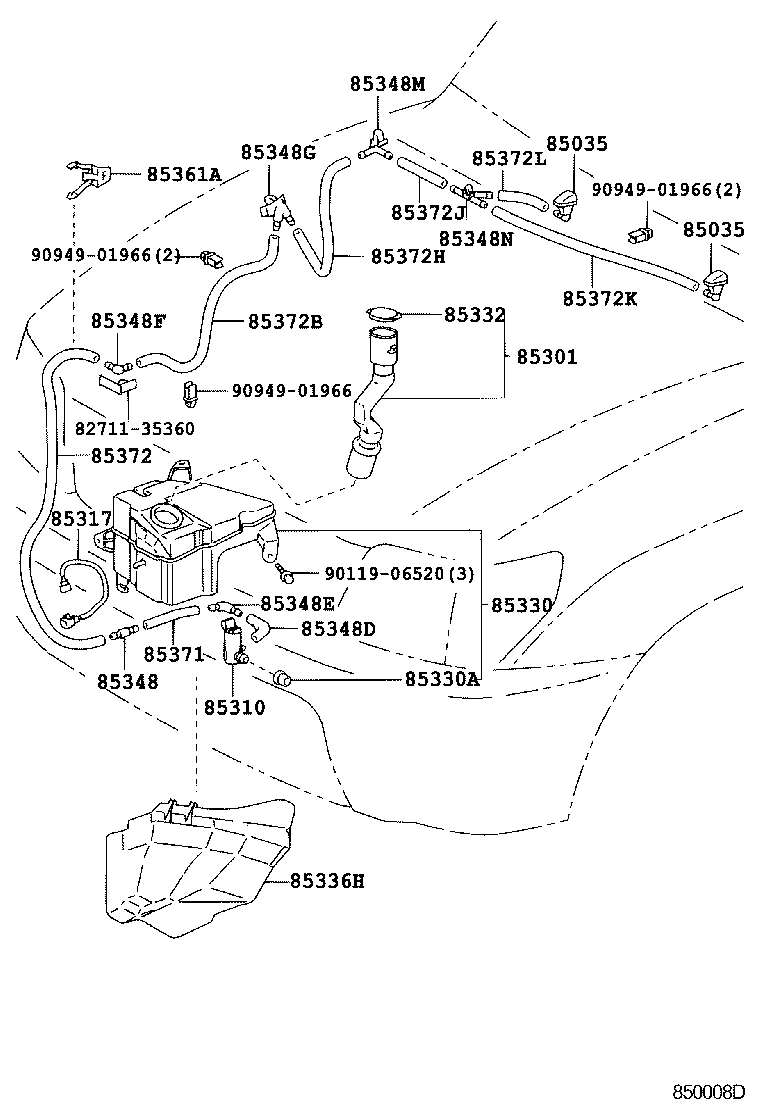

Click highlighted areas on diagram

diagram 8271135360 85035 85035 85301 85310 85317 85330 85330A 85332 85336H 85348 85348D 85348E 85348F 85348G 85348M 85348N 85361A 85371 85372 85372B 85372H 85372J 85372K 85372L 9011906520 9094901966 9094901966 9094901966
Part # Description Qty Price
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

KDJ9#,KZJ9#,VZJ9#

 2
85381-60040

KZJ9#,VZJ9#..LHD

 2
85035 - NOZZLE SUB-ASSY, WASHER
85381-12050

KDJ9#,KZJ9#,VZJ9#

 2
85381-60040

KZJ9#,VZJ9#..LHD

 2
85301 - INLET SUB-ASSY, WASHER
85301-35010

KDJ9#,KZJ9#,VZJ9#

 1
85301-60020

KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85301-35010

KZJ9#,VZJ9#

 1
85301-60010

VZJ95

W(CYCLON TYPE AIR CLEANER)

 1
85301-60020

KDJ9#,KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85301-60010

VZJ9#

W(CYCLON TYPE AIR CLEANER)

 1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-60130

KDJ9#,KZJ9#,VZJ9#

 1
85330-60130

KZJ9#,VZJ9#

 1
85317 - WIRING ASSY, WASHER
85317-60250

KZJ9#,VZJ9#

 1
85317-60250

KDJ9#,KZJ9#,VZJ9#

 1
85330 - JAR ASSY, WINDSHIELD WASHER
85315-35250

KZJ9#,VZJ9#

 1
85315-60260

KDJ9#,KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85315-35251

KZJ9#,VZJ9#

 1
85315-35251

KDJ9#,KZJ9#,VZJ9#

 1
85315-60260

KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85330A - BUSH, WINDSHIELD WASHER JAR
90099-32089

KZJ9#,VZJ9#

 1
90099-32089

KDJ9#,KZJ9#,VZJ9#

 1
85332 - CAP, WINDSHIELD WASHER JAR
85316-26030

VZJ9#

 1
85316-33050

KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85316-33050

KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85316-26030

KZJ9#,VZJ9#

 1
85336H - COVER, WINDSHIELD WASHER JAR UNDER
85336-35260

KDJ9#,KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85336-35260

KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
85336-35240

KDJ9#,KZJ9#,VZJ9#

 1
85336-35240

KZJ9#,VZJ9#

 1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85349-89122

KDJ9#,KZJ9#,VZJ9#

 1
85349-89122

KZJ9#,VZJ9#

 1
85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1
85355-16192

KZJ9#,VZJ9#

 1
85355-16192

KDJ9#,KZJ9#,VZJ9#

 1
85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2
85355-20200

KZJ9#,VZJ9#

 1
85355-20200

KDJ9#,KZJ9#,VZJ9#

 1
85348F - JOINT, WINDSHIELD WASHER ELBOW, NO.3
85355-20200

KDJ9#,KZJ9#,VZJ9#

 1
85355-20200

KZJ9#,VZJ9#

 1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85377-35240

KDJ9#,KZJ9#,VZJ9#

 1
85377-35240

KZJ9#,VZJ9#

 1
85348M - JOINT, WINDSHIELD WASHER HOSE, NO.3
85377-32220

KZJ9#,VZJ9#

 1
85377-32220

KDJ9#,KZJ9#,VZJ9#

 1
85348N - JOINT, WINDSHIELD WASHER HOSE, NO.4
85378-60350

KDJ9#,KZJ9#,VZJ9#

 1
85378-60350

KZJ9#,VZJ9#

 1
85361A - BRACKET, WINDSHIELD WASHER, NO.1
85361-60170

KZJ9#,VZJ9#

 1
85361-60180

VZJ95

W(CYCLON TYPE AIR CLEANER)

 1
85361-60180

VZJ9#

W(CYCLON TYPE AIR CLEANER)

 1
85361-60170

KDJ9#,KZJ9#,VZJ9#

 1
85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)
90099-33080

KDJ9#,KZJ9#,VZJ9#

*H,L=150

 1
90099-33080

KZJ9#,VZJ9#

*H,L=150

 1
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33080

KDJ9#,KZJ9#,VZJ9#

*H,L=340

 1
90099-33080

KZJ9#,VZJ9#

*H,L=340

 1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080

KDJ9#,KZJ9#,VZJ9#

*H,L=740

 1
90099-33080

KZJ9#,VZJ9#

*H,L=740

 1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080

KDJ9#,KZJ9#,VZJ9#

*H,L=330

 1
90099-33080

KZJ9#,VZJ9#

*H,L=330

 1
85372J - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4
90099-33080

KDJ9#,KZJ9#,VZJ9#

*H,L=185

 1
90099-33080

KZJ9#,VZJ9#

*H,L=185

 1
85372K - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.5
90099-33080

KZJ9#,VZJ9#

*H,L=725

 1
90099-33080

KDJ9#,KZJ9#,VZJ9#

*H,L=725

 1
85372L - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.6
90099-33080

KZJ9#,VZJ9#

*H,L=145

 1
90099-33080

KDJ9#,KZJ9#,VZJ9#

*H,L=145

 1
Common parts
82711-35360
90119-06520
90949-01966
