VZJ95L-GKPNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604-9906)

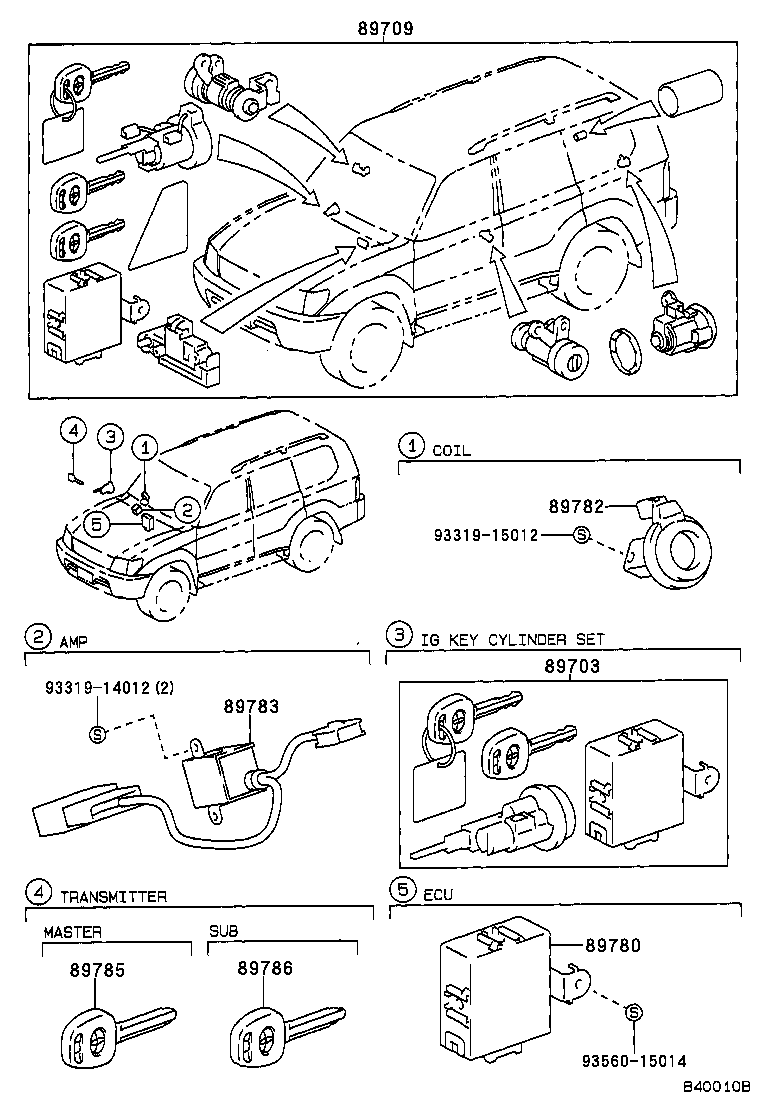

Click highlighted areas on diagram

diagram 89703 89709 89780 89782 89783 89785 89786 9331914012 9331915012 9356015014
Part # Description Qty Price
89703 - CYLINDER & KEY SET, IGNITION W/TRANSPONDER
89703-60040

KZJ9#,VZJ9#..LHD

 1
89703-60360

KZJ9#,VZJ9#..LHD

 1
89709 - COMPUTER SET, TRANSPONDER KEY
89709-60050

KZJ9#,VZJ9#..LHD

W(SPARE KEY)

 1
89709-60051

KZJ9#,VZJ9#..LHD

W(SPARE KEY)

 1
89709-60071

KZJ9#,VZJ9#..LHD

 1
89709-60070

KZJ9#,VZJ9#..LHD

 1
89709-60410

KZJ9#,VZJ9#..LHD

W(SPARE WHEEL CARRIER W/KEY LOCK)

 1
89709-60430

KZJ9#,VZJ9#..LHD

 1
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-60040

KZJ9#,VZJ9#..LHD

 1
89780-60070

KZJ9#,VZJ9#..LHD

 1
89782 - COIL, TRANSPONDER KEY
89782-60022

KZJ9#,VZJ9#

 1
89782-60022

KDJ9#,KZJ9#,VZJ9#

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-60020

KZJ9#,VZJ9#

 1
89783-60070

VZJ9#

 1
89785 - TRANSMITTER, TRANSPONDER KEY MASTER
89785-26020

KZJ9#,VZJ9#

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60050

KDJ9#,KZJ9#,VZJ9#

 1
89786-60050

KZJ9#,VZJ9#

 1
Common parts
93319-14012
93319-15012
93560-15014

(9906- )

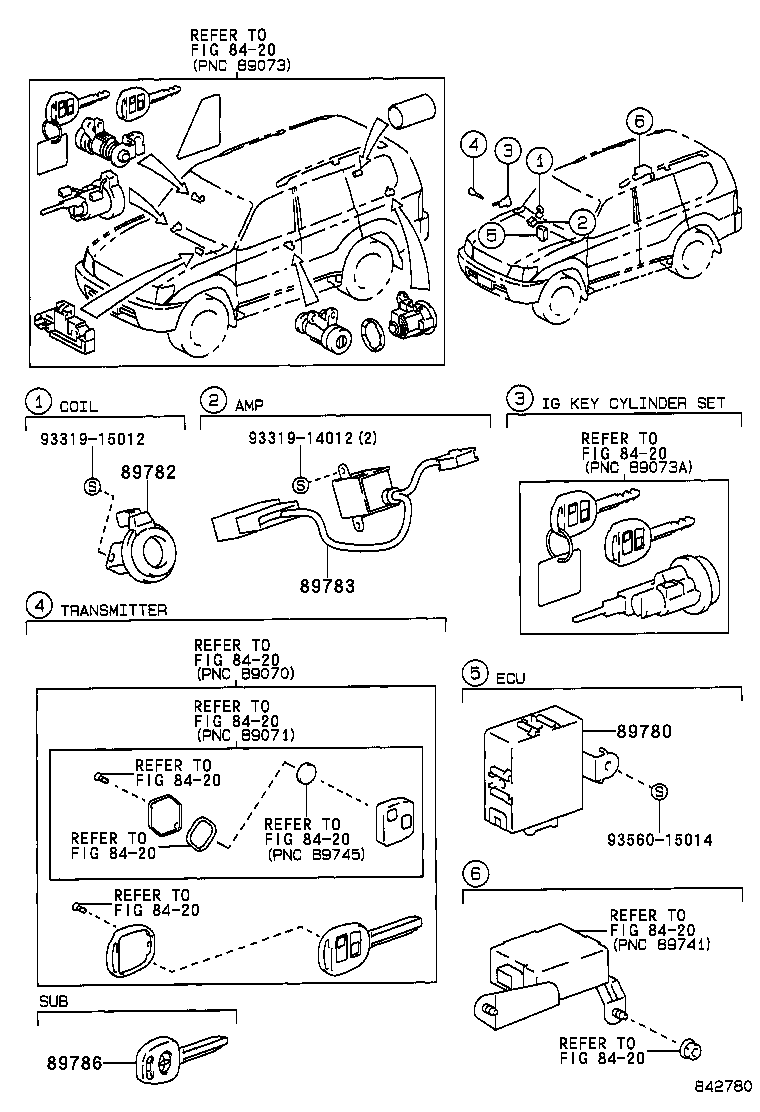

Click highlighted areas on diagram

diagram 8420 8420 8420 8420 8420 8420 8420 8420 8420 8420 89780 89782 89783 89786 9331914012 9331915012 9356015014
Part # Description Qty Price
89780 - COMPUTER ASSY, TRANSPONDER KEY
89780-60040

KZJ9#,VZJ9#..LHD

 1
89780-60070

KZJ9#,VZJ9#..LHD

 1
89782 - COIL, TRANSPONDER KEY
89782-60022

KZJ9#,VZJ9#

 1
89782-60022

KDJ9#,KZJ9#,VZJ9#

 1
89783 - AMPLIFIER, TRANSPONDER KEY
89783-60020

KZJ9#,VZJ9#

 1
89783-60070

VZJ9#

 1
89786 - TRANSMITTER, TRANSPONDER KEY SUB
89786-60050

KDJ9#,KZJ9#,VZJ9#

 1
89786-60050

KZJ9#,VZJ9#

 1
Common parts
93319-14012
93319-15012
93560-15014
Linked diagrams
8420
