Toyota Land cruiser 90 VZJ95 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
EU
LAND CRUISER 90
VZJ95L-GKMNKW (1996)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

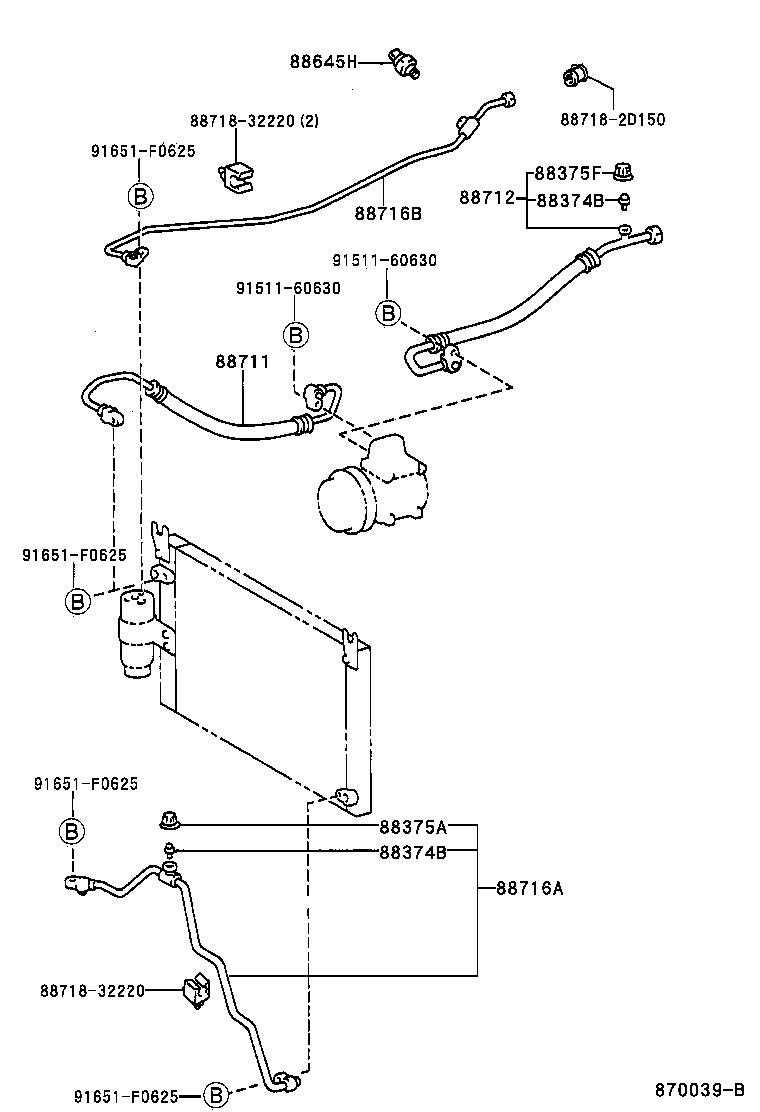

ILLUST NO. 2 OF 4(9604- )VZJ9#..LHD

Click highlighted areas on diagram

SINGLE AIR CONDITIONER

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88374-30010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88374B - VALVE, SERVICE, NO.1
88374-30010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88374-30010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88375-30280	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	VZJ95..LHD;KDJ9#,KZJ9#,VZJ90	06/1999 - 09/2002	1
88645-60030	VZJ95..LHD DUAL AIR CONDITIONER	08/2001 - 09/2002	1
88645-34010	VZJ95..LHD;KZJ9#,VZJ90	04/1996 - 06/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35490	VZJ9#..LHD	04/1996 - 06/1999	1
88711-35490	VZJ9#..LHD	06/1999 - 09/2002	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35470	VZJ9#..LHD	04/1996 - 07/1998	1
88712-35470	VZJ9#..LHD DEALER OPTION	06/1999 - 09/2002	1
88712-35470	VZJ9#..LHD DEALER OPTION	07/1998 - 06/1999	1
88712-35540	VZJ9#..LHD	06/1999 - 09/2002	2
88712-35540	VZJ9#..LHD MAKER OPTION	07/1998 - 06/1999	1
88712-6A110	VZJ95..LHD DUAL AIR CONDITIONER	06/1999 - 09/2002	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A710	KZJ95,VZJ95..LHD DUAL AIR CONDITIONER	06/1999 - 08/2000	1
88716-6A670	KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
88716-6A670	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
88716-6B260	KDJ95,KZJ95,VZJ95..LHD DUAL AIR CONDITIONER	08/2000 - 09/2002	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A720	VZJ9#..LHD	04/1996 - 09/1997	1
88716-6A721	VZJ9#..LHD	09/1997 - 07/1998	1
88716-35390	VZJ9#..LHD MAKER OPTION	07/1998 - 06/1999	1
88716-6A721	VZJ9#..LHD DEALER OPTION	07/1998 - 06/1999	1
88716-6A680	KZJ95,VZJ95..LHD MAKER OPTION,DUAL AIR CONDITIONER	06/1999 - 08/2000	1
88716-35390	VZJ9#..LHD MAKER OPTION	06/1999 - 09/2002	1
88716-6A690	KZJ95,VZJ95..LHD	08/2000 - 09/2002	1
88716-6A721	VZJ9#..LHD DEALER OPTION	06/1999 - 09/2002	1
Common parts
88718-2D150
88718-32220
91511-60630
91651-F0625

ILLUST NO. 1 OF 4(9906- )

Click highlighted areas on diagram

DUAL AIR CONDITIONER(CONDENSER)

Part #	Description	Period	Qty
88453 - FAN, COOLING (FOR CONDENSER)
88453-60010	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88454A - SHROUD, FAN
88454-60010	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88460 - CONDENSER ASSY, COOLER
88460-60240	KZJ9#,VZJ9#	05/1996 - 06/1999	1
88460-60240	KDJ9#,KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
88460-60250	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER	06/1999 - 09/2002	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60600	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,RH	06/1999 - 09/2002	1
88688-60570	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,LH	06/1999 - 09/2002	1
88688-60570	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88688-60570	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60600	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,RH	06/1999 - 09/2002	1
88688-60570	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,LH	06/1999 - 09/2002	1
88688-60570	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88688-60570	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-35310	KZJ9#,VZJ9#	04/1996 - 04/1997	1
88688-35310	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-35300	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88688-35300	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470	KZJ90..LHD;KDJ95,KZJ95,VZJ9# DUAL AIR CONDITIONER	06/1999 - 09/2002	3
88688-26470	KZJ9#,VZJ9#	04/1996 - 06/1999	4
88688-26470	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470	KZJ90..LHD;KDJ95,KZJ95,VZJ9# DUAL AIR CONDITIONER	06/1999 - 09/2002	3
88688-26470	KZJ9#,VZJ9#	04/1996 - 06/1999	4
88688-26470	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470	KZJ90..LHD;KDJ95,KZJ95,VZJ9# DUAL AIR CONDITIONER	06/1999 - 09/2002	3
88688-26470	KZJ9#,VZJ9#	04/1996 - 06/1999	4
88688-26470	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	4
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88467-35020	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88467-35020	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88467-35020	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88467-35020	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88471-30370	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER	06/1999 - 09/2002	1
88471-34010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60130	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88472-60140	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
16363-64080	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88590 - BLOWER ASSY, W/SHROUD
88590-60020	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-20081	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
Common parts
82711-2B640
88718-32220
88895-89102
88897-50020
90091-20609
90091-20617
90099-04117
90099-04119
90099-04465
90099-32128
91651-F0616
91651-G0635

ILLUST NO. 1 OF 4(9604- )

Click highlighted areas on diagram

SINGLE AIR CONDITIONER(CONDENSER)

Part #	Description	Period	Qty
88460 - CONDENSER ASSY, COOLER
88460-60240	KZJ9#,VZJ9#	05/1996 - 06/1999	1
88460-60240	KDJ9#,KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
88460-60250	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER	06/1999 - 09/2002	1
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60600	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,RH	06/1999 - 09/2002	1
88688-60570	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,LH	06/1999 - 09/2002	1
88688-60570	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88688-60570	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88460B - BRACKET, COOLER CONDENSER, NO.1
88688-60600	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,RH	06/1999 - 09/2002	1
88688-60570	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER,LH	06/1999 - 09/2002	1
88688-60570	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88688-60570	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88460C - BRACKET, COOLER CONDENSER, NO.2
88688-35310	KZJ9#,VZJ9#	04/1996 - 04/1997	1
88688-35310	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88460D - BRACKET, COOLER CONDENSER, NO.3
88688-35300	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88688-35300	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470	KZJ90..LHD;KDJ95,KZJ95,VZJ9# DUAL AIR CONDITIONER	06/1999 - 09/2002	3
88688-26470	KZJ9#,VZJ9#	04/1996 - 06/1999	4
88688-26470	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470	KZJ90..LHD;KDJ95,KZJ95,VZJ9# DUAL AIR CONDITIONER	06/1999 - 09/2002	3
88688-26470	KZJ9#,VZJ9#	04/1996 - 06/1999	4
88688-26470	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470	KZJ90..LHD;KDJ95,KZJ95,VZJ9# DUAL AIR CONDITIONER	06/1999 - 09/2002	3
88688-26470	KZJ9#,VZJ9#	04/1996 - 06/1999	4
88688-26470	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	4
88460G - BRACKET, COOLER CONDENSER, NO.5
88688-26470	KZJ90..LHD;KDJ95,KZJ95,VZJ9# DUAL AIR CONDITIONER	06/1999 - 09/2002	3
88688-26470	KZJ9#,VZJ9#	04/1996 - 06/1999	4
88688-26470	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	4
88461A - CORE, COOLER CONDENSER
88461-60010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88461-60010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88467-35020	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88467B - INSULATOR, COOLER CONDENSER MOUNTING
88467-35020	KZJ9#,VZJ9#	04/1996 - 06/1999	2
88467-35020	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88471 - TANK, RECEIVER AIR CONDITIONER
88471-34010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88471-30370	KDJ95,KZJ95,VZJ95 DUAL AIR CONDITIONER	06/1999 - 09/2002	1
88471-34010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88472 - BRACKET, RECEIVER TANK, NO.1
88472-60130	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88472-60140	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
Common parts
88718-32160
88895-89102
90091-20609
90091-20617
90099-04465
90099-32128
91651-F0616

ILLUST NO. 3 OF 4(9906- )

Click highlighted areas on diagram

DUAL AIR CONDITIONER---REAR

Part #	Description	Period	Qty
88726B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A770	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88726C - PIPE, COOLER REFRIGERANT LIQUID, C
88716-6B110	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88727B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-6A350	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
88727C - PIPE, COOLER REFRIGERANT SUCTION, C
88717-6A070	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
Common parts
88718-60780
88718-60790
88718-60800
88718-60810
88718-60830
88718-60840
88718-6A500
90179-06161
91633-G0640
93315-54010

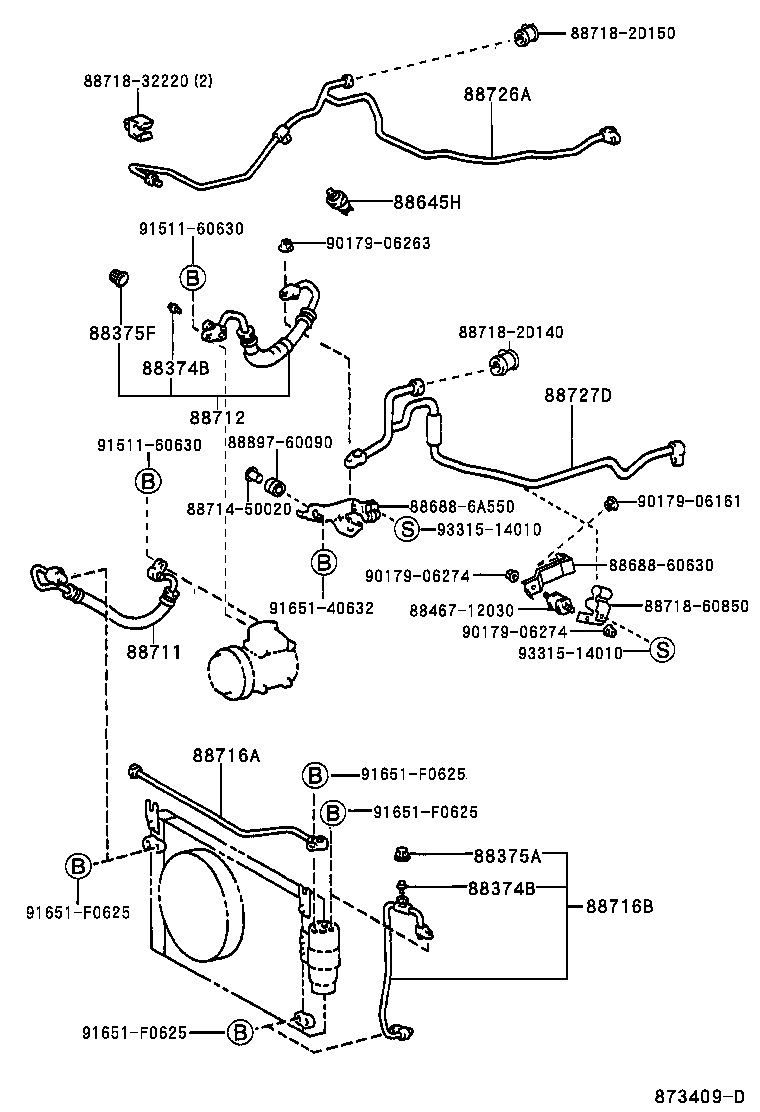

ILLUST NO. 2 OF 4(9906- )VZJ9#..LHD

Click highlighted areas on diagram

DUAL AIR CONDITIONER---FRONT

Part #	Description	Period	Qty
88374B - VALVE, SERVICE, NO.1
88374-30010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88374-30010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88374B - VALVE, SERVICE, NO.1
88374-30010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
88374-30010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88375-30280	KZJ9#,VZJ9#	04/1996 - 06/1999	1
88375F - CAP, SERVICE VALVE, NO.3
88375-30290	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88645H - SWITCH, PRESSURE NO.1
88645-34010	VZJ95..LHD;KDJ9#,KZJ9#,VZJ90	06/1999 - 09/2002	1
88645-60030	VZJ95..LHD DUAL AIR CONDITIONER	08/2001 - 09/2002	1
88645-34010	VZJ95..LHD;KZJ9#,VZJ90	04/1996 - 06/1999	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-35490	VZJ9#..LHD	04/1996 - 06/1999	1
88711-35490	VZJ9#..LHD	06/1999 - 09/2002	1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-35470	VZJ9#..LHD	04/1996 - 07/1998	1
88712-35470	VZJ9#..LHD DEALER OPTION	06/1999 - 09/2002	1
88712-35470	VZJ9#..LHD DEALER OPTION	07/1998 - 06/1999	1
88712-35540	VZJ9#..LHD	06/1999 - 09/2002	2
88712-35540	VZJ9#..LHD MAKER OPTION	07/1998 - 06/1999	1
88712-6A110	VZJ95..LHD DUAL AIR CONDITIONER	06/1999 - 09/2002	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6A710	KZJ95,VZJ95..LHD DUAL AIR CONDITIONER	06/1999 - 08/2000	1
88716-6A670	KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
88716-6A670	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
88716-6B260	KDJ95,KZJ95,VZJ95..LHD DUAL AIR CONDITIONER	08/2000 - 09/2002	1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-6A720	VZJ9#..LHD	04/1996 - 09/1997	1
88716-6A721	VZJ9#..LHD	09/1997 - 07/1998	1
88716-35390	VZJ9#..LHD MAKER OPTION	07/1998 - 06/1999	1
88716-6A721	VZJ9#..LHD DEALER OPTION	07/1998 - 06/1999	1
88716-6A680	KZJ95,VZJ95..LHD MAKER OPTION,DUAL AIR CONDITIONER	06/1999 - 08/2000	1
88716-35390	VZJ9#..LHD MAKER OPTION	06/1999 - 09/2002	1
88716-6A690	KZJ95,VZJ95..LHD	08/2000 - 09/2002	1
88716-6A721	VZJ9#..LHD DEALER OPTION	06/1999 - 09/2002	1
88726A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-6B220	KDJ95,KZJ95,VZJ95..LHD	06/1999 - 09/2002	1
88727D - PIPE, COOLER REFRIGERANT SUCTION, D
88717-6A410	KDJ95,KZJ95,VZJ95..LHD	06/1999 - 09/2002	1
Common parts
88467-12030
88688-60630
88688-6A550
88714-50020
88718-2D140
88718-2D150
88718-32220
88718-60850
88897-60090
90179-06161
90179-06263
90179-06274
91511-60630
91651-40632
91651-F0625
93315-14010

ILLUST NO. 4 OF 4(9604- )

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90099-14119
90099-14120
90099-14121
90099-14122

VZJ95L-GKMNKW (1996)

ILLUST NO. 2 OF 4(9604- )VZJ9#..LHD

ILLUST NO. 1 OF 4(9906- )

ILLUST NO. 1 OF 4(9604- )

ILLUST NO. 3 OF 4(9906- )

ILLUST NO. 2 OF 4(9906- )VZJ9#..LHD

ILLUST NO. 4 OF 4(9604- )

Part Price Details
