VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90
ILLUST NO. 3 OF 5(9604- )
REAR CONTROL & REAR AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55519 - PLATE, HEATER CONTROL NAME | ||||
| 55519-60250 |
KZJ9#,VZJ9# |
1 | ||
| 55519-60250 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55900A - CONTROL & ACCESSORY ASSY, HEATER | ||||
| 55900-60430 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55900-60430 |
KZJ9#,VZJ9# |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55905-89115 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55905-89115 |
KZJ9#,VZJ9# |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 87123-26010 |
KDJ95,KZJ95,VZJ95 |
2 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87211-60230 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 87211-60230 |
KZJ9#,VZJ9# |
1 | ||
| 88607A - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88610C - SWITCH ASSY, COOLER CONTROL | ||||
| 88610-60090E0 |
KDJ95,VZJ95 OAK,TRIM40,41 |
1 | ||
| 88610-60090E0 |
VZJ95 OAK,TRIM4# |
1 | ||
| 88610-60090B0 |
KDJ95,KZJ95,VZJ95 MD. MOON MIST,TRIM1# |
1 | ||
| 88610-60090E0 |
KDJ95,VZJ95 OAK,TRIM4# |
1 | ||
| Common parts | ||||
| 87124-20020 | ||||
| 90119-06479 | ||||
| 90167-50020 | ||||
| 91626-40618 | ||||
| 93219-13006 | ||||
| Linked diagrams | ||||
| 8401 | ||||

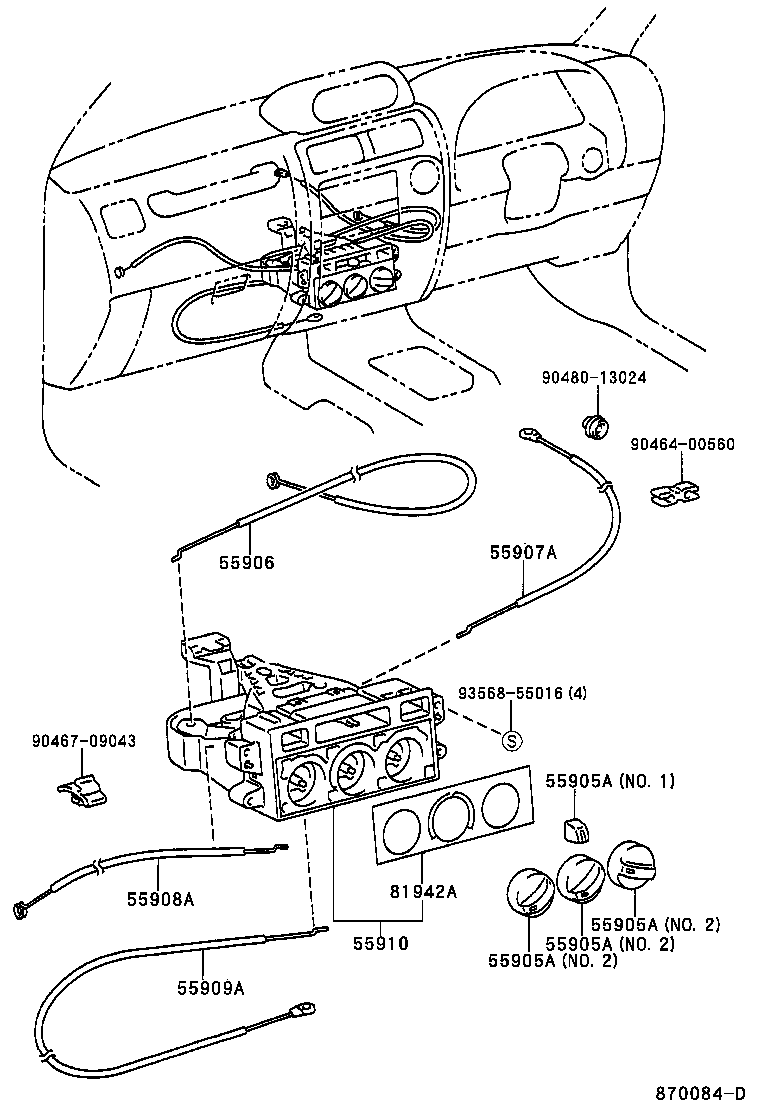

ILLUST NO. 1 OF 5(9604- )
FRONT CONTROL--MANUAL A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55906 - CABLE SUB-ASSY, HEATER CONTROL | ||||
| 55906-60100 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55906-60100 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-60150 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55907-60150 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55907-60150 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-60080 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55908-60080 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-60080 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55909-60080 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-60160 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55910-60160 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 81942A - SHEET, HEATER CONTROL NAME, NO.1 | ||||
| 81942-60020 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 81942-60020 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 90464-00560 | ||||
| 90467-09043 | ||||
| 90480-13024 | ||||
| 93568-55016 | ||||

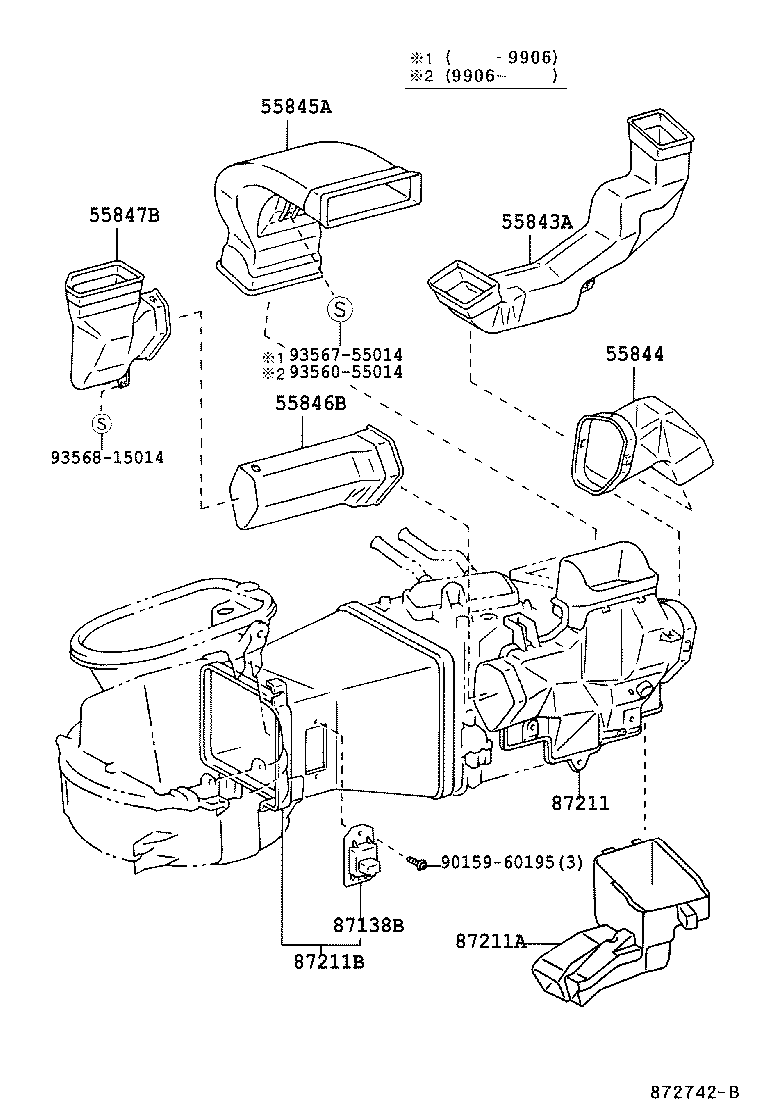

ILLUST NO. 2 OF 5(9604- )
FRONT AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-60070 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55843-60070 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-60100 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55844-60100 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55845A - DUCT, HEATER TO REGISTER, NO.3 | ||||
| 55845-60070 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55845-60070 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55846B - DUCT, HEATER TO REGISTER, NO.4 | ||||
| 55846-35010 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55846-35010 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55847B - DUCT, HEATER TO REGISTER, NO.5 | ||||
| 55847-60070 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55847-60070 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 87138B - RESISTOR, HEATER BLOWER | ||||
| 87138-35050 |
KZJ9#,VZJ9# |
1 | ||
| 87138-35050 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-35260 |
KDJ9#,VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER) |
1 | ||
| 87211-35120 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35270 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35270 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-35140 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35250 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35250 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35230 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 87211-35150 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 87211-35150 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 90159-60195 | ||||
| 93560-55014 | ||||
| 93567-55014 | ||||
| 93568-15014 | ||||

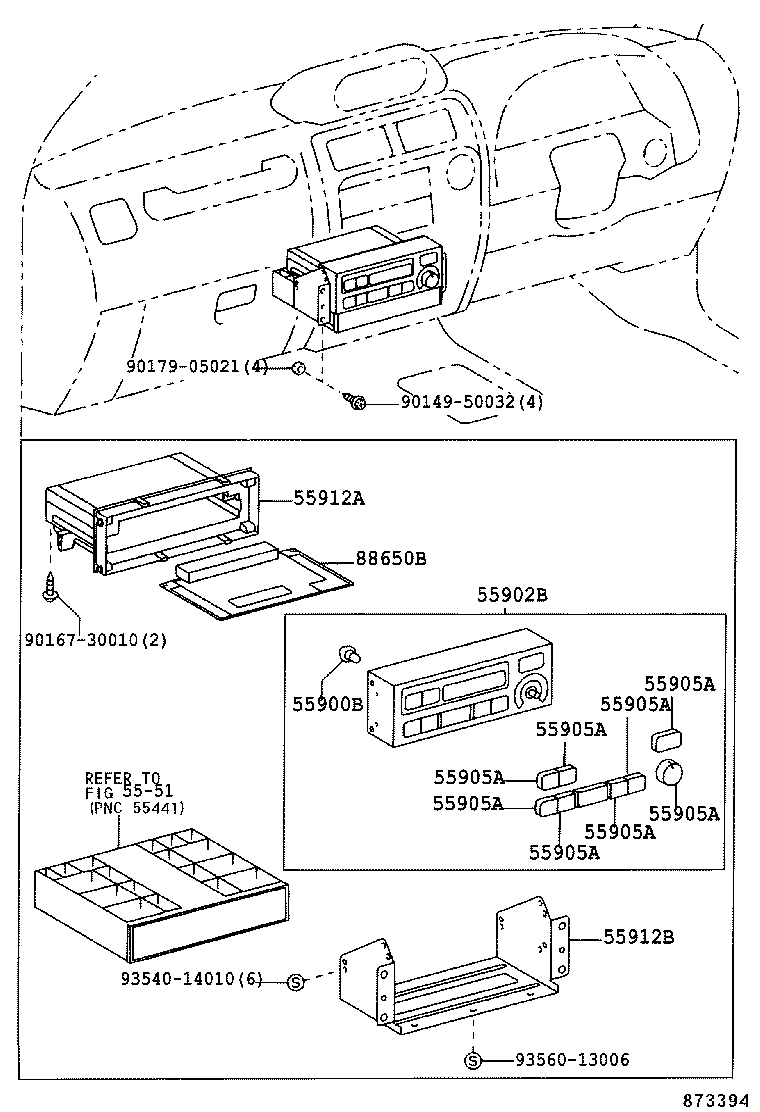

ILLUST NO. 1 OF 5(9906- )
FRONT CONTROL AUTO A/C
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55900B - BULB, AIR CONDITIONER CONTROL | ||||
| 90010-05101 |
VZJ9#..LHD 14V1.12W,W/GREEN CAP |
4 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-60040 |
KDJ9#,VZJ9#..LHD |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55905A - KNOB, HEATER CONTROL | ||||
| 55905-2B040 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60160 |
KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-60200 |
VZJ9#..LHD REAR DEF |
1 | ||
| 55905-60190 |
VZJ9#..LHD FRONT DEF |
1 | ||
| 55905-60210 |
VZJ9#..LHD MODE |
1 | ||
| 55905-60160 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
3 | ||
| 55905-2B040 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 55905-60170 |
VZJ9#..LHD TEMP |
1 | ||
| 55905-60330 |
KDJ9#,VZJ9#..LHD A/C |
1 | ||
| 55905-60220 |
VZJ9#..LHD OFF |
1 | ||
| 55905-60320 |
KDJ9#,VZJ9#..LHD AUTO |
1 | ||
| 55905-60230 |
VZJ9#..LHD RECIRCU/FRESH |
1 | ||
| 55912A - HOUSING, HEATER CONTROL | ||||
| 55912-60020 |
KDJ9#,VZJ9# |
1 | ||
| 55912B - BRACKET, HEATER CONTROL BASE, RH | ||||
| 55914-60010 |
KDJ9#,VZJ9# |
1 | ||
| 88650B - AMPLIFIER ASSY, AIRCONDITIONER | ||||
| 88650-60550 |
KDJ9#,VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90167-30010 | ||||
| 90179-05021 | ||||
| 93540-14010 | ||||
| 93560-13006 | ||||
| Linked diagrams | ||||
| 5551 | ||||
ILLUST NO. 4 OF 5(9604- )
REAR COOLER AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60050 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88566-60100 |
KDJ95,KZJ95,VZJ95 NO.5 |
1 | ||
| 88566-60060 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88566-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88566-60080 |
KDJ95,KZJ95,VZJ95 NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60050 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88566-60100 |
KDJ95,KZJ95,VZJ95 NO.5 |
1 | ||
| 88566-60060 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88566-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88566-60080 |
KDJ95,KZJ95,VZJ95 NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60050 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88566-60100 |
KDJ95,KZJ95,VZJ95 NO.5 |
1 | ||
| 88566-60060 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88566-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88566-60080 |
KDJ95,KZJ95,VZJ95 NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60050 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88566-60100 |
KDJ95,KZJ95,VZJ95 NO.5 |
1 | ||
| 88566-60060 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88566-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88566-60080 |
KDJ95,KZJ95,VZJ95 NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60050 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88566-60100 |
KDJ95,KZJ95,VZJ95 NO.5 |
1 | ||
| 88566-60060 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88566-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88566-60080 |
KDJ95,KZJ95,VZJ95 NO.4 |
1 | ||
| 88566A - DUCT, COOLER AIR, NO.1 | ||||
| 88566-60050 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88566-60100 |
KDJ95,KZJ95,VZJ95 NO.5 |
1 | ||
| 88566-60060 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88566-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88566-60080 |
KDJ95,KZJ95,VZJ95 NO.4 |
1 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-60120E0 |
VZJ95 MD.OAK,TRIM4# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM40,41 |
4 | ||
| 88570-60120B0 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM4# |
4 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-60120E0 |
VZJ95 MD.OAK,TRIM4# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM40,41 |
4 | ||
| 88570-60120B0 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM4# |
4 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-60120E0 |
VZJ95 MD.OAK,TRIM4# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM40,41 |
4 | ||
| 88570-60120B0 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM4# |
4 | ||
| 88570E - GRILLE ASSY, AIR OUTLET | ||||
| 88570-60120E0 |
VZJ95 MD.OAK,TRIM4# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM40,41 |
4 | ||
| 88570-60120B0 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
4 | ||
| 88570-60120E0 |
KDJ95,VZJ95 MD.OAK,TRIM4# |
4 | ||
| Common parts | ||||
| 90467-0601101 | ||||
| 90467-06051 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 5 OF 5(9906- )
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-32170 |
KDJ9#,VZJ9# |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
VZJ9#..LHD |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-32160 |
VZJ9#..LHD |
1 | ||
| 88625K - THERMISTOR, COOLER | ||||
| 88790-35040 |
VZJ9#..LHD |
1 | ||
| 88626B - HOLDER, THERMISTOR | ||||
| 88626-60020E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM40,41 |
1 | ||
| 88626-60020B0 |
KDJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 88626-60020E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 89437D - COVER, SENSOR | ||||
| 89437-60040E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 89437-60040E0 |
VZJ95..LHD;KDJ9#,VZJ90 OAK,TRIM4# |
1 | ||
| 89437-60040B1 |
VZJ9#..LHD MD. MOON MIST,TRIM1# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
