VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90
ILLUST NO. 2 OF 4(9906- )
REAR--AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-60180 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-60140 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-60831 |
KZJ95,VZJ95 DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60060 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-60040 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88521-60030 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88521-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-60040 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88521-60030 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88521-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-60040 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88521-60030 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88521-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60150 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-60830 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-60090 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88630W - RELAY ASSY | ||||
| 88630-16090 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1 | ||||
| 88650-60320 |
VZJ95 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60780 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6A790 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-6A090 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| Common parts | ||||
| 88626-28010 | ||||
| 88891-60020 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 91626-60616 | ||||
| Linked diagrams | ||||
| 8715 | ||||
ILLUST NO. 2 OF 4(9906- )
REAR--MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87103A - MOTOR SUB-ASSY, COOLING UNIT, W/FAN | ||||
| 87103-60180 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-60040 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 87138-60050 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 87138D - RESISTOR, BLOWER (REAR) | ||||
| 87138-60040 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 87138-60050 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88501R - EVAPORATOR SUB-ASSY (REAR) | ||||
| 88501-60140 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88510T - UNIT ASSY, COOLING (REAR) | ||||
| 88510-60831 |
KZJ95,VZJ95 DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88515B - VALVE, REAR COOLING UNIT EXPANSION | ||||
| 88515-60060 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-60040 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88521-60030 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88521-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-60040 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88521-60030 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88521-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88521 - CASE, COOLER UNIT | ||||
| 88521-60040 |
KDJ95,KZJ95,VZJ95 NO.2 |
1 | ||
| 88521-60030 |
KDJ95,KZJ95,VZJ95 NO.1 |
1 | ||
| 88521-60070 |
KDJ95,KZJ95,VZJ95 NO.3 |
1 | ||
| 88539C - HOSE, COOLER UNIT DRAIN, NO.2 | ||||
| 88539-60150 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88605S - HARNESS SUB-ASSY, WIRING AIR CONDITIONER | ||||
| 88605-60830 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88625A - THERMISTOR, COOLER NO.2 | ||||
| 88625-60090 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88630W - RELAY ASSY | ||||
| 88630-16090 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88710B - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60780 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-6A790 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 88717F - PIPE, COOLER REFRIGERANT SUCTION, F | ||||
| 88717-6A090 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| Common parts | ||||
| 88626-28010 | ||||
| 88891-60020 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 91626-60616 | ||||
| Linked diagrams | ||||
| 8715 | ||||

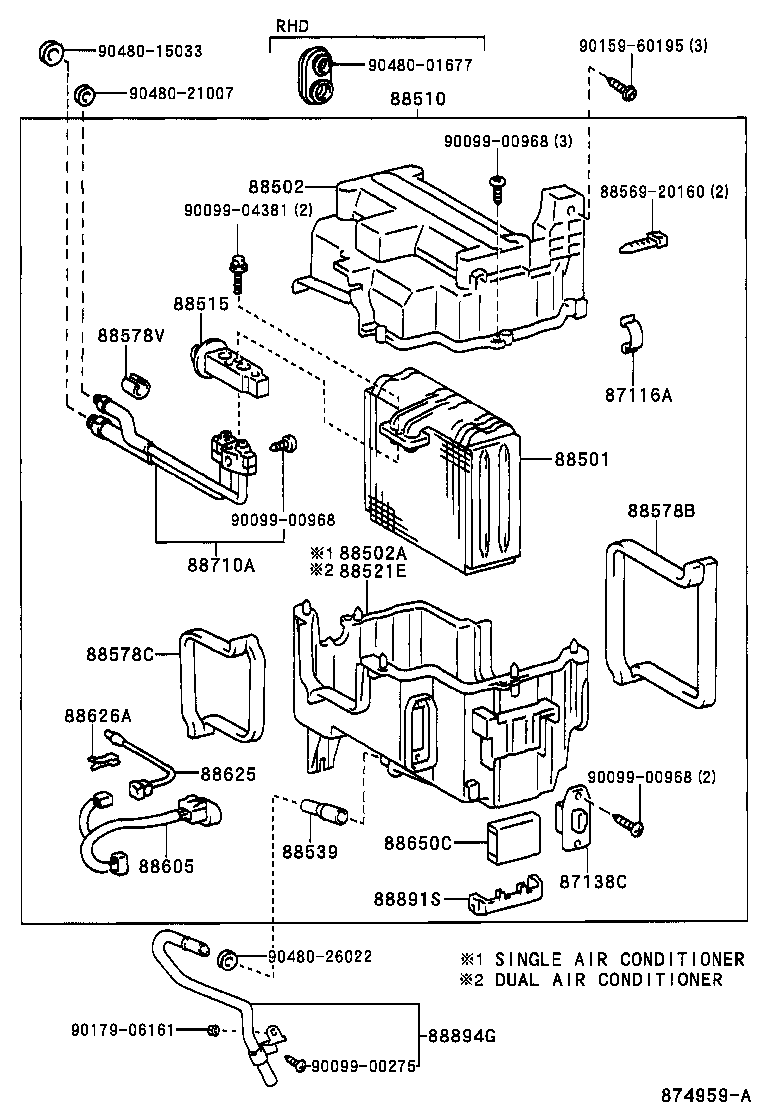

ILLUST NO. 1 OF 4(9906- )
FRONT--AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
KZJ9#,VZJ9# |
3 | ||
| 87116-14010 |
KDJ9#,KZJ9#,VZJ9# |
3 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-35050 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88501-35050 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-35140 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88502-35030 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35030 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35140 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88502-35030 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-35040 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35040 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88502-35040 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35150 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88502-35150 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-35580 |
VZJ9#..LHD |
1 | ||
| 88510-35561 |
VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510-35580 |
VZJ9#..LHD DEALER OPTION |
1 | ||
| 88510-35730 |
VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510-6A260 |
VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER) |
1 | ||
| 88510-35730 |
VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510-6A230 |
KZJ95,VZJ95..LHD MAKER OPTION,DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88510-35580 |
VZJ9#..LHD DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
KZJ9#,VZJ9# |
1 | ||
| 88515-20100 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-60060 |
KZJ95,VZJ95..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89113 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 88539-89113 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-35060 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 88578-35060 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-35050 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-35220 |
VZJ9# |
1 | ||
| 88605-35220 |
VZJ9# |
1 | ||
| 88605-60871 |
KZJ95,VZJ95 DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88605-35290 |
VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88625-3A090 |
KZJ9#,VZJ9# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88626-28010 |
KZJ9#,VZJ9# |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-35010 |
VZJ95..LHD;KDJ9#,VZJ90 NO.1 |
1 | ||
| 88630-35010 |
KDJ9#,VZJ9# NO.1 |
1 | ||
| 88630 - RELAY ASSY, COOLER | ||||
| 88630-35010 |
VZJ95..LHD;KDJ9#,VZJ90 NO.1 |
1 | ||
| 88630-35010 |
KDJ9#,VZJ9# NO.1 |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35380 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88710-35290 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88710-35380 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88710-35290 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88710-35290 |
KDJ9#,KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88710-6A310 |
KZJ95,VZJ95..LHD MAKER OPTION,DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88750B - TRANSISTOR ASSY, BLOWER RESISTOR | ||||
| 88750-35010 |
KDJ9#,VZJ9# |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-35010 |
KZJ9#,VZJ95;KDJ9#,VZJ90..LHD |
1 | ||
| 88891-60010 |
KZJ95,VZJ95 MAKER OPTION,DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88891-35010 |
KZJ9#,VZJ9# |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-60010 |
VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 88718-32450 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90159-60195 | ||||
| 90179-06161 | ||||
| 90480-01677 | ||||
| 90480-26022 | ||||

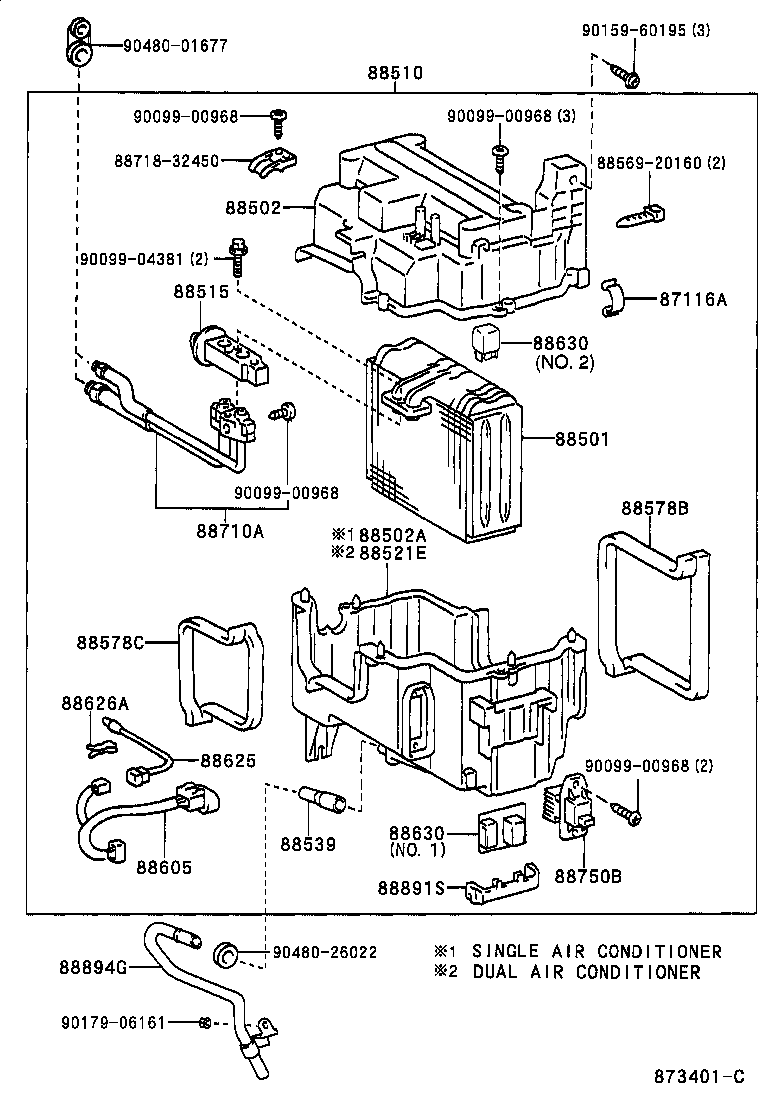

ILLUST NO. 1 OF 4(9604- )
FRONT--MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87116A - SPRING, HOLDING (FOR COOLER UNIT CASE) | ||||
| 87116-14010 |
KZJ9#,VZJ9# |
3 | ||
| 87116-14010 |
KDJ9#,KZJ9#,VZJ9# |
3 | ||
| 87138C - RESISTOR, BLOWER | ||||
| 87138-35050 |
KZJ9#,VZJ9# |
1 | ||
| 87138-35050 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-35050 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88501-35050 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-35140 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88502-35030 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35030 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35140 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88502-35030 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88502A - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-35040 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35040 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88502-35040 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88502-35150 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88502-35150 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-35580 |
VZJ9#..LHD |
1 | ||
| 88510-35561 |
VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510-35580 |
VZJ9#..LHD DEALER OPTION |
1 | ||
| 88510-35730 |
VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510-6A260 |
VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER) |
1 | ||
| 88510-35730 |
VZJ9#..LHD MAKER OPTION |
1 | ||
| 88510-6A230 |
KZJ95,VZJ95..LHD MAKER OPTION,DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88510-35580 |
VZJ9#..LHD DEALER OPTION |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-20100 |
KZJ9#,VZJ9# |
1 | ||
| 88515-20100 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88521E - CASE SUB-ASSY, COOLING UNIT | ||||
| 88521-60060 |
KZJ95,VZJ95..LHD |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-89113 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 88539-89113 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88578B - PACKING, COOLING UNIT, NO.1 | ||||
| 88578-35060 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 88578-35060 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88578C - PACKING, COOLING UNIT, NO.2 | ||||
| 88578-35050 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88578V - PACKING, COOLING UNIT, NO.3 | ||||
| 88578-35070 |
VZJ9#;KZJ9#..RHD |
1 | ||
| 88578-35070 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-35220 |
VZJ9# |
1 | ||
| 88605-35220 |
VZJ9# |
1 | ||
| 88605-60871 |
KZJ95,VZJ95 DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88605-35290 |
VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER) |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-3A090 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88625-3A090 |
KZJ9#,VZJ9# |
1 | ||
| 88626A - HOLDER, THERMISTOR | ||||
| 88626-28010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 88626-28010 |
KZJ9#,VZJ9# |
1 | ||
| 88650C - AMPLIFIER SUB-ASSY, AIRCONDITIONER | ||||
| 88650-35060 |
VZJ9# |
1 | ||
| 88650-35060 |
VZJ9# |
1 | ||
| 88650-60270 |
KZJ95,VZJ95 DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88710A - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-35380 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88710-35290 |
KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88710-35380 |
KZJ9#,VZJ9#..LHD MAKER OPTION |
1 | ||
| 88710-35290 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 88710-35290 |
KDJ9#,KZJ9#,VZJ9#..LHD DEALER OPTION |
1 | ||
| 88710-6A310 |
KZJ95,VZJ95..LHD MAKER OPTION,DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88891S - COVER, COOLER, NO.1 | ||||
| 88891-35010 |
KZJ9#,VZJ95;KDJ9#,VZJ90..LHD |
1 | ||
| 88891-60010 |
KZJ95,VZJ95 MAKER OPTION,DUAL MANUAL AIR CONDITIONER |
1 | ||
| 88891-35010 |
KZJ9#,VZJ9# |
1 | ||
| 88894G - CONNECTOR, DRAIN HOSE | ||||
| 88894-60010 |
VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 88569-20160 | ||||
| 90099-00275 | ||||
| 90099-00968 | ||||
| 90099-04381 | ||||
| 90159-60195 | ||||
| 90179-06161 | ||||
| 90480-01677 | ||||
| 90480-15033 | ||||
| 90480-21007 | ||||
| 90480-26022 | ||||
ILLUST NO. 4 OF 4(9604- )
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90099-14122 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
