Toyota Land cruiser 90 VZJ95 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Manufacturers Home
Toyota
EU
LAND CRUISER 90
VZJ95L-GKMNKW (1996)
8712 - HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 4(9906- )

Click highlighted areas on diagram

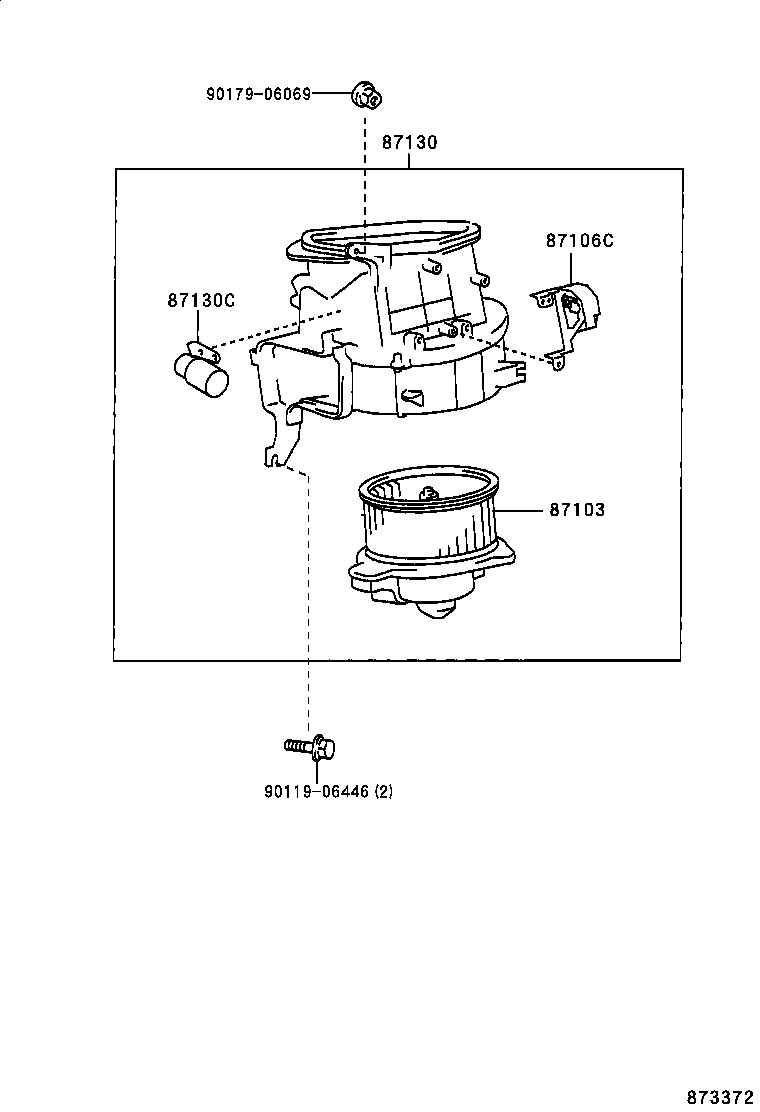

FRONT BLOWER(AUTO A/C)

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-60171	KZJ9#,VZJ9#..LHD	02/1997 - 07/1998	1
87103-60170	KZJ9#,VZJ9#..LHD	04/1996 - 02/1997	1
87103-60172	KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..LHD	06/1999 - 09/2002	1
87103-60172	KZJ9#,VZJ9#..LHD	08/1998 - 06/1999	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-60160	KDJ9#,VZJ9#..LHD	08/2000 - 09/2001	1
87106-60160	VZJ9#..LHD	09/2001 - 09/2002	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-60310	KDJ9#,KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
87130-60310	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
Common parts
90119-06446
90179-06069

ILLUST NO. 3 OF 4(9604- )

Click highlighted areas on diagram

REAR

Part #	Description	Period	Qty
55909B - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL
55909-60070	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
55909-60070	KZJ9#,VZJ9#	04/1996 - 06/1999	1
87104R - MOTOR SUB-ASSY, REAR HEATER BLOWER
87104-35010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
87104-35010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
87105R - FAN SUB-ASSY, REAR HEATER BLOWER
88541-95J00	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
88541-95J00	KZJ9#,VZJ9#	04/1996 - 06/1999	1
87107R - UNIT SUB-ASSY, REAR HEATER
87107-35040	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
87107-35040	KZJ9#,VZJ9#	04/1996 - 06/1999	1
87111A - CASE, HEATER
87111-60020	KZJ9#,VZJ9# UPPER	04/1996 - 06/1999	1
87111-35210	KDJ9#,KZJ9#,VZJ9# CENTER	06/1999 - 09/2002	1
87111-35200	KZJ9#,VZJ9# LOWER	04/1996 - 06/1999	1
87111-35200	KDJ9#,KZJ9#,VZJ9# LOWER	06/1999 - 09/2002	1
87111-60020	KDJ9#,KZJ9#,VZJ9# UPPER	06/1999 - 09/2002	1
87111-35210	KZJ9#,VZJ9# CENTER	04/1996 - 06/1999	1
87111A - CASE, HEATER
87111-60020	KZJ9#,VZJ9# UPPER	04/1996 - 06/1999	1
87111-35210	KDJ9#,KZJ9#,VZJ9# CENTER	06/1999 - 09/2002	1
87111-35200	KZJ9#,VZJ9# LOWER	04/1996 - 06/1999	1
87111-35200	KDJ9#,KZJ9#,VZJ9# LOWER	06/1999 - 09/2002	1
87111-60020	KDJ9#,KZJ9#,VZJ9# UPPER	06/1999 - 09/2002	1
87111-35210	KZJ9#,VZJ9# CENTER	04/1996 - 06/1999	1
87111A - CASE, HEATER
87111-60020	KZJ9#,VZJ9# UPPER	04/1996 - 06/1999	1
87111-35210	KDJ9#,KZJ9#,VZJ9# CENTER	06/1999 - 09/2002	1
87111-35200	KZJ9#,VZJ9# LOWER	04/1996 - 06/1999	1
87111-35200	KDJ9#,KZJ9#,VZJ9# LOWER	06/1999 - 09/2002	1
87111-60020	KDJ9#,KZJ9#,VZJ9# UPPER	06/1999 - 09/2002	1
87111-35210	KZJ9#,VZJ9# CENTER	04/1996 - 06/1999	1
87120 - HEATER ASSY, REAR
87110-60131	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
87110-60131	KZJ9#,VZJ9#	10/1997 - 06/1999	1
87110-60130	KZJ9#,VZJ9#	04/1996 - 10/1997	1
87138R - RESISTOR, REAR HEATER BLOWER
87138-35070	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
87138-35070	KZJ9#,VZJ9#	04/1996 - 06/1999	1
87156D - CONNECTOR, HEATER WATER HOSE, NO.2
87156-35050	KZJ9#,VZJ9# NO.1	04/1996 - 10/1997	1
87156-35061	KZJ9#,VZJ9# NO.2	10/1997 - 06/1999	1
87156-35060	KZJ9#,VZJ9# NO.2	04/1996 - 10/1997	1
87156-35051	KZJ9#,VZJ9# NO.1	10/1997 - 06/1999	1
87156-35061	KDJ9#,KZJ9#,VZJ9# NO.2	06/1999 - 09/2002	1
87156-35051	KDJ9#,KZJ9#,VZJ9# NO.1	06/1999 - 09/2002	1
87156D - CONNECTOR, HEATER WATER HOSE, NO.2
87156-35050	KZJ9#,VZJ9# NO.1	04/1996 - 10/1997	1
87156-35061	KZJ9#,VZJ9# NO.2	10/1997 - 06/1999	1
87156-35060	KZJ9#,VZJ9# NO.2	04/1996 - 10/1997	1
87156-35051	KZJ9#,VZJ9# NO.1	10/1997 - 06/1999	1
87156-35061	KDJ9#,KZJ9#,VZJ9# NO.2	06/1999 - 09/2002	1
87156-35051	KDJ9#,KZJ9#,VZJ9# NO.1	06/1999 - 09/2002	1
87344C - WIRE, HEATER
87344-60010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
87344-60010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
Common parts
87124-20020
87124-35050
87124-35060
87399-35020
90301-15015
90480-01674
93313-14008
93319-14012
93540-24016
93560-15012

ILLUST NO. 1 OF 4(9604- )

Click highlighted areas on diagram

FRONT BLOWER(MANUAL A/C)

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-60171	KZJ9#,VZJ9#..LHD	02/1997 - 07/1998	1
87103-60170	KZJ9#,VZJ9#..LHD	04/1996 - 02/1997	1
87103-60172	KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..LHD	06/1999 - 09/2002	1
87103-60172	KZJ9#,VZJ9#..LHD	08/1998 - 06/1999	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-60310	KDJ9#,KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
87130-60310	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
Common parts
87124-20020
90119-06446
90179-06069

ILLUST NO. 1 OF 4(0008- )KDJ9#,VZJ9#..LHD

Click highlighted areas on diagram

FRONT BLOWER(SINGLE AUTO A/C)

Part #	Description	Period	Qty
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-60171	KZJ9#,VZJ9#..LHD	02/1997 - 07/1998	1
87103-60170	KZJ9#,VZJ9#..LHD	04/1996 - 02/1997	1
87103-60172	KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..LHD	06/1999 - 09/2002	1
87103-60172	KZJ9#,VZJ9#..LHD	08/1998 - 06/1999	1
87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER)
87106-60160	KDJ9#,VZJ9#..LHD	08/2000 - 09/2001	1
87106-60160	VZJ9#..LHD	09/2001 - 09/2002	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-60310	KDJ9#,KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
87130-60310	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
87130C - RELAY, HEATER BLOWER MOTOR
88630-35020	KDJ9#,VZJ9#..LHD	08/2000 - 09/2001	1
88630-35020	VZJ9#..LHD	09/2001 - 09/2002	1
Common parts
90119-06446
90179-06069

ILLUST NO. 2 OF 4(9604- )LHD

Click highlighted areas on diagram

FRONT RADIATOR(MANUAL A/C)

Part #	Description	Period	Qty
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-35060	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
87107-35060	KDJ9#,KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
87111 - CASE, HEATER
87111-89101	KZJ9#,VZJ9#..LHD LOWER	04/1996 - 02/1998	1
87111-35310	KZJ9#,VZJ9#..LHD UPPER	02/1998 - 06/1999	1
87111-35010	KZJ9#,VZJ9#..LHD UPPER	04/1996 - 04/1997	1
87111-35300	KZJ9#,VZJ9#..LHD UPPER	04/1997 - 02/1998	1
87111-35310	KDJ9#,KZJ9#,VZJ9#..LHD UPPER	08/2000 - 09/2002	1
87111-35321	KZJ9#,VZJ9#..LHD LOWER	07/1998 - 06/1999	1
87111-35320	KZJ9#,VZJ9#..LHD LOWER	02/1998 - 07/1998	1
87111-35330	KDJ9#,VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER),LOWER	08/2000 - 09/2001	1
87111-35321	KDJ9#,KZJ9#,VZJ9#..LHD LOWER	08/2000 - 09/2002	1
87111 - CASE, HEATER
87111-89101	KZJ9#,VZJ9#..LHD LOWER	04/1996 - 02/1998	1
87111-35310	KZJ9#,VZJ9#..LHD UPPER	02/1998 - 06/1999	1
87111-35010	KZJ9#,VZJ9#..LHD UPPER	04/1996 - 04/1997	1
87111-35300	KZJ9#,VZJ9#..LHD UPPER	04/1997 - 02/1998	1
87111-35310	KDJ9#,KZJ9#,VZJ9#..LHD UPPER	08/2000 - 09/2002	1
87111-35321	KZJ9#,VZJ9#..LHD LOWER	07/1998 - 06/1999	1
87111-35320	KZJ9#,VZJ9#..LHD LOWER	02/1998 - 07/1998	1
87111-35330	KDJ9#,VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER),LOWER	08/2000 - 09/2001	1
87111-35321	KDJ9#,KZJ9#,VZJ9#..LHD LOWER	08/2000 - 09/2002	1
87126 - CLAMP, HEATER CONTROL
87126-89101	KDJ9#,KZJ9#,VZJ9#	08/2000 - 09/2002	1
87126-89101	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
87150 - RADIATOR ASSY, HEATER
87150-35131	KZJ9#,VZJ9#..LHD	02/1998 - 03/1998	1
87150-35130	KZJ9#,VZJ9#..LHD	04/1996 - 02/1998	1
87150-35210	KZJ9#,VZJ9#..LHD	06/1999 - 08/2000	1
87150-35210	KZJ9#,VZJ9#..LHD	07/1998 - 06/1999	1
87150-35132	KZJ9#,VZJ9#..LHD	03/1998 - 07/1998	1
87150-60750	VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER)	08/2000 - 09/2001	1
87150-60770	KZJ9#,VZJ9#..LHD	08/2000 - 09/2002	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35030	KZJ9#,VZJ9#..LHD NO.1	08/2000 - 09/2002	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	04/1996 - 06/1999	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	08/2000 - 09/2002	1
87156-35030	KZJ9#,VZJ9#..LHD NO.1	04/1996 - 06/1999	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35030	KZJ9#,VZJ9#..LHD NO.1	08/2000 - 09/2002	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	04/1996 - 06/1999	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	08/2000 - 09/2002	1
87156-35030	KZJ9#,VZJ9#..LHD NO.1	04/1996 - 06/1999	1
Common parts
87124-20020
87124-35040
87398-89104
87399-35010
90119-06446
90168-50013
90179-06069
93313-14008
96761-19016
Linked diagrams
8715

ILLUST NO. 2 OF 4(0008- )KDJ9#,VZJ9#..LHD

Click highlighted areas on diagram

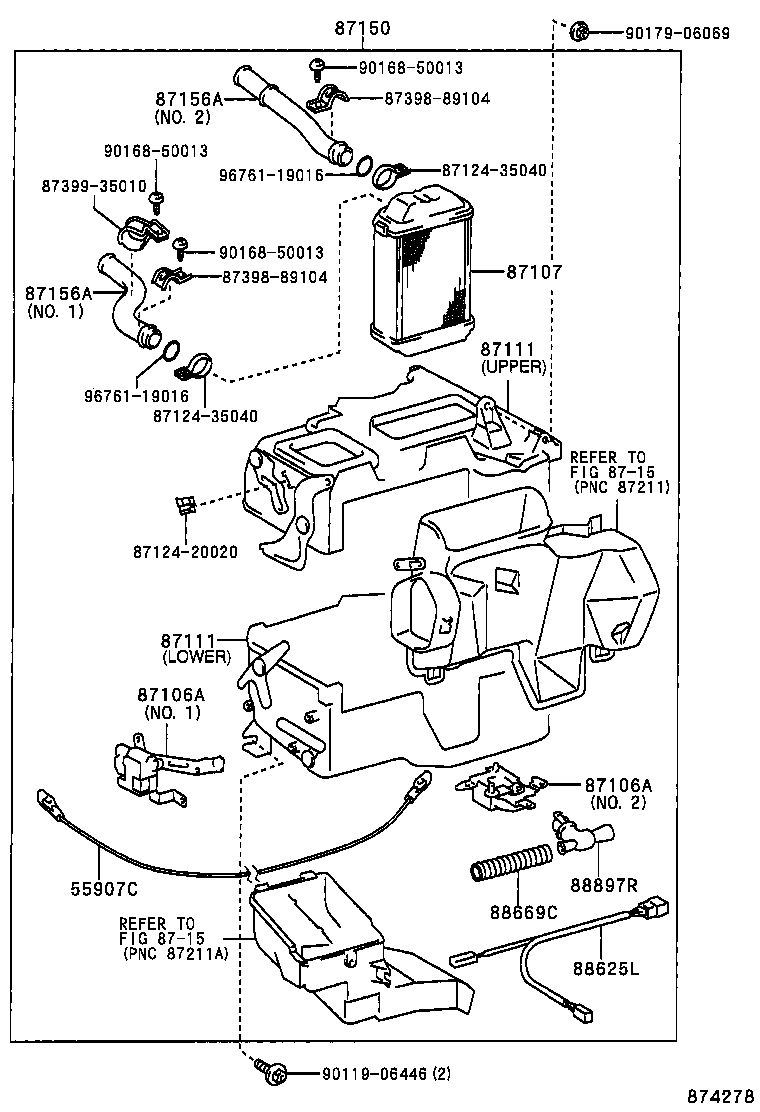

FRONT RADIATOR(SINGLE AUTO A/C)

Part #	Description	Period	Qty
55907C - CABLE SUB-ASSY, WATER VALVE CONTROL
87286-35040	VZJ9#..LHD	08/2000 - 09/2001	1
87106A - SERVO SUB-ASSY, DAMPER
87106-35060	VZJ9#..LHD NO.1	08/2000 - 09/2001	1
87106-35070	VZJ9#..LHD NO.2	08/2000 - 09/2001	1
87106A - SERVO SUB-ASSY, DAMPER
87106-35060	VZJ9#..LHD NO.1	08/2000 - 09/2001	1
87106-35070	VZJ9#..LHD NO.2	08/2000 - 09/2001	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-35060	KZJ9#,VZJ9#..LHD	04/1996 - 06/1999	1
87107-35060	KDJ9#,KZJ9#,VZJ9#..LHD	06/1999 - 09/2002	1
87111 - CASE, HEATER
87111-89101	KZJ9#,VZJ9#..LHD LOWER	04/1996 - 02/1998	1
87111-35310	KZJ9#,VZJ9#..LHD UPPER	02/1998 - 06/1999	1
87111-35010	KZJ9#,VZJ9#..LHD UPPER	04/1996 - 04/1997	1
87111-35300	KZJ9#,VZJ9#..LHD UPPER	04/1997 - 02/1998	1
87111-35310	KDJ9#,KZJ9#,VZJ9#..LHD UPPER	08/2000 - 09/2002	1
87111-35321	KZJ9#,VZJ9#..LHD LOWER	07/1998 - 06/1999	1
87111-35320	KZJ9#,VZJ9#..LHD LOWER	02/1998 - 07/1998	1
87111-35330	KDJ9#,VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER),LOWER	08/2000 - 09/2001	1
87111-35321	KDJ9#,KZJ9#,VZJ9#..LHD LOWER	08/2000 - 09/2002	1
87111 - CASE, HEATER
87111-89101	KZJ9#,VZJ9#..LHD LOWER	04/1996 - 02/1998	1
87111-35310	KZJ9#,VZJ9#..LHD UPPER	02/1998 - 06/1999	1
87111-35010	KZJ9#,VZJ9#..LHD UPPER	04/1996 - 04/1997	1
87111-35300	KZJ9#,VZJ9#..LHD UPPER	04/1997 - 02/1998	1
87111-35310	KDJ9#,KZJ9#,VZJ9#..LHD UPPER	08/2000 - 09/2002	1
87111-35321	KZJ9#,VZJ9#..LHD LOWER	07/1998 - 06/1999	1
87111-35320	KZJ9#,VZJ9#..LHD LOWER	02/1998 - 07/1998	1
87111-35330	KDJ9#,VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER),LOWER	08/2000 - 09/2001	1
87111-35321	KDJ9#,KZJ9#,VZJ9#..LHD LOWER	08/2000 - 09/2002	1
87150 - RADIATOR ASSY, HEATER
87150-35131	KZJ9#,VZJ9#..LHD	02/1998 - 03/1998	1
87150-35130	KZJ9#,VZJ9#..LHD	04/1996 - 02/1998	1
87150-35210	KZJ9#,VZJ9#..LHD	06/1999 - 08/2000	1
87150-35210	KZJ9#,VZJ9#..LHD	07/1998 - 06/1999	1
87150-35132	KZJ9#,VZJ9#..LHD	03/1998 - 07/1998	1
87150-60750	VZJ9#..LHD 50TH ANNIVERSARY & W(SINGLE AUTO AIR CONDITIONER)	08/2000 - 09/2001	1
87150-60770	KZJ9#,VZJ9#..LHD	08/2000 - 09/2002	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35030	KZJ9#,VZJ9#..LHD NO.1	08/2000 - 09/2002	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	04/1996 - 06/1999	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	08/2000 - 09/2002	1
87156-35030	KZJ9#,VZJ9#..LHD NO.1	04/1996 - 06/1999	1
87156A - CONNECTOR, HEATER WATER HOSE
87156-35030	KZJ9#,VZJ9#..LHD NO.1	08/2000 - 09/2002	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	04/1996 - 06/1999	1
87156-35040	KZJ9#,VZJ9#..LHD NO.2	08/2000 - 09/2002	1
87156-35030	KZJ9#,VZJ9#..LHD NO.1	04/1996 - 06/1999	1
88669C - HOSE, AIR
88669-35020	KDJ9#,VZJ9#..LHD	08/2000 - 09/2001	1
Common parts
87124-20020
87124-35040
87398-89104
87399-35010
90119-06446
90168-50013
90179-06069
96761-19016
Linked diagrams
8715
