VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90

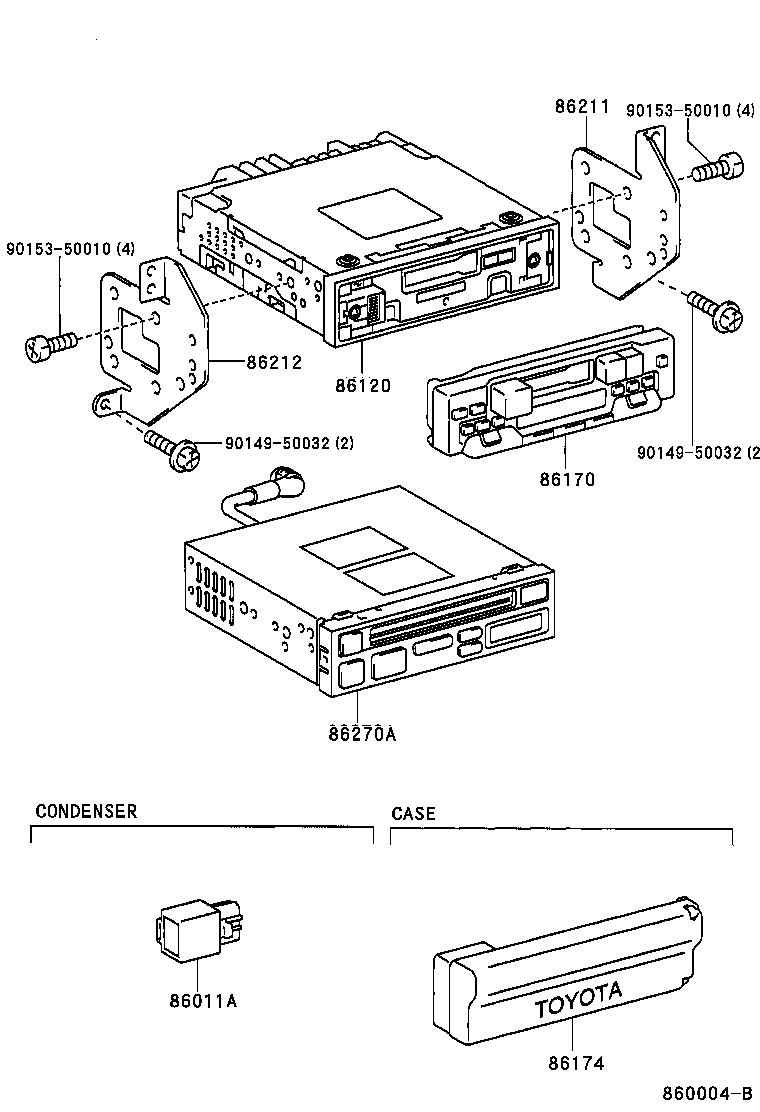

ILLUST NO. 1 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011A - CONDENSER, RADIO SETTING | ||||
| 90980-04083 |
VZJ9# |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B560 |

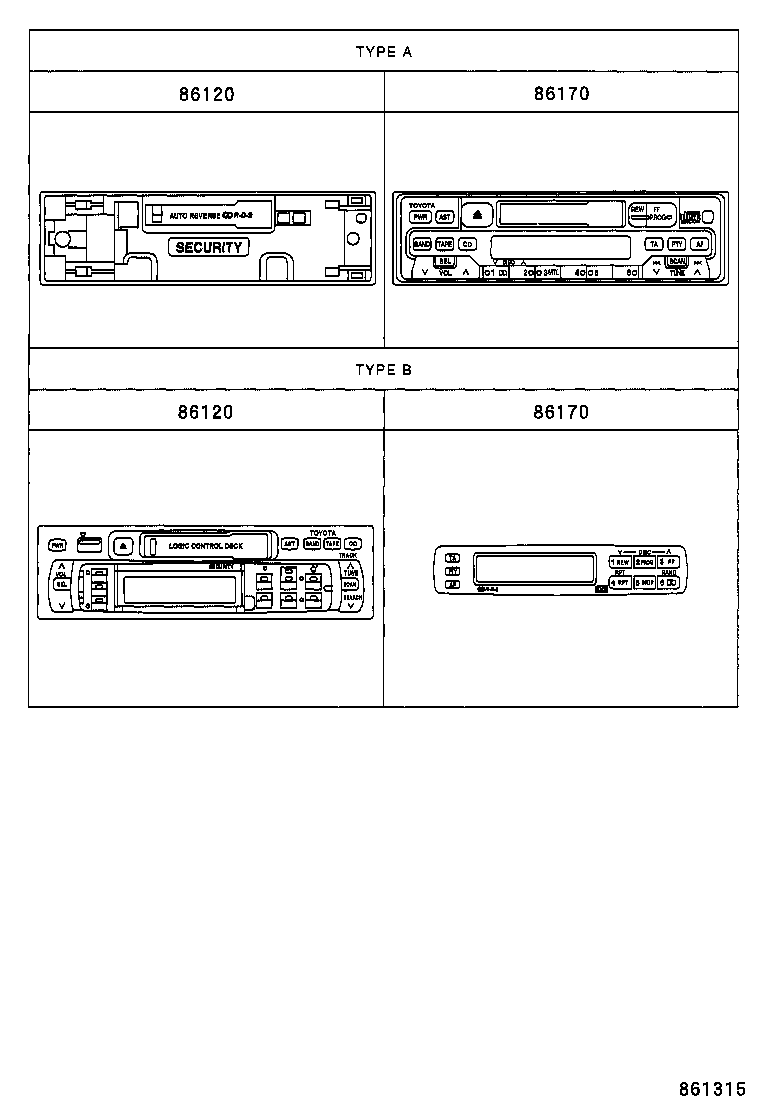

KZJ9#,VZJ9# FUJITSU TEN,ID=18401,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-60210 |
KZJ9#,VZJ9# MATSUSHITA, ID=58408,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-60210 |
KDJ9#,KZJ9#,VZJ9# MATSUSHITA, ID=58408,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-60260 |
KDJ9#,KZJ9#,VZJ9# FUJITSU TEN,ID=18403,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-60020 |
KDJ9#,KZJ9#,VZJ9# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170-20050 |
KZJ9#,VZJ9# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170-60010 |
KZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86170-60010 |
KDJ9#,KZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86174 - CASE, SWITCH & VOLUME | ||||
| 86174-60010 |
KDJ9#,KZJ9#,VZJ9# AUTO REVERSE |
1 | ||
| 86174-20010 |
KZJ9#,VZJ9# LOGIC CONTROL DECK |
1 | ||
| 86174-60010 |
KZJ9#,VZJ9# AUTO REVERSE |
1 | ||
| 86174-20010 |
KDJ9#,KZJ9#,VZJ9# LOGIC CONTROL DECK |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-60100 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 86211-60061 |
KZJ9#,VZJ9# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-60061 |
KZJ9#,VZJ9# |
1 | ||
| 86212-60100 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 86270A - DISC PLAYER ASSY | ||||
| 86270-60060 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90149-50032 | ||||
| 90153-50010 | ||||
ILLUST NO. 2 OF 2(9604- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B560 |
KZJ9#,VZJ9# FUJITSU TEN,ID=18401,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-60210 |
KZJ9#,VZJ9# MATSUSHITA, ID=58408,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-60210 |
KDJ9#,KZJ9#,VZJ9# MATSUSHITA, ID=58408,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-60260 |
KDJ9#,KZJ9#,VZJ9# FUJITSU TEN,ID=18403,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-2B560 |
KZJ9#,VZJ9# FUJITSU TEN,ID=18401,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86120-60210 |
KZJ9#,VZJ9# MATSUSHITA, ID=58408,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-60210 |
KDJ9#,KZJ9#,VZJ9# MATSUSHITA, ID=58408,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86120-60260 |
KDJ9#,KZJ9#,VZJ9# FUJITSU TEN,ID=18403,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-60020 |
KDJ9#,KZJ9#,VZJ9# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170-20050 |
KZJ9#,VZJ9# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170-60010 |
KZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86170-60010 |
KDJ9#,KZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86170 - SWITCH AND VOLUME ASSY, RADIO | ||||
| 86170-60020 |
KDJ9#,KZJ9#,VZJ9# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170-20050 |
KZJ9#,VZJ9# TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 86170-60010 |
KZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 86170-60010 |
KDJ9#,KZJ9#,VZJ9# TYPE A:REFER TO ILLUSTRATION |
1 | ||
