VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90

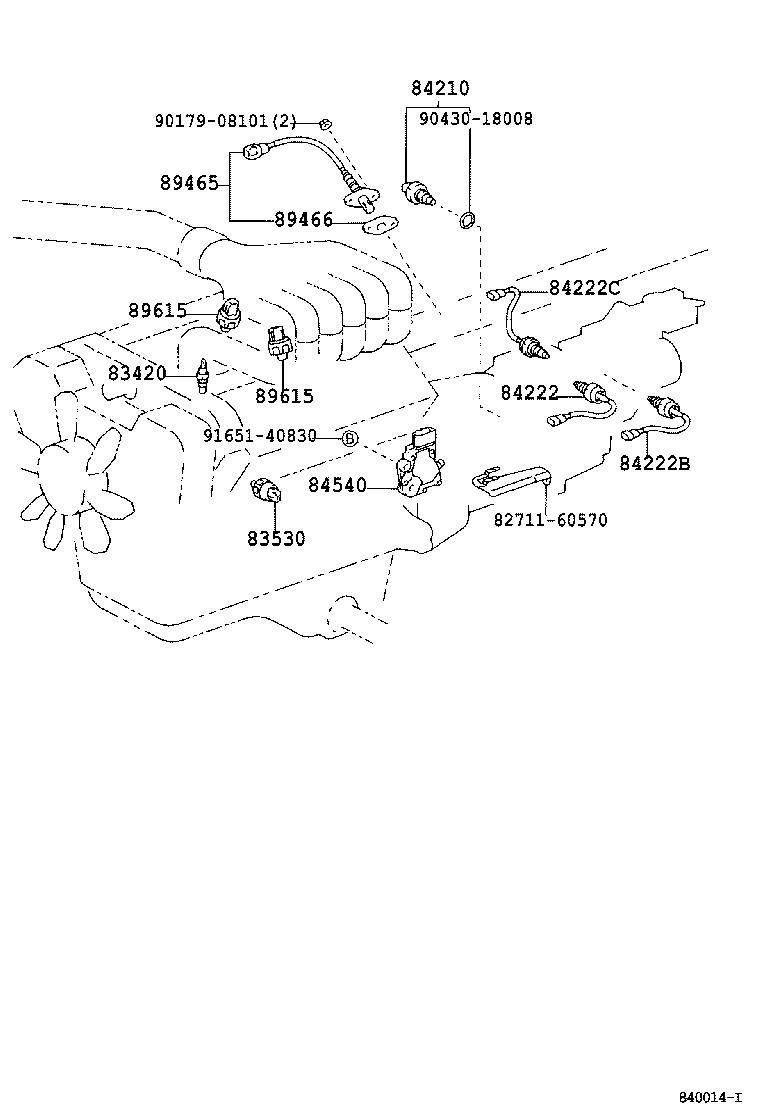

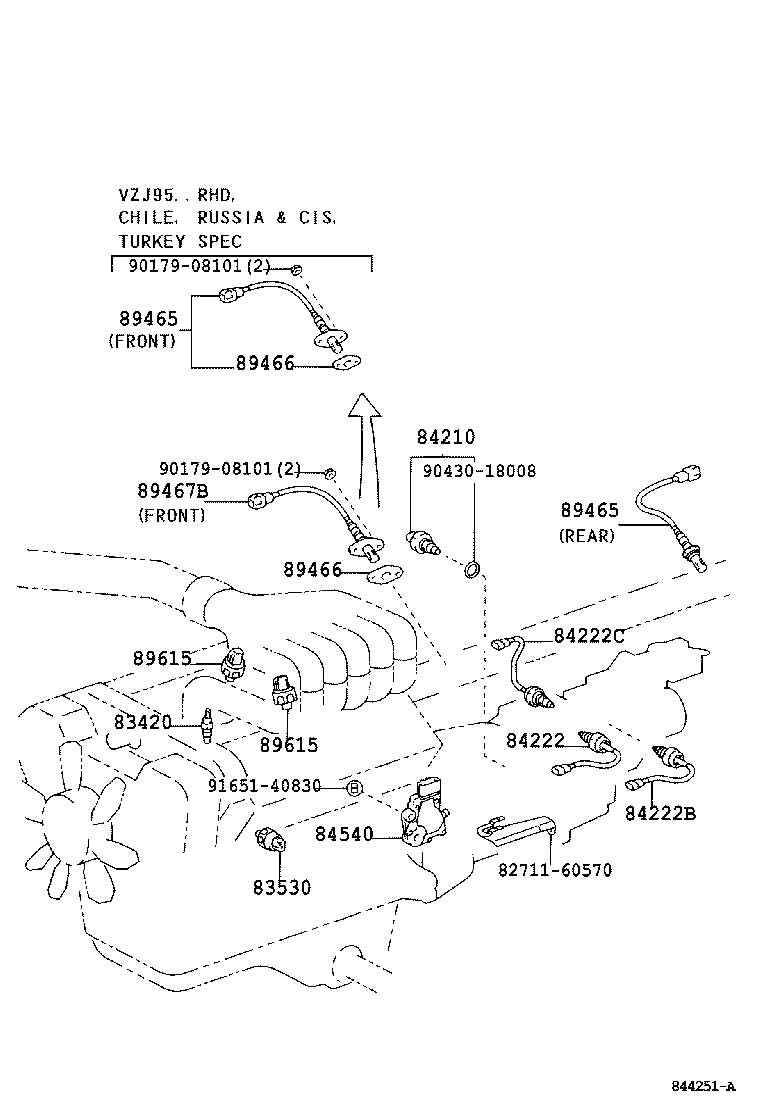

ILLUST NO. 1 OF 6(9604-0108)VZJ9#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
VZJ9# |
1 | ||
| 83420-16020 |
VZJ9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
VZJ9# |
1 | ||
| 83530-28020 |
VZJ9# |
1 | ||
| 83530-30090 |
VZJ9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KDJ9#,KZJ9#,VZJ9#..MTM |
1 | ||
| 84210-12040 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35080 |
KZJ9#,VZJ9# |
1 | ||
| 84222-35080 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-35110 |
KZJ9#,VZJ9# |
1 | ||
| 84222-35110 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39895 |
VZJ9#..MTM |
1 | ||
| 89465-39895 |
VZJ9#..MTM |
1 | ||
| 89465-44040 |
VZJ95..LHD REAR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
VZJ9# |
1 | ||
| 89466-20020 |
VZJ9# |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| Common parts | ||||
| 82711-60570 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||

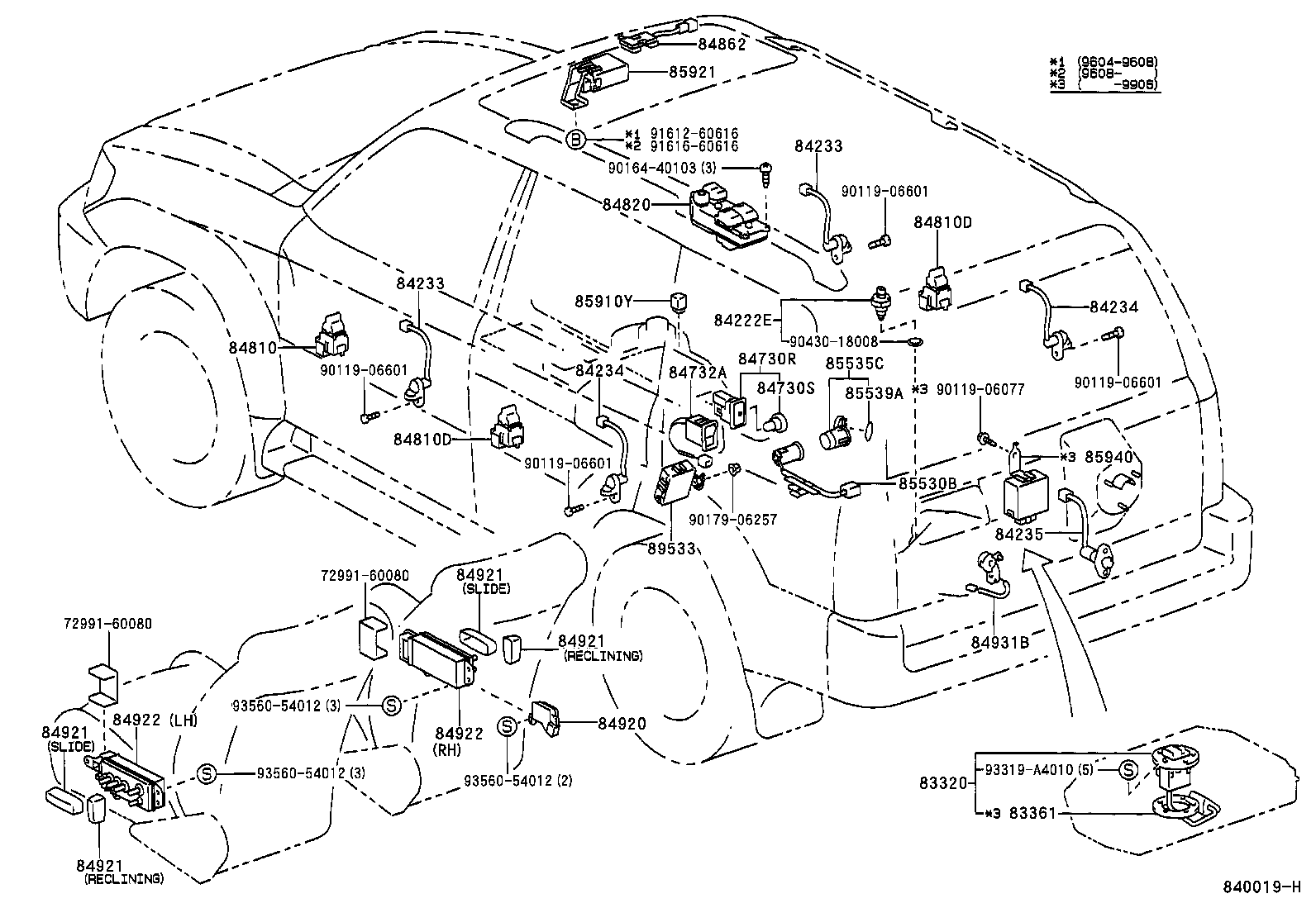

ILLUST NO. 6 OF 6(9604- )
ROOF,DOOR,SEAT & FLOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-69306 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83320-69295 |
VZJ9# |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 83361-20030 |
KZJ9#,VZJ9# |
1 | ||
| 84222E - SWITCH, DIFFERENTIAL LOCK INDICATOR | ||||
| 84222-12010 |
KZJ9#,VZJ9# |
1 | ||
| 84222-12010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 84231-12080 |
KZJ9#,VZJ9# |
2 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84231-12080 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 84231-12080 |
KZJ9#,VZJ9# |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
KDJ95,KZJ95,VZJ95 |
2 | ||
| 84231-12080 |
KZJ95,VZJ95 |
2 | ||
| 84234 - SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | ||||
| 84231-12080 |
KDJ95,KZJ95,VZJ95 |
2 | ||
| 84231-12080 |
KZJ95,VZJ95 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-60030 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84231-60030 |
KZJ9#,VZJ9# |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-60090 |
KZJ9#,VZJ9# CONSOLE BOX |
1 | ||
| 84730-60080 |
KZJ9#,VZJ9# INSTRUMENT PANEL |
1 | ||
| 84730-60090 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10310 |
KZJ9#,VZJ9# 14V 0.91W |
2 | ||
| 84999-10310 |
KDJ9#,KZJ9#,VZJ9# 14V 0.91W |
2 | ||
| 84732A - SWITCH, REAR HEATER BLOWER | ||||
| 84730-60070 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84730-60070 |
KZJ9#,VZJ9# |
1 | ||
| 84810 - SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84810-32070 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84810-32070 |
KZJ9#,VZJ9# |
1 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-14110 |
KZJ95,VZJ95 |
2 | ||
| 84810-32070 |
KDJ95,KZJ95,VZJ95 |
2 | ||
| 84810D - SWITCH ASSY, POWER WINDOW REGULATOR, REAR | ||||
| 84810-14110 |
KZJ95,VZJ95 |
2 | ||
| 84810-32070 |
KDJ95,KZJ95,VZJ95 |
2 | ||
| 84820 - MASTER SWITCH ASSY, POWER WINDOW REGULATOR | ||||
| 84820-60090 |
KZJ95,VZJ95..LHD |
1 | ||
| 84820-60090 |
KDJ95,KZJ95,VZJ95..LHD |
1 | ||
| 84862 - SWITCH, SLIDE ROOF MOTOR | ||||
| 84862-20060E0 |
VZJ9# MD.OAK,TRIM4# |
1 | ||
| 84862-20060E0 |
KDJ9#,VZJ9# MD.OAK,TRIM4# |
1 | ||
| 84862-20060E0 |
KDJ9#,VZJ9# MD.OAK,TRIM40,41 |
1 | ||
| 84862-20060B2 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
1 | ||
| 84862-20060B3 |
KDJ9#,KZJ9#,VZJ9# LT.BLUISH GRAY,TRIM1# |
1 | ||
| 84920 - SWITCH ASSY, POWER SEAT | ||||
| 84920-24020B0 |
KZJ95,VZJ95..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 84920-24020B0 |
KDJ95,KZJ95,VZJ95..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 84920-24020E1 |
VZJ95..LHD OAK,TRIM4# |
1 | ||
| 84920-24020E1 |
KDJ95,VZJ95..LHD OAK,TRIM4# |
1 | ||
| 84920-24020E1 |
KDJ95,VZJ95..LHD OAK,TRIM40,41 |
1 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-33040E2 |
VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM40,41,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM40,41,SLIDE |
2 | ||
| 84921-33060B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84921-33040B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33060E1 |
VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33040B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33060B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-33040E2 |
VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM40,41,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM40,41,SLIDE |
2 | ||
| 84921-33060B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84921-33040B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33060E1 |
VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33040B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33060B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-33040E2 |
VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM40,41,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM40,41,SLIDE |
2 | ||
| 84921-33060B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84921-33040B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33060E1 |
VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33040B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33060B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84921 - KNOB, POWER SEAT SWITCH | ||||
| 84921-33040E2 |
VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM40,41,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM40,41,SLIDE |
2 | ||
| 84921-33060B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84921-33040B1 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33040E2 |
KDJ95,VZJ95 OAK,TRIM4#,RECLINING |
2 | ||
| 84921-33060E1 |
KDJ95,VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33060E1 |
VZJ95 OAK,TRIM4#,SLIDE |
2 | ||
| 84921-33040B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,RECLINING |
2 | ||
| 84921-33060B1 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#,SLIDE |
2 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33080 |
KZJ95,VZJ95..LHD LH |
1 | ||
| 84922-60060 |
KZJ95,VZJ95..LHD RH |
1 | ||
| 84922-33080 |
KDJ95,KZJ95,VZJ95..LHD LH |
1 | ||
| 84922-60060 |
KDJ95,KZJ95,VZJ95..LHD RH |
1 | ||
| 84922 - SWITCH, FRONT POWER SEAT | ||||
| 84922-33080 |
KZJ95,VZJ95..LHD LH |
1 | ||
| 84922-60060 |
KZJ95,VZJ95..LHD RH |
1 | ||
| 84922-33080 |
KDJ95,KZJ95,VZJ95..LHD LH |
1 | ||
| 84922-60060 |
KDJ95,KZJ95,VZJ95..LHD RH |
1 | ||
| 84931B - SWITCH, DOOR CONTROL | ||||
| 84931-60070 |
KZJ9#,VZJ9# |
1 | ||
| 84931-60070 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85530B - SOCKET ASSY, POWER OUTLET, REAR NO.1 | ||||
| 85530-60020 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 85530-60020 |
KZJ95,VZJ95 |
1 | ||
| 85535C - COVER, POWER OUTLET SOCKET, REAR | ||||
| 85535-60020B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM11 |
1 | ||
| 85535-60020C0 |
KDJ95,VZJ95 BLACK,TRIM1#,40,41 |
1 | ||
| 85535-60020C0 |
KZJ95,VZJ95 BLACK,TRIM10 |
1 | ||
| 85535-60020B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 85535-60020C0 |
KZJ95,VZJ95 BLACK,TRIM11,4# |
1 | ||
| 85535-60020C0 |
KDJ95,VZJ95 BLACK,TRIM1#,4# |
1 | ||
| 85539A - LABEL, POWER OUTLET NOTICE, REAR | ||||
| 85539-60020 |
KZJ95,VZJ95 |
1 | ||
| 85910Y - RELAY, REAR HEATER | ||||
| 90987-04003 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85921 - RELAY, SLIDING ROOF CONTROL | ||||
| 85921-35010 |
KZJ9#,VZJ9# |
1 | ||
| 85921-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85940 - RELAY ASSY, WINDSHIELD WIPER | ||||
| 85940-60070 |
KZJ9#,VZJ9# |
1 | ||
| 89533 - COMPUTER, 4 WHEEL DRIVE CONTROL | ||||
| 89533-60080 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 89533-60080 |
KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 72991-60080 | ||||
| 90119-06077 | ||||
| 90119-06601 | ||||
| 90164-40103 | ||||
| 90179-06257 | ||||
| 90430-18008 | ||||
| 91612-60616 | ||||
| 91616-60616 | ||||
| 93319-A4010 | ||||
| 93560-54012 | ||||

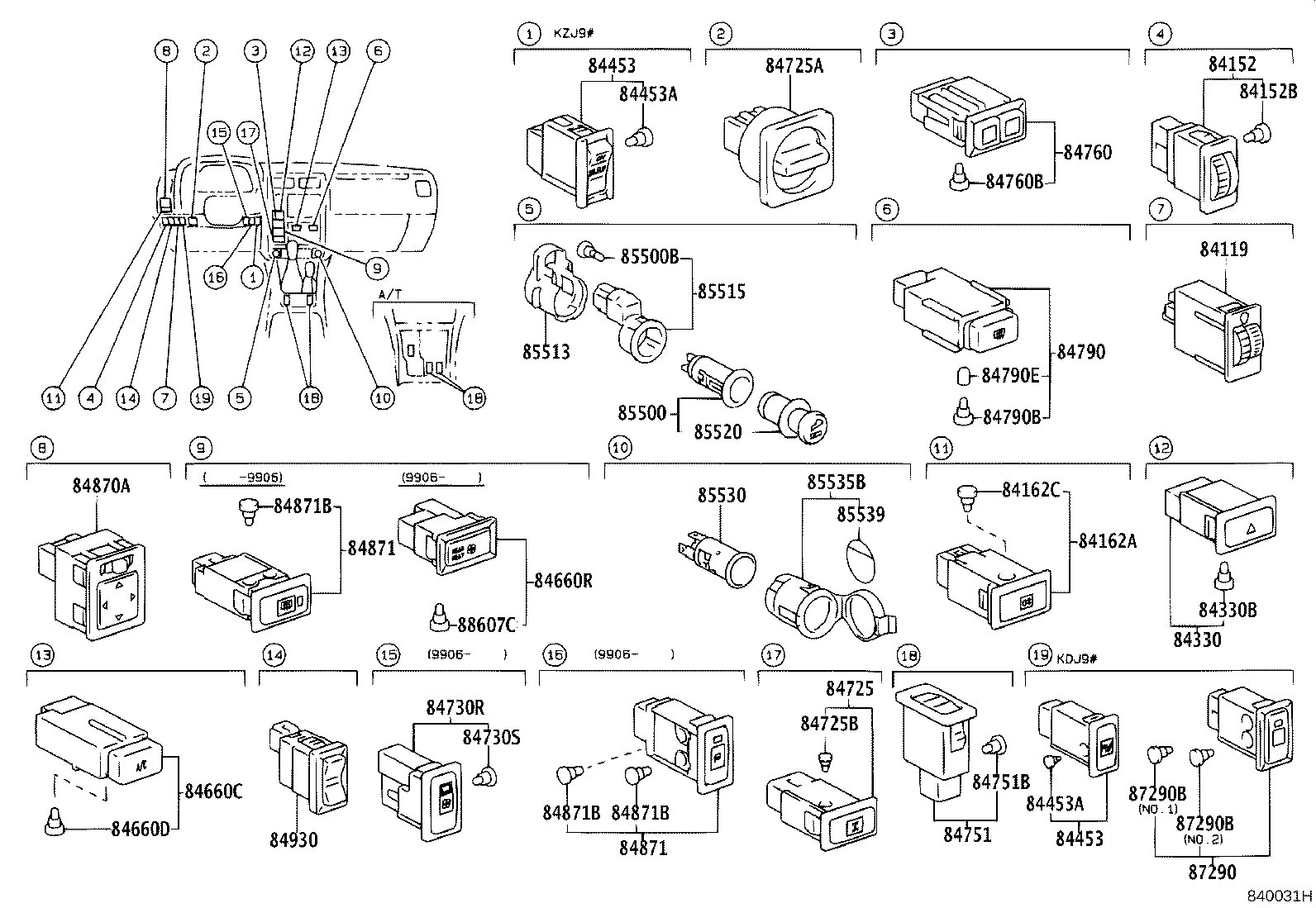

ILLUST NO. 3 OF 6(9604- )LHD
CLUSTER PANEL SWITCHES
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84119 - RHEOSTAT, LIGHT CONTROL | ||||
| 84119-60040 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84119-60040 |
KZJ9#,VZJ9# |
1 | ||
| 84152 - SWITCH, HEADLAMP LEVELING | ||||
| 84152-60020 |
KZJ9#,VZJ9# |
1 | ||
| 84152-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84152B - BULB (FOR HEADLAMP LEVELING SWITCH) | ||||
| 84999-10630 |
KDJ9#,KZJ9#,VZJ9# 14V 0.065A,GREEN CAP |
1 | ||
| 84999-10630 |
KZJ9#,VZJ9# 14V 0.065A,GREEN CAP |
1 | ||
| 84162A - SWITCH, REAR FOG LAMP | ||||
| 84165-16020 |
KZJ9#,VZJ9# |
1 | ||
| 84165-16020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84162C - BULB (FOR REAR FOG LAMP SWITCH) | ||||
| 84999-20120 |
KDJ9#,KZJ9#,VZJ9# 14V 0.7W |
1 | ||
| 84999-20120 |
KZJ9#,VZJ9# 14V 0.7W |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-43010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84332-43010 |
KZJ9#,VZJ9# |
1 | ||
| 84330B - BULB, HAZARD WARNING SIGNAL SWITCH | ||||
| 84999-10860 |
KZJ9#,VZJ9# 14V 0.91W |
1 | ||
| 84999-10860 |
KDJ9#,KZJ9#,VZJ9# 14V 0.91W |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-33010 |
KZJ9#,VZJ9# |
1 | ||
| 84660-33010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-33010 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W |
1 | ||
| 88607-33010 |
KZJ9#,VZJ9# 14V 0.84W |
1 | ||
| 84660R - SWITCH, COOLER(REAR) | ||||
| 84660-60060 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 84725A - SWITCH, DIFFERENTIAL LOCK | ||||
| 84725-60030 |
KZJ9#,VZJ9# |
1 | ||
| 84725-60030 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84730R - SWITCH ASSY, HEATER BLOWER | ||||
| 84730-60090 |
KZJ9#,VZJ9# CONSOLE BOX |
1 | ||
| 84730-60080 |
KZJ9#,VZJ9# INSTRUMENT PANEL |
1 | ||
| 84730-60090 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 84730S - BULB, HEATER BLOWER SWITCH | ||||
| 84999-10310 |
KZJ9#,VZJ9# 14V 0.91W |
2 | ||
| 84999-10310 |
KDJ9#,KZJ9#,VZJ9# 14V 0.91W |
2 | ||
| 84751 - SWITCH, SEAT HEATER | ||||
| 84751-20130 |
KZJ9#,VZJ9# LH |
1 | ||
| 84751-20130 |
KDJ9#,KZJ9#,VZJ9# LH |
1 | ||
| 84751-20140 |
KZJ9#,VZJ9# RH |
1 | ||
| 84751-20140 |
KDJ9#,KZJ9#,VZJ9# RH |
1 | ||
| 84751B - BULB, SEAT HEATER SWITCH | ||||
| 84999-10190 |
KDJ9#,KZJ9#,VZJ9# 12V 0.87W |
2 | ||
| 84999-10190 |
KZJ9#,VZJ9# 12V 0.87W |
2 | ||
| 84760 - SWITCH ASSY, ANTENNA | ||||
| 84760-60050 |
KZJ9#,VZJ9# |
1 | ||
| 84760-60050 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84760B - BULB, ANTENNA SWITCH | ||||
| 84999-10420 |
KZJ9#,VZJ9# |
1 | ||
| 84999-10420 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-60050 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84790-60050 |
KZJ9#,VZJ9# |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10450 |
KZJ9#,VZJ9# 14V 1.4W |
1 | ||
| 84999-10320 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W |
1 | ||
| 84999-10320 |
KZJ9#,VZJ9# 14V 0.84W |
1 | ||
| 84999-10450 |
KDJ9#,KZJ9#,VZJ9# 14V 1.4W |
1 | ||
| 84790E - CAP, BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84998-10060 |
KZJ9#,VZJ9# |
1 | ||
| 84998-10060 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-16020 |
KZJ9#,VZJ9# |
1 | ||
| 84870-16040 |
KDJ9#,KZJ9#,VZJ9# W(RETRACTABLE ELECTRIC REMOTE CONTROL MIRROR) |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84871-60010 |
KZJ9#,VZJ9# |
1 | ||
| 84871 - SWITCH ASSY, OUTER MIRROR HEATER | ||||
| 84871-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84871-60010 |
KZJ9#,VZJ9# |
1 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 84999-10310 |
KDJ9#,KZJ9#,VZJ9# 14V 0.91W |
2 | ||
| 84999-10310 |
KZJ9#,VZJ9# |
2 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 84999-10310 |
KDJ9#,KZJ9#,VZJ9# 14V 0.91W |
2 | ||
| 84999-10310 |
KZJ9#,VZJ9# |
2 | ||
| 84871B - BULB, OUTER MIRROR HEATER SWITCH | ||||
| 84999-10310 |
KDJ9#,KZJ9#,VZJ9# 14V 0.91W |
2 | ||
| 84999-10310 |
KZJ9#,VZJ9# |
2 | ||
| 84930 - SWITCH ASSY, DOOR CONTROL | ||||
| 84930-87003 |
KZJ9#,VZJ9# |
1 | ||
| 84930-87003 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12240 |
KZJ9#,VZJ9# |
1 | ||
| 85500-12240 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 84999-10250 |
KZJ9#,VZJ9# 14V 1.4W |
1 | ||
| 84999-10250 |
KDJ9#,KZJ9#,VZJ9# 14V 1.4W |
1 | ||
| 85513 - COVER, CIGARETTE LIGHTER | ||||
| 85513-12020 |
KZJ9#,VZJ9# |
1 | ||
| 85513-12020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85515 - STAY, CIGARETTE LIGHTER BEZEL | ||||
| 85515-32010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85515-32010 |
KZJ9#,VZJ9# |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-28010 |
KZJ9#,VZJ9# |
1 | ||
| 85520-28010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85530 - SOCKET ASSY, POWER OUTLET, NO.1 | ||||
| 85530-33020 |
KZJ9#,VZJ9# |
1 | ||
| 85530-33020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85535B - COVER, POWER OUTLET SOCKET, NO.1 | ||||
| 85535-60020C0 |
KDJ9#,VZJ9# BLACK,TRIM1#,40,41 |
1 | ||
| 85535-60020B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 85535-60020C0 |
KZJ95,VZJ95 BLACK,TRIM11,4# |
1 | ||
| 85535-60020C0 |
KZJ9#,VZJ9# BLACK,TRIM10 |
1 | ||
| 85535-60020B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM11 |
1 | ||
| 85535-60020C0 |
KDJ9#,VZJ9# BLACK,TRIM1#,4# |
1 | ||
| 85539 - LABEL, POWER OUTLET NOTICE | ||||
| 85539-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85539-60020 |
KZJ9#,VZJ9# |
1 | ||
| 88607C - LAMP SUB-ASSY, INDICATOR | ||||
| 88607-16010 |
KDJ95,KZJ95,VZJ95 14V 0.065A |
1 | ||

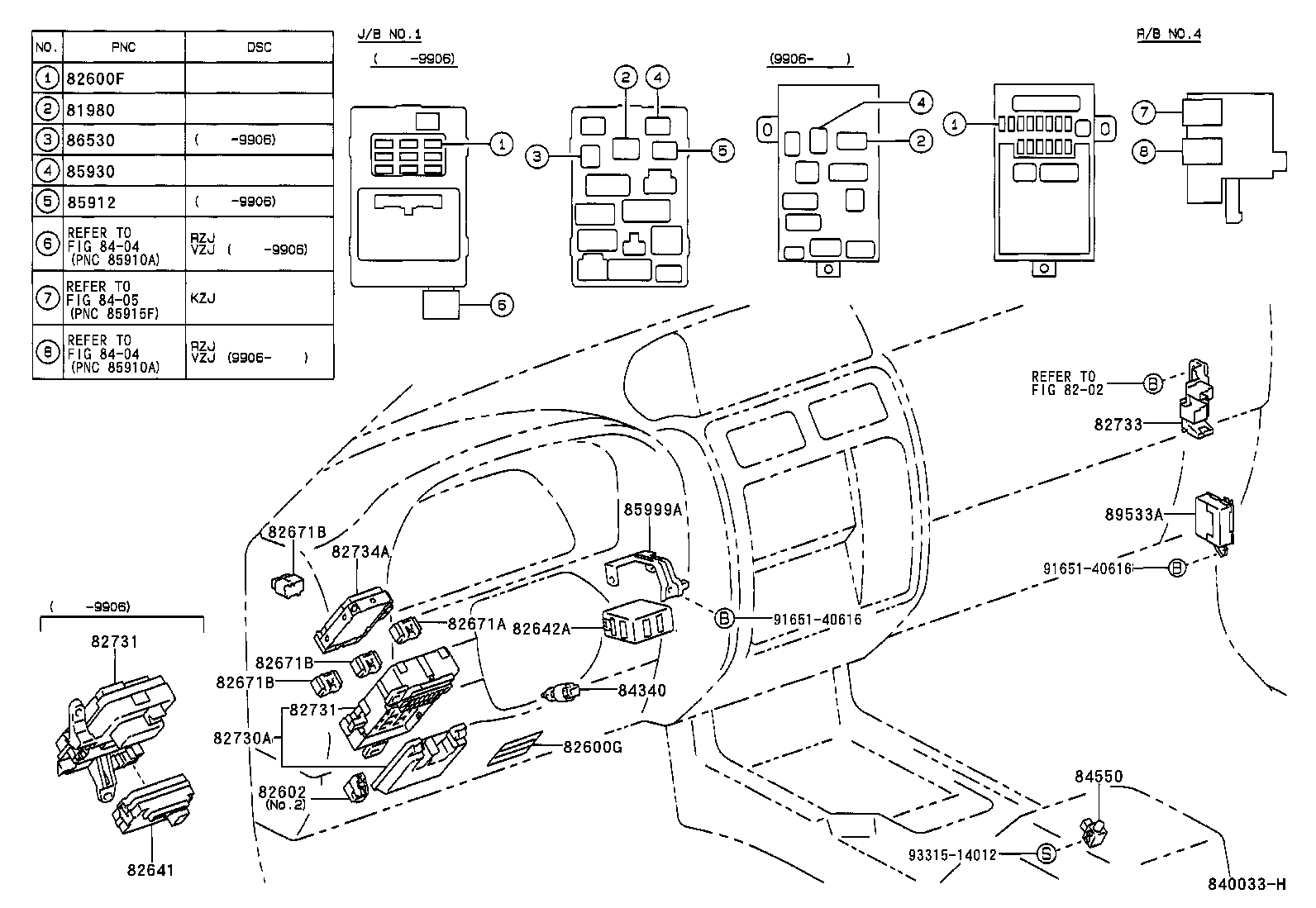

ILLUST NO. 5 OF 6(9604- )LHD
COWL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-12070 |
KZJ9#,VZJ9# |
1 | ||
| 81980-50020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
KDJ9#,KZJ9#,VZJ9# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
KZJ9#,VZJ9# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
KZJ9#,VZJ9# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
KZJ9#,VZJ9# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
KDJ9#,KZJ9#,VZJ9# 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
KDJ9#,KZJ9#,VZJ9# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
KZJ9#,VZJ9# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
KDJ9#,KZJ9#,VZJ9# 15A,MINI FUSE,BLUE |
1 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-60090 |
KZJ9#,VZJ9# |
1 | ||
| 82683-60140 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-35150 |
VZJ9# NO.2 |
1 | ||
| 82602-60060 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 82602-60060 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 82602-35150 |
VZJ9# NO.2 |
1 | ||
| 82641 - RELAY, INTEGRATION NO.1 | ||||
| 82641-60020 |
KZJ9#,VZJ9# |
1 | ||
| 82642A - RELAY, RUNNING LIGHT | ||||
| 82642-13010 |
KZJ90..ATM;KDJ9#,VZJ9#..LHD |
1 | ||
| 82642-13010 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82671A - BLOCK, JUNCTION | ||||
| 82671-30340 |
KZJ9#,VZJ9# |
1 | ||
| 82671-30340 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30340 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
2 | ||
| 82671-30340 |
KZJ9#,VZJ9# |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30340 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
2 | ||
| 82671-30340 |
KZJ9#,VZJ9# |
2 | ||
| 82671B - BLOCK, JUNCTION | ||||
| 82671-30340 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
2 | ||
| 82671-30340 |
KZJ9#,VZJ9# |
2 | ||
| 82730A - BLOCK ASSY, DRIVER SIDE JUNCTION | ||||
| 82730-60060 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-60020 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82731-60050 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 82731 - BLOCK, DRIVER SIDE JUNCTION | ||||
| 82731-60020 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82731-60050 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 82734A - BLOCK, CENTER JUNCTION | ||||
| 82734-35020 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
1 | ||
| 82734-35020 |
KZJ9#,VZJ9# |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32090 |
KZJ9#,VZJ9# TOKAI RIKA |
1 | ||
| 84340-32110 |
VZJ9# W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84340-42020 |
VZJ9# W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84340-32090 |
KZJ9#,VZJ9# TOKAI RIKA |
1 | ||
| 84340-32090 |
KZJ9#,VZJ9# TOKAI RIKA |
1 | ||
| 84340-42010 |
KZJ9#,VZJ9# MATSUSHITA |
1 | ||
| 84340-42010 |
KZJ9#,VZJ9# MATSUSHITA |
1 | ||
| 84340-32110 |
VZJ9# W(CRUISE CONTROL),MATSUSHITA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-16060 |
KZJ9#,VZJ9# |
1 | ||
| 84550-16060 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02012 |
KZJ9#,VZJ9# |
1 | ||
| 85930 - RELAY ASSY, POWER WINDOW | ||||
| 90987-02012 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 90987-02012 |
KZJ9#,VZJ9# |
1 | ||
| 85999A - BRACKET, RELAY, NO.2 | ||||
| 85999-60070 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 85999-60070 |
KZJ90..ATM;KDJ9#,VZJ9#..LHD |
1 | ||
| 86530 - RELAY ASSY, HORN | ||||
| 86530-20070 |
KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 91651-40616 | ||||
| 93315-14012 | ||||
| Linked diagrams | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

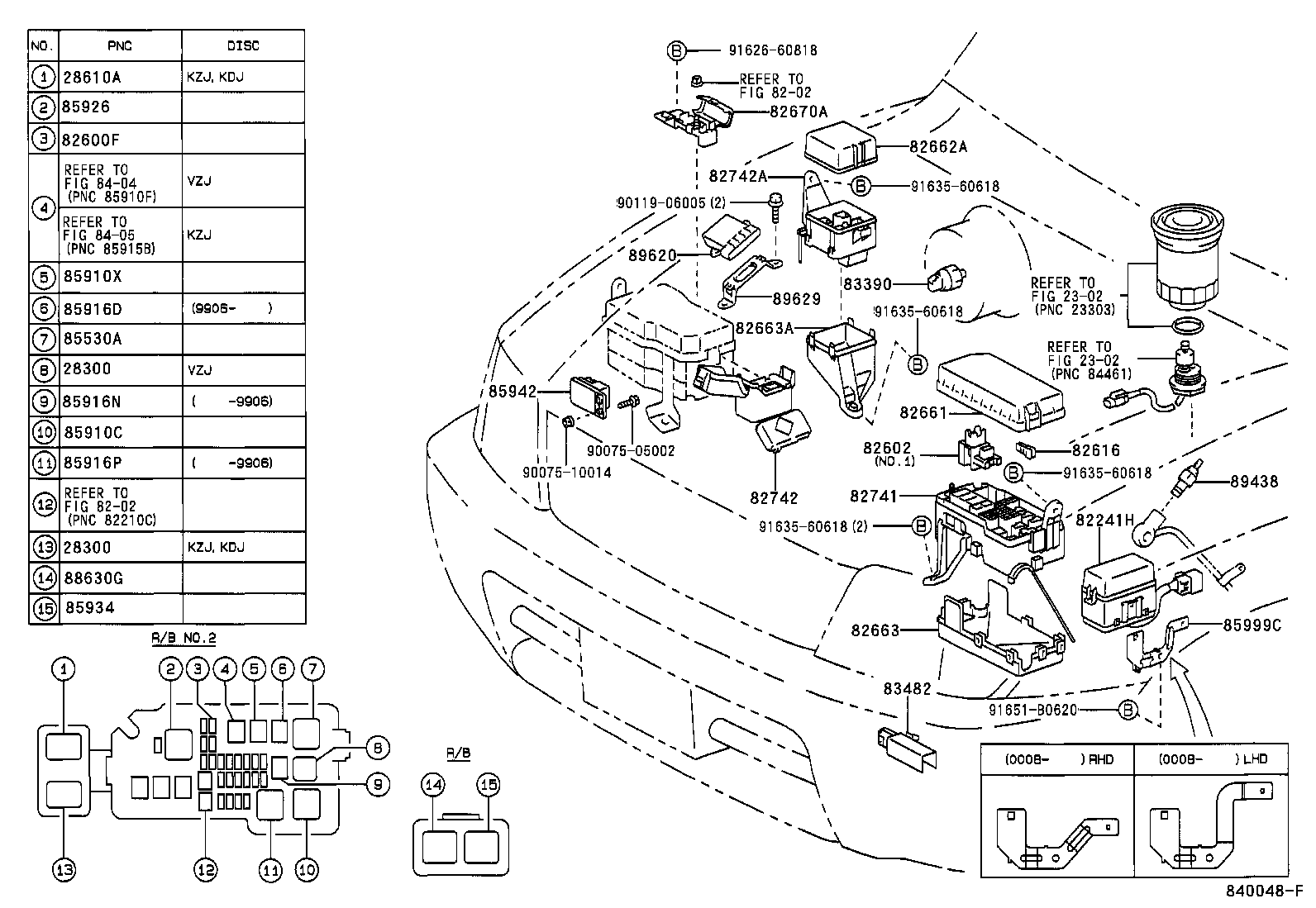

ILLUST NO. 2 OF 6(9604- )
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
5VZFE..VZJ9# |
1 | ||
| 28300-10020 |
5VZFE..VZJ9# |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-10020 |
5VZFE..VZJ9# |
1 | ||
| 28300-10020 |
5VZFE..VZJ9# |
1 | ||
| 82241H - BOX, WIRE RELAY | ||||
| 82241-60030 |
VZJ95;KDJ95,KZJ95..LHD |
1 | ||
| 82241-60010 |
VZJ95;KZJ95..LHD |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09008 |
KDJ9#,KZJ9#,VZJ9# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09011 |
KZJ9#,VZJ9# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09008 |
KZJ9#,VZJ9# 7.5A,MINI FUSE,BRN |
1 | ||
| 90982-09010 |
KZJ9#,VZJ9# 15A,MINI FUSE,BLUE |
1 | ||
| 90982-09009 |
KDJ9#,KZJ9#,VZJ9# 10A,MINI FUSE,RED |
1 | ||
| 90982-09011 |
KDJ9#,KZJ9#,VZJ9# 20A,MINI FUSE,YELLOW |
1 | ||
| 90982-09009 |
KZJ9#,VZJ9# 10A,MINI FUSE,RED |
1 | ||
| 90982-09010 |
KDJ9#,KZJ9#,VZJ9# 15A,MINI FUSE,BLUE |
1 | ||
| 82602 - BLOCK SUB-ASSY, RELAY | ||||
| 82602-35150 |
VZJ9# NO.2 |
1 | ||
| 82602-60060 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 82602-60060 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 82602-35150 |
VZJ9# NO.2 |
1 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-20010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82616-20010 |
KZJ9#,VZJ9# |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82662-60100 |
VZJ9# |
1 | ||
| 82662-60110 |
VZJ9#..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82662-60222 |
VZJ9# |
1 | ||
| 82662-60221 |
VZJ9# |
1 | ||
| 82662-60220 |
VZJ9# |
1 | ||
| 82662-60230 |
VZJ9#..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82662-60231 |
VZJ9#..LHD DENMARK OR FINLAND OR ICELAND OR NORWAY OR SWEDEN SPEC |
1 | ||
| 82663 - COVER, RELAY BLOCK, LOWER | ||||
| 82663-60020 |
KZJ9#,VZJ9# |
1 | ||
| 82663-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82741 - BLOCK, ENGINE ROOM RELAY | ||||
| 82741-60010 |
KZJ9#,VZJ9# |
1 | ||
| 82741-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83482 - SENSOR, OUTER AMBIENT TEMPERATURE | ||||
| 83482-35010 |
KZJ9#,VZJ9# |
1 | ||
| 83482-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85530A - RELAY, POWER OUTLET SOCKET | ||||
| 90987-02006 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 90987-02006 |
KZJ9#,VZJ9# |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 90987-04002 |
KZJ9#,VZJ9# |
1 | ||
| 90987-04002 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85910X - RELAY, HEATER MIRROR | ||||
| 90987-02012 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 90987-02012 |
KZJ9#,VZJ9# |
1 | ||
| 85916D - RELAY, FOG LAMP | ||||
| 90987-02012 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85916N - RELAY, TAIL LAMP | ||||
| 90987-02012 |
KZJ9#,VZJ9# |
1 | ||
| 85916P - RELAY, HEADLAMP | ||||
| 90987-02006 |
KZJ9#,VZJ9# |
1 | ||
| 90987-02006 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85926 - RELAY, HEADLAMP DIMMER | ||||
| 85926-30020 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 85926-30020 |
KZJ90..ATM;KDJ9#,VZJ9#..LHD |
1 | ||
| 85934 - RELAY, MAGNET-CLUTCH | ||||
| 90987-02012 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 85942 - RELAY, HEADLAMP CLEANER CONTROL | ||||
| 85942-33010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 85942-33010 |
KZJ9#,VZJ9# |
1 | ||
| 85999C - BRACKET, RELAY, NO.3 | ||||
| 85999-60090 |
VZJ95;KZJ95..LHD |
1 | ||
| 85999-60060 |
VZJ95;KDJ95,KZJ95..LHD |
1 | ||
| 88630G - RELAY ASSY, COOLER | ||||
| 90987-02012 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 89438 - SWITCH, POWER STEERING OIL PRESSURE | ||||
| 89438-33010 |
VZJ9# |
1 | ||
| 89620 - IGNITER ASSY | ||||
| 89621-35020 |
VZJ9# |
1 | ||
| 89621-35020 |
VZJ9# |
1 | ||
| 89629 - BRACKET, IGNITER ASSY | ||||
| 89629-35030 |
VZJ9# |
1 | ||
| 89629-35030 |
VZJ9# |
1 | ||
| Common parts | ||||
| 90075-05002 | ||||
| 90075-10014 | ||||
| 90119-06005 | ||||
| 91626-60818 | ||||
| 91635-60618 | ||||
| 91651-B0620 | ||||
| Linked diagrams | ||||
| 2302 | ||||
| 8202 | ||||
| 8404 | ||||
| 8405 | ||||

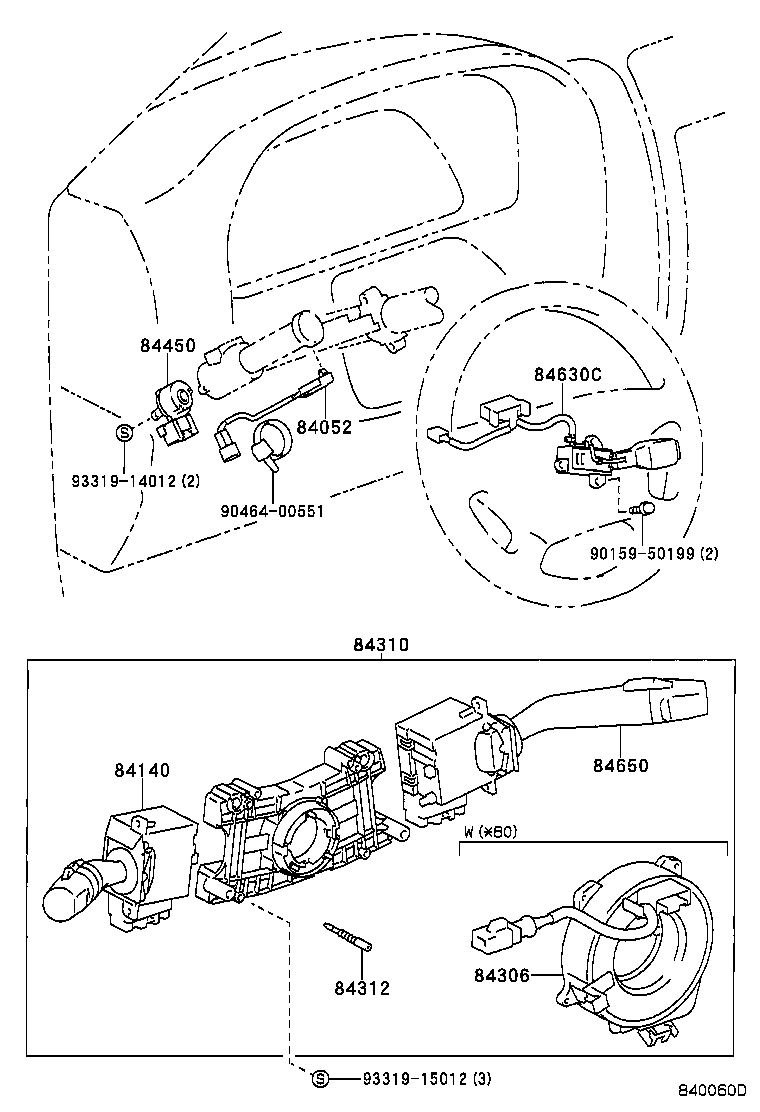

ILLUST NO. 4 OF 6(9604- )LHD
IGNITION & COMBINATION SWITCH
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84052 - SWITCH ASSY, UN-LOCK WARNING | ||||
| 84052-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84052-60010 |
KZJ9#,VZJ9# |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-26140 |
KZJ9#,VZJ9# |
1 | ||
| 84140-20560 |
KDJ9#,KZJ9#,VZJ9# W(FOG LAMP) |
1 | ||
| 84140-26140 |
KDJ90,VZJ90..LHD;KDJ95,KZJ9#,VZJ95 |
1 | ||
| 84306 - CABLE SUB-ASSY, SPIRAL | ||||
| 84306-35010 |
KZJ9#,VZJ9# |
1 | ||
| 84306-12070 |
KZJ9#,VZJ9# |
1 | ||
| 84306-35011 |
KZJ9#,VZJ9# |
1 | ||
| 84306-12070 |
KZJ9#,VZJ9# |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-6A750 |
KZJ9#,VZJ9# W(HEADLAMP CLEANER) |
1 | ||
| 84310-35670 |
KZJ9#,VZJ9# W(*80 & REAR WINDOW WIPER) |
1 | ||
| 84310-6A340 |
KZJ9#,VZJ9# W(HEADLAMP CLEANER) |
1 | ||
| 84310-3D020 |
KZJ9#,VZJ9# |
1 | ||
| 84310-3D060 |
KDJ9#,KZJ9#,VZJ9# W(FOG LAMP) |
1 | ||
| 84310-6A800 |
KDJ9#,KZJ9#,VZJ9# W(FOG LAMP & HEADLAMP CLEANER) |
1 | ||
| 84310-3D020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12200 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84450-12200 |
KZJ9#,VZJ9# |
1 | ||
| 84630C - SWITCH ASSY, SPEED CONTROL MAIN | ||||
| 84630-60030 |
VZJ9# W(*80) |
1 | ||
| 84630-60030 |
VZJ9# W(*80) |
1 | ||
| 84630-30160 |
VZJ9#..LHD |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84652-35520 |
KZJ9#,VZJ9# |
1 | ||
| 84652-60810 |
KZJ9#,VZJ9# W(HEADLAMP CLEANER) |
1 | ||
| 84652-60811 |
KDJ90,VZJ90..LHD;KDJ95,KZJ9#,VZJ95 W(FOG LAMP & HEADLAMP CLEANER) |
1 | ||
| 84652-35520 |
KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90159-50199 | ||||
| 90464-00551 | ||||
| 93319-14012 | ||||
| 93319-15012 | ||||
ILLUST NO. 1 OF 6(0108- )VZJ9#
ENGINE & TRANSMISSION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-16020 |
VZJ9# |
1 | ||
| 83420-16020 |
VZJ9# |
1 | ||
| 83530 - SWITCH ASSY, OIL PRESSURE (FOR ENGINE) | ||||
| 83530-28020 |
VZJ9# |
1 | ||
| 83530-28020 |
VZJ9# |
1 | ||
| 83530-30090 |
VZJ9# |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-12040 |
KDJ9#,KZJ9#,VZJ9#..MTM |
1 | ||
| 84210-12040 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 84222 - SWITCH, TRANSFER INDICATOR, NO.1 | ||||
| 84222-35080 |
KZJ9#,VZJ9# |
1 | ||
| 84222-35080 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 84222C - SWITCH, TRANSFER INDICATOR, NO.3 | ||||
| 84222-35110 |
KZJ9#,VZJ9# |
1 | ||
| 84222-35110 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39895 |
VZJ9#..MTM |
1 | ||
| 89465-39895 |
VZJ9#..MTM |
1 | ||
| 89465-44040 |
VZJ95..LHD REAR |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-39895 |
VZJ9#..MTM |
1 | ||
| 89465-39895 |
VZJ9#..MTM |
1 | ||
| 89465-44040 |
VZJ95..LHD REAR |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
VZJ9# |
1 | ||
| 89466-20020 |
VZJ9# |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-20020 |
VZJ9# |
1 | ||
| 89466-20020 |
VZJ9# |
1 | ||
| 89467B - SENSOR, AIR FUEL RATIO | ||||
| 89467-35021 |
VZJ9#..MTM |
1 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| 89615 - SENSOR, KNOCK CONTROL | ||||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| 89615-12050 |
VZJ9# DENSO |
2 | ||
| 89615-12040 |
VZJ9# MATSUSHITA |
2 | ||
| Common parts | ||||
| 82711-60570 | ||||
| 90179-08101 | ||||
| 90430-18008 | ||||
| 91651-40830 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
