VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90

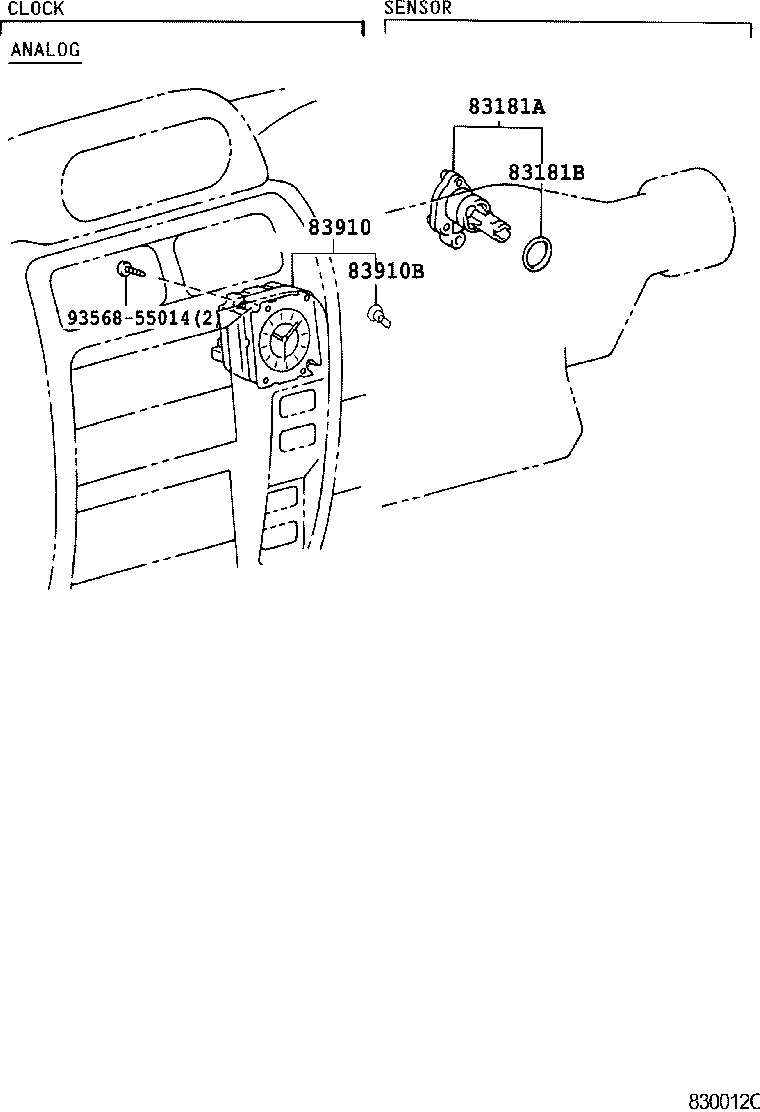

ILLUST NO. 2 OF 3(9604- )
CLOCK & SENSOR SPEEDOMETER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12020 |
KZJ9#,VZJ9# |
1 | ||
| 83181-12020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24030 |
KZJ9#,VZJ9# |
1 | ||
| 96711-24030 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-60160 |
KZJ9#,VZJ9# |
1 | ||
| 83910-60160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83910B - BULB, CLOCK INDICATOR | ||||
| 90010-07002 |
KZJ9#,VZJ9# |
2 | ||
| 90010-07002 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| Common parts | ||||
| 93568-55014 | ||||

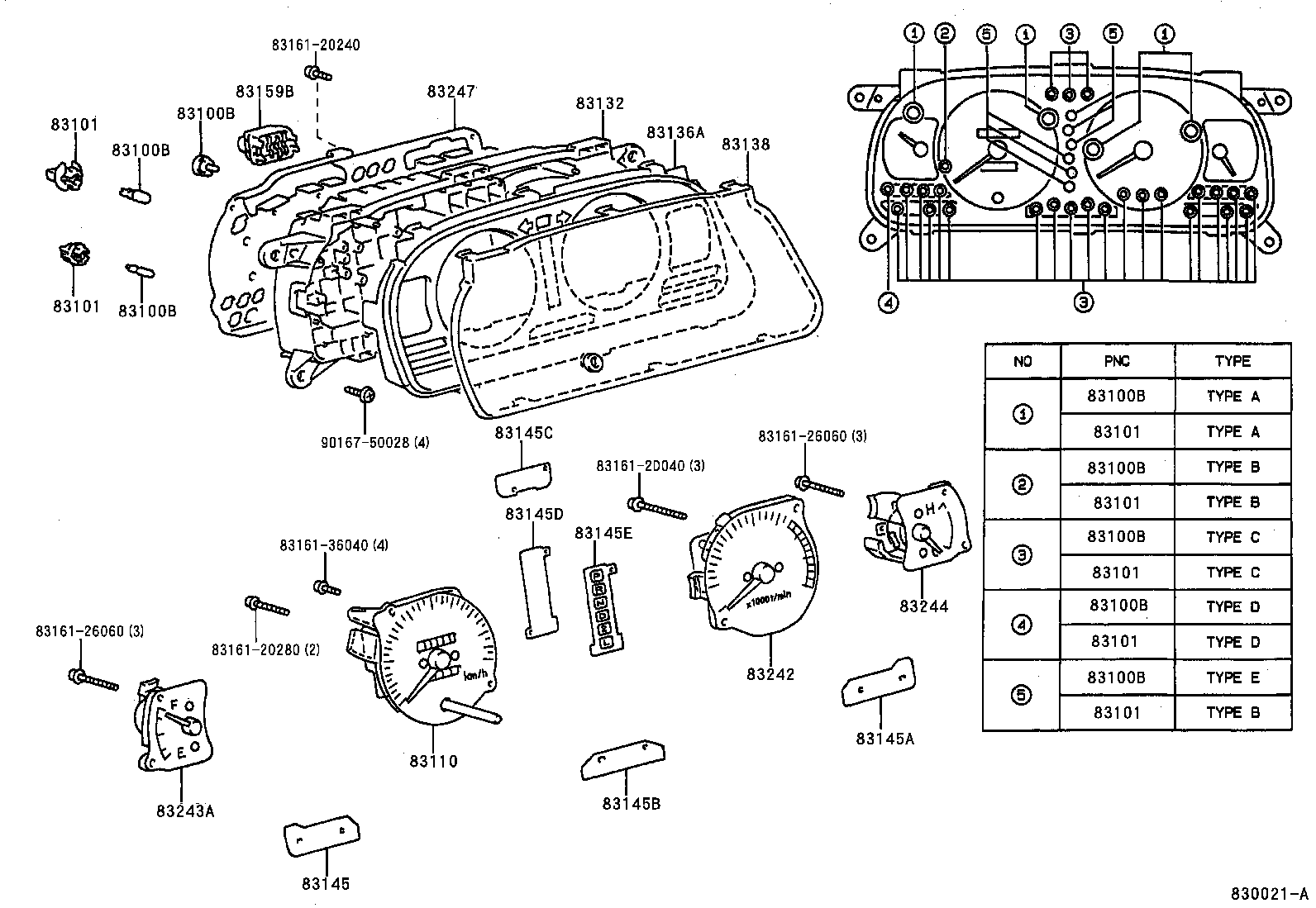

ILLUST NO. 1 OF 3(9604-9906)
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,VZJ9# TYPE A |
4 | ||
| 83101-14040 |
VZJ9#..MTM TYPE B |
12 | ||
| 83147-20060 |
KZJ9#,VZJ9# TYPE C |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,VZJ9# TYPE A |
4 | ||
| 83101-14040 |
VZJ9#..MTM TYPE B |
12 | ||
| 83147-20060 |
KZJ9#,VZJ9# TYPE C |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,VZJ9# TYPE A |
4 | ||
| 83101-14040 |
VZJ9#..MTM TYPE B |
12 | ||
| 83147-20060 |
KZJ9#,VZJ9# TYPE C |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,VZJ9# TYPE A |
4 | ||
| 83101-14040 |
VZJ9#..MTM TYPE B |
12 | ||
| 83147-20060 |
KZJ9#,VZJ9# TYPE C |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,VZJ9# TYPE A |
4 | ||
| 83101-14040 |
VZJ9#..MTM TYPE B |
12 | ||
| 83147-20060 |
KZJ9#,VZJ9# TYPE C |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,VZJ9# TYPE A |
4 | ||
| 83101-14040 |
VZJ9#..MTM TYPE B |
12 | ||
| 83147-20060 |
KZJ9#,VZJ9# TYPE C |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-20040 |
KZJ9#,VZJ9# TYPE A |
4 | ||
| 83101-14040 |
VZJ9#..MTM TYPE B |
12 | ||
| 83147-20060 |
KZJ9#,VZJ9# TYPE C |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-60040 |
VZJ9# MPH & KM/H |
1 | ||
| 83220-60640 |
VZJ9# |
1 | ||
| 83220-60030 |
VZJ9# KM/H |
1 | ||
| 83220-60650 |
VZJ9# MPH & KM/H |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83841-6A720 |
VZJ9#..MTM |
1 | ||
| 83136A - COVER, COMBINATION METER | ||||
| 83851-60060 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83852-6B160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-60050 |
VZJ9# |
1 | ||
| 83831-6B160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-60050 |
VZJ9# |
1 | ||
| 83832-6B160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-6A740 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-6A740 |
VZJ9# |
1 | ||
| 83834-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-6B160 |
VZJ9# |
1 | ||
| 83881-60050 |
VZJ9# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83882-6B490 |
KDJ9#,KZJ9#,VZJ9#..MTM |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-60100 |
VZJ9#..MTM |
1 | ||
| Common parts | ||||
| 83161-20240 | ||||
| 83161-20280 | ||||
| 83161-26060 | ||||
| 83161-2D040 | ||||
| 83161-36040 | ||||
| 90167-50028 | ||||

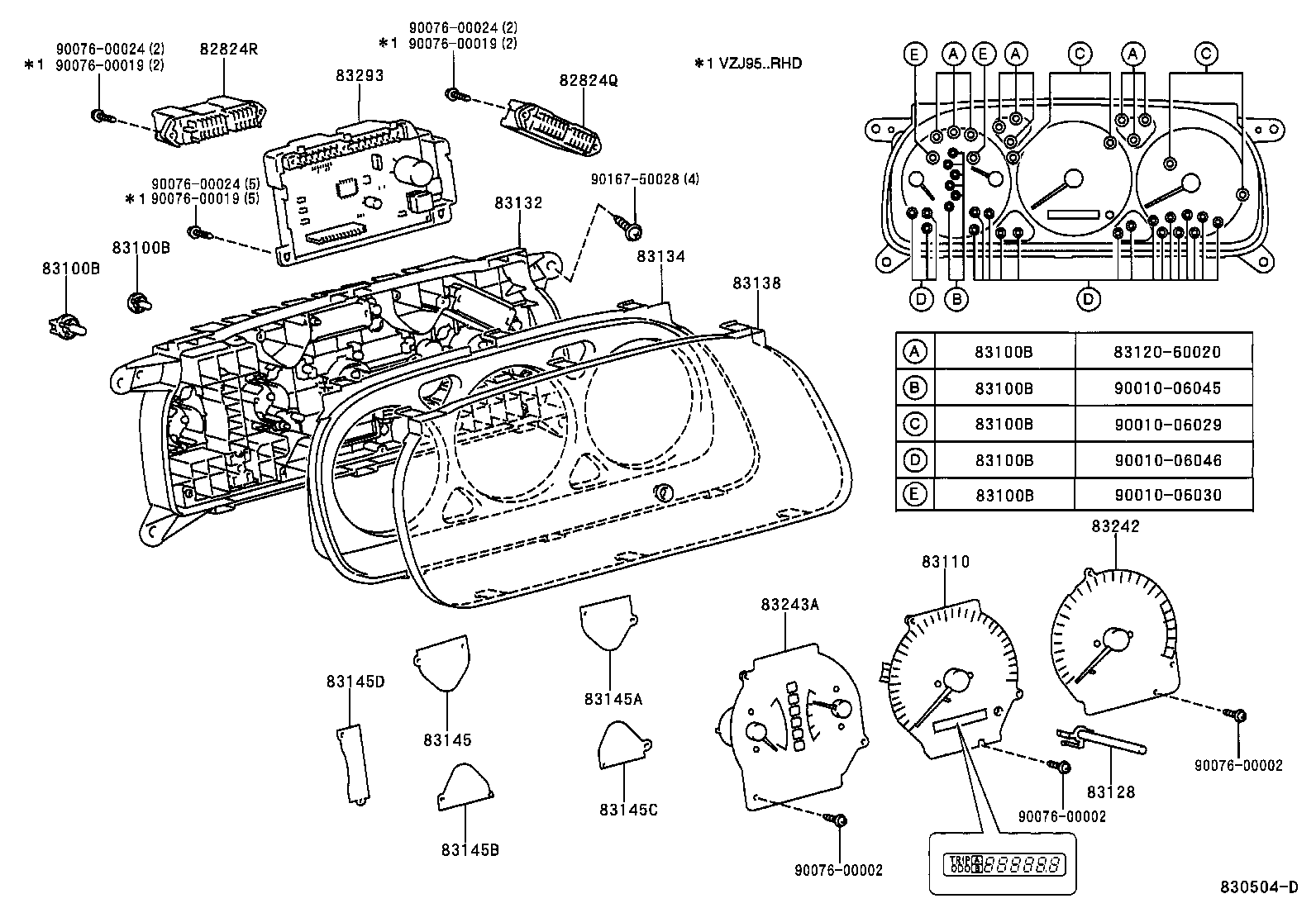

ILLUST NO. 1 OF 3(9906- )
COMBINATION METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82824Q - CONNECTOR, WIRING HARNESS, NO.1(FOR SPEEDOMETER) | ||||
| 82824-28130 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82824R - CONNECTOR, WIRING HARNESS, NO.2(FOR SPEEDOMETER) | ||||
| 82824-28150 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-1A020 |
KZJ9#,VZJ9# 12V 3.4W,W(BLUE CAP),TYPE A |
4 | ||
| 83119-20040 |
KZJ9#,VZJ9# 12V 3.0W,TYPE C |
1 | ||
| 90981-11018 |
VZJ9#..MTM 12V 1.2W W/O SOCKET,TYPE C |
10 | ||
| 90076-04006 |
KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE B |
1 | ||
| 90010-06030 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(BLUE CAP),TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 90010-06046 |
KDJ9#,KZJ9#,VZJ9# 14V 0.84W,W(SOCKET),TYPE D:REFER TO ILLUSTRATION |
1 | ||
| 90010-06029 |
KDJ9#,KZJ9#,VZJ9# 14V 3.0W,W(SOCKET),TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83120-60020 |
KDJ9#,KZJ9#,VZJ9# 12V 1.4W,W(SOCKET),TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-60040 |
VZJ9# MPH & KM/H |
1 | ||
| 83220-60640 |
VZJ9# |
1 | ||
| 83220-60030 |
VZJ9# KM/H |
1 | ||
| 83220-60650 |
VZJ9# MPH & KM/H |
1 | ||
| 83128 - KNOB, TRIP COUNTER | ||||
| 83224-37250 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83841-6A720 |
VZJ9#..MTM |
1 | ||
| 83134 - COVER, COMBINATION METER, NO.1 | ||||
| 83821-6B160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83852-6B160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145 - LENS, METER, NO.1 | ||||
| 83831-60050 |
VZJ9# |
1 | ||
| 83831-6B160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145A - LENS, METER, NO.2 | ||||
| 83832-60050 |
VZJ9# |
1 | ||
| 83832-6B160 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145B - LENS, METER, NO.3 | ||||
| 83831-6A740 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83145C - LENS, METER, NO.4 | ||||
| 83832-6A740 |
VZJ9# |
1 | ||
| 83834-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83881-6B160 |
VZJ9# |
1 | ||
| 83881-60050 |
VZJ9# |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-60050 |
KZJ9#,VZJ9# |
1 | ||
| 83882-6B490 |
KDJ9#,KZJ9#,VZJ9#..MTM |
1 | ||
| 83293 - COMPUTER, TOTAL COUNTER MODULE | ||||
| 83293-60070 |
VZJ9# W(SPEED METER---MILE/KM) |
1 | ||
| 83293-60060 |
VZJ9# |
1 | ||
| Common parts | ||||
| 90076-00002 | ||||
| 90076-00019 | ||||
| 90076-00024 | ||||
| 90167-50028 | ||||
ILLUST NO. 3 OF 3(9906- )
ACCESSORY METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82272B - WIRE, AMMETER | ||||
| 82272-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82272-60010 |
KZJ9#,VZJ9# |
1 | ||
| 83240B - CASE ASSY, ACCESSORY METER | ||||
| 83240-60200E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 83240-60200E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 83240-60190 |
KZJ9#,VZJ9# |
1 | ||
| 83240-60200B0 |
KDJ9#,KZJ9#,VZJ9# MD. MOON MIST,TRIM1# |
1 | ||
| 83240-60200E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 83265A - COMPUTER, ACCESSORY METER | ||||
| 83265-60200 |
KZJ9#,VZJ9# |
1 | ||
| 83265-60210 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83267 - COVER, ACCESSORY METER | ||||
| 83267-60200 |
KZJ9#,VZJ9# |
1 | ||
| 83267-60210 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83268 - PANEL, ACCESSORY METER | ||||
| 83268-60200 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83269 - LAMP, ACCESSORY METER | ||||
| 83269-60200 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297-60020 |
KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60020 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60010 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297-60020 |
KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60020 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60010 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 83298 - HOUSING,ACCESSORY METER COMPUTER | ||||
| 83298-60010E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 83298-60010E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 83298-60010E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 83298-60010B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 83298-60010B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| Common parts | ||||
| 90072-03004 | ||||
| 90077-04001 | ||||
| 90077-04005 | ||||
| 90077-04007 | ||||
| 90179-08068 | ||||
ILLUST NO. 3 OF 3(9604-9906)
ACCESSORY METER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82272B - WIRE, AMMETER | ||||
| 82272-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82272-60010 |
KZJ9#,VZJ9# |
1 | ||
| 83240B - CASE ASSY, ACCESSORY METER | ||||
| 83240-60200E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 83240-60200E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 83240-60190 |
KZJ9#,VZJ9# |
1 | ||
| 83240-60200B0 |
KDJ9#,KZJ9#,VZJ9# MD. MOON MIST,TRIM1# |
1 | ||
| 83240-60200E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 83254B - PLATE, ACCESSORY METER | ||||
| 83254-60190 |
KZJ9#,VZJ9# |
1 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 90010-07003 |
KZJ9#,VZJ9# 14V1.4W,W(GREEN CAP) |
3 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 90010-07003 |
KZJ9#,VZJ9# 14V1.4W,W(GREEN CAP) |
3 | ||
| 83290E - BULB, ACCESSORY METER | ||||
| 90010-07003 |
KZJ9#,VZJ9# 14V1.4W,W(GREEN CAP) |
3 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297-60020 |
KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60020 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60010 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297-60020 |
KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60020 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60010 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297 - BRACKET, ACCESSORY METER | ||||
| 83297-60010 |
KZJ9#,VZJ9# NO.1 |
1 | ||
| 83297-60020 |
KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60020 |
KDJ9#,KZJ9#,VZJ9# NO.2 |
2 | ||
| 83297-60010 |
KDJ9#,KZJ9#,VZJ9# NO.1 |
1 | ||
| 83298 - HOUSING,ACCESSORY METER COMPUTER | ||||
| 83298-60010E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 83298-60010E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 83298-60010E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 83298-60010B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 83298-60010B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| F1603 - BOARD SUB-ASSY, ACCESSORY METER | ||||
| F1603-60020 |
KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 82711-3A440 | ||||
| 82711-95408 | ||||
| 90072-03004 | ||||
| 90077-04001 | ||||
| 90077-04006 | ||||
| 90077-04010 | ||||
| 90179-08068 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
