VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90
ILLUST NO. 2 OF10(9604- )VZJ9#

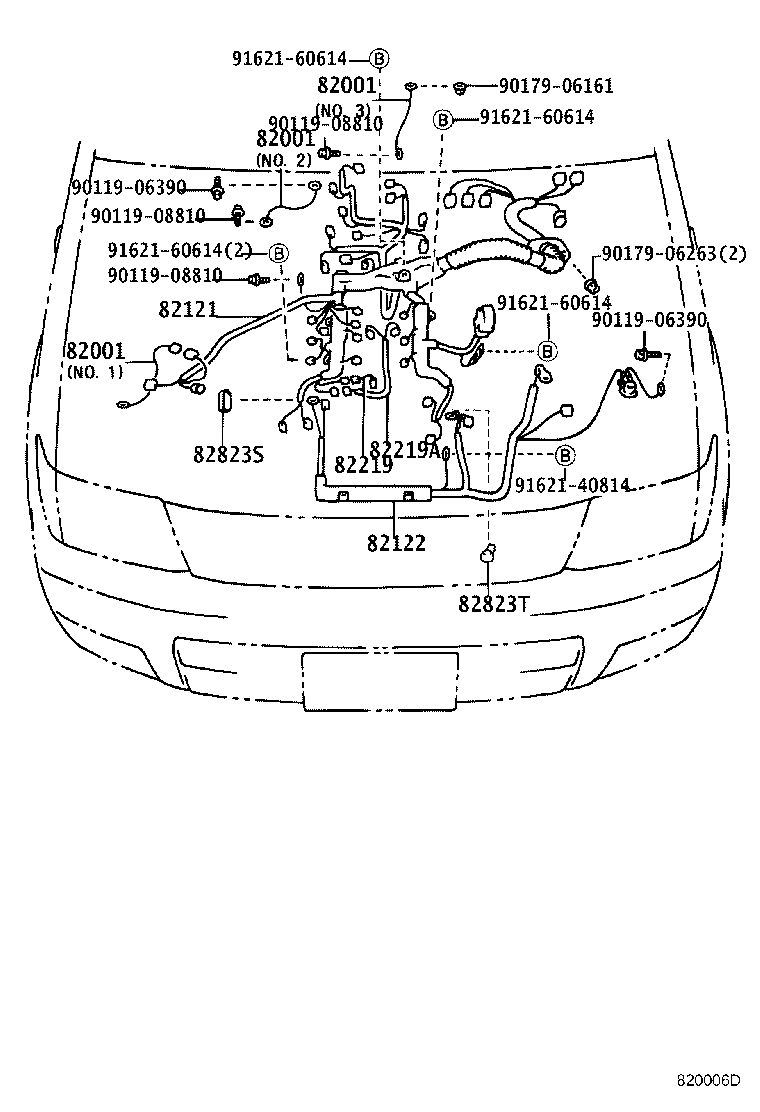

ENGINE WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07380 |
VZJ9# NO.3 |
1 | ||
| 90980-07381 |
VZJ9# NO.2 |
1 | ||
| 90980-07380 |
VZJ9# |
1 | ||
| 90980-07206 |
VZJ9# NO.1 |
1 | ||
| 90980-07206 |
VZJ9# NO.1 |
1 | ||
| 90980-07381 |
VZJ9# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07380 |
VZJ9# NO.3 |
1 | ||
| 90980-07381 |
VZJ9# NO.2 |
1 | ||
| 90980-07380 |
VZJ9# |
1 | ||
| 90980-07206 |
VZJ9# NO.1 |
1 | ||
| 90980-07206 |
VZJ9# NO.1 |
1 | ||
| 90980-07381 |
VZJ9# NO.2 |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07380 |
VZJ9# NO.3 |
1 | ||
| 90980-07381 |
VZJ9# NO.2 |
1 | ||
| 90980-07380 |
VZJ9# |
1 | ||
| 90980-07206 |
VZJ9# NO.1 |
1 | ||
| 90980-07206 |
VZJ9# NO.1 |
1 | ||
| 90980-07381 |
VZJ9# NO.2 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-60720 |
VZJ9#..MTM |
1 | ||
| 82121-60721 |
VZJ9#..MTM |
1 | ||
| 82139-60080 |
VZJ9#..MTM W(EGR) |
1 | ||
| 82122 - WIRE, ENGINE, NO.2 | ||||
| 82122-35450 |
VZJ9# |
1 | ||
| 82122-35450 |
VZJ9# |
1 | ||
| 82219 - WIRE, THERMO SENSOR | ||||
| 82219-34020 |
VZJ9# |
1 | ||
| 82219-34020 |
VZJ9# |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-34010 |
VZJ9# |
1 | ||
| 82219-34010 |
VZJ9# |
1 | ||
| 82823S - CAP, STARTER TERMINAL | ||||
| 82823-35050 |
VZJ9# |
1 | ||
| 82823-35050 |
VZJ9#..MTM |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
VZJ9# |
1 | ||
| 82823-22050 |
VZJ9#..MTM |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90119-08810 | ||||
| 90179-06161 | ||||
| 90179-06263 | ||||
| 91621-40814 | ||||
| 91621-60614 | ||||
ILLUST NO. 7 OF10(9604- )
COWL WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E320 | ||||
| 82711-2A630 | ||||
| 82711-60580 | ||||
| 82711-95711 | ||||
| 82715-60870 | ||||
| 82715-60880 | ||||
| 91616-60616 | ||||
ILLUST NO. 4 OF10(9604- )
SEAT WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82168-60090 |
KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82168-60091 |
KDJ95,KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KDJ9#,KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
| 82167 - WIRE, SEAT, NO.1 | ||||
| 82168-60090 |
KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82168-60091 |
KDJ95,KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KDJ9#,KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82167-60170 |
KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
| 82167-60171 |
KDJ95,KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KDJ9#,KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
| 82168 - WIRE, SEAT, NO.2 | ||||
| 82167-60170 |
KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
| 82167-60171 |
KDJ95,KZJ95,VZJ95..LHD LEATHER PACKAGE & W(SEAT HEATER) |
1 | ||
| 82167-60140 |
KDJ9#,KZJ9#,VZJ9# W(SEAT HEATER) |
1 | ||
ILLUST NO. 6 OF10(9604- )
ENGINE ROOM WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-10330 | ||||
| 82711-1E040 | ||||
| 82711-1E320 | ||||
| 82711-2A630 | ||||
| 82711-35420 | ||||
| 82715-22070 | ||||
| 82715-35290 | ||||
| 82715-35620 | ||||
| 82715-35640 | ||||
| 82715-60890 | ||||
| 91616-60616 | ||||
| 91626-60616 | ||||
ILLUST NO. 9 OF10(9604- )
DIODE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82345 - DIODE | ||||
| 82345-12050 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82345-12050 |
KZJ90..ATM;KDJ9#,VZJ9#..LHD |
1 | ||
ILLUST NO. 1 OF10(9604-9906)

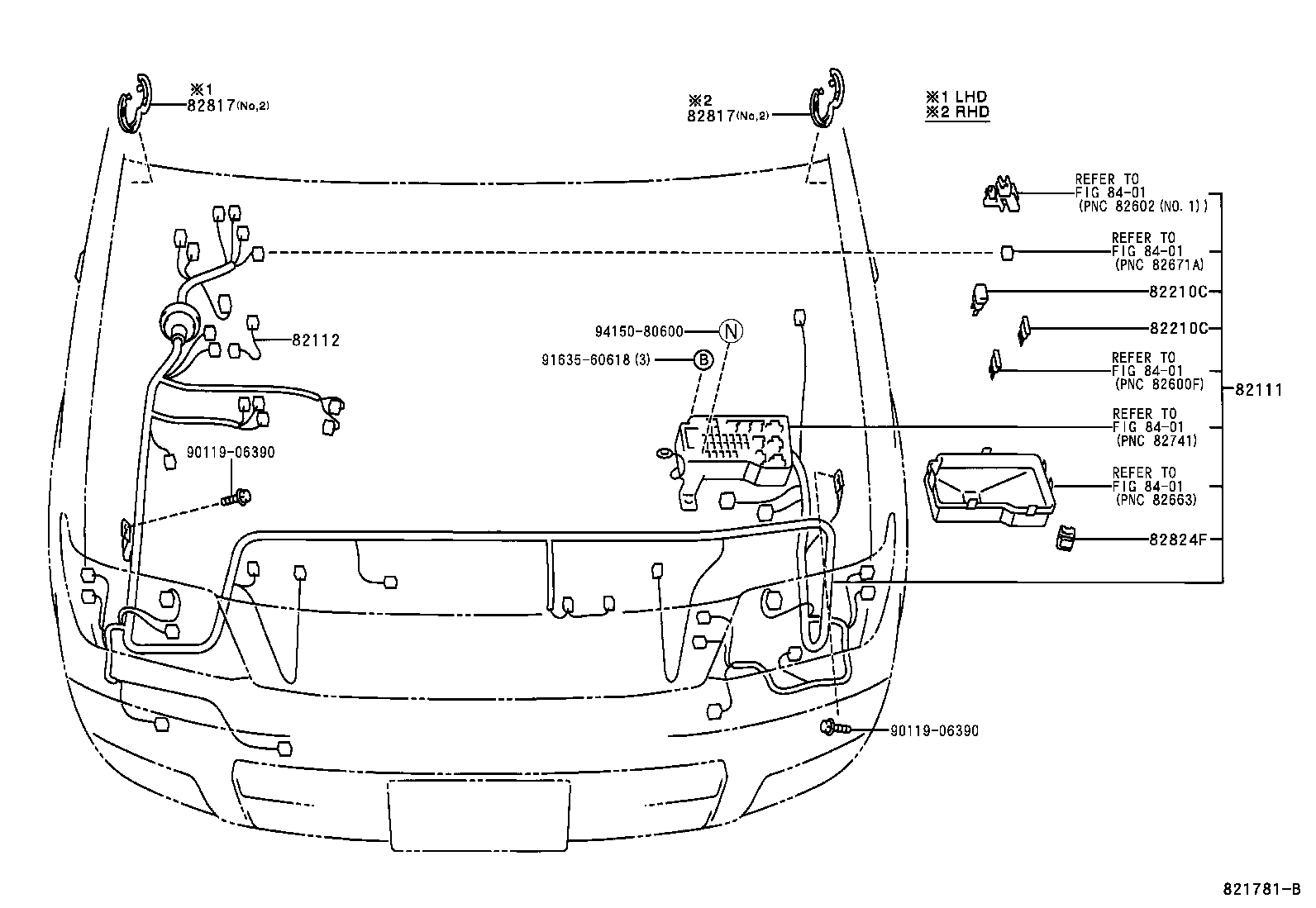

ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60600 |
VZJ9#..LHD |
1 | ||
| 82111-60630 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60620 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60610 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60611 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60601 |
VZJ9#..LHD |
1 | ||
| 82111-60612 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60621 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60632 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60602 |
VZJ9#..LHD |
1 | ||
| 82111-60631 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60613 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60623 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60622 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60633 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60603 |
VZJ9#..LHD |
1 | ||
| 82111-60604 |
VZJ9#..LHD |
1 | ||
| 82111-60624 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60634 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60614 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08246 |
KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
KDJ9#,KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDJ9#,KZJ9#,VZJ9# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
KDJ9#,KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
KDJ9#,KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
KDJ9#,KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08246 |
KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
KDJ9#,KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDJ9#,KZJ9#,VZJ9# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
KDJ9#,KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
KDJ9#,KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
KDJ9#,KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 82219A - WIRE, SENSOR | ||||
| 82219-34010 |
VZJ9# |
1 | ||
| 82219-34010 |
VZJ9# |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-32840 |
KZJ9#,VZJ9# NO.2 |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35630 |
KDJ9#,KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-32840 |
KZJ9#,VZJ9# NO.2 |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35630 |
KDJ9#,KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
VZJ9# |
1 | ||
| 82823-22050 |
VZJ9#..MTM |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82824-30180 |
KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90179-06158 | ||||
| 91651-A0616 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 8 OF10(9604- )
ROOF,FLOOR,DOOR WIRE CLAMPS & BKTS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-1E340 | ||||
| 82711-2A720 | ||||
| 82711-3H630 | ||||
| 82715-60250 | ||||

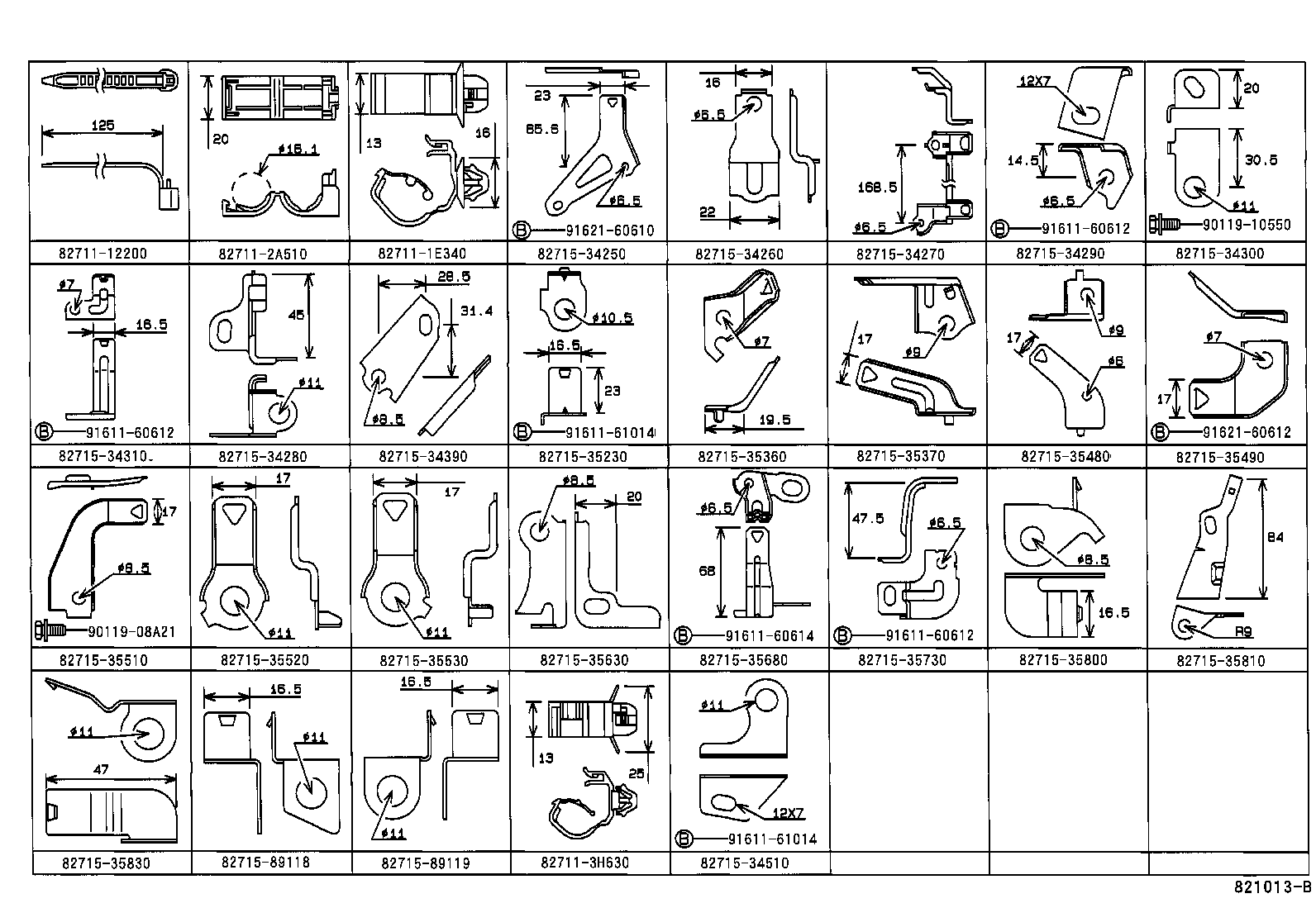

ILLUST NO. 6 OF10(9604- )VZJ9#
ENGINE WIRE CLAMPS & BRACKETS
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82711-12200 | ||||
| 82711-1E340 | ||||
| 82711-2A510 | ||||
| 82711-3H630 | ||||
| 82715-34250 | ||||
| 82715-34260 | ||||
| 82715-34270 | ||||
| 82715-34280 | ||||
| 82715-34290 | ||||
| 82715-34300 | ||||
| 82715-34310 | ||||
| 82715-34390 | ||||
| 82715-34510 | ||||
| 82715-35230 | ||||
| 82715-35360 | ||||
| 82715-35370 | ||||
| 82715-35480 | ||||
| 82715-35490 | ||||
| 82715-35510 | ||||
| 82715-35520 | ||||
| 82715-35530 | ||||
| 82715-35630 | ||||
| 82715-35680 | ||||
| 82715-35730 | ||||
| 82715-35800 | ||||
| 82715-35810 | ||||
| 82715-35830 | ||||
| 82715-89118 | ||||
| 82715-89119 | ||||
| 90119-08A21 | ||||
| 90119-10550 | ||||
| 91611-60612 | ||||
| 91611-60614 | ||||
| 91611-61014 | ||||
| 91621-60610 | ||||
| 91621-60612 | ||||
ILLUST NO. 5 OF10(9604- )
ROOF,DOOR,FLOOR WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82127 - WIRE, DIFFERENTIAL | ||||
| 82127-60010 |
KZJ9#,VZJ9# |
1 | ||
| 82127-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82506-60010 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR LOCK & FRONT DOOR SPEAKER) |
1 | ||
| 82506-60020 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR LOCK,FRONT DOOR SPEAKER & REMOTE CONTROL MIRROR) |
1 | ||
| 82505-60010 |
KZJ9#,VZJ9# W(FRONT DOOR SPEAKER) |
1 | ||
| 82506-60031 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR) |
1 | ||
| 82506-60021 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR LOCK,FRONT DOOR SPEAKER & REMOTE CONTROL MIRROR) |
1 | ||
| 82505-60031 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82506-60011 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR LOCK & FRONT DOOR SPEAKER) |
1 | ||
| 82506-60030 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR) |
1 | ||
| 82505-60041 |
KDJ9#,KZJ9#,VZJ9# W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82506-60032 |
KDJ9#,KZJ9#,VZJ9#..LHD W(POWER DOOR LOCK) |
1 | ||
| 82506-60032 |
KDJ9#,KZJ9#,VZJ9#..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & POWER DOOR LOCK) |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-60201 |
KDJ95,KZJ95,VZJ95..LHD W(POWER DOOR LOCK) |
1 | ||
| 82505-60020 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR SPEAKER & REMOTE CONTROL MIRROR) |
1 | ||
| 82505-60030 |
KZJ9#,VZJ9#..LHD W(FRONT DOOR LOCK & FRONT DOOR SPEAKER) |
1 | ||
| 82505-60010 |
KZJ9#,VZJ9# W(FRONT DOOR SPEAKER) |
1 | ||
| 82505-60040 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82152-60201 |
KDJ95,KZJ95,VZJ95..LHD W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER & POWER DOOR LOCK) |
1 | ||
| 82152-60200 |
KZJ95,VZJ95..LHD W(FRONT DOOR LOCK,FRONT DOOR SPEAKER,POWER WINDOW & REMOTE CONTROL MIRROR) |
1 | ||
| 82506-60012 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82506-60022 |
KDJ9#,KZJ9#,VZJ9# W(ELECTRIC REMOTE CONTROL MIRROR W/HEATER) |
1 | ||
| 82153 - WIRE, REAR DOOR, NO.1 | ||||
| 82153-60071 |
KZJ95,VZJ95 W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82153-60090 |
KZJ95,VZJ95 W(REAR DOOR SPEAKER) |
1 | ||
| 82153-60070 |
KZJ95,VZJ95 W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82153-60082 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 82153-60081 |
KZJ95,VZJ95 W(REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82153-60091 |
KZJ95,VZJ95 W(REAR DOOR SPEAKER) |
1 | ||
| 82153-60072 |
KDJ95,KZJ95,VZJ95 W(POWER DOOR LOCK) |
1 | ||
| 82153-60080 |
KZJ95,VZJ95 W(REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82154 - WIRE, REAR DOOR, NO.2 | ||||
| 82153-60071 |
KZJ95,VZJ95 W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82153-60070 |
KZJ95,VZJ95 W(POWER WINDOW,REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82153-60080 |
KZJ95,VZJ95 W(REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82153-60090 |
KZJ95,VZJ95 W(REAR DOOR SPEAKER) |
1 | ||
| 82153-60091 |
KZJ95,VZJ95 W(REAR DOOR SPEAKER) |
1 | ||
| 82153-60072 |
KDJ95,KZJ95,VZJ95 W(POWER DOOR LOCK) |
1 | ||
| 82153-60081 |
KZJ95,VZJ95 W(REAR DOOR LOCK & REAR DOOR SPEAKER) |
1 | ||
| 82153-60082 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-60651 |
KZJ95,VZJ95 |
1 | ||
| 82161-60650 |
KZJ95,VZJ95 |
1 | ||
| 82161-60580 |
KZJ95,VZJ95 W(SEAT HEATER) |
1 | ||
| 82161-60581 |
KZJ95,VZJ95 W(SEAT HEATER) |
1 | ||
| 82161-60672 |
KDJ95,KZJ95,VZJ95 W(DUAL MANUAL AIR CONDITIONER) |
1 | ||
| 82161-60652 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-60360 |
KZJ95,VZJ95 W(ABS) |
1 | ||
| 82162-60520 |
KZJ95,VZJ95 |
1 | ||
| 82162-60522 |
KZJ95,VZJ95 |
1 | ||
| 82162-60362 |
KZJ95,VZJ95 W(ABS & DIFFERENTIAL LOCK) |
1 | ||
| 82162-60521 |
KZJ95,VZJ95 |
1 | ||
| 82162-60770 |
KDJ95,KZJ95,VZJ95 W(ABS) |
1 | ||
| 82162-60790 |
KDJ95,KZJ95,VZJ95 |
1 | ||
| 82162-60361 |
KZJ95,VZJ95 W(ABS) |
1 | ||
| 82164 - WIRE, FRAME | ||||
| 82164-60180 |
KZJ9#,VZJ9# W(ABS & REAR DIFFERENTIAL LOCK) |
1 | ||
| 82164-60240 |
KZJ95,VZJ95 |
1 | ||
| 82164-60241 |
KDJ9#,KZJ9#,VZJ9# W(ABS) |
1 | ||
| 82164-60181 |
KDJ9#,KZJ9#,VZJ9# W(ABS & DIFFERENTIAL LOCK);W(DIFFERENTIAL LOCK) |
1 | ||
| 82165 - WIRE, FRAME, NO.2 | ||||
| 82165-60120 |
VZJ95 |
1 | ||
| 82165-60120 |
VZJ95 |
1 | ||
| 82166 - WIRE, CONSOLE BOX | ||||
| 82166-60060 |
KZJ9#,VZJ9#..LHD..MTM W(SEAT HEATER) |
1 | ||
| 82166-60030 |
KZJ9#,VZJ9# W(REAR HEATER) |
1 | ||
| 82166-60060 |
KDJ9#,KZJ9#,VZJ9#..LHD..MTM W(SEAT HEATER) |
1 | ||
| 82166-60040 |
KDJ95,KZJ95,VZJ95..LHD..MTM W(DUAL MANUAL AIR CONDITIONER) |
1 | ||
| 82166-60030 |
KDJ9#,KZJ9#,VZJ9# W(REAR HEATER) |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-60640 |
KZJ9#,VZJ9#..LHD W(ROOF RAIL) |
1 | ||
| 82171-60690 |
KZJ95,VZJ95..LHD W(ROOF RAIL) |
1 | ||
| 82171-60570 |
KZJ95,VZJ95..LHD |
1 | ||
| 82171-60600 |
KZJ9#,VZJ9#..LHD W(SUN ROOF) |
1 | ||
| 82171-60830 |
KDJ95,KZJ95,VZJ95..LHD |
1 | ||
| 82171-60860 |
KDJ9#,KZJ9#,VZJ9#..LHD W(SUN ROOF) |
1 | ||
| 82171-6A010 |
KDJ95,KZJ95,VZJ95..LHD W(ROOF RAIL) |
1 | ||
| 82172 - WIRE, ROOF, NO.2 | ||||
| 82172-60100 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 82172-60100 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82173 - WIRE, ROOF, NO.3 | ||||
| 82173-60060 |
KDJ95,KZJ95,VZJ95..LHD |
1 | ||
| 82173-60060 |
KZJ95,VZJ95..LHD |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-60170 |
KZJ9#,VZJ9# |
1 | ||
| 82184-60171 |
KZJ9#,VZJ9# |
1 | ||
| 82184-60172 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-60030 |
KZJ9#,VZJ9# |
1 | ||
| 82186-60030 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 82713-60010 | ||||
| 90119-06390 | ||||
| 90119-08A30 | ||||
| 90179-06161 | ||||
| 90269-04010 | ||||
| 90950-01234 | ||||
ILLUST NO. 3 OF10(9604-9906)LHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-6B180 |
VZJ9#..MTM |
1 | ||
| 82131-6B220 |
VZJ9#..MTM W(RUNNING LIGHT) |
1 | ||
| 82131-6B221 |
VZJ9#..MTM W(RUNNING LIGHT) |
1 | ||
| 82131-6B181 |
VZJ9#..MTM |
1 | ||
| 82131-6B182 |
VZJ9#..MTM |
1 | ||
| 82131-6B222 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-60100 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82129-60080 |
VZJ9#..MTM W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82129-60340 |
VZJ9#..MTM W(EGR & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82129-60360 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM & EGR & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82131-6B183 |
VZJ9#..MTM |
1 | ||
| 82131-6B223 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-60300 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM & EGR) |
1 | ||
| 82129-60280 |
VZJ9#..MTM W(EGR) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08246 |
KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
KDJ9#,KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDJ9#,KZJ9#,VZJ9# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
KDJ9#,KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
KDJ9#,KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
KDJ9#,KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82345-12050 |
KZJ90..ATM;KDJ9#,VZJ9#..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-32840 |
KZJ9#,VZJ9# NO.2 |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35630 |
KDJ9#,KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,VZJ9# |
2 | ||
| 82824-12210 |
VZJ9#..LHD;KZJ95..MTM;KZJ90..LHD..MTM;KZJ95..LHD..ATM W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,VZJ9# |
2 | ||
| 82824-12210 |
VZJ9#..LHD;KZJ95..MTM;KZJ90..LHD..MTM;KZJ95..LHD..ATM W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
KZJ9#,VZJ9# |
1 | ||
| 82824-12220 |
KDJ9#,VZJ9# |
1 | ||
| 82824-12220 |
KZJ9#,VZJ9# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30190 |
KZJ90..RHD;KZJ90..ATM;KDJ9#,VZJ9# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
2 | ||
| 82824-20130 |
KZJ9#,VZJ9# |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
2 | ||
| 82824-20130 |
KZJ9#,VZJ9# |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50304 | ||||
| 91616-60616 | ||||
| 91633-60625 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 1 OF10(9906- )VZJ9#
ENGINE ROOM WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-60600 |
VZJ9#..LHD |
1 | ||
| 82111-60630 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60620 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60610 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60611 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60601 |
VZJ9#..LHD |
1 | ||
| 82111-60612 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60621 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60632 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60602 |
VZJ9#..LHD |
1 | ||
| 82111-60631 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60613 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82111-60623 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60622 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60633 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60603 |
VZJ9#..LHD |
1 | ||
| 82111-60604 |
VZJ9#..LHD |
1 | ||
| 82111-60624 |
VZJ9#..LHD W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60634 |
VZJ9#..LHD W(ABS & DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82111-60614 |
VZJ9#..LHD W(ABS) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08246 |
KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
KDJ9#,KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDJ9#,KZJ9#,VZJ9# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
KDJ9#,KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
KDJ9#,KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
KDJ9#,KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08246 |
KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
KDJ9#,KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDJ9#,KZJ9#,VZJ9# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
KDJ9#,KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
KDJ9#,KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
KDJ9#,KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-32840 |
KZJ9#,VZJ9# NO.2 |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35630 |
KDJ9#,KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-32840 |
KZJ9#,VZJ9# NO.2 |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35630 |
KDJ9#,KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82824F - CONNECTOR, WIRING HARNESS | ||||
| 82824-30180 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82824-30180 |
KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 91635-60618 | ||||
| 94150-80600 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 3 OF10(9906- )LHD
COWL WIRE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82131 - WIRE, COWL | ||||
| 82131-6B180 |
VZJ9#..MTM |
1 | ||
| 82131-6B220 |
VZJ9#..MTM W(RUNNING LIGHT) |
1 | ||
| 82131-6B221 |
VZJ9#..MTM W(RUNNING LIGHT) |
1 | ||
| 82131-6B181 |
VZJ9#..MTM |
1 | ||
| 82131-6B182 |
VZJ9#..MTM |
1 | ||
| 82131-6B222 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-60100 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82129-60080 |
VZJ9#..MTM W(SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82129-60340 |
VZJ9#..MTM W(EGR & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82129-60360 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM & EGR & SINGLE AUTOMATIC AIR CONDITIONER) |
1 | ||
| 82131-6B183 |
VZJ9#..MTM |
1 | ||
| 82131-6B223 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM) |
1 | ||
| 82129-60300 |
VZJ9#..MTM W(DAY TIME RUNNING LIGHT SYSTEM & EGR) |
1 | ||
| 82129-60280 |
VZJ9#..MTM W(EGR) |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08282 |
KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 90982-08202 |
KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08246 |
KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08202 |
KDJ9#,KZJ9#,VZJ9# 60A,TERM.:MALE,YEL |
1 | ||
| 90982-08281 |
KDJ9#,KZJ9#,VZJ9# 40A,TERM.:FEMALE,GRN |
1 | ||
| 90982-08246 |
KDJ9#,KZJ9#,VZJ9# 100A,TERM.:MALE,BLUE |
1 | ||
| 90982-08280 |
KDJ9#,KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08280 |
KZJ9#,VZJ9# 30A,TERM.:FEMALE,PNK |
1 | ||
| 90982-08282 |
KDJ9#,KZJ9#,VZJ9# 50A,TERM.:FEMALE,RED |
1 | ||
| 82345 - DIODE | ||||
| 82345-12050 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 82345-12050 |
KZJ90..ATM;KDJ9#,VZJ9#..LHD |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32840 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-32840 |
KZJ9#,VZJ9# NO.2 |
1 | ||
| 82817-35450 |
KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82817-35630 |
KDJ9#,KZJ9#,VZJ9#..LHD NO.1 |
1 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,VZJ9# |
2 | ||
| 82824-12210 |
VZJ9#..LHD;KZJ95..MTM;KZJ90..LHD..MTM;KZJ95..LHD..ATM W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82824 - CONNECTOR, WIRING HARNESS | ||||
| 82824-12210 |
KZJ9#,VZJ9# |
2 | ||
| 82824-12210 |
VZJ9#..LHD;KZJ95..MTM;KZJ90..LHD..MTM;KZJ95..LHD..ATM W(DAY TIME RUNNING LIGHT SYSTEM) |
2 | ||
| 82824D - CONNECTOR, WIRING HARNESS | ||||
| 82824-12220 |
KZJ9#,VZJ9# |
1 | ||
| 82824-12220 |
KDJ9#,VZJ9# |
1 | ||
| 82824-12220 |
KZJ9#,VZJ9# |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-30190 |
KZJ90..RHD;KZJ90..ATM;KDJ9#,VZJ9# |
1 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
2 | ||
| 82824-20130 |
KZJ9#,VZJ9# |
2 | ||
| 82824G - CONNECTOR, WIRING HARNESS | ||||
| 82824-20130 |
KZJ95..MTM;KZJ95..LHD..ATM;KDJ9#,KZJ90,VZJ9# |
2 | ||
| 82824-20130 |
KZJ9#,VZJ9# |
2 | ||
| Common parts | ||||
| 90119-06390 | ||||
| 90159-50304 | ||||
| 91616-60616 | ||||
| 91633-60625 | ||||
| 93560-15014 | ||||
| Linked diagrams | ||||
| 8121 | ||||
| 8401 | ||||
ILLUST NO.10 OF10(9604- )
CONNECTOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90980-10437 | ||||
| 90980-10619 | ||||
| 90980-11011 | ||||
| 90980-11016 | ||||
| 90980-11019 | ||||
| 90980-11162 | ||||
| 90980-11292 | ||||
| 90980-11314 | ||||
| 90980-11660 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
