VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

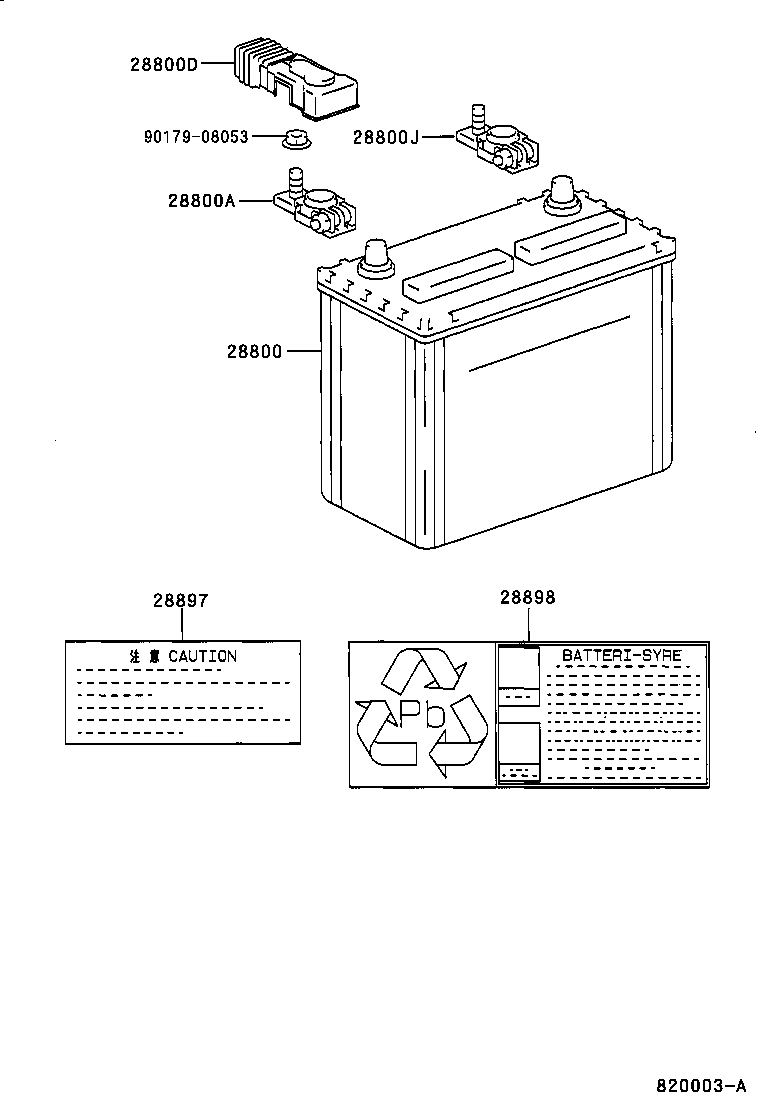

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28897 28898 9017908053
Part # Description Qty Price
28800 - BATTERY
28800-42031

5VZFE..VZJ9#

55D23L

 1
28800-64010

5VZFE..VZJ9#

55D23L

 1
28800-64010

5VZFE..VZJ9#

55D23L,GS

 1
28800-42041

5VZFE..VZJ9#

55D23L,MATSUSHITA

 1
28800-42042

5VZFE..VZJ9#

55D23L,YUASA

 1
28800-54020

5VZFE..VZJ9#..LHD

80D26L,GS

 1
28800-64132

5VZFE..VZJ9#..LHD

80D26L,YUASA

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

1KZTE,5VZFE..KZJ9#,VZJ9#

W(1 BATTERY)

 1
90982-05054

1K#,5VZFE..KDJ9#,KZJ9#,VZJ9#

W(1 BATTERY)

 1
90982-05035

1KZTE,5VZFE..KZJ9#,VZJ9#

W(1 BATTERY)

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-35020

1KZTE,5VZFE..KZJ9#,VZJ9#

W(1 BATTERY)

 1
82821-35020

5VZFE..VZJ9#..MTM

W(1 BATTERY)

 1
28898 - PLATE, BATTERY
28898-46020

1K#,5VZFE..KDJ9#,KZJ9#,VZJ9#

 1
28898-46020

1KZTE,5VZFE..KZJ9#,VZJ9#

 1
28898-46010

1KZTE,5VZFE..KZJ9#,VZJ9#..LHD

NORWAY SPEC

 1
Common parts
90179-08053
