Toyota Land cruiser 90 VZJ95 FUEL TANK & TUBE

VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 5VZFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

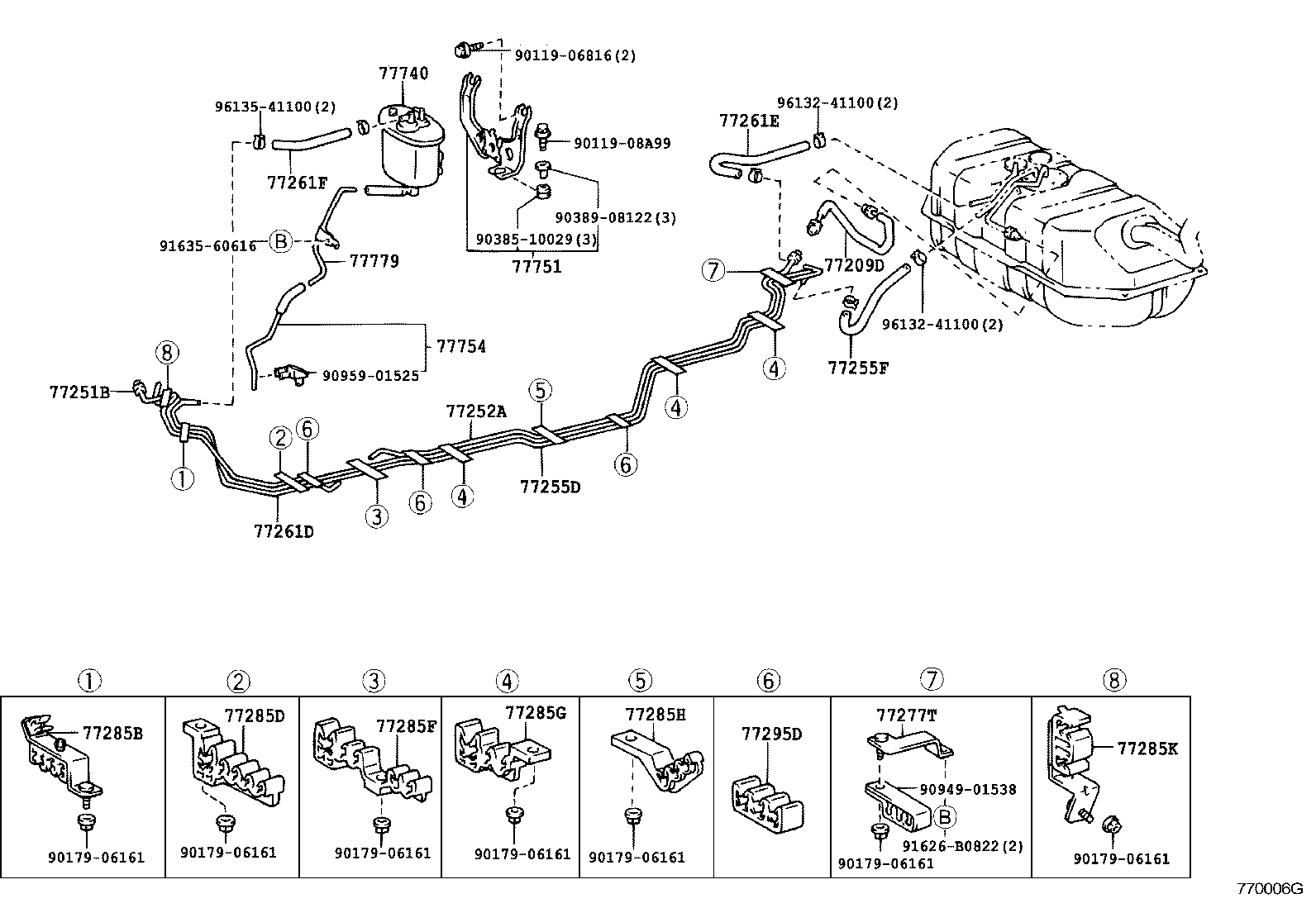

ILLUST NO. 2 OF 2(9604-0108)VZJ9#

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-60100	VZJ9#	06/1999 - 09/1999	1
77209-60101	VZJ9#	09/1999 - 09/2002	1
77209-60100	VZJ9#	04/1996 - 06/1999	1
77251B - TUBE, FUEL MAIN
77251-3D140	VZJ9#	04/1996 - 06/1999	1
77251-3D140	VZJ9#	06/1999 - 09/2002	1
77252A - TUBE, FUEL MAIN, NO.2
77252-60411	VZJ95	01/1998 - 06/1999	1
77252-60411	VZJ95	06/1999 - 09/1999	1
77252-60410	VZJ95	04/1996 - 01/1998	1
77252-60412	VZJ95	09/1999 - 09/2002	1
77255D - TUBE, FUEL RETURN
77255-60522	VZJ95	09/1999 - 09/2002	1
77255-60521	VZJ95	01/1998 - 06/1999	1
77255-60520	VZJ95	04/1996 - 01/1998	1
77255-60521	VZJ95	06/1999 - 09/1999	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95337-06018	VZJ9# L=180	08/2001 - 09/2002	1
95333-06020	VZJ9#..LHD *H,L=180	06/1999 - 09/2002	1
95333-06020	VZJ9# *H,L=180	04/1996 - 06/1999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-60271	VZJ95	01/1998 - 06/1999	1
77261-60271	VZJ95	06/1999 - 08/2001	1
77261-60270	VZJ95	04/1996 - 01/1998	1
77261-60272	VZJ95	08/2001 - 09/2002	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95337-06020	VZJ9# L=160	08/2001 - 09/2002	1
95333-06020	KZJ9#,VZJ9# *H,L=160	04/1996 - 06/1999	1
95333-06020	VZJ95..LHD;KDJ9#,KZJ9#,VZJ90 *H,L=160	06/1999 - 09/2002	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030	VZJ9# *H,L=300	04/1996 - 06/1999	1
95333-06030	VZJ9# *H,L=300	06/1999 - 08/2001	1
77249-60180	VZJ9#..LHD RUSSIA & CIS SPEC	08/2001 - 09/2002	1
77249-60170	VZJ9#..LHD	08/2001 - 09/2002	1
77277T - BRACKET, CHECK VALVE
77277-60050	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77277-60050	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35230	VZJ9#	04/1996 - 06/1999	1
77285-35260	VZJ9#	06/1999 - 09/2002	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35280	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77285-35280	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35290	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77285-35290	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35300	KZJ9#,VZJ9#	04/1996 - 06/1999	3
77285-35300	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	3
77285H - CLAMP, FUEL TUBE, NO.1
77285-60060	VZJ9#	04/1996 - 06/1999	1
77285-60060	VZJ9#	06/1999 - 09/2002	1
77285K - CLAMP, FUEL TUBE, NO.1
77285-35230	VZJ9#	06/1999 - 09/2002	1
77285-35260	VZJ9#	04/1996 - 06/1999	1
77295D - GROMMET, FUEL TUBE
77295-35110	VZJ9#	08/2000 - 09/2002	2
77295-35110	VZJ9#	04/1996 - 06/1999	4
77740 - CANISTER ASSY, CHARCOAL
77704-35320	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77704-35320	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77740-60430	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-35100	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77751-35100	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77751-60280	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35330	VZJ9#	04/1996 - 06/1999	1
77754-35330	VZJ9#	06/1999 - 09/2002	1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-60050	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77779-35030	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77779-35030	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
Common parts
90119-06816
90119-08A99
90179-06161
90385-10029
90389-08122
90949-01538
90959-01525
91626-B0822
91635-60616
96132-41100
96135-41100

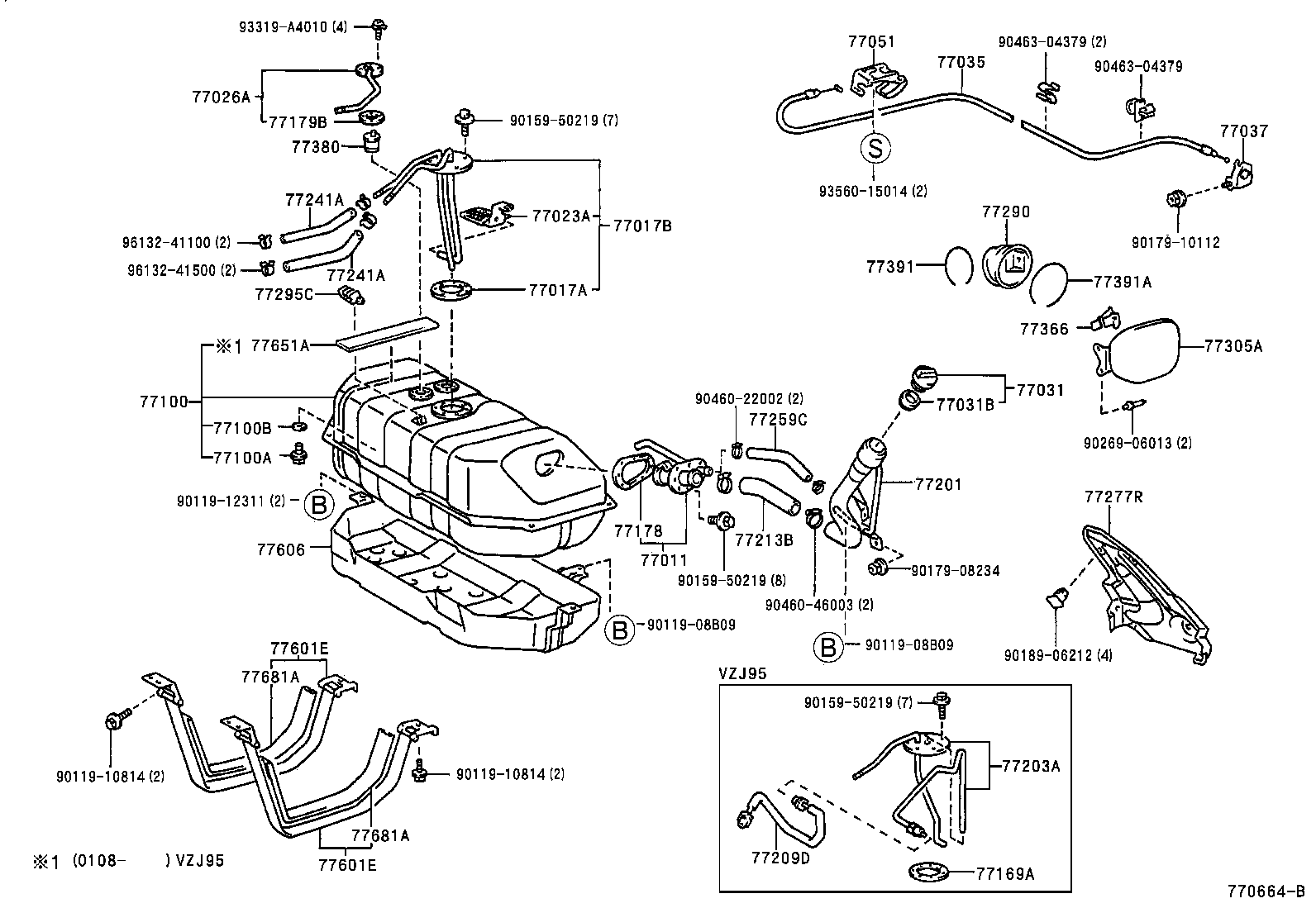

ILLUST NO. 1 OF 2(9604- )KDJ95,KZJ95,VZJ95

Click highlighted areas on diagram

FUEL TANK

Part #	Description	Period	Qty
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-60050	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77011-60050	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1
77026-60100	VZJ9#..LHD RUSSIA & CIS SPEC	08/2001 - 09/2002	1
77026-60100	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77026-60130	VZJ9#	08/2001 - 09/2002	1
77026-60100	KDJ9#,KZJ9#,VZJ9#	06/1999 - 08/2001	1
77031 - CAP ASSY, FUEL TANK
77310-48020	VZJ9#	06/1999 - 08/2001	1
77300-60030	VZJ9#	08/2001 - 09/2002	1
77310-48020	VZJ9#	03/1998 - 06/1999	1
77310-35080	VZJ9#	04/1996 - 03/1998	1
77031B - GASKET (FOR FUEL TANK CAP)
77316-16010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77316-16010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-60060	KZJ95,VZJ95..LHD	04/1996 - 06/1999	1
77035-60060	KDJ95,KZJ95,VZJ95..LHD	06/1999 - 09/2002	1
77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID
77037-12050	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77037-12050	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77051 - LEVER SUB-ASSY, FUEL LID OPEN
77051-30060C0	KDJ9#,VZJ9# BLACK,TRIM1#,40,41	08/2000 - 08/2001	1
77051-30060C0	KDJ9#,VZJ9# BLACK,TRIM1#,4#	08/2001 - 09/2002	1
77051-30060B1	KZJ9#,VZJ9# MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
77051-30060C0	VZJ9# BLACK,TRIM1#,4#	06/1999 - 08/2000	1
77100 - TANK ASSY, FUEL
77001-60380	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77001-60380	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77001-60370	VZJ95..LHD CHILE SPEC	06/1999 - 09/2002	1
77100A - PLUG(FOR FUEL TANK)
90105-12116	KZJ9#,VZJ9#	04/1996 - 06/1999	1
90105-12116	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77100B - GASKET(FOR FUEL TANK)
90430-12245	KZJ9#,VZJ9#	04/1996 - 06/1999	1
90430-12245	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77169A - GASKET, FUEL SUCTION TUBE SET
77169-14010	VZJ9#	06/1999 - 09/2002	1
77169-14010	VZJ9#	04/1996 - 06/1999	1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-34010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77178-34010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77179B - GASKET, FUEL TANK EVAPORATION VENT TUBE
77179-26010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77179-26010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-60470	VZJ9#	04/1996 - 06/1999	1
77201-60470	VZJ9#	06/1999 - 09/2002	1
77203A - TUBE SUB-ASSY, FUEL SUCTION
77203-60070	VZJ9#	04/1996 - 06/1999	1
77203-60070	VZJ9#	06/1999 - 09/2002	1
77209D - TUBE SUB-ASSY, FUEL TANK MAIN
77209-60100	VZJ9#	06/1999 - 09/1999	1
77209-60101	VZJ9#	09/1999 - 09/2002	1
77209-60100	VZJ9#	04/1996 - 06/1999	1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77213-60120	VZJ9#..LHD RUSSIA & CIS SPEC	08/2001 - 09/2002	1
77213-60220	VZJ9#	08/2001 - 09/2002	1
77213-60120	KDJ9#,KZJ9#,VZJ9#	06/1999 - 08/2001	1
77213-60120	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77259C - HOSE, FUEL
95312-13019	VZJ9#	08/2001 - 09/2002	1
77259-60190	VZJ9#..LHD RUSSIA & CIS SPEC	08/2001 - 09/2002	1
77259-60190	KDJ9#,KZJ9#,VZJ9#	06/1999 - 08/2001	1
77259-60190	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77277R - PROTECTOR, FUEL TANK FILLER PIPE
77277-60040	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77277-60040	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77291-60040	KZJ95,VZJ95	04/1996 - 06/1999	1
77291-60040	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
77295C - GROMMET, FUEL TUBE
77295-35140	VZJ9#	06/1999 - 09/2002	1
77295-35140	VZJ9#	04/1996 - 06/1999	1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77350-60020	KZJ95,VZJ95	04/1996 - 06/1999	1
77350-60020	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77360-35010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77360-35010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77380 - VALVE ASSY, FUEL CUT OFF
77380-26010	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77380-26010	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77391 - RING, FUEL INLET BOX
77391-14020	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77391-14020	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77391A - RING, FUEL INLET BOX
77391-60020	KZJ95,VZJ95	04/1996 - 06/1999	1
77391-60020	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
77601E - BAND SUB-ASSY, FUEL TANK
77601-60180	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	2
77601-60180	KZJ95,VZJ95	04/1996 - 06/1999	2
77601E - BAND SUB-ASSY, FUEL TANK
77601-60180	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	2
77601-60180	KZJ95,VZJ95	04/1996 - 06/1999	2
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-60090	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
77606-60090	KZJ95,VZJ95	04/1996 - 06/1999	1
77651A - CUSHION, FUEL TANK, NO.1
77651-26070	VZJ9#	08/2001 - 09/2002	2
77681A - SEAT, FUEL TANK BAND
77681-32060	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
77681-32060	KZJ9#,VZJ9#	04/1996 - 06/1999	2
77681A - SEAT, FUEL TANK BAND
77681-32060	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	2
77681-32060	KZJ9#,VZJ9#	04/1996 - 06/1999	2
Common parts
90119-08B09
90119-10814
90119-12311
90159-50219
90179-08234
90179-10112
90189-06212
90269-06013
90460-22002
90460-46003
90463-04379
93319-A4010
93560-15014
96132-41100
96132-41500

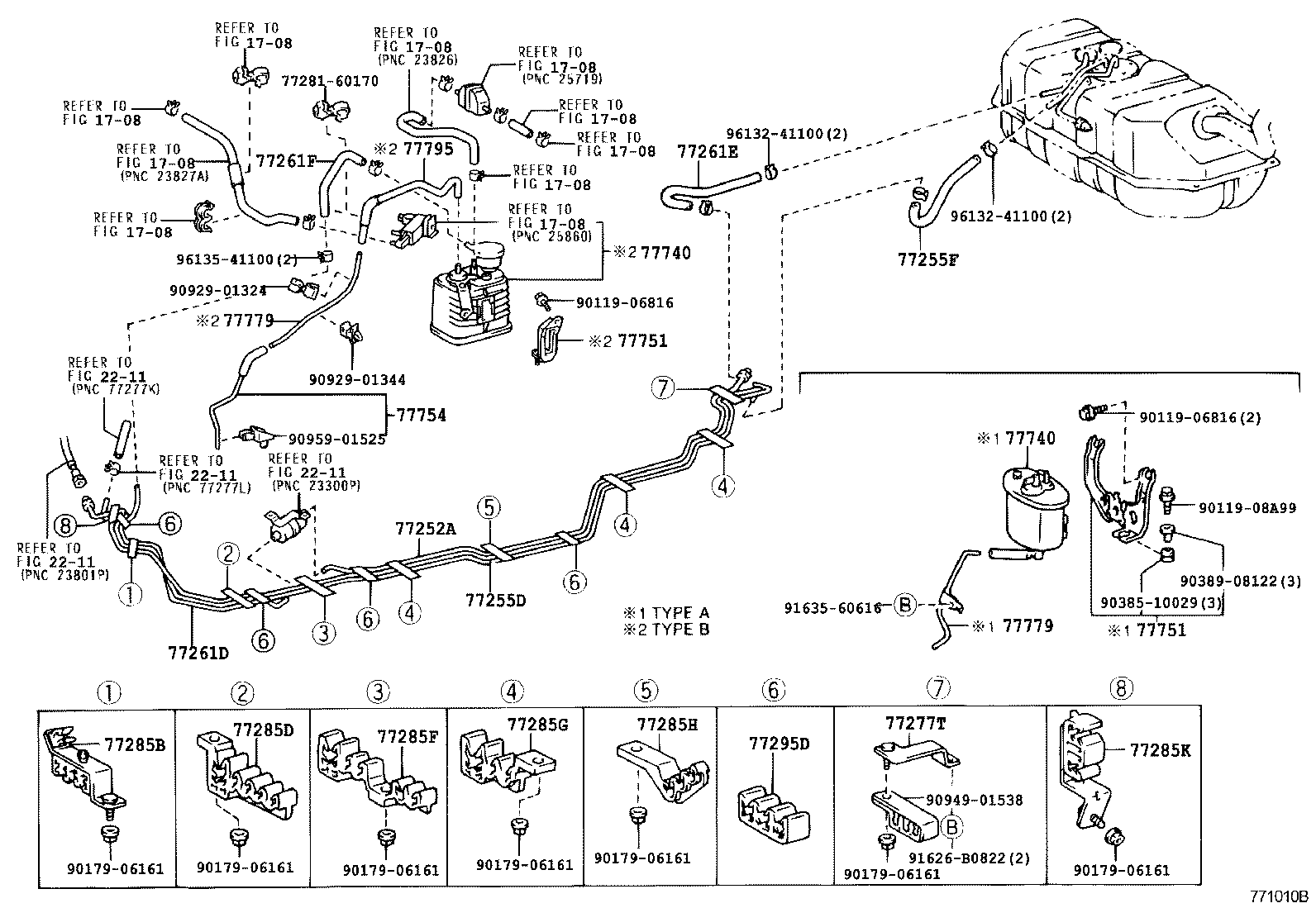

ILLUST NO. 2 OF 2(0108- )VZJ9#

Click highlighted areas on diagram

FUEL TUBE

Part #	Description	Period	Qty
77252A - TUBE, FUEL MAIN, NO.2
77252-60411	VZJ95	01/1998 - 06/1999	1
77252-60411	VZJ95	06/1999 - 09/1999	1
77252-60410	VZJ95	04/1996 - 01/1998	1
77252-60412	VZJ95	09/1999 - 09/2002	1
77255D - TUBE, FUEL RETURN
77255-60522	VZJ95	09/1999 - 09/2002	1
77255-60521	VZJ95	01/1998 - 06/1999	1
77255-60520	VZJ95	04/1996 - 01/1998	1
77255-60521	VZJ95	06/1999 - 09/1999	1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95337-06018	VZJ9# L=180	08/2001 - 09/2002	1
95333-06020	VZJ9#..LHD *H,L=180	06/1999 - 09/2002	1
95333-06020	VZJ9# *H,L=180	04/1996 - 06/1999	1
77261D - TUBE, FUEL TANK TO CANISTER
77261-60271	VZJ95	01/1998 - 06/1999	1
77261-60271	VZJ95	06/1999 - 08/2001	1
77261-60270	VZJ95	04/1996 - 01/1998	1
77261-60272	VZJ95	08/2001 - 09/2002	1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
95337-06020	VZJ9# L=160	08/2001 - 09/2002	1
95333-06020	KZJ9#,VZJ9# *H,L=160	04/1996 - 06/1999	1
95333-06020	VZJ95..LHD;KDJ9#,KZJ9#,VZJ90 *H,L=160	06/1999 - 09/2002	1
77261F - HOSE, FUEL, NO.2 (FOR FUEL TANK TO CANISTER TUBE)
95333-06030	VZJ9# *H,L=300	04/1996 - 06/1999	1
95333-06030	VZJ9# *H,L=300	06/1999 - 08/2001	1
77249-60180	VZJ9#..LHD RUSSIA & CIS SPEC	08/2001 - 09/2002	1
77249-60170	VZJ9#..LHD	08/2001 - 09/2002	1
77277T - BRACKET, CHECK VALVE
77277-60050	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77277-60050	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1
77285-35230	VZJ9#	04/1996 - 06/1999	1
77285-35260	VZJ9#	06/1999 - 09/2002	1
77285D - CLAMP, FUEL TUBE, NO.1
77285-35280	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77285-35280	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77285F - CLAMP, FUEL TUBE, NO.1
77285-35290	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	1
77285-35290	KZJ9#,VZJ9#	04/1996 - 06/1999	1
77285G - CLAMP, FUEL TUBE, NO.1
77285-35300	KZJ9#,VZJ9#	04/1996 - 06/1999	3
77285-35300	KDJ9#,KZJ9#,VZJ9#	06/1999 - 09/2002	3
77285H - CLAMP, FUEL TUBE, NO.1
77285-60060	VZJ9#	04/1996 - 06/1999	1
77285-60060	VZJ9#	06/1999 - 09/2002	1
77285K - CLAMP, FUEL TUBE, NO.1
77285-35230	VZJ9#	06/1999 - 09/2002	1
77285-35260	VZJ9#	04/1996 - 06/1999	1
77295D - GROMMET, FUEL TUBE
77295-35110	VZJ9#	08/2000 - 09/2002	2
77295-35110	VZJ9#	04/1996 - 06/1999	4
77740 - CANISTER ASSY, CHARCOAL
77704-35320	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77704-35320	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77740-60430	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77740 - CANISTER ASSY, CHARCOAL
77704-35320	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77704-35320	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77740-60430	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-35100	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77751-35100	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77751-60280	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-35100	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77751-35100	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77751-60280	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1
77754-35330	VZJ9#	04/1996 - 06/1999	1
77754-35330	VZJ9#	06/1999 - 09/2002	1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-60050	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77779-35030	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77779-35030	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77779 - TUBE, CHARCOAL CANISTER OUTLET
77779-60050	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
77779-35030	VZJ9# TYPE A:REFER TO ILLUSTRATION	06/1999 - 09/2002	1
77779-35030	VZJ9# TYPE A:REFER TO ILLUSTRATION	04/1996 - 06/1999	1
77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2
77795-60050	VZJ9#..LHD TYPE B:REFER TO ILLUSTRATION	08/2001 - 09/2002	1
Common parts
77281-60170
90119-06816
90119-08A99
90179-06161
90385-10029
90389-08122
90929-01324
90929-01344
90949-01538
90959-01525
91626-B0822
91635-60616
96132-41100
96135-41100
Linked diagrams
1708
2211

VZJ95L-GKMNKW (1996)

ILLUST NO. 2 OF 2(9604-0108)VZJ9#

ILLUST NO. 1 OF 2(9604- )KDJ95,KZJ95,VZJ95

ILLUST NO. 2 OF 2(0108- )VZJ9#

Part Price Details
