VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

Click highlighted areas on diagram

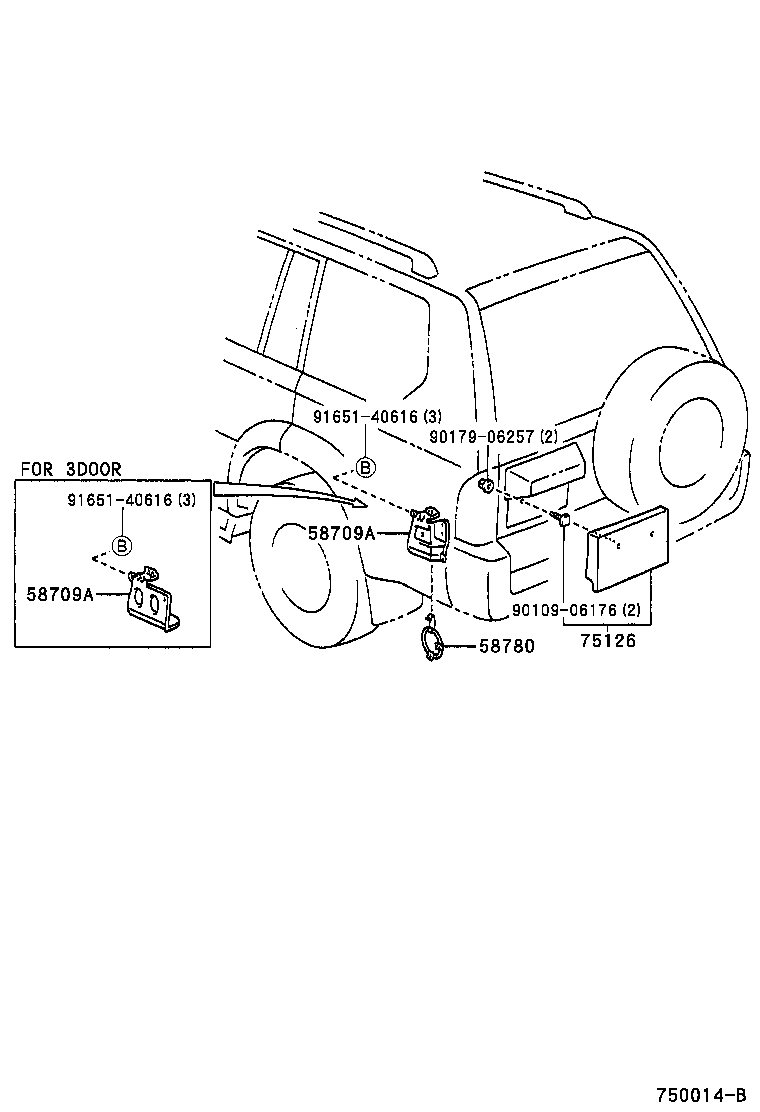

diagram 58709A 58709A 58780 75126 9010906176 9017906257 9165140616 9165140616
Part # Description Qty Price
58709A - CARRIER SUB-ASSY, JACK
58709-60020

KZJ95,VZJ95

 1
58709-60021

KZJ95,VZJ95

 1
58709-60021

KDJ95,KZJ95,VZJ95

 1
58709A - CARRIER SUB-ASSY, JACK
58709-60020

KZJ95,VZJ95

 1
58709-60021

KZJ95,VZJ95

 1
58709-60021

KDJ95,KZJ95,VZJ95

 1
58780 - BAND ASSY, TOOL BOX
58780-60010

KZJ9#,VZJ9#

 1
58780-44010

KZJ9#,VZJ9#

 1
58780-44010

KDJ9#,KZJ9#,VZJ9#

 1
75126 - STAY, REAR LICENSE PLATE BRACKET, LOWER
75126-60060

KDJ9#,KZJ9#,VZJ9#

 1
75126-60060

KZJ9#,VZJ9#

 1
Common parts
90109-06176
90179-06257
91651-40616
