VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )LHD

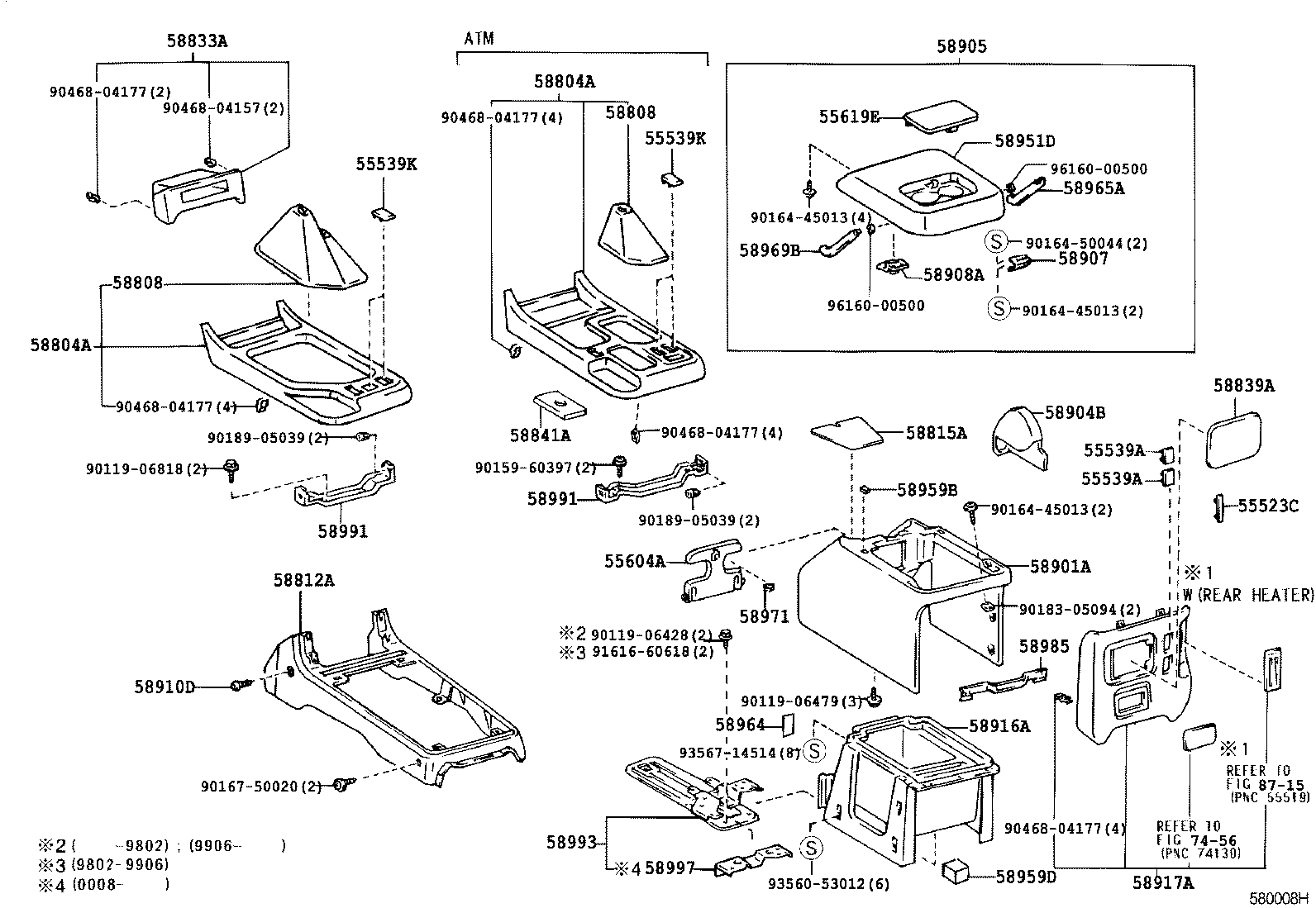

Click highlighted areas on diagram

diagram 55523C 55539A 55539A 55539K 55539K 55604A 55619E 58804A 58804A 58808 58808 58812A 58815A 58833A 58839A 58841A 58901A 58904B 58905 58907 58908A 58910D 58916A 58917A 58951D 58959B 58959D 58964 58965A 58969B 58971 58985 58991 58991 58993 58997 7456 8715 9011906428 9011906479 9011906818 9015960397 9016445013 9016445013 9016445013 9016450044 9016750020 9018305094 9018905039 9018905039 9046804157 9046804177 9046804177 9046804177 9046804177 9046804177 9161660618 9356053012 9356714514 9616000500 9616000500
Part # Description Qty Price
55523C - COVER, HEATER CONTROL OPENING
55523-60010E0

KDJ95,KZJ95,VZJ95

OAK,TRIM4#

 1
55523-60010E0

KDJ95,VZJ95

OAK,TRIM40,41

 1
55523-60010B0

KDJ95,KZJ95,VZJ95

MD.MOON MIST,TRIM1#

 1
55523-60010E0

KZJ95,VZJ95

OAK,TRIM4#

 1
55539A - COVER, SPARE SWITCH HOLE
55539-20080E0

KDJ95,KZJ95,VZJ95

OAK,TRIM4#

 2
55539-20080E0

KZJ95,VZJ95

OAK,TRIM4#

 2
55539-20080B2

KDJ95,KZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
55539-20080E0

KDJ95,VZJ95

OAK,TRIM40,41

 2
55539A - COVER, SPARE SWITCH HOLE
55539-20080E0

KDJ95,KZJ95,VZJ95

OAK,TRIM4#

 2
55539-20080E0

KZJ95,VZJ95

OAK,TRIM4#

 2
55539-20080B2

KDJ95,KZJ95,VZJ95

MD.MOON MIST,TRIM1#

 2
55539-20080E0

KDJ95,VZJ95

OAK,TRIM40,41

 2
55539K - COVER, SPARE SWITCH HOLE
55539-20020C0

KZJ9#,VZJ9#

BLACK,TRIM1#

 2
55539-20020C0

KZJ9#,VZJ9#

BLACK,TRIM1#,4#

 2
55539-20020C0

KDJ95,VZJ95

BLACK,TRIM1#,40,41

 2
55539-20020C0

KDJ9#,KZJ9#,VZJ9#

BLACK,TRIM1#,4#

 2
55539K - COVER, SPARE SWITCH HOLE
55539-20020C0

KZJ9#,VZJ9#

BLACK,TRIM1#

 2
55539-20020C0

KZJ9#,VZJ9#

BLACK,TRIM1#,4#

 2
55539-20020C0

KDJ95,VZJ95

BLACK,TRIM1#,40,41

 2
55539-20020C0

KDJ9#,KZJ9#,VZJ9#

BLACK,TRIM1#,4#

 2
55604A - HOLDER SUB-ASSY, INSTRUMENT PANEL CUP
55604-60010E0

KZJ9#,VZJ9#..LHD

OAK,TRIM4#

 1
55604-60010B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
55604-60020E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
55604-60020E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
55604-60020B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
55604-60010B0

KZJ9#,VZJ9#..LHD

MD.MOON MIST,TRIM1#

 1
55619E - COVER, CUP HOLDER HOLE
55619-60020B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
55619-60020E0

KZJ9#,VZJ9#

OAK,TRIM4#

 1
55619-60020E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
55619-60020B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
55619-60020E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-60070C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58804-60070C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#

 1
58804-60070C0

KDJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,40,41

 1
58804-60070C0

KDJ9#,KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58804A - PANEL SUB-ASSY, CONSOLE, UPPER
58804-60070C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58804-60070C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#

 1
58804-60070C0

KDJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,40,41

 1
58804-60070C0

KDJ9#,KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-60110C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#

 1
58808-60110C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58808-60110C0

KDJ9#,KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58808-60110C0

KDJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,40,41

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-60110C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#

 1
58808-60110C0

KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58808-60110C0

KDJ9#,KZJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,4#

 1
58808-60110C0

KDJ9#,VZJ9#..LHD..MTM

BLACK,TRIM1#,40,41

 1
58812A - BOX, CONSOLE, LOWER
58812-60020E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58812-60020B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58812-60020E0

KZJ9#,VZJ9#

OAK,TRIM4#

 1
58812-60020E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
58812-60020B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58815A - CARPET, CONSOLE BOX
58815-60010

KZJ9#,VZJ9#

 1
58815-60011

KZJ9#,VZJ9#..LHD

 1
58815-60070

KDJ9#,KZJ9#,VZJ9#

 1
58815-60010B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58833A - COVER, CONSOLE, UPPER
58833-60010C0

KDJ9#,VZJ9#

BLACK,TRIM1#,40,41

 1
58833-60010C0

KZJ9#,VZJ9#

BLACK,TRIM1#

 1
58833-60010C0

KZJ9#,VZJ9#

BLACK,TRIM1#,4#

 1
58833-60010C0

KDJ9#,KZJ9#,VZJ9#

BLACK,TRIM1#,4#

 1
58839A - COVER, CONSOLE BOX HOLE
55549-60020E0

KZJ9#,VZJ9#

OAK,TRIM4#

 1
55549-60020B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
55549-60020B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
55549-60020E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
55549-60020E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58911-60070E0

KZJ9#,VZJ9#..LHD

OAK,TRIM4#

 1
58911-60070B0

KZJ9#,VZJ9#..LHD

MD.MOON MIST,TRIM1#

 1
58911-60070B0

KZJ9#,VZJ9#..LHD

MD.MOON MIST,TRIM1#

 1
58911-60130E0

KDJ9#,VZJ9#..LHD

OAK,TRIM40,41

 1
58911-60130B0

KDJ9#,KZJ9#,VZJ9#..LHD

MD.MOON MIST,TRIM1#

 1
58911-60130E0

KDJ9#,KZJ9#,VZJ9#..LHD

OAK,TRIM4#

 1
58904B - COVER SUB-ASSY, PARKING BRAKE HOLE
58904-60020

KDJ9#,KZJ9#,VZJ9#..LHD

 1
58904-60020

KZJ9#,VZJ9#..LHD

 1
58905 - DOOR SUB-ASSY, CONSOLE COMPARTMENT
58905-60040B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58905-60040E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58905-60040E0

KZJ9#,VZJ9#

OAK,TRIM4#

 1
58905-60040B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58905-60040E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
58907 - HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR
58907-60030

KZJ9#,VZJ9#

 1
58907-60030

KDJ9#,KZJ9#,VZJ9#

 1
58908A - LOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR
58908-32040

KZJ9#,VZJ9#

 1
58908-32040

KZJ9#,VZJ9#

W(REAR HEATER)

 2
58908-32040

KDJ9#,KZJ9#,VZJ9#

 1
58910D - CLIP(FOR CONSOLE BOX)
90467-07041B5

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 2
90467-07041E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 2
90467-07041B5

KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#

MD.MOON MIST,TRIM1#

 2
90467-07041E0

KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#

OAK,TRIM4#

 2
58916A - INSERT, CONSOLE BOX, REAR
58916-60040E0

KZJ9#,VZJ9#

OAK,TRIM4#

 1
58916-60040E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58916-60050E0

KZJ9#,VZJ9#

W(DUAL AIR CONDITIONER),OAK,TRIM4#

 1
58916-60050E0

KDJ9#,VZJ9#

W(DUAL AIR CONDITIONER),OAK,TRIM40,41

 1
58916-60040B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58916-60050B0

KDJ9#,KZJ9#,VZJ9#

W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1#

 1
58916-60040E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
58916-60050B0

KZJ9#,VZJ9#

W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1#

 1
58916-60040B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58916-60050E0

KDJ9#,KZJ9#,VZJ9#

W(DUAL AIR CONDITIONER),OAK,TRIM4#

 1
58917A - COVER, CONSOLE BOX, REAR
58917-60020B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58917-60040B0

KZJ9#,VZJ9#

W(REAR HEATER),MD.MOON MIST,TRIM1#

 1
58917-60030E0

KDJ95,VZJ95

W(DUAL AIR CONDITIONER),OAK,TRIM40,41

 1
58917-60030E0

KZJ95,VZJ95

W(DUAL AIR CONDITIONER),OAK,TRIM4#

 1
58917-60030E0

KDJ95,KZJ95,VZJ95

W(DUAL AIR CONDITIONER),OAK,TRIM4#

 1
58917-60020E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58917-60020E0

KZJ9#,VZJ9#

OAK,TRIM4#

 1
58917-60020E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
58917-60040E0

KZJ9#,VZJ9#

W(REAR HEATER),OAK,TRIM4#

 1
58917-60020B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58917-60030B0

KDJ95,KZJ95,VZJ95

W(DUAL AIR CONDITIONER),MD.MOON MIST,TRIM1#

 1
58917-60040E0

KDJ9#,VZJ9#

W(REAR HEATER),OAK,TRIM40,41

 1
58917-60040B0

KDJ9#,KZJ9#,VZJ9#

W(REAR HEATER),MD.MOON MIST,TRIM1#

 1
58917-60040E0

KDJ9#,KZJ9#,VZJ9#

W(REAR HEATER),OAK,TRIM4#

 1
58951D - DOOR, CONSOLE COMPARTMENT, OUTER
58951-60040E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58951-60040B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58951-60040B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58951-60040E0

KZJ9#,VZJ9#

OAK,TRIM4#

 1
58951-60040E0

KDJ9#,KZJ9#,VZJ9#

OAK,TRIM4#

 1
58959B - CUSHION, CONSOLE COMPARTMENT DOOR
58959-60030

KZJ9#,VZJ9#

 2
58959-60030

KDJ9#,KZJ9#,VZJ9#

 2
58959D - CUSHION, REAR CONSOLE BOX
58959-60010

KDJ9#,KZJ9#,VZJ9#

 2
58959-60010

KZJ9#,VZJ9#

 4
58959-60010

KZJ9#,VZJ9#

 4
58964 - STOPPER, CONSOLE COMPARTMENT DOOR, NO.1
58964-60010

KDJ9#,KZJ9#,VZJ9#

 1
58964-60010

KZJ9#,VZJ9#

 1
58965A - STOPPER, CONSOLE COMPARTMENT DOOR, NO.2
58965-60030

KZJ9#,VZJ9#

 1
58965-60030

KDJ9#,KZJ9#,VZJ9#

 1
58965-60010

KZJ9#,VZJ9#

 1
58969B - STOPPER, CONSOLE COMPARTMENT DOOR, NO.3
58969-60030

KZJ9#,VZJ9#

 1
58969-60010

KZJ9#,VZJ9#

 1
58969-60030

KDJ9#,KZJ9#,VZJ9#

 1
58971 - LOCK, CONSOLE COMPARTMENT DOOR
58971-26010

KZJ9#,VZJ9#

 1
58971-60010

KDJ9#,KZJ9#,VZJ9#

 1
58971-60010

KZJ9#,VZJ9#

 1
58985 - RETAINER, CONSOLE BOX
58985-60050

KZJ9#,VZJ9#

 1
58985-60050

KDJ9#,KZJ9#,VZJ9#

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-60040

KDJ9#,KZJ9#,VZJ9#..MTM

 1
58991-60040

KZJ9#,VZJ9#..MTM

 1
58991 - BRACKET, CONSOLE BOX MOUNTING, UPPER
58991-60040

KDJ9#,KZJ9#,VZJ9#..MTM

 1
58991-60040

KZJ9#,VZJ9#..MTM

 1
58993 - BRACKET, CONSOLE BOX MOUNTING, REAR
58902-60010

KZJ9#,VZJ9#

 1
58902-60040

KDJ9#,KZJ9#,VZJ9#..LHD

 1
58902-60010

KZJ9#,VZJ9#..LHD

 1
58997 - BRACKET, CONSOLE BOX MOUNTING, NO.3
58997-60050

KDJ9#,KZJ9#,VZJ9#..LHD

 1
Common parts
90119-06428
90119-06479
90119-06818
90159-60397
90164-45013
90164-50044
90167-50020
90183-05094
90189-05039
90468-04157
90468-04177
91616-60618
93560-53012
93567-14514
96160-00500
Linked diagrams
7456
8715
