VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

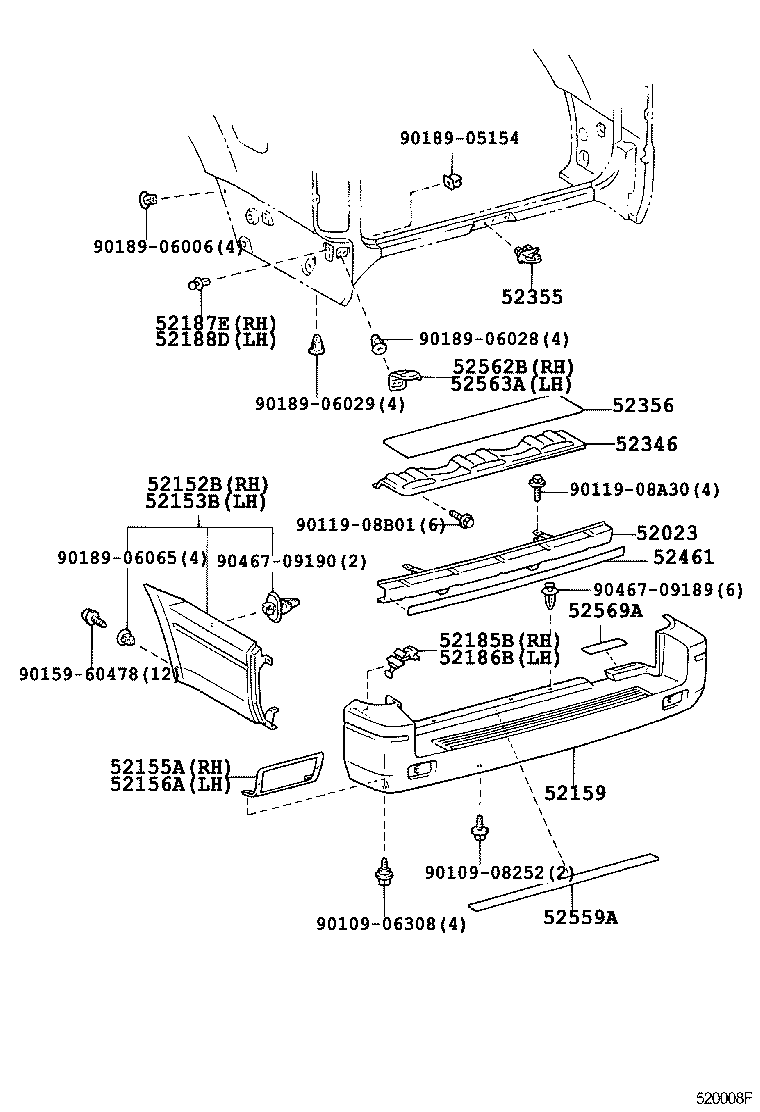

Click highlighted areas on diagram

diagram 52023 52152B 52153B 52155A 52156A 52159 52185B 52186B 52187E 52188D 52346 52355 52356 52461 52559A 52562B 52563A 52569A 9010906308 9010908252 9011908A30 9011908B01 9015960478 9018905154 9018906006 9018906028 9018906029 9018906065 9046709189 9046709190
Part # Description Qty Price
52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER
52023-60060

KZJ95,VZJ95

REAR COMBINATION LAMP;BUMPER

 1
52023-60060

KDJ95;KZJ95..RHD;VZJ95..LHD

 1
52152B - EXTENSION, REAR BUMPER, RH
52152-60250

KDJ95,KZJ95,VZJ95

 1
52152-60250

KZJ95,VZJ95

 1
52153B - EXTENSION, REAR BUMPER, LH
52153-60240

KZJ95,VZJ95

 1
52153-60240

KDJ95,KZJ95,VZJ95

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-60020

KZJ9#,VZJ9#

 1
52155-60020

KDJ9#,KZJ9#,VZJ9#

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-60020

KDJ9#,KZJ9#,VZJ9#

 1
52156-60020

KZJ9#,VZJ9#

 1
52159 - COVER, REAR BUMPER
52159-60100E0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),LT. GRAYISH BEIGE ME,K75

 1
52159-60100B0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),GRAY ME.,K03 ,K04 ,K06 ,K08 ,K12 ,K14

 1
52159-60100B0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K14 ,K74 ,K76 ,K80

 1
52159-60100A0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),SILVER ME.,K01 ,K10

 1
52159-60100G0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),DK. GREEN MC.,K79

 1
52159-60100B0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

 1
52159-60100E0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),LT. GRAYISH BEIGE ME,K75 ,K78

 1
52159-60080

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP)

 1
52159-60100E0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),LT. GRAYISH BEIGE ME,K75 ,K78

 1
52159-60100B2

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8 ,KC9

 1
52159-60100B2

KDJ9#,KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K08 ,K74 ,K80 ,KC7 ,KC8

 1
52159-60100B1

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),SILVER ME.,K72 ,K73

 1
52159-60100G0

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),DK. GREEN MC.,K79

 1
52159-60100B1

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),SILVER ME.,K72 ,K73 ,K81

 1
52159-60100E1

KDJ9#,KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),LT.GRAYISH BEIGE ME.,K75 ,K78

 1
52159-60080

KZJ9#,VZJ9#

W(REAR COMBINATION LAMP)

 1
52159-60100B2

KDJ9#,KZJ9#,VZJ9#

W(REAR COMBINATION LAMP),GRAY ME.,K04 ,K74 ,K80 ,KC7 ,KC8

 1
52185B - BRACKET, REAR BUMPER SIDE MOUNTING, RH
52185-60070

KZJ9#,VZJ9#

 1
52185-60070

KDJ9#,KZJ9#,VZJ9#

 1
52186B - BRACKET, REAR BUMPER SIDE MOUNTING, LH
52186-60020

KZJ9#,VZJ9#

 1
52186-60020

KDJ9#,KZJ9#,VZJ9#

 1
52187E - GUIDE, REAR BUMPER LOCATION, RH
52187-60020

KZJ9#,VZJ9#

 1
52187-60020

KDJ9#,KZJ9#,VZJ9#

 1
52188D - GUIDE, REAR BUMPER LOCATION, LH
52187-60020

KZJ9#,VZJ9#

 1
52187-60020

KDJ9#,KZJ9#,VZJ9#

 1
52346 - FRAME, BACK STEP, REAR
52346-60010

KZJ9#,VZJ9#

 1
52346-60010

KDJ9#,KZJ9#,VZJ9#

 1
52355 - BRACKET, REAR BUMPER STEP
52355-60040

KDJ9#,KZJ9#,VZJ9#

 1
52355-60040

KZJ9#,VZJ9#

 1
52356 - CUSHION, REAR BUMPER STEP
52356-60040

KZJ9#,VZJ9#

 1
52356-60040

KDJ9#,KZJ9#,VZJ9#

 1
52461 - PAD, REAR BUMPER, CENTER
52461-60030

KDJ9#,KZJ9#,VZJ9#

L=820

 1
52461-60030

KZJ9#,VZJ9#

L=820

 1
52559A - PAD, REAR BUMPER FILLER, LH
52559-60010

KZJ9#,VZJ9#

 1
52562B - RETAINER, REAR BUMPER, UPPER RH
52562-60010

KDJ9#,KZJ9#,VZJ9#

 1
52562-60010

KZJ9#,VZJ9#

 1
52563A - RETAINER, REAR BUMPER, UPPER LH
52563-60010

KZJ9#,VZJ9#

 1
52563-60010

KDJ9#,KZJ9#,VZJ9#

 1
52569A - PAD, REAR BUMPER FILLER, RH
52569-60020

KZJ9#,VZJ9#

 1
Common parts
90109-06308
90109-08252
90119-08A30
90119-08B01
90159-60478
90189-05154
90189-06006
90189-06028
90189-06029
90189-06065
90467-09189
90467-09190
