VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

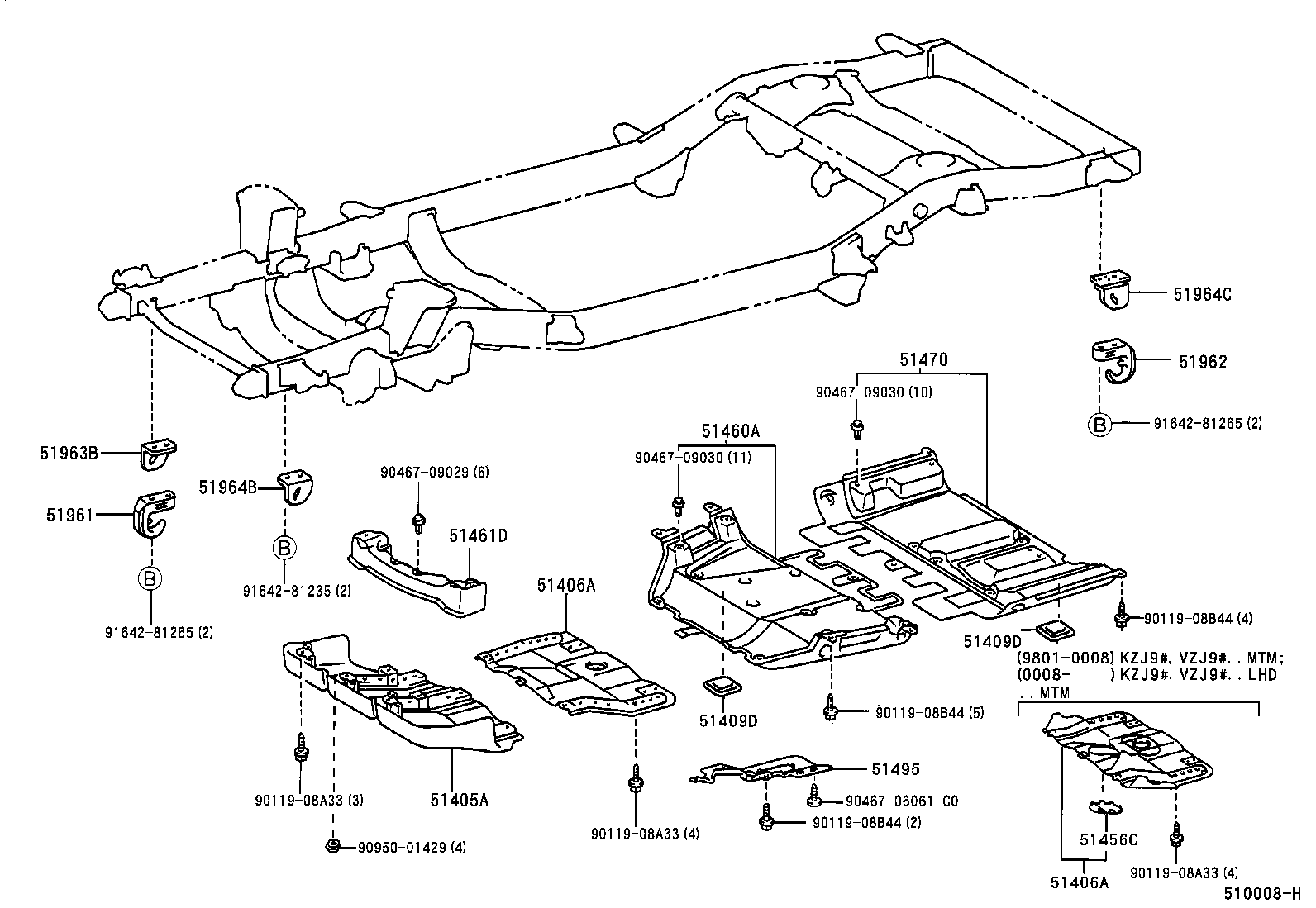

Click highlighted areas on diagram

diagram 51405A 51406A 51406A 51409D 51409D 51456C 51460A 51461D 51470 51495 51961 51962 51963B 51964B 51964C 9011908A33 9011908A33 9011908A33 9011908B44 9011908B44 9011908B44 9046706061C0 9046709029 9046709030 9046709030 9095001429 9164281235 9164281265 9164281265
Part # Description Qty Price
51405A - COVER SUB-ASSY, ENGINE UNDER, NO.1
51440-60060

KZJ9#,VZJ9#..MTM

 1
51440-60062

KZJ9#,VZJ9#..MTM

 1
51405-35071

KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51450-60041

KZJ9#,VZJ9#..MTM

 1
51450-60040

KZJ9#,VZJ9#..MTM

 1
51450-60042

KZJ9#,VZJ9#..MTM

 1
51450-60042

KZJ9#,VZJ9#..LHD..MTM

 1
51406A - COVER SUB-ASSY, ENGINE UNDER, NO.2
51450-60041

KZJ9#,VZJ9#..MTM

 1
51450-60040

KZJ9#,VZJ9#..MTM

 1
51450-60042

KZJ9#,VZJ9#..MTM

 1
51450-60042

KZJ9#,VZJ9#..LHD..MTM

 1
51456C - SEAL, ENGINE UNDER COVER, NO.2
51456-60051

KZJ9#,VZJ9#..MTM

 1
51456-60051

KZJ95..LHD..MTM;KZJ90,VZJ9#..MTM

 1
51460A - COVER ASSY, TRANSMISSION UNDER, RH
51460-60010

KZJ9#,VZJ9#..MTM

 1
51961 - HOOK, NO.1
51961-35051

KZJ9#,VZJ9#

 1
51961-35051

KDJ9#,KZJ9#,VZJ9#

 1
51961-35050

KZJ9#,VZJ9#

 1
51962 - HOOK, NO.2
51961-35050

KZJ9#,VZJ9#

 1
51961-35051

KZJ9#,VZJ9#

 1
51961-35051

KDJ9#,KZJ9#,VZJ9#

 1
51963B - HOOK, TRANSPORT, FRONT RH
51963-35070

KZJ9#,VZJ9#

 1
51963-35070

KDJ9#,KZJ9#,VZJ9#

 1
51964B - HOOK, TRANSPORT, FRONT LH
51964-35050

KZJ9#,VZJ9#

 1
51964-35050

KDJ9#,KZJ9#,VZJ9#

 1
51964C - HOOK, TRANSPORT, REAR LH
51963-35070

KDJ9#,KZJ9#,VZJ9#

 1
51963-35070

KZJ9#,VZJ9#

 1
Common parts
90119-08A33
90119-08B44
90467-06061C0
90467-09029
90467-09030
90950-01429
91642-81235
91642-81265
