VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )LHD

Click highlighted areas on diagram

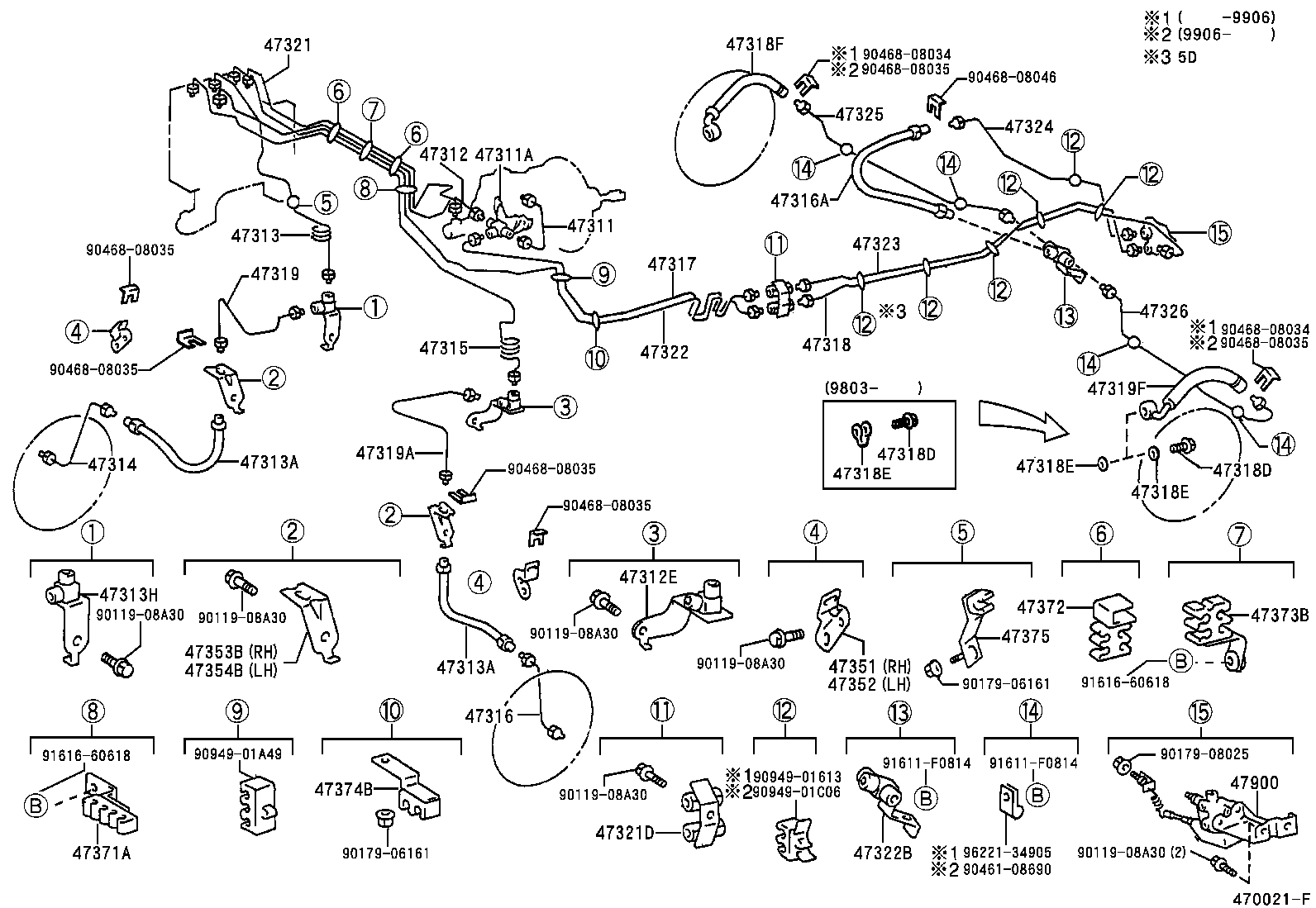

diagram 47311 47311A 47312E 47313 47313A 47313A 47313H 47314 47315 47316 47316A 47317 47318 47318D 47318D 47318E 47318E 47318E 47318F 47319 47319A 47319F 47321 47321D 47322B 47323 47324 47325 47326 47351 47352 47353B 47354B 47371A 47372 47373B 47374B 47375 47900 9011908A30 9011908A30 9011908A30 9011908A30 9011908A30 9011908A30 9017906161 9017906161 9017908025 9046108690 9046808034 9046808034 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808046 9094901613 9094901A49 9094901C06 91611F0814 91611F0814 9161660618 9161660618 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35470

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47311-35480

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47311-35470

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47311-35480

KZJ9#,VZJ9#..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13021

KZJ9#,VZJ9#

W(ABS)

 1
90904-14006

KZJ9#,VZJ9#

 1
90904-14006

KDJ9#,KZJ9#,VZJ9#

 1
90904-13021

KDJ9#,KZJ9#,VZJ9#

W(ABS)

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12040

KZJ9#,VZJ9#

 1
90904-12040

KDJ9#,KZJ9#,VZJ9#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D010

KZJ9#,VZJ9#..LHD

 1
47313-3D010

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47313-3D040

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47313-3D040

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B14

KDJ9#,KZJ9#,VZJ9#

 2
90947-02862

KZJ9#,VZJ9#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B14

KDJ9#,KZJ9#,VZJ9#

 2
90947-02862

KZJ9#,VZJ9#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12041

KZJ9#,VZJ9#

 1
90904-12041

KDJ9#,KZJ9#,VZJ9#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35330

KDJ9#,KZJ9#,VZJ9#

 1
47314-35330

KZJ9#,VZJ9#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35300

KZJ9#,VZJ9#..LHD

 1
47315-35310

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47315-35310

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47315-35300

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35250

KZJ9#,VZJ9#

 1
47316-35250

KDJ9#,KZJ9#,VZJ9#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C59

KDJ9#,KZJ9#,VZJ9#

 1
90947-02B15

KZJ9#,VZJ9#

 1
90947-02B15

KZJ9#,VZJ9#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-35040

KZJ9#,VZJ9#..LHD

 1
47317-35040

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-35091

KZJ95,VZJ95

 1
47318-60121

KDJ95,KZJ95,VZJ95

 1
47318-35090

KZJ95,VZJ95

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

KDJ9#,KZJ9#,VZJ9#

 2
90401-10015

KZJ9#,VZJ9#

 2
90401-10058

KZJ9#,VZJ9#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

KDJ9#,KZJ9#,VZJ9#

 2
90401-10015

KZJ9#,VZJ9#

 2
90401-10058

KZJ9#,VZJ9#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KZJ9#,VZJ9#

 2
47389-50020

KDJ9#,KZJ9#,VZJ9#

 2
47389-30010

KZJ9#,VZJ9#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KZJ9#,VZJ9#

 2
47389-50020

KDJ9#,KZJ9#,VZJ9#

 2
47389-30010

KZJ9#,VZJ9#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KZJ9#,VZJ9#

 2
47389-50020

KDJ9#,KZJ9#,VZJ9#

 2
47389-30010

KZJ9#,VZJ9#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02614

KZJ9#,VZJ9#

 1
90947-02A07

KDJ9#,KZJ9#,VZJ9#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47313-3D050

KDJ9#,KZJ9#,VZJ9#

 1
47313-3D050

KZJ9#,VZJ9#

 1
47319A - TUBE, FRONT BRAKE, NO.10
47315-35320

KZJ9#,VZJ9#

 1
47315-35320

KDJ9#,KZJ9#,VZJ9#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02A08

KDJ9#,KZJ9#,VZJ9#

 1
90947-02615

KZJ9#,VZJ9#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-60200

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47321-35750

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47321-60200

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47321-35750

KZJ9#,VZJ9#..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KZJ9#,VZJ9#

 1
90412-10166

KDJ9#,KZJ9#,VZJ9#

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10263

KZJ9#,VZJ9#

 1
90413-10295

KDJ9#,KZJ9#,VZJ9#

 1
90413-10263

KZJ9#,VZJ9#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35161

KZJ95,VZJ95

 1
47323-35160

KZJ95,VZJ95

 1
47323-60631

KDJ95,KZJ95,VZJ95

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35241

KZJ9#,VZJ9#

 1
47324-35240

KZJ9#,VZJ9#

 1
47324-35280

KDJ9#,KZJ9#,VZJ9#

 1
47324-60271

KZJ9#,VZJ9#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-60190

KZJ9#,VZJ9#

 1
47325-60211

KZJ9#,VZJ9#

 1
47325-60270

KDJ9#,KZJ9#,VZJ9#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-60191

KZJ9#,VZJ9#

 1
47326-60290

KDJ9#,KZJ9#,VZJ9#

 1
47326-60210

KZJ9#,VZJ9#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35270

KDJ9#,KZJ9#,VZJ9#

 1
47351-35270

KZJ9#,VZJ9#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35310

KDJ9#,KZJ9#,VZJ9#

 1
47352-35310

KZJ9#,VZJ9#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-35110

KDJ9#,KZJ9#,VZJ9#

 1
47353-35110

KZJ9#,VZJ9#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-35100

KZJ9#,VZJ9#

 1
47354-35100

KDJ9#,KZJ9#,VZJ9#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35300

KDJ9#,KZJ9#,VZJ9#

 1
47371-35300

KZJ9#,VZJ9#

 1
47371-60140

KDJ9#,KZJ9#,VZJ9#

W(VSC & ACTIVE TRC)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35150

KZJ9#,VZJ9#..LHD

W(ABS)

 2
47372-35170

KZJ9#,VZJ9#..LHD

 2
47372-35150

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 2
47372-35170

KDJ9#,KZJ9#,VZJ9#..LHD

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35070

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47373-35090

KZJ9#,VZJ9#

W(ABS)

 1
47373-35090

KDJ9#,KZJ9#,VZJ9#

W(ABS)

 1
47373-35070

KZJ9#,VZJ9#..LHD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35030

KZJ9#,VZJ9#

 1
47374-35030

KDJ9#,KZJ9#,VZJ9#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35160

KZJ9#,VZJ9#..LHD

 1
47375-35160

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-60240

KZJ95,VZJ95

W(ABS)

 1
47900-60241

KZJ95,VZJ95

W(ABS)

 1
47900-60251

KZJ95,VZJ95

 1
47900-60250

KZJ95,VZJ95

 1
47900-60241

KDJ95,KZJ95,VZJ95

W(ABS)

 1
47900-60251

KDJ95,KZJ95,VZJ95

 1
Common parts
90119-08A30
90179-06161
90179-08025
90461-08690
90468-08034
90468-08035
90468-08046
90949-01613
90949-01A49
90949-01C06
91611-F0814
91616-60618
96221-34905

ILLUST NO. 1 OF 2(9604- )LHD

Click highlighted areas on diagram

W(ABS)

diagram 47311 47311A 47312 47312E 47313 47313A 47313A 47313H 47314 47315 47316 47316A 47317 47318 47318D 47318D 47318E 47318E 47318E 47318F 47319 47319A 47319F 47321 47321D 47322 47322B 47323 47324 47325 47326 47351 47352 47353B 47354B 47371A 47372 47373B 47374B 47375 47900 9011908A30 9011908A30 9011908A30 9011908A30 9011908A30 9011908A30 9017906161 9017906161 9017908025 9046108690 9046808034 9046808034 9046808035 9046808035 9046808035 9046808035 9046808035 9046808035 9046808046 9094901613 9094901A49 9094901C06 91611F0814 91611F0814 9161660618 9161660618 9622134905
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35470

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47311-35480

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47311-35470

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47311-35480

KZJ9#,VZJ9#..LHD

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90904-13021

KZJ9#,VZJ9#

W(ABS)

 1
90904-14006

KZJ9#,VZJ9#

 1
90904-14006

KDJ9#,KZJ9#,VZJ9#

 1
90904-13021

KDJ9#,KZJ9#,VZJ9#

W(ABS)

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-60880

KZJ9#,VZJ9#..LHD

 1
47312-60880

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90904-12040

KZJ9#,VZJ9#

 1
90904-12040

KDJ9#,KZJ9#,VZJ9#

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-3D010

KZJ9#,VZJ9#..LHD

 1
47313-3D010

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47313-3D040

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47313-3D040

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B14

KDJ9#,KZJ9#,VZJ9#

 2
90947-02862

KZJ9#,VZJ9#

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02B14

KDJ9#,KZJ9#,VZJ9#

 2
90947-02862

KZJ9#,VZJ9#

 2
47313H - WAY, NO.3(FOR FRONT BRAKE TUBE)
90904-12041

KZJ9#,VZJ9#

 1
90904-12041

KDJ9#,KZJ9#,VZJ9#

 1
47314 - TUBE, FRONT BRAKE, NO.4
47314-35330

KDJ9#,KZJ9#,VZJ9#

 1
47314-35330

KZJ9#,VZJ9#

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-35300

KZJ9#,VZJ9#..LHD

 1
47315-35310

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47315-35310

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47315-35300

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47316 - TUBE, FRONT BRAKE, NO.6
47316-35250

KZJ9#,VZJ9#

 1
47316-35250

KDJ9#,KZJ9#,VZJ9#

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
90947-02C59

KDJ9#,KZJ9#,VZJ9#

 1
90947-02B15

KZJ9#,VZJ9#

 1
90947-02B15

KZJ9#,VZJ9#

 1
47317 - TUBE, FRONT BRAKE, NO.7
47317-35040

KZJ9#,VZJ9#..LHD

 1
47317-35040

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47318 - TUBE, FRONT BRAKE, NO.8
47318-35091

KZJ95,VZJ95

 1
47318-60121

KDJ95,KZJ95,VZJ95

 1
47318-35090

KZJ95,VZJ95

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

KDJ9#,KZJ9#,VZJ9#

 2
90401-10015

KZJ9#,VZJ9#

 2
90401-10058

KZJ9#,VZJ9#

 2
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10058

KDJ9#,KZJ9#,VZJ9#

 2
90401-10015

KZJ9#,VZJ9#

 2
90401-10058

KZJ9#,VZJ9#

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KZJ9#,VZJ9#

 2
47389-50020

KDJ9#,KZJ9#,VZJ9#

 2
47389-30010

KZJ9#,VZJ9#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KZJ9#,VZJ9#

 2
47389-50020

KDJ9#,KZJ9#,VZJ9#

 2
47389-30010

KZJ9#,VZJ9#

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
47389-50020

KZJ9#,VZJ9#

 2
47389-50020

KDJ9#,KZJ9#,VZJ9#

 2
47389-30010

KZJ9#,VZJ9#

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02614

KZJ9#,VZJ9#

 1
90947-02A07

KDJ9#,KZJ9#,VZJ9#

 1
47319 - TUBE, FRONT BRAKE, NO.9
47313-3D050

KDJ9#,KZJ9#,VZJ9#

 1
47313-3D050

KZJ9#,VZJ9#

 1
47319A - TUBE, FRONT BRAKE, NO.10
47315-35320

KZJ9#,VZJ9#

 1
47315-35320

KDJ9#,KZJ9#,VZJ9#

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02A08

KDJ9#,KZJ9#,VZJ9#

 1
90947-02615

KZJ9#,VZJ9#

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-60200

KZJ9#,VZJ9#..LHD

W(ABS)

 1
47321-35750

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47321-60200

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 1
47321-35750

KZJ9#,VZJ9#..LHD

 1
47321D - WAY, NO.1(FOR REAR BRAKE TUBE)
90412-10166

KZJ9#,VZJ9#

 1
90412-10166

KDJ9#,KZJ9#,VZJ9#

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35730

KZJ9#,VZJ9#..LHD

 1
47322-35730

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47322B - WAY, NO.2(FOR REAR BRAKE TUBE)
90413-10263

KZJ9#,VZJ9#

 1
90413-10295

KDJ9#,KZJ9#,VZJ9#

 1
90413-10263

KZJ9#,VZJ9#

 1
47323 - TUBE, REAR BRAKE, NO.3
47323-35161

KZJ95,VZJ95

 1
47323-35160

KZJ95,VZJ95

 1
47323-60631

KDJ95,KZJ95,VZJ95

 1
47324 - TUBE, REAR BRAKE, NO.4
47324-35241

KZJ9#,VZJ9#

 1
47324-35240

KZJ9#,VZJ9#

 1
47324-35280

KDJ9#,KZJ9#,VZJ9#

 1
47324-60271

KZJ9#,VZJ9#

 1
47325 - TUBE, REAR BRAKE, NO.5
47325-60190

KZJ9#,VZJ9#

 1
47325-60211

KZJ9#,VZJ9#

 1
47325-60270

KDJ9#,KZJ9#,VZJ9#

 1
47326 - TUBE, REAR BRAKE, NO.6
47326-60191

KZJ9#,VZJ9#

 1
47326-60290

KDJ9#,KZJ9#,VZJ9#

 1
47326-60210

KZJ9#,VZJ9#

 1
47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH)
47351-35270

KDJ9#,KZJ9#,VZJ9#

 1
47351-35270

KZJ9#,VZJ9#

 1
47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH)
47352-35310

KDJ9#,KZJ9#,VZJ9#

 1
47352-35310

KZJ9#,VZJ9#

 1
47353B - BRACKET, FLEXIBLE HOSE, NO.3
47353-35110

KDJ9#,KZJ9#,VZJ9#

 1
47353-35110

KZJ9#,VZJ9#

 1
47354B - BRACKET, FLEXIBLE HOSE, NO.4
47354-35100

KZJ9#,VZJ9#

 1
47354-35100

KDJ9#,KZJ9#,VZJ9#

 1
47371A - CLAMP, BRAKE TUBE, NO.1
47371-35300

KDJ9#,KZJ9#,VZJ9#

 1
47371-35300

KZJ9#,VZJ9#

 1
47371-60140

KDJ9#,KZJ9#,VZJ9#

W(VSC & ACTIVE TRC)

 1
47372 - CLAMP, BRAKE TUBE, NO.2
47372-35150

KZJ9#,VZJ9#..LHD

W(ABS)

 2
47372-35170

KZJ9#,VZJ9#..LHD

 2
47372-35150

KDJ9#,KZJ9#,VZJ9#..LHD

W(ABS)

 2
47372-35170

KDJ9#,KZJ9#,VZJ9#..LHD

 2
47373B - CLAMP, BRAKE TUBE, NO.3
47373-35070

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47373-35090

KZJ9#,VZJ9#

W(ABS)

 1
47373-35090

KDJ9#,KZJ9#,VZJ9#

W(ABS)

 1
47373-35070

KZJ9#,VZJ9#..LHD

 1
47374B - CLAMP, BRAKE TUBE, NO.4
47374-35030

KZJ9#,VZJ9#

 1
47374-35030

KDJ9#,KZJ9#,VZJ9#

 1
47375 - CLAMP, BRAKE TUBE, NO.5
47375-35160

KZJ9#,VZJ9#..LHD

 1
47375-35160

KDJ9#,KZJ9#,VZJ9#..LHD

 1
47900 - VALVE ASSY, LOAD SENSING W/SPRING
47900-60240

KZJ95,VZJ95

W(ABS)

 1
47900-60241

KZJ95,VZJ95

W(ABS)

 1
47900-60251

KZJ95,VZJ95

 1
47900-60250

KZJ95,VZJ95

 1
47900-60241

KDJ95,KZJ95,VZJ95

W(ABS)

 1
47900-60251

KDJ95,KZJ95,VZJ95

 1
Common parts
90119-08A30
90179-06161
90179-08025
90461-08690
90468-08034
90468-08035
90468-08046
90949-01613
90949-01A49
90949-01C06
91611-F0814
91616-60618
96221-34905

ILLUST NO. 2 OF 2(9604- )LHD

Click highlighted areas on diagram

W(ABS)

diagram 44510 44545D 44545D 44545D 44546A 44546A 44546A 44590 9017906074 9017906074 9017906074 9163360816
Part # Description Qty Price
44510 - ACTUATOR ASSY, BRAKE
44510-60030

KZJ9#,VZJ9#..LHD

 1
44050-60030

KDJ9#,KZJ9#,VZJ9#..LHD

 1
44050-60030

KZJ9#,VZJ9#..LHD

 1
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-35080

KZJ9#,VZJ9#

 3
44545-35080

KDJ9#,KZJ9#,VZJ9#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-35080

KZJ9#,VZJ9#

 3
44545-35080

KDJ9#,KZJ9#,VZJ9#

 3
44545D - HOLDER, BRAKE ACTUATOR BOLT
44545-35080

KZJ9#,VZJ9#

 3
44545-35080

KDJ9#,KZJ9#,VZJ9#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-35090

KDJ9#,KZJ9#,VZJ9#

 3
44546-35090

KZJ9#,VZJ9#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-35090

KDJ9#,KZJ9#,VZJ9#

 3
44546-35090

KZJ9#,VZJ9#

 3
44546A - CUSHION, BRAKE ACTUATOR BOLT
44546-35090

KDJ9#,KZJ9#,VZJ9#

 3
44546-35090

KZJ9#,VZJ9#

 3
44590 - BRACKET ASSY, BRAKE ACTUATOR
44590-35040

KDJ9#,KZJ9#,VZJ9#..LHD

 1
44590-35040

KZJ9#,VZJ9#..LHD

 1
Common parts
90179-06074
91633-60816
