VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90
Production
Apr 1996
-
Sep 2002
Engine
5VZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9604- )VZJ9#..MTM

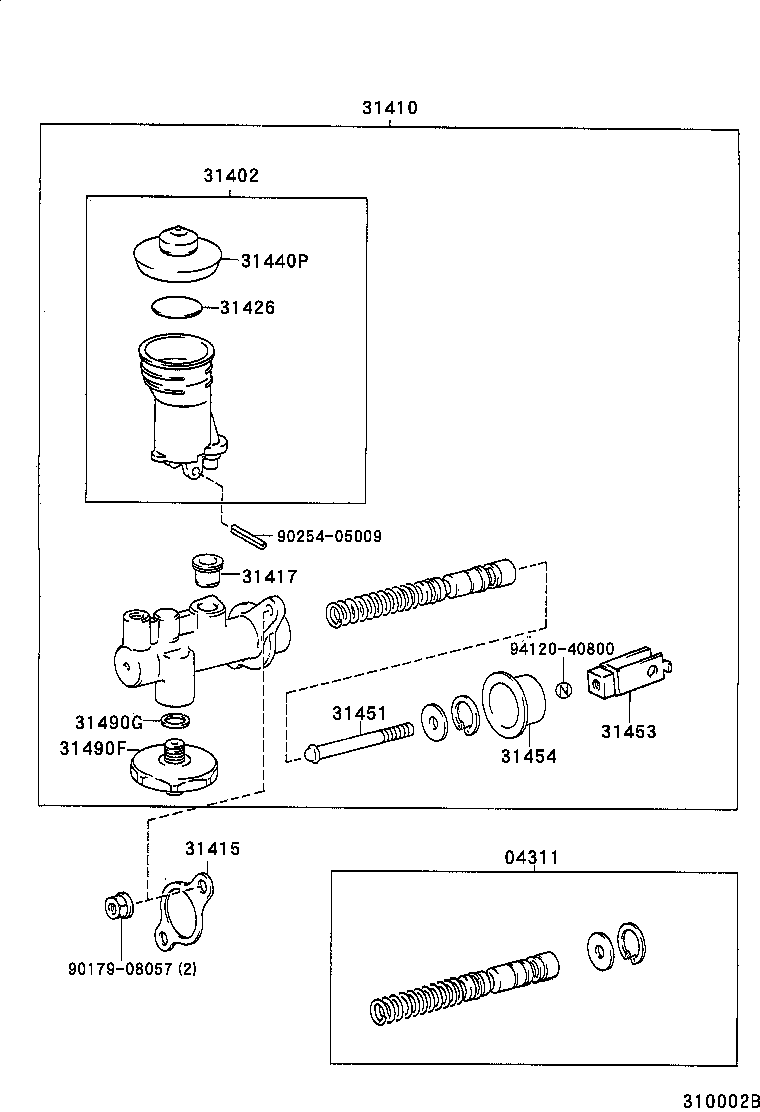

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04311 - CYLINDER KIT, CLUTCH MASTER | ||||
| 04311-12110 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 04311-12110 |
KDJ9#,KZJ9#,VZJ9#..MTM |
1 | ||
| 31402 - RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER | ||||
| 31402-35120 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31402-35120 |
VZJ9#..MTM |
1 | ||
| 31402-35140 |
VZJ9#..MTM |
1 | ||
| 31410 - CYLINDER ASSY, CLUTCH MASTER | ||||
| 31410-60580 |
VZJ9#..MTM |
1 | ||
| 31410-60580 |
VZJ9#..MTM |
1 | ||
| 31415 - GASKET, CLUTCH MASTER CYLINDER | ||||
| 31415-10010 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..MTM |
1 | ||
| 31415-10010 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31417 - GROMMET, CLUTCH RESERVOIR | ||||
| 31417-35010 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31417-35010 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..MTM |
1 | ||
| 31426 - FLOAT, CLUTCH MASTER CYLINDER RESERVOIR | ||||
| 31426-30011 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31426-30011 |
VZJ9#..MTM |
1 | ||
| 31440P - CAP ASSY, CLUTCH MASTER CYLINDER RESERVOIR FILLER | ||||
| 31405-35020 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31405-35020 |
VZJ9#..MTM |
1 | ||
| 31451 - ROD, CLUTCH MASTER CYLINDER PUSH | ||||
| 31451-35070 |
VZJ9#..MTM |
1 | ||
| 31451-35070 |
VZJ9#..MTM |
1 | ||
| 31453 - CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD | ||||
| 31453-35010 |
VZJ9#..MTM |
1 | ||
| 31453-35010 |
VZJ9#..MTM |
1 | ||
| 31454 - BOOT, CLUTCH MASTER CYLINDER | ||||
| 31454-16010 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 31454-16010 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..MTM |
1 | ||
| 31490F - ACCUMULATOR ASSY, MASTER CYLINDER | ||||
| 31490-60090 |
VZJ9#..MTM |
1 | ||
| 31490-60090 |
KDJ9#,VZJ9#..LHD..MTM |
1 | ||
| 31490G - GASKET(FOR CLUTCH MASTER CYLINDER ACCUMULATOR) | ||||
| 90430-16005 |
KZJ9#,VZJ9#..MTM |
1 | ||
| 90430-16005 |
KDJ9#,KZJ9#,VZJ9#..MTM |
1 | ||
| Common parts | ||||
| 90179-08057 | ||||
| 90254-05009 | ||||
| 94120-40800 | ||||
