VZJ95L-GKMNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )VZJ9#..MTM

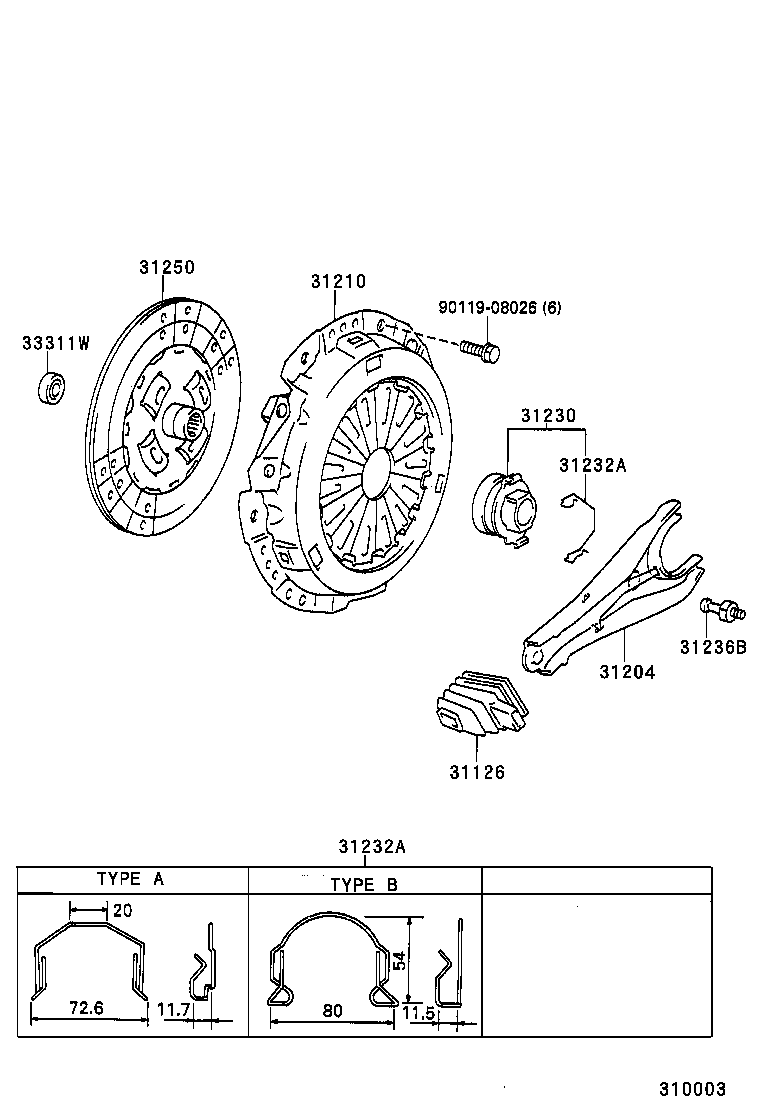

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-34010

VZJ9#..MTM

 1
31126-34010

VZJ9#..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-35031

VZJ9#..MTM

 1
31204-35031

VZJ9#..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-35210

VZJ9#..MTM

 1
31210-35210

VZJ9#..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-35110

VZJ9#..MTM

 1
31230-35110

VZJ9#..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

VZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-35030

VZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-35030

VZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-35020

VZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-35020

VZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-35030

VZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-35030

VZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-35020

VZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-35030

VZJ9#..MTM

 1
31236-35030

VZJ9#..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-35350

VZJ9#..MTM

 1
31250-35352

VZJ9#..MTM

 1
31250-35352

VZJ9#..MTM

 1
31250-35351

VZJ9#..MTM

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KZJ9#,VZJ9#..MTM

 1
90363-12002

KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..MTM

 1
