VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90
(9604- )5VZFE
12V 1.2KW,1.4KW

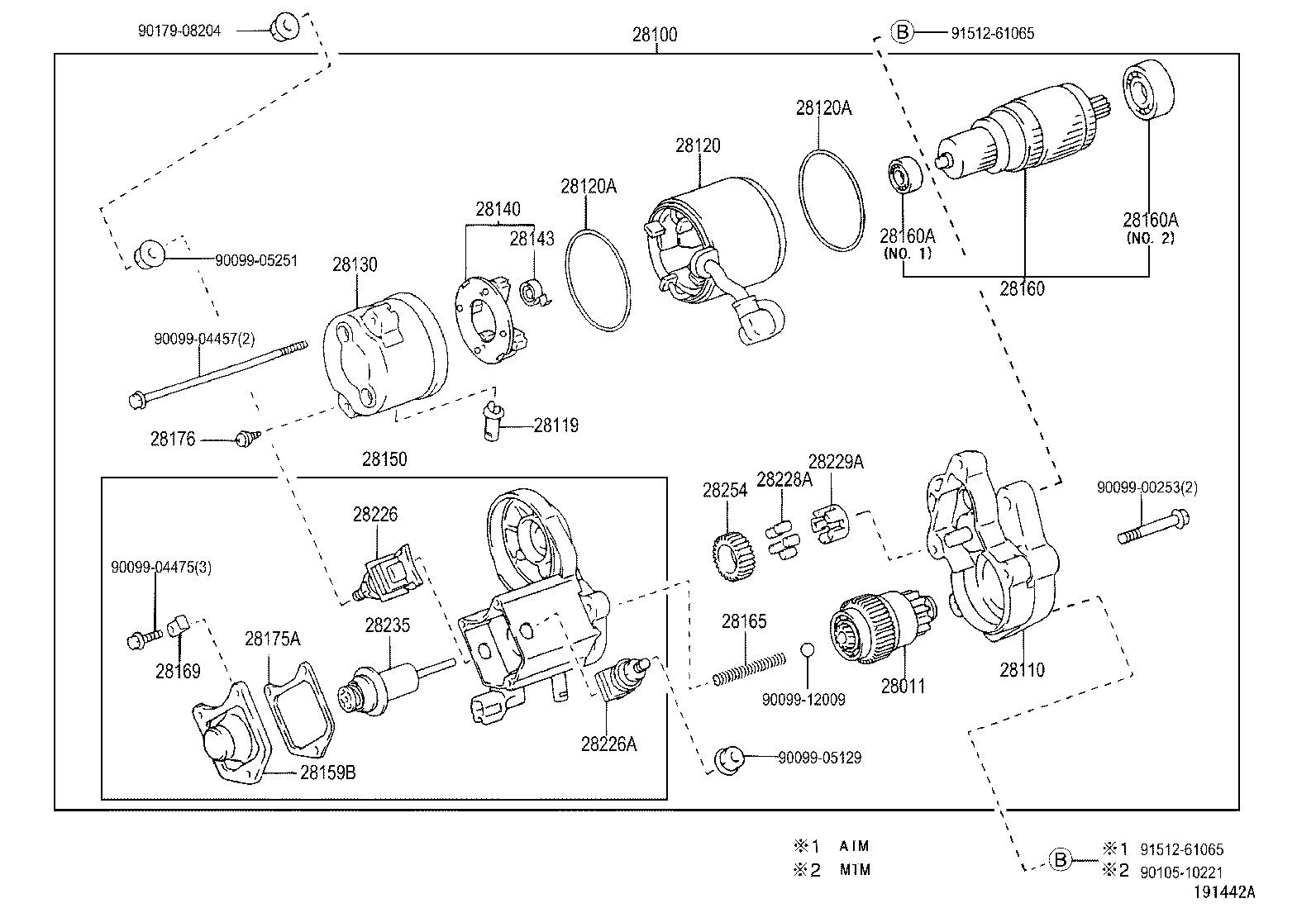

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28011-76070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28011-75120 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-62040 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28100-62040 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28100-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28110-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28110-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-74110 |
5VZFE..VZJ9# |
1 | ||
| 28199-74110 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-16180 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28120-75110 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28120-16180 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28130-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28130-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28140-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28140-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
4 | ||
| 28143-76060 |
5VZFE..VZJ9# 12V 1.2KW |
4 | ||
| 28143-76060 |
5VZFE..VZJ9# 12V 1.2KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28150-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28150-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28159-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28159-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-76060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28160-75110 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28160-76060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10208 |
5VZFE..VZJ9#..LHD 12V 1.8KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10208 |
5VZFE..VZJ9#..LHD 12V 1.8KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
5VZFE..VZJ9# |
1 | ||
| 28165-76070 |
5VZFE..VZJ9# |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28175-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28175-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64200 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28226-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28226-64200 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28226-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28226-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
5VZFE..VZJ9#;1K#..KDJ9#,KZJ9#..MTM |
5 | ||
| 28228-26040 |
5VZFE..VZJ9#;1KZTE..KZJ9#..MTM |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
5VZFE..VZJ9# |
1 | ||
| 28229-74070 |
5VZFE..VZJ9# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28235-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28235-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28254-64130 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28254-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| Common parts | ||||
| 90099-00270 | ||||
| 90099-04448 | ||||
| 90099-04449 | ||||
| 90099-04450 | ||||
| 90099-04474 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90105-10221 | ||||
| 90179-08204 | ||||
| 91512-61065 | ||||
(0108- )5VZFE..LHD
12V 1.8KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-76070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28011-76070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28011-75120 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-62040 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28100-62040 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28100-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28110-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28110-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28119 - COVER, STARTER END FRAME | ||||
| 28199-74110 |
5VZFE..VZJ9# |
1 | ||
| 28199-74110 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-16180 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28120-75110 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28120-16180 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 90099-14064 |
5VZFE..VZJ9# |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28130-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28130-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28140-65060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28140-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 28143-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
4 | ||
| 28143-76060 |
5VZFE..VZJ9# 12V 1.2KW |
4 | ||
| 28143-76060 |
5VZFE..VZJ9# 12V 1.2KW |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28150-62050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28150-62030 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28159B - COVER, MAGNET SWITCH | ||||
| 28159-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28159-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28159-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-76060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28160-75110 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28160-76060 |
5VZFE..VZJ9# 12V 1.2KW |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10208 |
5VZFE..VZJ9#..LHD 12V 1.8KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10208 |
5VZFE..VZJ9#..LHD 12V 1.8KW,NO.1 |
1 | ||
| 90099-10197 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.2 |
1 | ||
| 90099-10196 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW,NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-76070 |
5VZFE..VZJ9# |
1 | ||
| 28165-76070 |
5VZFE..VZJ9# |
1 | ||
| 28169 - CLAMP, STARTER MOTOR LEAD WIRE | ||||
| 28169-54380 |
5VZFE..VZJ9#..LHD |
1 | ||
| 28175A - GASKET, MAGNET SWITCH COVER | ||||
| 28175-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28175-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28175-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28176 - SCREW, STARTER | ||||
| 90099-00271 |
5VZFE..VZJ9#..LHD |
2 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-64200 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28226-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28226-64200 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28226-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28226-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
5VZFE..VZJ9#;1K#..KDJ9#,KZJ9#..MTM |
5 | ||
| 28228-26040 |
5VZFE..VZJ9#;1KZTE..KZJ9#..MTM |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-74070 |
5VZFE..VZJ9# |
1 | ||
| 28229-74070 |
5VZFE..VZJ9# |
1 | ||
| 28235 - PLUNGER, MAGNET SWITCH | ||||
| 28235-54380 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28235-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28235-55050 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28254 - PINION, STARTER IDLE GEAR | ||||
| 28254-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| 28254-64130 |
5VZFE..VZJ9#..LHD 12V 1.8KW |
1 | ||
| 28254-74070 |
5VZFE..VZJ9# 12V 1.2KW,1.4KW |
1 | ||
| Common parts | ||||
| 90099-00253 | ||||
| 90099-04457 | ||||
| 90099-04475 | ||||
| 90099-05129 | ||||
| 90099-05251 | ||||
| 90099-12009 | ||||
| 90105-10221 | ||||
| 90179-08204 | ||||
| 91512-61065 | ||||
