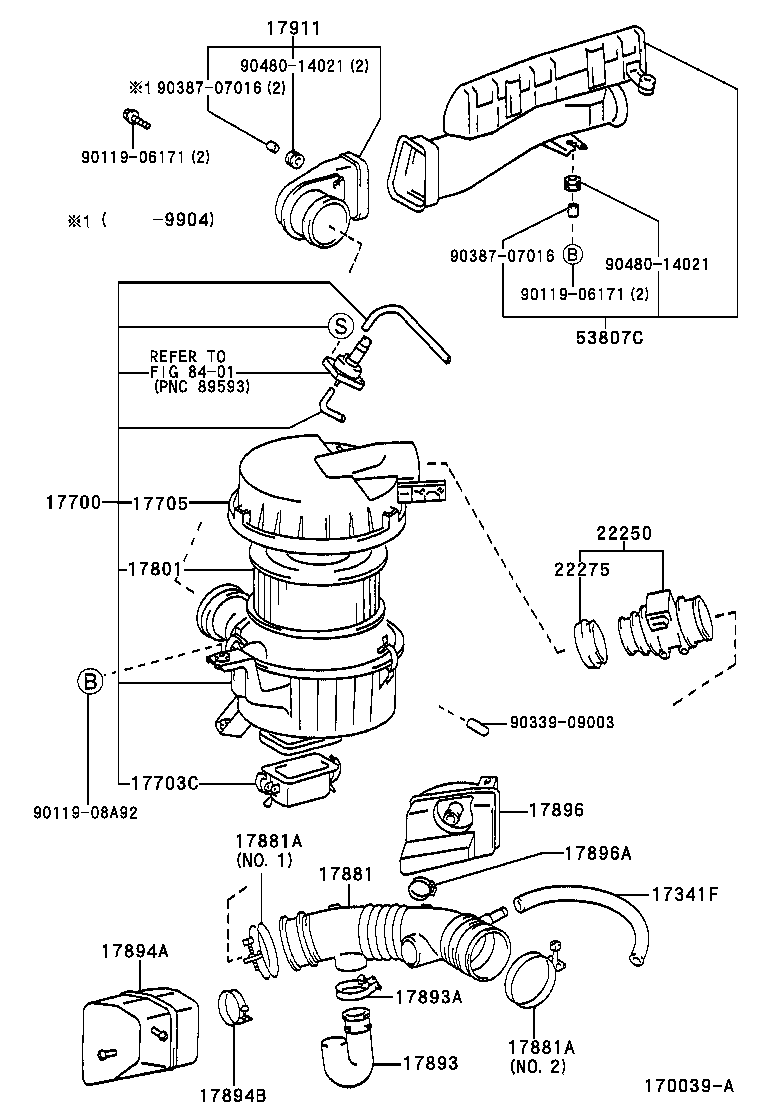

VZJ95L-GKMNKW (1996)
Toyota Land Cruiser 90
(9704-9906)5VZFE
CYCLONE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 90445-18148 |
5VZFE..VZJ9# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-62050 |
5VZFE..VZJ9# |
1 | ||
| 17700-62060 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17700-62100 |
5VZFE..VZJ9# |
1 | ||
| 17700-62110 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17703-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-62050 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17705-62080 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-62010 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17801-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-62100 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62101 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62111 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17881-62150 |
5VZFE..VZJ9# |
1 | ||
| 17881-62160 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
5VZFE..VZJ9# NO.2 |
1 | ||
| 96111-10830 |
5VZFE..VZJ9# NO.1 |
1 | ||
| 96111-10900 |
5VZFE..VZJ9# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
5VZFE..VZJ9# NO.2 |
1 | ||
| 96111-10830 |
5VZFE..VZJ9# NO.1 |
1 | ||
| 96111-10900 |
5VZFE..VZJ9# |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-62040 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17893-62070 |
5VZFE..VZJ9# |
1 | ||
| 17893-62050 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10530 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 96111-10650 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-62020 |
5VZFE..VZJ9# |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10710 |
5VZFE..VZJ9# |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-62020 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17896-62010 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96111-10650 |
5VZFE..VZJ9#..MTM |
1 | ||
| 96111-10330 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-20020 |
5VZFE..VZJ9# |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-20010 |
5VZFE..VZJ9# |
1 | ||
| 53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH | ||||
| 53807-60030 |
VZJ9# |
1 | ||
| 53807-35070 |
VZJ9# |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90119-08A92 | ||||
| 90339-09003 | ||||
| 90387-07016 | ||||
| 90480-14021 | ||||
| Linked diagrams | ||||
| 8401 | ||||

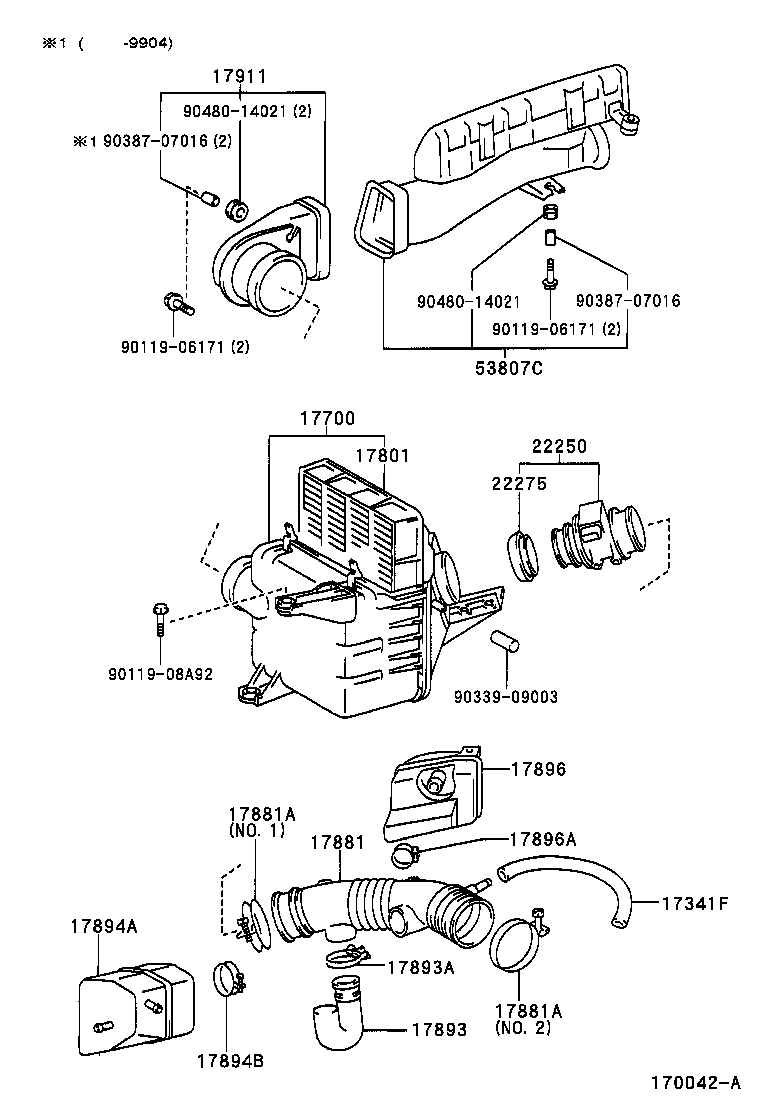

(9604-9906)5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 90445-18148 |
5VZFE..VZJ9# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-62050 |
5VZFE..VZJ9# |
1 | ||
| 17700-62060 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17700-62100 |
5VZFE..VZJ9# |
1 | ||
| 17700-62110 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-62010 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17801-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-62100 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62101 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62111 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17881-62150 |
5VZFE..VZJ9# |
1 | ||
| 17881-62160 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
5VZFE..VZJ9# NO.2 |
1 | ||
| 96111-10830 |
5VZFE..VZJ9# NO.1 |
1 | ||
| 96111-10900 |
5VZFE..VZJ9# |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
5VZFE..VZJ9# NO.2 |
1 | ||
| 96111-10830 |
5VZFE..VZJ9# NO.1 |
1 | ||
| 96111-10900 |
5VZFE..VZJ9# |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-62040 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17893-62070 |
5VZFE..VZJ9# |
1 | ||
| 17893-62050 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17893A - CLAMP, HOSE | ||||
| 96111-10530 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 96111-10650 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17894A - RESONATOR, INTAKE AIR, NO.2 | ||||
| 17894-62020 |
5VZFE..VZJ9# |
1 | ||
| 17894B - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.2) | ||||
| 96111-10710 |
5VZFE..VZJ9# |
1 | ||
| 17896 - RESONATOR, INTAKE AIR, NO.3 | ||||
| 17896-62020 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17896-62010 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17896A - CLAMP, HOSE(FOR INTAKE AIR RESONATOR, NO.3) | ||||
| 96111-10650 |
5VZFE..VZJ9#..MTM |
1 | ||
| 96111-10330 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 22250 - METER ASSY, INTAKE AIR FLOW | ||||
| 22250-20020 |
5VZFE..VZJ9# |
1 | ||
| 22275 - GASKET, AIR FLOW METER | ||||
| 22275-20010 |
5VZFE..VZJ9# |
1 | ||
| 53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH | ||||
| 53807-60030 |
VZJ9# |
1 | ||
| 53807-35070 |
VZJ9# |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90119-08A92 | ||||
| 90339-09003 | ||||
| 90387-07016 | ||||
| 90480-14021 | ||||

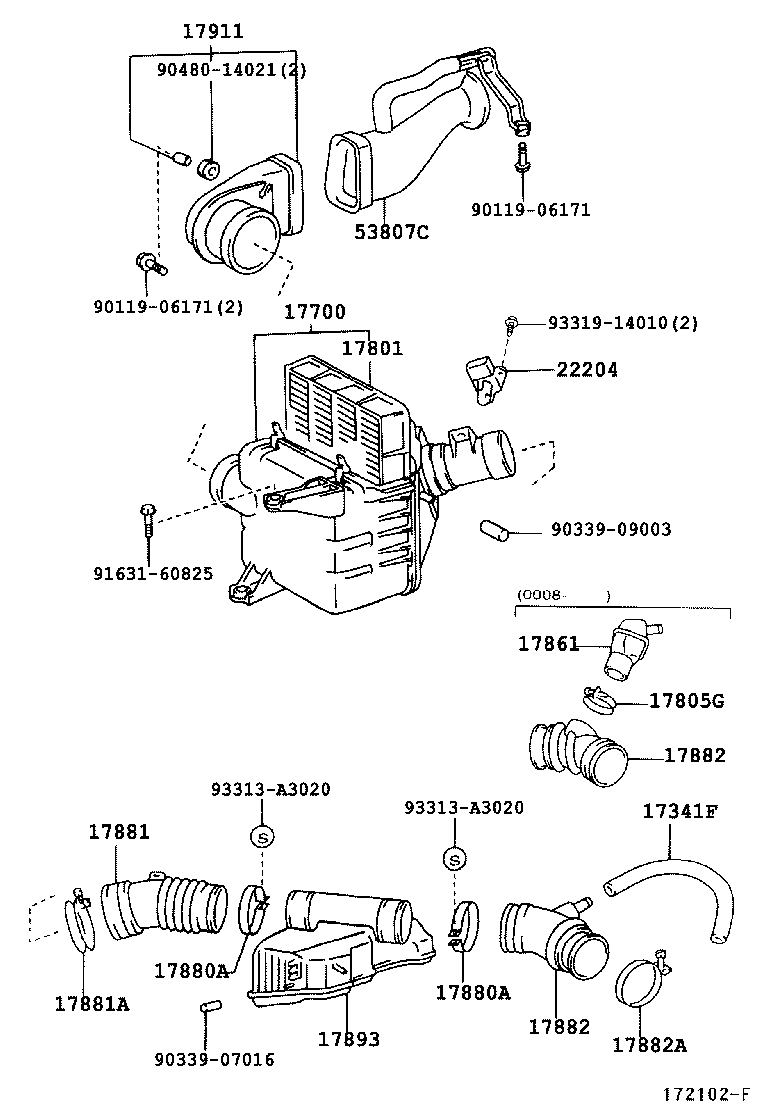

(9906- )5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 90445-18148 |
5VZFE..VZJ9# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-62050 |
5VZFE..VZJ9# |
1 | ||
| 17700-62060 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17700-62100 |
5VZFE..VZJ9# |
1 | ||
| 17700-62110 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-62010 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17801-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 96111-10500 |
5VZFE..VZJ9# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17659-62010 |
5VZFE..VZJ9# |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-73002 |
5VZFE..VZJ9# |
2 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-73002 |
5VZFE..VZJ9# |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-62100 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62101 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62111 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17881-62150 |
5VZFE..VZJ9# |
1 | ||
| 17881-62160 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
5VZFE..VZJ9# NO.2 |
1 | ||
| 96111-10830 |
5VZFE..VZJ9# NO.1 |
1 | ||
| 96111-10900 |
5VZFE..VZJ9# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-62010 |
5VZFE..VZJ9# |
1 | ||
| 17882-62020 |
5VZFE..VZJ9# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-62010 |
5VZFE..VZJ9# |
1 | ||
| 17882-62020 |
5VZFE..VZJ9# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
5VZFE..VZJ9# |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-62040 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17893-62070 |
5VZFE..VZJ9# |
1 | ||
| 17893-62050 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
5VZFE..VZJ9# |
1 | ||
| 53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH | ||||
| 53807-60030 |
VZJ9# |
1 | ||
| 53807-35070 |
VZJ9# |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90339-07016 | ||||
| 90339-09003 | ||||
| 90480-14021 | ||||
| 91631-60825 | ||||
| 93313-A3020 | ||||
| 93319-14010 | ||||

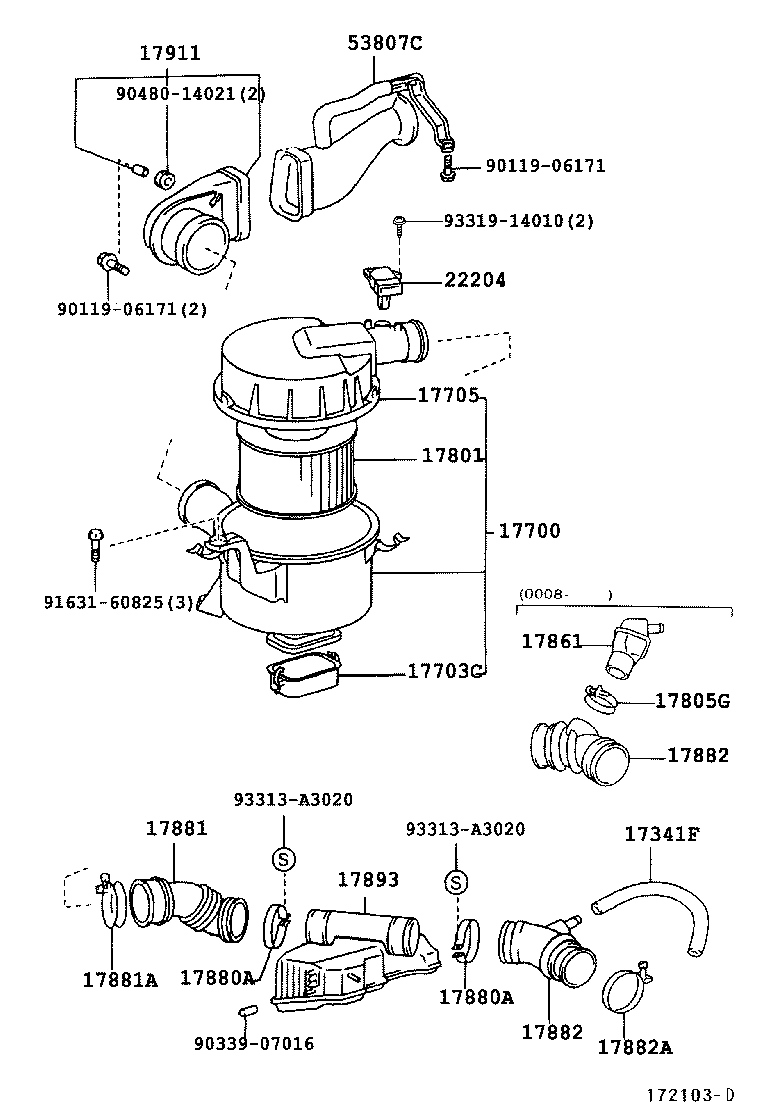

(9906- )5VZFE..VZJ95
CYCLONE TYPE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341F - HOSE, AIR, NO.1 | ||||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 12261-62050 |
5VZFE..VZJ9# |
1 | ||
| 90445-18148 |
5VZFE..VZJ9# |
1 | ||
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-62050 |
5VZFE..VZJ9# |
1 | ||
| 17700-62060 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17700-62100 |
5VZFE..VZJ9# |
1 | ||
| 17700-62110 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17703C - CAP SUB-ASSY, DUST | ||||
| 17703-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17703-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-62050 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17705-62080 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-62010 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17801-62010 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17801-46060 |
5VZFE..VZJ9# |
1 | ||
| 17805G - CLAMP, HOSE(FOR AIR CONNECTOR) | ||||
| 96111-10500 |
5VZFE..VZJ9# |
1 | ||
| 17861 - CONNECTOR, INTAKE AIR | ||||
| 17659-62010 |
5VZFE..VZJ9# |
1 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-73002 |
5VZFE..VZJ9# |
2 | ||
| 17880A - CLAMP, HOSE | ||||
| 90460-73002 |
5VZFE..VZJ9# |
2 | ||
| 17881 - HOSE, AIR CLEANER, NO.1 | ||||
| 17881-62100 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62101 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17881-62111 |
5VZFE..VZJ95 CYCLONE TYPE |
1 | ||
| 17881-62150 |
5VZFE..VZJ9# |
1 | ||
| 17881-62160 |
5VZFE..VZJ9# CYCLONE TYPE |
1 | ||
| 17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1) | ||||
| 96111-10900 |
5VZFE..VZJ9# NO.2 |
1 | ||
| 96111-10830 |
5VZFE..VZJ9# NO.1 |
1 | ||
| 96111-10900 |
5VZFE..VZJ9# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-62010 |
5VZFE..VZJ9# |
1 | ||
| 17882-62020 |
5VZFE..VZJ9# |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17882-62010 |
5VZFE..VZJ9# |
1 | ||
| 17882-62020 |
5VZFE..VZJ9# |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10830 |
5VZFE..VZJ9# |
1 | ||
| 17893 - RESONATOR, INTAKE AIR | ||||
| 17893-62040 |
5VZFE..VZJ95..MTM CYCLONE TYPE |
1 | ||
| 17893-62070 |
5VZFE..VZJ9# |
1 | ||
| 17893-62050 |
5VZFE..VZJ9#..MTM |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 52810-35010 |
5VZFE..VZJ9# |
1 | ||
| 22204 - METER SUB-ASSY, INTAKE AIR FLOW | ||||
| 22204-21010 |
5VZFE..VZJ9# |
1 | ||
| 53807C - DUCT SUB-ASSY, FRONT FENDER AIR, RH | ||||
| 53807-60030 |
VZJ9# |
1 | ||
| 53807-35070 |
VZJ9# |
1 | ||
| Common parts | ||||
| 90119-06171 | ||||
| 90339-07016 | ||||
| 90480-14021 | ||||
| 91631-60825 | ||||
| 93313-A3020 | ||||
| 93319-14010 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
