VZJ90L-GJPNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9906- )

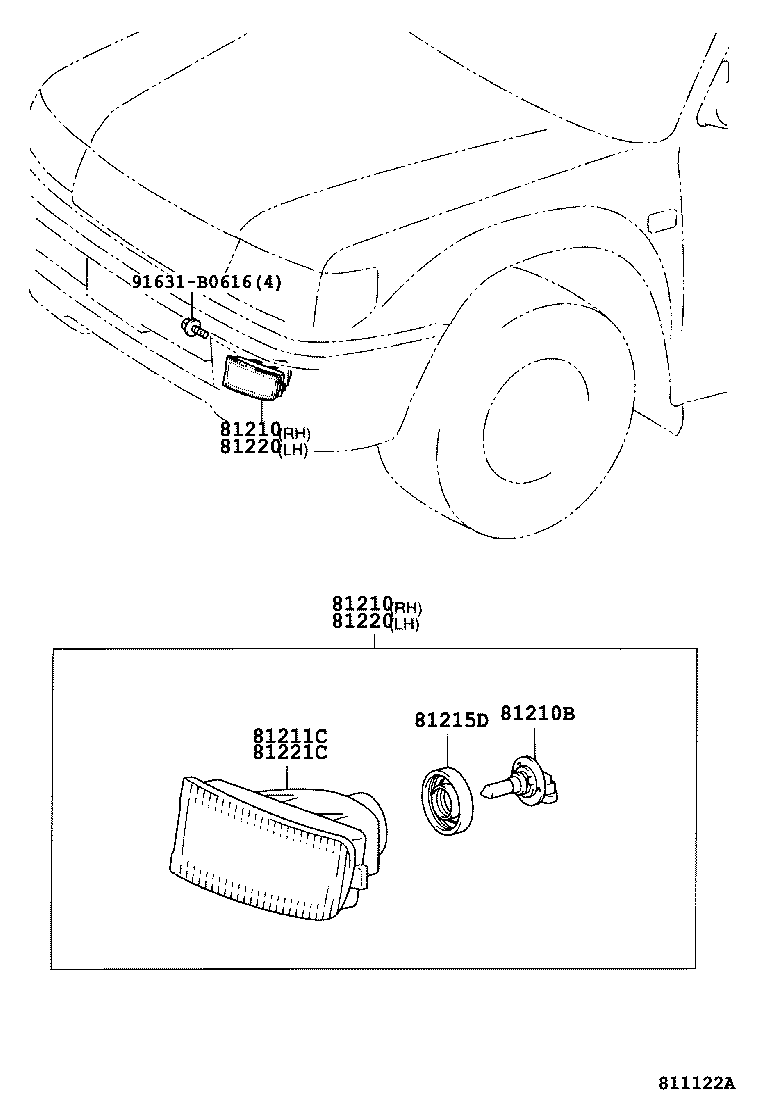

Click highlighted areas on diagram

diagram 81210 81210 81210B 81211C 81215D 81220 81220 81221C 91631B0616
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-60130

KDJ9#,KZJ9#,VZJ9#

 1
81210 - LAMP ASSY, FOG
81210-60130

KDJ9#,KZJ9#,VZJ9#

 1
81210B - BULB, FOG LAMP
90981-13047

KDJ9#,KZJ9#,VZJ9#

12V 51W,HALOGEN

 2
81211C - LAMP UNIT, FOG LAMP, RH
81211-60130

KDJ9#,KZJ9#,VZJ9#

 1
81215D - FOG LAMP SOCKET PLUG ASSY
90075-65010

KDJ9#,KZJ9#,VZJ9#

 2
81220 - LAMP ASSY, FOG, LH
81220-60060

KDJ9#,KZJ9#,VZJ9#

 1
81220 - LAMP ASSY, FOG, LH
81220-60060

KDJ9#,KZJ9#,VZJ9#

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-60060

KDJ9#,KZJ9#,VZJ9#

 1
Common parts
91631-B0616
