VZJ90L-GJPNKW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 5VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KDJ90,KZJ90,VZJ90

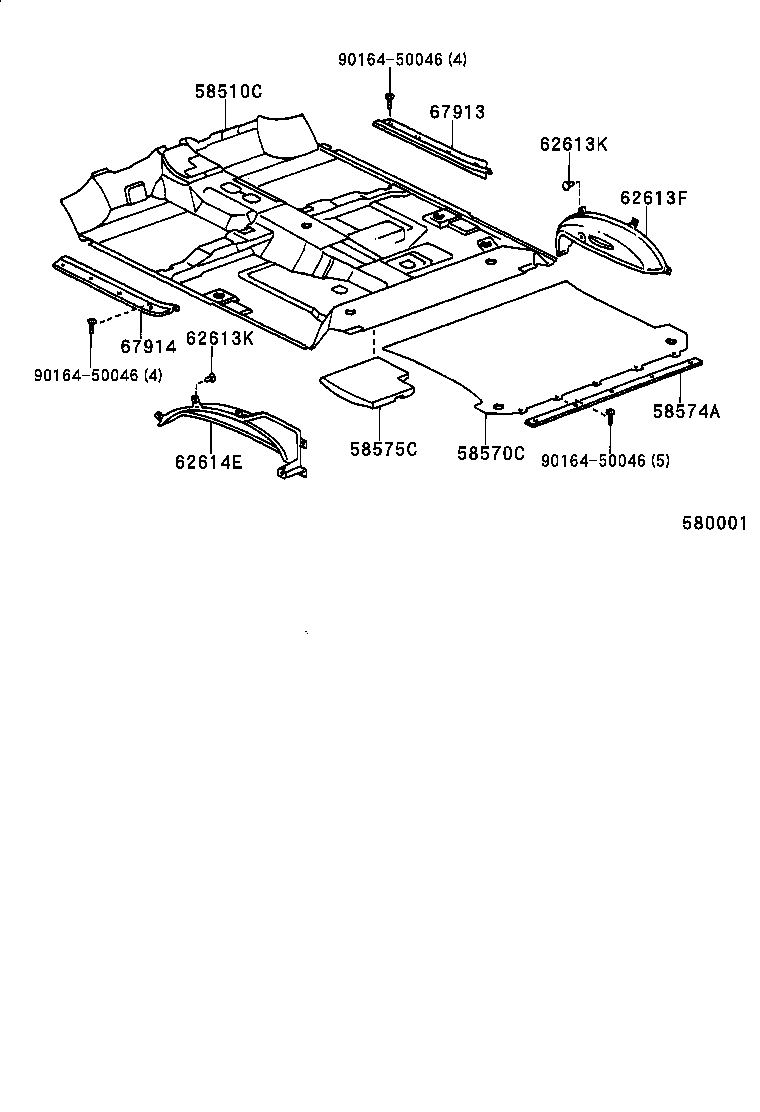

Click highlighted areas on diagram

diagram 58510C 58570C 58574A 58575C 62613F 62613K 62613K 62614E 67913 67914 9016450046 9016450046 9016450046
Part # Description Qty Price
58510C - CARPET ASSY, FRONT FLOOR, FRONT
58510-6A370B0

KZJ90,VZJ90..LHD

W(REAR HEATER),GRAY,TRIM1#

 1
58510-6A380B0

KZJ90,VZJ90..LHD

GRAY,TRIM1#

 1
58510-6A371B0

KZJ90,VZJ90..LHD

W(REAR HEATER),GRAY,TRIM1#

 1
58510-6A381B0

KZJ90,VZJ90..LHD

GRAY,TRIM1#

 1
58510-6A371E0

VZJ90

W(REAR HEATER),OAK,TRIM4#

 1
58510-6A381E0

KDJ90,VZJ90..LHD

OAK,TRIM40,41

 1
58510-6A381E0

VZJ90

OAK,TRIM4#

 1
58510-6A371E0

KDJ90,VZJ90..LHD

W(REAR HEATER),OAK,TRIM40,41

 1
58510-6A371B0

KDJ90,KZJ90,VZJ90..LHD

W(REAR HEATER),GRAY,TRIM1#

 1
58510-6A381B0

KDJ90,KZJ90,VZJ90..LHD

GRAY,TRIM1#

 1
58510-6A371E0

KDJ90,VZJ90..LHD

W(REAR HEATER),OAK,TRIM4#

 1
58510-6A381E0

KDJ90,VZJ90..LHD

OAK,TRIM4#

 1
58570C - CARPET ASSY, REAR FLOOR
58570-60310B0

KZJ90,VZJ90

GRAY,TRIM1#

 1
58570-60310E0

KDJ90,VZJ90

OAK,TRIM40,41

 1
58570-60310B0

KDJ90,KZJ90,VZJ90

GRAY,TRIM1#

 1
58570-60310E0

VZJ90

OAK,TRIM4#

 1
58570-60310E0

KDJ90,VZJ90

OAK,TRIM4#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-60030B0

KDJ9#,KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58574-60030B0

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
58574-60030E0

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
58574-60030E0

VZJ9#

OAK,TRIM4#

 1
58574-60030E0

KDJ9#,VZJ9#

OAK,TRIM4#

 1
58575C - PAD, FRONT FLOOR, FRONT
58575-60010

KZJ9#,VZJ9#

 1
58575-60010

KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#

 1
62613F - COVER, QUARTER WHEEL HOUSE, RH
62613-60410E0

VZJ90

OAK,TRIM4#

 1
62613-60410B0

KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
62613-60410E0

KDJ90,VZJ90

OAK,TRIM40,41

 1
62613-60410B0

KDJ90,KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
62613-60410E0

KDJ90,VZJ90

OAK,TRIM4#

 1
62613K - CLIP (FOR QUARTER WHEEL HOUSE COVER)
90467-05021B4

KZJ90,VZJ90

MOON MIST,TRIM1#

 9
90467-05021E1

KDJ9#,VZJ9#

MD.OAK,TRIM40,41

 9
90467-05021B1

KDJ90,KZJ90,VZJ90

LT.BLUISH GRAY,TRIM1#

 9
90467-05021E1

VZJ90

MD.OAK,TRIM4#

 9
90467-05021E1

KDJ90,VZJ90

MD.OAK,TRIM4#

 9
62613K - CLIP (FOR QUARTER WHEEL HOUSE COVER)
90467-05021B4

KZJ90,VZJ90

MOON MIST,TRIM1#

 9
90467-05021E1

KDJ9#,VZJ9#

MD.OAK,TRIM40,41

 9
90467-05021B1

KDJ90,KZJ90,VZJ90

LT.BLUISH GRAY,TRIM1#

 9
90467-05021E1

VZJ90

MD.OAK,TRIM4#

 9
90467-05021E1

KDJ90,VZJ90

MD.OAK,TRIM4#

 9
62614E - COVER, QUARTER WHEEL HOUSE, LH
62614-60360B0

KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
62614-60360E0

KDJ90,VZJ90

OAK,TRIM40,41

 1
62614-60360B0

KDJ90,KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
62614-60360E0

VZJ90

OAK,TRIM4#

 1
62614-60360E0

KDJ90,VZJ90

OAK,TRIM4#

 1
67913 - PLATE, FRONT DOOR SCUFF, RH
67913-60030B0

KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
67913-60030E0

VZJ90

OAK,TRIM4#

 1
67913-60030E0

KDJ90,VZJ90

OAK,TRIM40,41

 1
67913-60030B0

KDJ90,KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
67913-60030E0

KDJ90,VZJ90

OAK,TRIM4#

 1
67914 - PLATE, FRONT DOOR SCUFF, LH
67914-60020B0

KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
67914-60020E0

KDJ90,VZJ90

OAK,TRIM40,41

 1
67914-60020E0

KDJ90,VZJ90

OAK,TRIM4#

 1
67914-60020B0

KDJ90,KZJ90,VZJ90

MD.MOON MIST,TRIM1#

 1
67914-60020E0

VZJ90

OAK,TRIM4#

 1
Common parts
90164-50046
