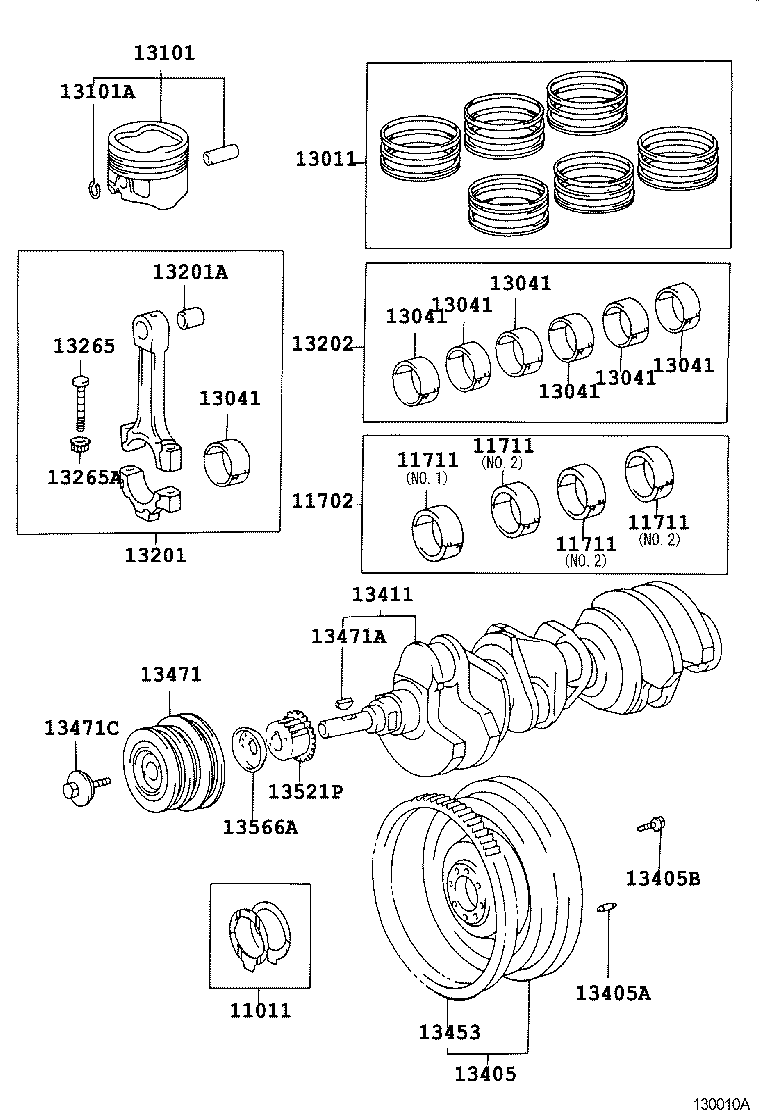

VZJ90L-GJPNKW (1996)
Toyota Land Cruiser 90
(9604- )5VZFE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-62010 |
5VZFE..VZJ9# STD |
1 | ||
| 11011-62010 |
5VZFE..VZJ9# STD |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-65013 |
5VZFE..VZJ9# U/S 0.25 |
1 | ||
| 11704-65013 |
5VZFE..VZJ9# U/S 0.25 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11071-6501101 |
5VZFE..VZJ9# MARK 1,NO.2,REFER R/M |
3 | ||
| 11701-6202201 |
5VZFE..VZJ9# MARK 1,NO.1,REFER R/M |
1 | ||
| 11071-6501105 |
5VZFE..VZJ9# MARK 5,NO.2,REFER R/M |
3 | ||
| 11071-6501102 |
5VZFE..VZJ9# MARK 2,NO.2,REFER R/M |
3 | ||
| 11701-6202204 |
5VZFE..VZJ9# MARK 4,NO.1,REFER R/M |
1 | ||
| 11071-6501104 |
5VZFE..VZJ9# MARK 4,NO.2,REFER R/M |
3 | ||
| 11071-6501103 |
5VZFE..VZJ9# MARK 3,NO.2,REFER R/M |
3 | ||
| 11701-6202206 |
5VZFE..VZJ9# MARK 6,NO.1,REFER R/M |
1 | ||
| 11701-6202203 |
5VZFE..VZJ9# MARK 3,NO.1,REFER R/M |
1 | ||
| 11701-6202205 |
5VZFE..VZJ9# MARK 5,NO.1,REFER R/M |
1 | ||
| 11701-6202202 |
5VZFE..VZJ9# MARK 2,NO.1,REFER R/M |
1 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-62110 |
5VZFE..VZJ9# STD |
1 | ||
| 13013-62110 |
5VZFE..VZJ9# O/S 0.50 |
1 | ||
| 13011-62100 |
5VZFE..VZJ9# STD |
1 | ||
| 13013-62100 |
5VZFE..VZJ9# O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203003 |
5VZFE..VZJ9# MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13041-6203001 |
5VZFE..VZJ9# MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13041-6203002 |
5VZFE..VZJ9# MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-6206003 |
5VZFE..VZJ9# STD,MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13101-6206001 |
5VZFE..VZJ9# STD,MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13101-6206002 |
5VZFE..VZJ9# STD,MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13103-62060 |
5VZFE..VZJ9# O/S 0.50 |
6 | ||
| 13101-6206001 |
5VZFE..VZJ9# STD,MARK 1,REFER REPAIR MANUAL |
6 | ||
| 13103-62060 |
5VZFE..VZJ9# O/S 0.50 |
6 | ||
| 13101-6206003 |
5VZFE..VZJ9# STD,MARK 3,REFER REPAIR MANUAL |
6 | ||
| 13101-6206002 |
5VZFE..VZJ9# STD,MARK 2,REFER REPAIR MANUAL |
6 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-25004 |
5VZFE..VZJ9# |
12 | ||
| 90521-25004 |
5VZFE..VZJ9# |
12 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-69145 |
5VZFE..VZJ9# |
6 | ||
| 13201-69145 |
5VZFE..VZJ9# |
6 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73130 |
5VZFE..VZJ9# |
6 | ||
| 90999-73130 |
5VZFE..VZJ9# |
6 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-62030 |
5VZFE..VZJ9# U/S 0.25 |
1 | ||
| 13204-62030 |
5VZFE..VZJ9# U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-62030 |
5VZFE..VZJ9# |
12 | ||
| 13265-62030 |
5VZFE..VZJ9# |
12 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-08118 |
5VZFE..VZJ9# |
12 | ||
| 90179-08118 |
5VZFE..VZJ9# |
12 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-62030 |
5VZFE..VZJ9# |
1 | ||
| 13401-62030 |
5VZFE..VZJ9# |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-62040 |
5VZFE..VZJ9# |
1 | ||
| 13408-62040 |
5VZFE..VZJ9# |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90280-05005 |
5VZFE..VZJ9# |
1 | ||
| 90280-05005 |
5VZFE..VZJ9# |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90105-16031 |
5VZFE..VZJ9# |
1 | ||
| 90119-16006 |
5VZFE..VZJ9# |
1 | ||
| 90119-16006 |
5VZFE..VZJ9# |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-62031 |
5VZFE..VZJ9# |
1 | ||
| 13521-62031 |
5VZFE..VZJ9# |
1 | ||
| 13521-62030 |
5VZFE..VZJ9# |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13567-62010 |
5VZFE..VZJ9# |
1 | ||
| 13567-62010 |
5VZFE..VZJ9# |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
