VZJ90L-GJMNKW (1996)
Toyota Land Cruiser 90

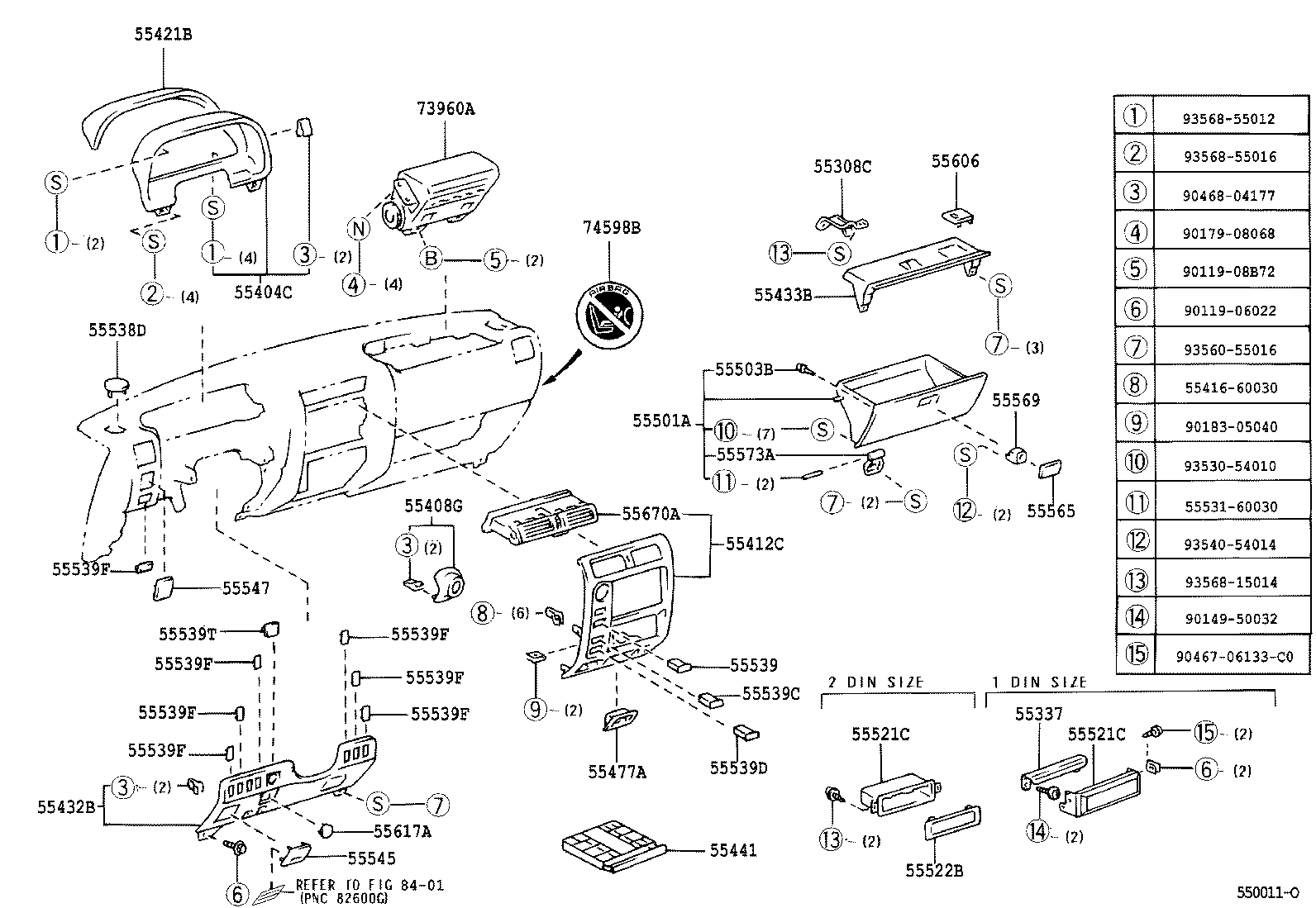

ILLUST NO. 2 OF 2(9604- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-60020 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55308-60020 |
KZJ9#,VZJ9# |
1 | ||
| 55337 - REINFORCEMENT, INSTRUMENT PANEL SUB | ||||
| 55337-60050 |
KZJ9#,VZJ9# |
1 | ||
| 55337-60050 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55404C - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, NO.2 | ||||
| 55404-60080B0 |
KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55404-60080E0 |
VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55404-60080E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM40,41 |
1 | ||
| 55404-60080E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55404-60080B0 |
KDJ9#,KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55408G - BEZEL SUB-ASSY, STARTER SWITCH | ||||
| 55408-60070E0 |
VZJ9#..LHD W(ENGINE IMMOBILIZER SYSTEM),OAK,TRIM4# |
1 | ||
| 55408-60070B0 |
KZJ9#,VZJ9#..LHD W(ENGINE IMMOBILIZER SYSTEM),MD.MOON MIST,TRIM1# |
1 | ||
| 55408-60050B0 |
KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55408-60070E0 |
VZJ9#..LHD W(ENGINE IMMOBILIZER SYSTEM),OAK,TRIM40,41 |
1 | ||
| 55408-60050B0 |
KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55408-60070B0 |
KZJ9#,VZJ9#..LHD W(ENGINE IMMOBILIZER SYSTEM),MD.MOON MIST,TRIM1# |
1 | ||
| 55408-60050E0 |
KZJ9#,VZJ90..LHD OAK,TRIM4# |
1 | ||
| 55408-60070E0 |
VZJ9#..LHD W(ENGINE IMMOBILIZER SYSTEM),OAK,TRIM4# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55405-60110C0 |
KZJ9#,VZJ9#..LHD BLACK,TRIM1# |
1 | ||
| 55405-60140C0 |
KDJ90,KZJ9#,VZJ90..LHD W/O(RADIO),BLACK,TRIM1#,4# |
1 | ||
| 55405-60110C0 |
KDJ90,KZJ9#,VZJ90..LHD BLACK,TRIM1#,4# |
1 | ||
| 55405-60180 |
KDJ9#,KZJ9#,VZJ9#..LHD WOOD GRAIN |
1 | ||
| 55405-60140C0 |
KZJ9#,VZJ9#..LHD W/O(RADIO),BLACK,TRIM1# |
1 | ||
| 55405-60200 |
KDJ9#,KZJ9#,VZJ9#..LHD W/O(RADIO) & WOOD GRAIN |
1 | ||
| 55421B - PANEL, INSTRUMENT CLUSTER FINISH, UPPER | ||||
| 55421-60020E0 |
VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55421-60020 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55421-60020E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55421-60020E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM40,41 |
1 | ||
| 55421-60020B0 |
KDJ9#,KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55432-60360E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM40,41 |
1 | ||
| 55432-60360E0 |
VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55432-60360B0 |
KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55432-60360E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55432-60360B0 |
KDJ9#,KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-60030C0 |
KZJ9#,VZJ9# W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1# |
1 | ||
| 55433-60030C0 |
VZJ9# W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1#,4# |
1 | ||
| 55433-60030C0 |
KDJ9#,VZJ9# W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1#,40,41 |
1 | ||
| 55433-60030C0 |
KDJ9#,VZJ9# W(*80,DRIVER SIDE & PASSENGER SIDE),BLACK,TRIM1#,4# |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-60010 |
VZJ9#..LHD |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-35010 |
KZJ9#,VZJ9# |
1 | ||
| 55477-35010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT | ||||
| 55501-60130E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55501-60130B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55501-60130E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55501-60130B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55501-60130E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 90541-05080 |
KZJ9#,VZJ9# |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-60060 |
KZJ9#,VZJ9# RADIO OPENING SPACE = 1 DIN SIZE |
1 | ||
| 55521-12110 |
KZJ9#,VZJ9#..LHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55521-12110 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..LHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55521-60060 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# RADIO OPENING SPACE = 1 DIN SIZE |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-60060 |
KZJ9#,VZJ9# RADIO OPENING SPACE = 1 DIN SIZE |
1 | ||
| 55521-12110 |
KZJ9#,VZJ9#..LHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55521-12110 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..LHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55521-60060 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# RADIO OPENING SPACE = 1 DIN SIZE |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-20060 |
KDJ9#,KZJ9#,VZJ9#..LHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55522-14070 |
KZJ9#,VZJ9#..LHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55522-60020 |
KZJ9#,VZJ9# RADIO OPENING SPACE = 1 DIN SIZE |
1 | ||
| 55522-20060 |
KZJ9#,VZJ9#..LHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55522-60020 |
KDJ9#,KZJ9#,VZJ9# RADIO OPENING SPACE = 1 DIN SIZE |
1 | ||
| 55538D - COVER, SUNSHINE SENSOR HOLE | ||||
| 55538-35010B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55539-60010 |
KZJ9#,VZJ9# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-60010 |
KZJ9#,VZJ9# |
1 | ||
| 55539-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55539-60010 |
KZJ9#,VZJ9# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55539-20080E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55539T - COVER, SPARE SWITCH HOLE | ||||
| 55524-60020B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55524-60020E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55524-60020E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55524-60020E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-35010E0 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55545-35010B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55545-35010B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55545-35010E0 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55545-35010E0 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55547 - COVER, REMOTE CONTROL MIRROR HOLE | ||||
| 55547-60010B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55547-60010E0 |
KDJ90,KZJ9#,VZJ90 OAK,TRIM4# |
1 | ||
| 55547-60010B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-89101E1 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55565-89101B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55565-89101E1 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55565-89101B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55565-89101E1 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-89101E1 |
VZJ9# OAK,TRIM4# |
1 | ||
| 55569-89101E1 |
KDJ9#,VZJ9# OAK,TRIM4# |
1 | ||
| 55569-89101E1 |
KDJ9#,VZJ9# OAK,TRIM40,41 |
1 | ||
| 55569-89101B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55569-89101B0 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-60010 |
KZJ9#,VZJ9# |
2 | ||
| 55573-60010 |
KDJ9#,KZJ9#,VZJ9# |
2 | ||
| 55573-32010 |
KZJ9#,VZJ9# |
2 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-60010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55606-60010 |
KZJ9#,VZJ9# |
1 | ||
| 55606-35010 |
KZJ9#,VZJ9# |
1 | ||
| 55617A - COVER, THROTTLE KNOB HOLE | ||||
| 55531-60020B0 |
KDJ9#,KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55531-60020E0 |
VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55531-60020E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM40,41 |
1 | ||
| 55531-60020B0 |
KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 55531-60020E0 |
KDJ9#,VZJ9#..LHD OAK,TRIM4# |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-60060 |
KZJ9#,VZJ9# |
1 | ||
| 55670-60060 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-60070 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 73960-60020 |
KZJ9#,VZJ9# |
1 | ||
| 73960-60070 |
KZJ9#,VZJ9# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
KZJ9#,VZJ9# |
1 | ||
| 74598-20010 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| Common parts | ||||
| 55416-60030 | ||||
| 55531-60030 | ||||
| 90119-06022 | ||||
| 90119-08B72 | ||||
| 90149-50032 | ||||
| 90179-08068 | ||||
| 90183-05040 | ||||
| 90467-06133C0 | ||||
| 90468-04177 | ||||
| 93530-54010 | ||||
| 93540-54014 | ||||
| 93560-55016 | ||||
| 93568-15014 | ||||
| 93568-55012 | ||||
| 93568-55016 | ||||
| Linked diagrams | ||||
| 8401 | ||||

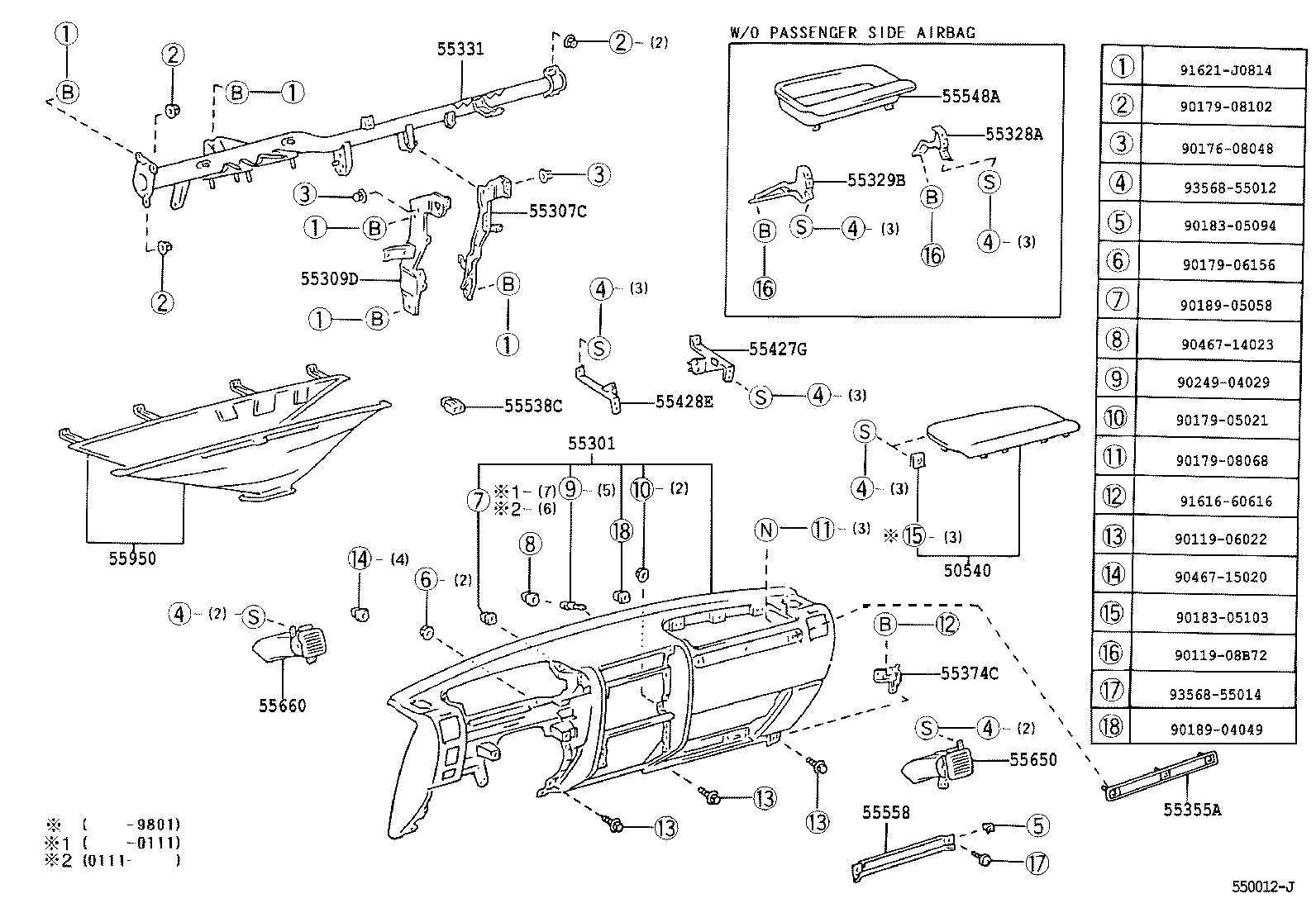

ILLUST NO. 1 OF 2(9604- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 50540 - DO0R ASSY, AIR BAG PASSENGER | ||||
| 55591-60030B0 |
KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 50541-60020B0 |
KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 50541-60020E0 |
VZJ9#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 50541-60020B0 |
KDJ9#,KZJ9#,VZJ9#..LHD MD.MOON MIST,TRIM1# |
1 | ||
| 50541-60020E0 |
KDJ9#,VZJ9#..LHD SANDAL WOOD,TRIM40,41 |
1 | ||
| 50541-60020E0 |
KDJ9#,VZJ9#..LHD SANDAL WOOD,TRIM4# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55311-60540B0 |
KZJ9#,VZJ9#..LHD W(ACCESSORY METER & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60541B0 |
KZJ9#,VZJ9#..LHD W(ACCESSORY METER & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60580B0 |
KZJ9#,VZJ9#..LHD W(*80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60581B0 |
KZJ9#,VZJ9#..LHD W(*80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-6A010E0 |
VZJ9#..LHD W(ACCESSORY METER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4# |
1 | ||
| 55311-6A020B0 |
KDJ9#,VZJ9#..LHD W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-6A020E0 |
KDJ9#,VZJ9#..LHD W(ACCESSORY METER & AUTO AIR CONDITIONER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM40,41 |
1 | ||
| 55311-6A010E0 |
KDJ9#,VZJ9#..LHD W(ACCESSORY METER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM40,41 |
1 | ||
| 55311-60541B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(ACCESSORY METER & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60581B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(*80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60541E0 |
KDJ90,KZJ9#,VZJ90..LHD W(ACCESSORY METER & *80),OAK,TRIM4# |
1 | ||
| 55311-60581E0 |
KDJ90,KZJ9#,VZJ90..LHD W(*80),OAK,TRIM4# |
1 | ||
| 55311-60651B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60671E0 |
KDJ90,KZJ9#,VZJ90..LHD W(ACCESSORY METER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4# |
1 | ||
| 55311-60671B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(ACCESSORY METER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60651E0 |
KDJ90,KZJ9#,VZJ90..LHD W(WOOD GRAIN ORNAMENT & *80),OAK,TRIM4# |
1 | ||
| 55311-6A010B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(ACCESSORY METER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60790B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(TWEETER SPEAKER & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-6A040B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55311-60790E0 |
KDJ90,KZJ9#,VZJ90..LHD W(TWEETER SPEAKER & *80),OAK,TRIM4# |
1 | ||
| 55311-60760E0 |
KDJ90,KZJ9#,VZJ90..LHD W(ACCESSORY METER & TWEETER SPEAKER & *80),OAK,TRIM4# |
1 | ||
| 55311-6A040E0 |
KDJ90,KZJ9#,VZJ90..LHD W(TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4# |
1 | ||
| 55311-6A010E0 |
KDJ9#,VZJ9#..LHD W(ACCESSORY METER & TWEETER SPEAKER & WOOD GRAIN ORNAMENT & *80),OAK,TRIM4# |
1 | ||
| 55311-60760B0 |
KDJ9#,KZJ9#,VZJ9#..LHD W(ACCESSORY METER & TWEETER SPEAKER & *80),MD.MOON MIST,TRIM1# |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-60060 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55307-60100 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55309D - BRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR | ||||
| 55309-60020 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55309-60081 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55309-60080 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-60080 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55330-60080 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55355A - PLATE, INSTRUMENT PANEL | ||||
| 55355-60130 |
KDJ9#,VZJ9#..LHD 50TH ANNIVERSARY |
1 | ||
| 55355-60100 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-60040 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55374-60040 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| 55427G - BRACKET, AIR BAG PASSENGER MOUNTING, NO.1 | ||||
| 55305-60020 |
KZJ9#,VZJ9# |
1 | ||
| 55305-60021 |
KZJ9#,VZJ9# |
1 | ||
| 55305-60021 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55428E - BRACKET, AIR BAG PASSENGER MOUNTING, NO.2 | ||||
| 55306-60101 |
KZJ9#,VZJ9# |
1 | ||
| 55306-60101 |
KDJ9#,KZJ9#,VZJ9# |
1 | ||
| 55306-60100 |
KZJ9#,VZJ9# |
1 | ||
| 55538C - COVER, COOLER SWITCH HOLE | ||||
| 55538-33010 |
KZJ9#,VZJ9# |
1 | ||
| 55538-33010 |
KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9# |
1 | ||
| 55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR | ||||
| 55558-60070 |
KDJ9#,KZJ9#,VZJ9# OAK |
1 | ||
| 55558-60050 |
KDJ9#,KZJ9#,VZJ9# GRAY |
1 | ||
| 55558-60050 |
KZJ9#,VZJ9# |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-60070C0 |
VZJ9# BLACK,TRIM1#,4# |
1 | ||
| 55650-60070C0 |
KDJ9#,VZJ9# BLACK,TRIM1#,40,41 |
1 | ||
| 55650-60070C0 |
KZJ9#,VZJ9# BLACK,TRIM1# |
1 | ||
| 55650-60070C0 |
KDJ9#,VZJ9# BLACK,TRIM1#,4# |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-60110C0 |
VZJ9# BLACK,TRIM1#,4# |
1 | ||
| 55660-60110C0 |
KZJ9#,VZJ9# BLACK,TRIM1# |
1 | ||
| 55660-60110C0 |
KDJ9#,VZJ9# BLACK,TRIM1#,4# |
1 | ||
| 55660-60110C0 |
KDJ9#,VZJ9# BLACK,TRIM1#,40,41 |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-60070 |
KZJ9#,VZJ9#..LHD |
1 | ||
| 55950-60070 |
KDJ9#,KZJ9#,VZJ9#..LHD |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90119-08B72 | ||||
| 90176-08048 | ||||
| 90179-05021 | ||||
| 90179-06156 | ||||
| 90179-08068 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90189-04049 | ||||
| 90189-05058 | ||||
| 90249-04029 | ||||
| 90467-14023 | ||||
| 90467-15020 | ||||
| 91616-60616 | ||||
| 91621-J0814 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
