Toyota Land cruiser 90 KZJ95 REAR DOOR PANEL & GLASS

KZJ95R-GKPNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002

Engine 1KZTE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

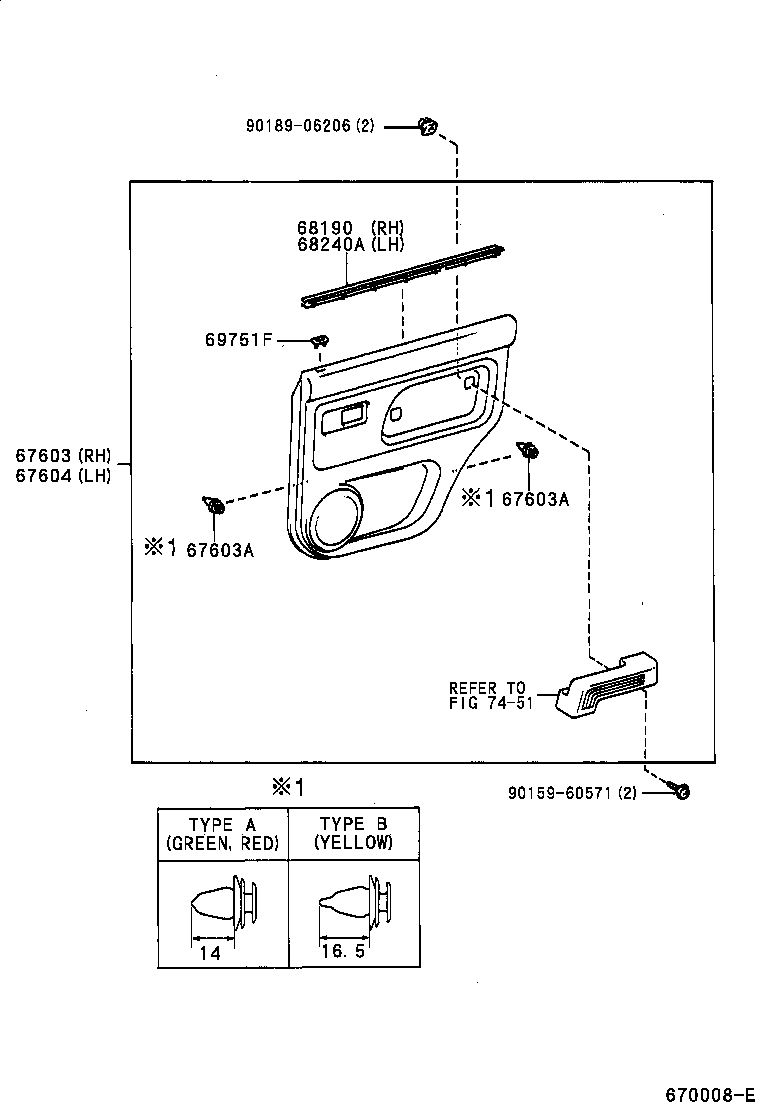

ILLUST NO. 2 OF 2(9604-9906)KZJ95,VZJ95

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-60440B0	KZJ95,VZJ95 W(POWER WINDOW),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60430B0	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60630E0	KZJ95 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67630-60640B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67630-60610B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67630-60640E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,OAK,TRIM4#	06/1999 - 09/2002	1
67630-60610E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67630-60460B0	KZJ95,VZJ95 W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-20110	KZJ95,VZJ95 TYPE A	04/1996 - 06/1996	8
67771-28020	KZJ95,VZJ95 TYPE A	06/1996 - 06/1999	8
67771-28020	KDJ95,KZJ95,VZJ95 TYPE A	06/1999 - 09/2002	8
67771-30090	KDJ95,KZJ95,VZJ95 TYPE B	06/1999 - 09/2002	4
67771-30090	KZJ95,VZJ95 TYPE B	04/1996 - 06/1999	4
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-20110	KZJ95,VZJ95 TYPE A	04/1996 - 06/1996	8
67771-28020	KZJ95,VZJ95 TYPE A	06/1996 - 06/1999	8
67771-28020	KDJ95,KZJ95,VZJ95 TYPE A	06/1999 - 09/2002	8
67771-30090	KDJ95,KZJ95,VZJ95 TYPE B	06/1999 - 09/2002	4
67771-30090	KZJ95,VZJ95 TYPE B	04/1996 - 06/1999	4
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-60430B0	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60610B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67640-60460B0	KZJ95,VZJ95 W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60610E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67640-60640E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,OAK,TRIM4#	06/1999 - 09/2002	1
67640-60440B0	KZJ95,VZJ95 W(POWER WINDOW),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60640B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67640-60630E0	KZJ95 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-60050	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68190-60050	KZJ95,VZJ95	04/1996 - 06/1999	1
68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68240-60030	KZJ95,VZJ95	04/1996 - 06/1999	1
68240-60030	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-12050B1	KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#	06/1999 - 09/2002	2
69751-12050E0	KZJ95 OAK,TRIM4#	06/1999 - 09/2002	2
69751-12050B1	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
Common parts
90159-60571
90189-06206
Linked diagrams
7451

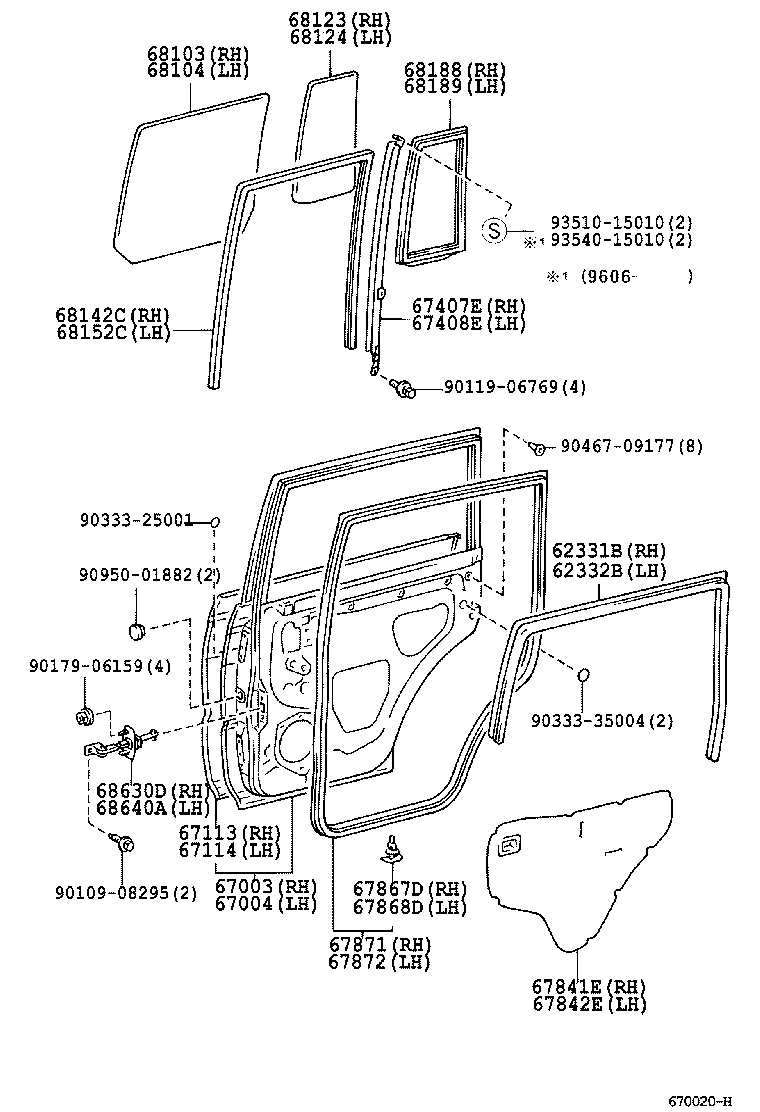

ILLUST NO. 1 OF 2(9604- )KDJ95,KZJ95,VZJ95

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
62331B - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-60010E0	KZJ95 MD.OAK,TRIM4#	06/1999 - 09/2002	1
62331-60010B1	KDJ95,KZJ95,VZJ95 MOON MIST,TRIM1#	06/1999 - 09/2002	1
62331-60010B0	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
62332B - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-60010B0	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
62332-60010E0	KZJ95 MD.OAK,TRIM4#	06/1999 - 09/2002	1
62332-60010B1	KDJ95,KZJ95,VZJ95 MOON MIST,TRIM1#	06/1999 - 09/2002	1
67003 - PANEL SUB-ASSY, REAR DOOR, RH
67003-60211	KZJ95,VZJ95	01/1999 - 06/1999	1
67003-60171	KZJ95,VZJ95 W(FRONT FENDER MOULDING)	01/1999 - 06/1999	1
67003-60210	KZJ95,VZJ95	04/1997 - 01/1999	1
67003-60170	KZJ95,VZJ95 W(FRONT FENDER MOULDING)	04/1996 - 01/1999	1
67003-60211	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67003-60171	KDJ95,KZJ95,VZJ95 W(FRONT FENDER MOULDING)	06/1999 - 09/2002	1
67003-60160	KZJ95,VZJ95	04/1996 - 04/1997	1
67004 - PANEL SUB-ASSY, REAR DOOR, LH
67004-60211	KZJ95,VZJ95	01/1999 - 06/1999	1
67004-60160	KZJ95,VZJ95	04/1996 - 04/1997	1
67004-60171	KZJ95,VZJ95 W(FRONT FENDER MOULDING)	01/1999 - 06/1999	1
67004-60210	KZJ95,VZJ95	04/1997 - 01/1999	1
67004-60211	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67004-60170	KZJ95,VZJ95 W(FRONT FENDER MOULDING)	04/1996 - 01/1999	1
67004-60171	KDJ95,KZJ95,VZJ95 W(FRONT FENDER MOULDING)	06/1999 - 09/2002	1
67113 - PANEL, REAR DOOR, OUTER RH
67113-60140	KZJ95,VZJ95	04/1996 - 06/1999	1
67113-60150	KZJ95,VZJ95 W(FRONT FENDER MOULDING)	04/1996 - 06/1999	1
67113-60150	KDJ95,KZJ95,VZJ95 W(FRONT FENDER MOULDING)	06/1999 - 09/2002	1
67113-60140	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67114 - PANEL, REAR DOOR, OUTER LH
67114-60140	KZJ95,VZJ95	04/1996 - 06/1999	1
67114-60150	KZJ95,VZJ95 W(FRONT FENDER MOULDING)	04/1996 - 06/1999	1
67114-60140	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67114-60150	KDJ95,KZJ95,VZJ95 W(FRONT FENDER MOULDING)	06/1999 - 09/2002	1
67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67407-60030	KZJ95,VZJ95	04/1996 - 06/1999	1
67407-60030	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67408-60030	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67408-60030	KZJ95,VZJ95	04/1996 - 06/1999	1
67841E - COVER, REAR DOOR SERVICE HOLE, RH
67841-60060	KZJ95,VZJ95	04/1996 - 06/1999	1
67841-60061	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67842E - COVER, REAR DOOR SERVICE HOLE, LH
67842-60010	KZJ95,VZJ95	04/1996 - 06/1999	1
67842-60011	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH
67867-12150	KZJ95,VZJ95	04/1996 - 06/1999	17
67867-12150	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	17
67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH
67867-12150	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	17
67867-12150	KZJ95,VZJ95	04/1996 - 06/1999	17
67871 - WEATHERSTRIP, REAR DOOR, RH
67871-60060	KZJ95,VZJ95	04/1996 - 06/1999	1
67871-60060	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67872 - WEATHERSTRIP, REAR DOOR, LH
67872-60060	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67872-60060	KZJ95,VZJ95	04/1996 - 06/1999	1
68103 - GLASS SUB-ASSY, REAR DOOR, RH
68113-60100	KDJ95,KZJ95,VZJ95 *TT,T=3.5,GREEN	06/1999 - 09/2002	1
68113-60100	KZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 06/1999	1
68104 - GLASS SUB-ASSY, REAR DOOR, LH
68114-60100	KZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 06/1999	1
68114-60100	KDJ95,KZJ95,VZJ95 *TT,T=3.5,GREEN	06/1999 - 09/2002	1
68123 - GLASS, REAR DOOR WINDOW, RH
68123-60110	KZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 06/1999	1
68123-60110	KDJ95,KZJ95,VZJ95 *TT,T=3.5,GREEN	06/1999 - 09/2002	1
68124 - GLASS, REAR DOOR WINDOW, LH
68124-60110	KDJ95,KZJ95,VZJ95 *TT,T=3.5,GREEN	06/1999 - 09/2002	1
68124-60110	KZJ95,VZJ95 *TT,T=3.5,GREEN	04/1996 - 06/1999	1
68142C - RUN, REAR DOOR GLASS, RH
68142-60030	KZJ95,VZJ95	04/1996 - 06/1999	1
68142-60031	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68152C - RUN, REAR DOOR GLASS, LH
68152-60020	KZJ95,VZJ95	04/1996 - 06/1999	1
68152-60021	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68188-60030	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68188-60030	KZJ95,VZJ95	04/1996 - 06/1999	1
68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68189-60030	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68189-60030	KZJ95,VZJ95	04/1996 - 06/1999	1
68630D - CHECK ASSY, REAR DOOR, RH
68630-60060	KZJ95,VZJ95	04/1996 - 06/1999	1
68630-60060	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68640A - CHECK ASSY, REAR DOOR, LH
68640-60040	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68640-60040	KZJ95,VZJ95	04/1996 - 06/1999	1
Common parts
90109-08295
90119-06769
90179-06159
90333-25001
90333-35004
90467-09177
90950-01882
93510-15010
93540-15010

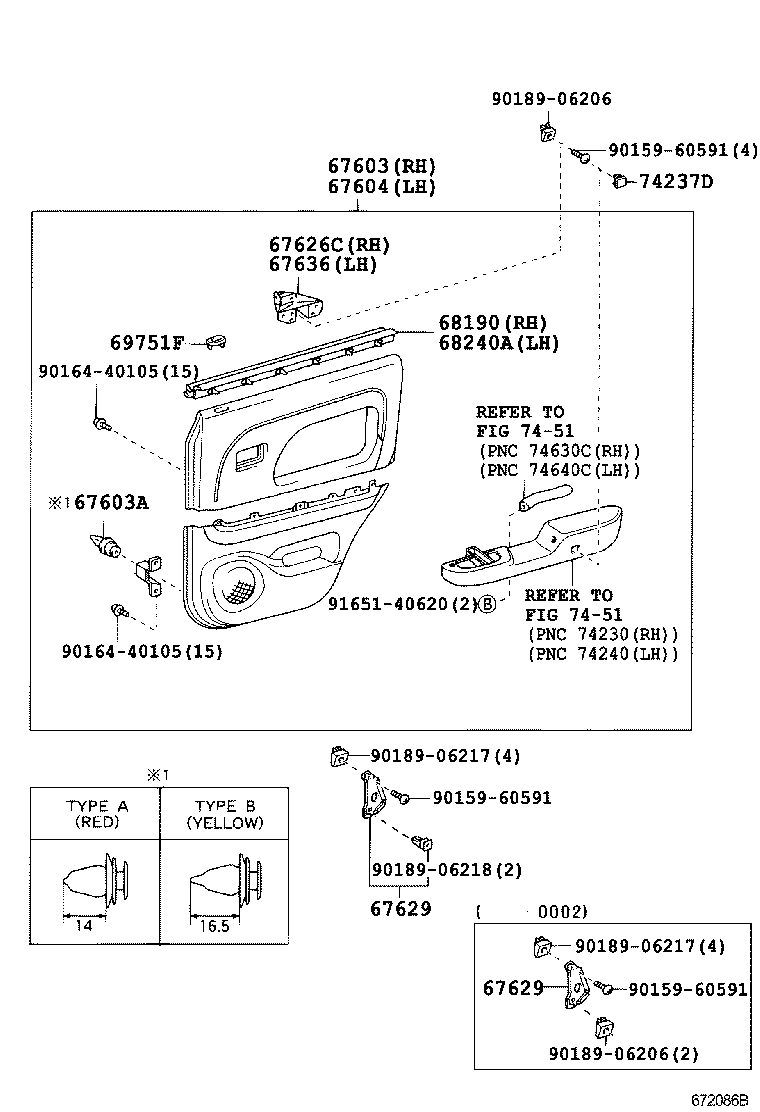

ILLUST NO. 2 OF 2(9906- )KDJ95,KZJ95,VZJ95

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH
67630-60440B0	KZJ95,VZJ95 W(POWER WINDOW),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60430B0	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67630-60630E0	KZJ95 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67630-60640B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67630-60610B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67630-60640E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,OAK,TRIM4#	06/1999 - 09/2002	1
67630-60610E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67630-60460B0	KZJ95,VZJ95 W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67603A - RETAINER(FOR REAR DOOR TRIM BOARD)
67771-20110	KZJ95,VZJ95 TYPE A	04/1996 - 06/1996	8
67771-28020	KZJ95,VZJ95 TYPE A	06/1996 - 06/1999	8
67771-28020	KDJ95,KZJ95,VZJ95 TYPE A	06/1999 - 09/2002	8
67771-30090	KDJ95,KZJ95,VZJ95 TYPE B	06/1999 - 09/2002	4
67771-30090	KZJ95,VZJ95 TYPE B	04/1996 - 06/1999	4
67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH
67640-60430B0	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60610B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67640-60460B0	KZJ95,VZJ95 W(LEATHER SEAT),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60610E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67640-60640E0	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,OAK,TRIM4#	06/1999 - 09/2002	1
67640-60440B0	KZJ95,VZJ95 W(POWER WINDOW),MD.MOON MIST,TRIM1#	04/1996 - 06/1999	1
67640-60640B1	KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,MD.MOON MIST,TRIM1#	06/1999 - 09/2002	1
67640-60630E0	KZJ95 DOOR TRIM=TYPE D-*104 & W(POWER WINDOW),OAK,TRIM4#	06/1999 - 09/2002	1
67626C - BRACKET, REAR DOOR TRIM, NO.2
67626-60030	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
67629 - BRACKET, REAR DOOR TRIM BOARD
67608-60010	KDJ95,KZJ95,VZJ95 LH	02/2000 - 09/2002	1
67607-60010	KDJ95,KZJ95,VZJ95 RH	02/2000 - 09/2002	1
67639-60020	KZJ95,VZJ95 LH	06/1999 - 02/2000	1
67629-60020	KZJ95,VZJ95 RH	06/1999 - 02/2000	1
67629 - BRACKET, REAR DOOR TRIM BOARD
67608-60010	KDJ95,KZJ95,VZJ95 LH	02/2000 - 09/2002	1
67607-60010	KDJ95,KZJ95,VZJ95 RH	02/2000 - 09/2002	1
67639-60020	KZJ95,VZJ95 LH	06/1999 - 02/2000	1
67629-60020	KZJ95,VZJ95 RH	06/1999 - 02/2000	1
67636 - BRACKET, DOOR TRIM, NO.2 LH
67636-60020	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER
68190-60050	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
68190-60050	KZJ95,VZJ95	04/1996 - 06/1999	1
68240A - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER LH
68240-60030	KZJ95,VZJ95	04/1996 - 06/1999	1
68240-60030	KDJ95,KZJ95,VZJ95	06/1999 - 09/2002	1
69751F - HOLDER, REAR DOOR LOCK CONTROL KNOB
69751-12050B1	KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#	06/1999 - 09/2002	2
69751-12050E0	KZJ95 OAK,TRIM4#	06/1999 - 09/2002	2
69751-12050B1	KZJ95,VZJ95 MD.MOON MIST,TRIM1#	04/1996 - 06/1999	2
74237D - CAP, REAR DOOR ARMREST BASE
74237-60010B0	KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1#	06/1999 - 09/2002	4
74237-60010E0	KZJ95 OAK,TRIM4#	06/1999 - 09/2002	4
Common parts
90159-60591
90164-40105
90189-06206
90189-06217
90189-06218
91651-40620
Linked diagrams
7451
