KZJ95R-GKPNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

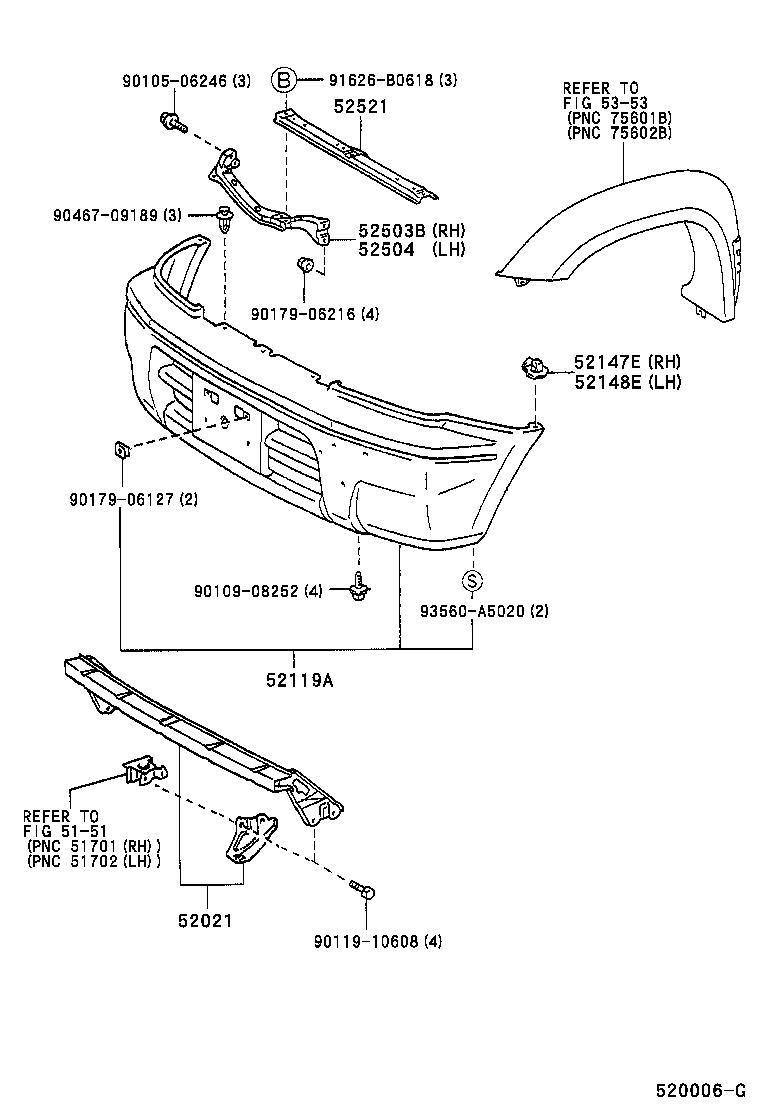

Click highlighted areas on diagram

diagram 5151 52021 52119A 52147E 52148E 52503B 52504 52521 5353 9010506246 9010908252 9011910608 9017906127 9017906216 9046709189 91626B0618 93560A5020
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-60010

KZJ9#,VZJ9#

 1
52021-60010

KDJ9#,KZJ9#,VZJ9#

 1
52119A - COVER, FRONT BUMPER
52119-60900

KZJ9#,VZJ9#

W(FRONT FENDER MOULDING)

 1
52119-60010

KZJ9#,VZJ9#

 1
52119-60901

KZJ9#,VZJ9#

W(FRONT FENDER MOULDING & HEADLAMP CLEANER)

 1
52119-60020

KZJ9#,VZJ9#

W(HEADLAMP CLEANER)

 1
52104-60903

KDJ95,KZJ9#,VZJ95

W(OVER FENDER & FRONT FOGLAMP & HEADLAMP CLEANER)

 1
52119-60400

KDJ9#,KZJ9#,VZJ9#

W(FRONT FOG LAMP & HEADLAMP CLEANER)

 1
52119-60350

KDJ9#,KZJ9#,VZJ9#

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-16080

KZJ9#,VZJ9#

 1
52147-16080

KDJ9#,KZJ9#,VZJ9#

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-16080

KDJ9#,KZJ9#,VZJ9#

 1
52147-16080

KZJ9#,VZJ9#

 1
52503B - RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 RH
52503-60020

KZJ9#,VZJ9#

 1
52503-60030

KDJ9#,KZJ9#,VZJ9#

 1
52504 - RETAINER SUB-ASSY, FRONT BUMPER SIDE, NO.1 LH
52504-60010

KZJ9#,VZJ9#

 1
52504-60020

KDJ9#,KZJ9#,VZJ9#

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-60020

KZJ9#,VZJ9#

 1
52521-60040

KDJ9#,KZJ9#,VZJ9#

 1
Common parts
90105-06246
90109-08252
90119-10608
90179-06127
90179-06216
90467-09189
91626-B0618
93560-A5020
Linked diagrams
5151
5353
