KZJ95R-GKMNTW (1996)
Toyota Land Cruiser 90

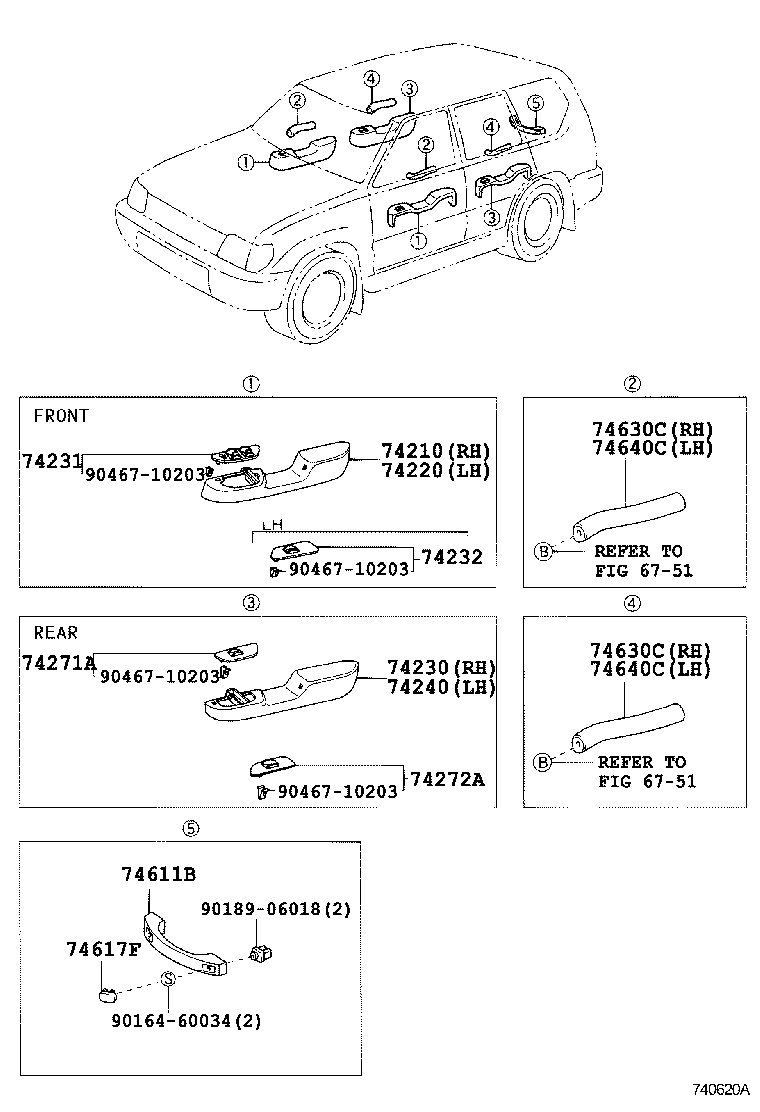

ILLUST NO. 1 OF 2(9604-0209)
ARMREST(TYPE A)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60320E0 |
KZJ95..RHD OAK,TRIM4# |
1 | ||
| 74231-60320E0 |
KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74231-60110B0 |
KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74231-60350 |
KDJ95,KZJ95,VZJ95..RHD WOOD GRAIN |
1 | ||
| 74231-60320B0 |
KDJ95,KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74231-60320E0 |
KDJ95,KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60320E0 |
KZJ95..RHD OAK,TRIM4# |
1 | ||
| 74231-60320E0 |
KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74231-60110B0 |
KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74231-60350 |
KDJ95,KZJ95,VZJ95..RHD WOOD GRAIN |
1 | ||
| 74231-60320B0 |
KDJ95,KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74231-60320E0 |
KDJ95,KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60260E0 |
KDJ90,KZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60090B0 |
KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74232-60260E0 |
KZJ9#,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60290 |
KDJ9#,KZJ9#,VZJ95..RHD WOOD GRAIN |
1 | ||
| 74232-60260E0 |
KDJ9#,KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60260B0 |
KDJ9#,KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60260E0 |
KDJ90,KZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60090B0 |
KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74232-60260E0 |
KZJ9#,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60290 |
KDJ9#,KZJ9#,VZJ95..RHD WOOD GRAIN |
1 | ||
| 74232-60260E0 |
KDJ9#,KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60260B0 |
KDJ9#,KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74610-10020B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 74610-10020E3 |
KZJ9# OAK,TRIM4# |
1 | ||
| 74610-10020B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74617-14010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74617-14010B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74617-14010E2 |
KZJ9# OAK,TRIM4# |
2 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-60030B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ9# TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4# |
1 | ||
| 74630-60030B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74641-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74630-60030E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74653-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| 74653-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-60030B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ9# TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4# |
1 | ||
| 74630-60030B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74641-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74630-60030E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74653-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| 74653-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74642-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74654-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74640-60010E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74642-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74654-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74642-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74654-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74640-60010E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74642-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74654-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| Common parts | ||||
| 90164-60034 | ||||
| 90168-40104 | ||||
| 90189-06018 | ||||
| 90468-04177 | ||||

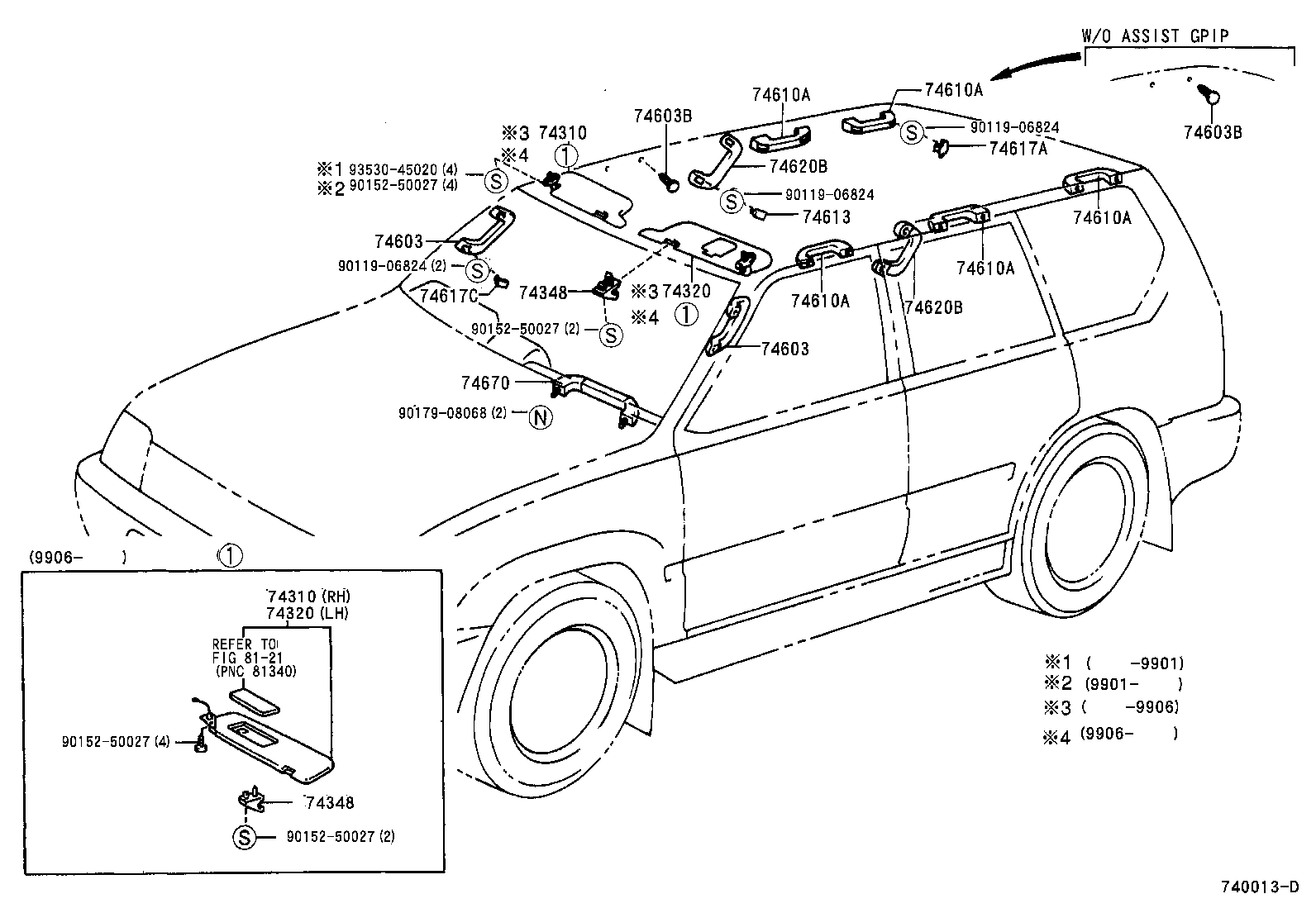

ILLUST NO. 2 OF 2(9604- )
VISOR & ASSIST GRIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74310 - VISOR ASSY, RH | ||||
| 74310-60561B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60560B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60564B2 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60564E1 |
KZJ9#,VZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74310-60563B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60562B1 |
KZJ9#,VZJ95..RHD MOON MIST,TRIM1# |
1 | ||
| 74310-60553E1 |
KZJ95..RHD W/O(AIR BAG CAUTION),LT. OAK,TRIM4# |
1 | ||
| 74310-60553B1 |
KDJ9#,KZJ95,VZJ95..RHD W/O(AIR BAG CAUTION),MOONMIST,TRIM1# |
1 | ||
| 74310-60565E1 |
KZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74310-60565B2 |
KZJ95,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310 - VISOR ASSY, RH | ||||
| 74310-60561B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60560B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60564B2 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60564E1 |
KZJ9#,VZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74310-60563B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74310-60562B1 |
KZJ9#,VZJ95..RHD MOON MIST,TRIM1# |
1 | ||
| 74310-60553E1 |
KZJ95..RHD W/O(AIR BAG CAUTION),LT. OAK,TRIM4# |
1 | ||
| 74310-60553B1 |
KDJ9#,KZJ95,VZJ95..RHD W/O(AIR BAG CAUTION),MOONMIST,TRIM1# |
1 | ||
| 74310-60565E1 |
KZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74310-60565B2 |
KZJ95,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-60501B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320-60500B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320-60502E1 |
KZJ9#,VZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74320-60503E1 |
KDJ90,KZJ95..RHD W(AIR BAG CAUTION),LT. OAK,TRIM4# |
1 | ||
| 74320-60503B1 |
KDJ90,KZJ95,VZJ95..RHD W(AIR BAG CAUTION),MOONMIST,TRIM1# |
1 | ||
| 74320-60502B1 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320-60840E0 |
KZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74320-60840B0 |
KDJ9#,KZJ95,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320 - VISOR ASSY, LH | ||||
| 74320-60501B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320-60500B0 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320-60502E1 |
KZJ9#,VZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74320-60503E1 |
KDJ90,KZJ95..RHD W(AIR BAG CAUTION),LT. OAK,TRIM4# |
1 | ||
| 74320-60503B1 |
KDJ90,KZJ95,VZJ95..RHD W(AIR BAG CAUTION),MOONMIST,TRIM1# |
1 | ||
| 74320-60502B1 |
KZJ9#,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74320-60840E0 |
KZJ95..RHD LT. OAK,TRIM4# |
1 | ||
| 74320-60840B0 |
KDJ9#,KZJ95,VZJ95..RHD MOONMIST,TRIM1# |
1 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-60030B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
2 | ||
| 74348-60030E0 |
KZJ9# MD.OAK,TRIM4# |
2 | ||
| 74348-60030B1 |
KDJ9#,KZJ9#,VZJ9# LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74348 - HOLDER, VISOR | ||||
| 74348-60030B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
2 | ||
| 74348-60030E0 |
KZJ9# MD.OAK,TRIM4# |
2 | ||
| 74348-60030B1 |
KDJ9#,KZJ9#,VZJ9# LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74620-60030B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74620-60030E0 |
KZJ9# MD.OAK,TRIM4# |
2 | ||
| 74620-60030B2 |
KDJ9#,KZJ9#,VZJ9# LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74603 - GRIP SUB-ASSY, ASSIST, FRONT | ||||
| 74620-60030B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74620-60030E0 |
KZJ9# MD.OAK,TRIM4# |
2 | ||
| 74620-60030B2 |
KDJ9#,KZJ9#,VZJ9# LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-05021B4 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
2 | ||
| 90467-05021B4 |
KZJ90..ATM;KZJ95,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM10 |
6 | ||
| 90467-05021B4 |
KZJ95,VZJ95 MOON MIST,TRIM10 |
2 | ||
| 90467-05021E1 |
KZJ95 MD.OAK,TRIM40 |
2 | ||
| 90467-05021B1 |
KDJ95,KZJ95,VZJ95 W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM11 |
6 | ||
| 90467-05021B3 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM11 |
2 | ||
| 90467-05021E1 |
KZJ95 W/O(THIRD SEAT),MD.OAK,TRIM40 |
6 | ||
| 90467-05021B3 |
KDJ95,KZJ95,VZJ95 W/O(THIRD SEAT),MD.MOON MIST,TRIM11 |
6 | ||
| 90467-05021B1 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 90467-05021E6 |
KZJ95 OAK,TRIM40 |
2 | ||
| 90467-05021E6 |
KZJ95 W/O(THIRD SEAT),OAK,TRIM40 |
6 | ||
| 74603B - CLIP (FOR ASSIST GRIP) | ||||
| 90467-05021B4 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
2 | ||
| 90467-05021B4 |
KZJ90..ATM;KZJ95,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM10 |
6 | ||
| 90467-05021B4 |
KZJ95,VZJ95 MOON MIST,TRIM10 |
2 | ||
| 90467-05021E1 |
KZJ95 MD.OAK,TRIM40 |
2 | ||
| 90467-05021B1 |
KDJ95,KZJ95,VZJ95 W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM11 |
6 | ||
| 90467-05021B3 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM11 |
2 | ||
| 90467-05021E1 |
KZJ95 W/O(THIRD SEAT),MD.OAK,TRIM40 |
6 | ||
| 90467-05021B3 |
KDJ95,KZJ95,VZJ95 W/O(THIRD SEAT),MD.MOON MIST,TRIM11 |
6 | ||
| 90467-05021B1 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM11 |
2 | ||
| 90467-05021E6 |
KZJ95 OAK,TRIM40 |
2 | ||
| 90467-05021E6 |
KZJ95 W/O(THIRD SEAT),OAK,TRIM40 |
6 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
5 | ||
| 74610-60060E0 |
KZJ9# W/O(THIRD SEAT),MD.OAK,TRIM4# |
3 | ||
| 74610-60060B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
5 | ||
| 74610-60060B0 |
KZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060E0 |
KZJ95 MD.OAK,TRIM4# |
5 | ||
| 74610-60060B2 |
KDJ9#,KZJ9#,VZJ9# W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
5 | ||
| 74610-60060E0 |
KZJ9# W/O(THIRD SEAT),MD.OAK,TRIM4# |
3 | ||
| 74610-60060B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
5 | ||
| 74610-60060B0 |
KZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060E0 |
KZJ95 MD.OAK,TRIM4# |
5 | ||
| 74610-60060B2 |
KDJ9#,KZJ9#,VZJ9# W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
5 | ||
| 74610-60060E0 |
KZJ9# W/O(THIRD SEAT),MD.OAK,TRIM4# |
3 | ||
| 74610-60060B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
5 | ||
| 74610-60060B0 |
KZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060E0 |
KZJ95 MD.OAK,TRIM4# |
5 | ||
| 74610-60060B2 |
KDJ9#,KZJ9#,VZJ9# W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
5 | ||
| 74610-60060E0 |
KZJ9# W/O(THIRD SEAT),MD.OAK,TRIM4# |
3 | ||
| 74610-60060B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
5 | ||
| 74610-60060B0 |
KZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060E0 |
KZJ95 MD.OAK,TRIM4# |
5 | ||
| 74610-60060B2 |
KDJ9#,KZJ9#,VZJ9# W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74610A - GRIP SUB-ASSY, ASSIST | ||||
| 74610-60060B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
5 | ||
| 74610-60060E0 |
KZJ9# W/O(THIRD SEAT),MD.OAK,TRIM4# |
3 | ||
| 74610-60060B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
5 | ||
| 74610-60060B0 |
KZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
3 | ||
| 74610-60060E0 |
KZJ95 MD.OAK,TRIM4# |
5 | ||
| 74610-60060B2 |
KDJ9#,KZJ9#,VZJ9# W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM1# |
3 | ||
| 74613 - PLUG, ASSIST GRIP | ||||
| 74615-60020B1 |
KZJ95,VZJ95 MOON MIST,TRIM10 |
4 | ||
| 74615-60020B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
4 | ||
| 74615-60020B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
4 | ||
| 74615-60020E0 |
KZJ95 MD.OAK,TRIM4# |
4 | ||
| 74617A - PLUG, ASSIST GRIP | ||||
| 74617-60010B0 |
KZJ9#,VZJ9# MOON MIST,TRIM1# |
10 | ||
| 74617-60010B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
10 | ||
| 74617-60010B0 |
KZJ9#,VZJ9# W/O(THIRD SEAT),MOON MIST,TRIM1# |
6 | ||
| 74617-60010B2 |
KDJ9#,KZJ9#,VZJ9# W/O(THIRD SEAT),LT.BLUISH GRAY,TRIM1# |
6 | ||
| 74617-60010E0 |
KZJ95 MD.OAK,TRIM4# |
10 | ||
| 74617-60010E0 |
KZJ9# W/O(THIRD SEAT),MD.OAK,TRIM4# |
6 | ||
| 74617C - PLUG, ASSIST GRIP | ||||
| 74615-60020B1 |
KZJ95,VZJ95 MOON MIST,TRIM10 |
4 | ||
| 74615-60020B2 |
KDJ9#,KZJ9#,VZJ9# LT.BLUISH GRAY,TRIM1# |
4 | ||
| 74615-60020B0 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
4 | ||
| 74615-60020E0 |
KZJ9# MD.OAK,TRIM4# |
4 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-60030B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74620-60030B1 |
KZJ95,VZJ95 MOON MIST,TRIM10 |
2 | ||
| 74620-60030E0 |
KZJ95 MD.OAK,TRIM4# |
2 | ||
| 74620B - GRIP ASSY, ASSIST, REAR | ||||
| 74620-60030B2 |
KDJ95,KZJ95,VZJ95 LT.BLUISH GRAY,TRIM1# |
2 | ||
| 74620-60030B1 |
KZJ95,VZJ95 MOON MIST,TRIM10 |
2 | ||
| 74620-60030E0 |
KZJ95 MD.OAK,TRIM4# |
2 | ||
| Common parts | ||||
| 90119-06824 | ||||
| 90152-50027 | ||||
| 90179-08068 | ||||
| 93530-45020 | ||||
| Linked diagrams | ||||
| 8121 | ||||
ILLUST NO. 1 OF 2(9906- )
ARMREST(TYPE B)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 74210 - ARMREST ASSY, FRONT, RH | ||||
| 74210-60120E0 |
KDJ9#,KZJ9#,VZJ9# DOOR TRIM=TYPE B-*104,OAK,TRIM4# |
1 | ||
| 74210-60140E0 |
KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74210-60140E0 |
KZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74210-60120B0 |
KDJ9#,KZJ9#,VZJ9# DOOR TRIM=TYPE B-*104,MOON MIST,TRIM1# |
1 | ||
| 74210-60140E0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74220 - ARMREST ASSY, FRONT, LH | ||||
| 74220-60140E0 |
KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74220-60120B0 |
KDJ9#,KZJ9#,VZJ9# DOOR TRIM=TYPE B-*104,MOON MIST,TRIM1# |
1 | ||
| 74220-60120E0 |
KDJ9#,KZJ9#,VZJ9# DOOR TRIM=TYPE B-*104,OAK,TRIM4# |
1 | ||
| 74220-60140E0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74220-60140E0 |
KZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74230 - ARMREST ASSY, REAR, RH | ||||
| 74250-60080E0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74250-60060E0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,OAK,TRIM4# |
1 | ||
| 74250-60060B0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,MOON MIST,TRIM1# |
1 | ||
| 74250-60080E0 |
KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74250-60080E0 |
KZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74231 - PANEL, FRONT ARMREST BASE, UPPER RH | ||||
| 74231-60320E0 |
KZJ95..RHD OAK,TRIM4# |
1 | ||
| 74231-60320E0 |
KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74231-60110B0 |
KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74231-60350 |
KDJ95,KZJ95,VZJ95..RHD WOOD GRAIN |
1 | ||
| 74231-60320B0 |
KDJ95,KZJ95,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74231-60320E0 |
KDJ95,KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232 - PANEL, FRONT ARMREST BASE, UPPER LH | ||||
| 74232-60260E0 |
KDJ90,KZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60090B0 |
KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74232-60260E0 |
KZJ9#,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60290 |
KDJ9#,KZJ9#,VZJ95..RHD WOOD GRAIN |
1 | ||
| 74232-60260E0 |
KDJ9#,KZJ95,VZJ95..RHD OAK,TRIM4# |
1 | ||
| 74232-60260B0 |
KDJ9#,KZJ9#,VZJ95..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 74240 - ARMREST ASSY, REAR, LH | ||||
| 74260-60080E0 |
KZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74260-60080E0 |
KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74260-60060E0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,OAK,TRIM4# |
1 | ||
| 74260-60060B0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE B-*104,MOON MIST,TRIM1# |
1 | ||
| 74260-60080E0 |
KDJ95,KZJ95,VZJ95 DOOR TRIM=TYPE D-*104,MD.OAK,TRIM4# |
1 | ||
| 74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH | ||||
| 74271-60090E0 |
KZJ95,VZJ95 OAK,TRIM4# |
1 | ||
| 74271-60090E0 |
KDJ95,KZJ95,VZJ95 OAK,TRIM4# |
1 | ||
| 74271-60090E0 |
KZJ95 OAK,TRIM4# |
1 | ||
| 74271-60100 |
KDJ95,KZJ95,VZJ95 WOOD GRAIN |
1 | ||
| 74271-60090B0 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH | ||||
| 74272-60090E0 |
KZJ95,VZJ95 OAK,TRIM4# |
1 | ||
| 74272-60090E0 |
KZJ95 OAK,TRIM4# |
1 | ||
| 74272-60090E0 |
KDJ95,KZJ95,VZJ95 OAK,TRIM4# |
1 | ||
| 74272-60100 |
KDJ95,KZJ95,VZJ95 WOOD GRAIN |
1 | ||
| 74272-60090B0 |
KDJ95,KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
1 | ||
| 74611B - GRIP, ASSIST | ||||
| 74610-10020B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 74610-10020E3 |
KZJ9# OAK,TRIM4# |
1 | ||
| 74610-10020B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
1 | ||
| 74617F - PLUG, ASSIST GRIP | ||||
| 74617-14010B2 |
KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74617-14010B2 |
KDJ9#,KZJ9#,VZJ9# MD.MOON MIST,TRIM1# |
2 | ||
| 74617-14010E2 |
KZJ9# OAK,TRIM4# |
2 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-60030B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ9# TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4# |
1 | ||
| 74630-60030B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74641-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74630-60030E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74653-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| 74653-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74630C - GRIP ASSY, DOOR ASSIST, RH | ||||
| 74630-60030B0 |
KZJ95,VZJ95 MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ9# TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4# |
1 | ||
| 74630-60030B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74641-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74641-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74630-60030E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74653-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| 74653-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74642-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74654-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74640-60010E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74642-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74654-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| 74640C - GRIP ASSY, DOOR ASSIST, LH | ||||
| 74640-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1# |
2 | ||
| 74642-60010B0 |
KDJ95,KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,FRONT |
1 | ||
| 74654-60010B0 |
KZJ95,VZJ95 TYPE B:REFER TO ILLUSTRATION,MD.MOON MIST,TRIM1#,REAR |
1 | ||
| 74640-60010E0 |
KDJ95,KZJ95,VZJ95 TYPE A:REFER TO ILLUSTRATION,OAK,TRIM4# |
2 | ||
| 74642-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT |
1 | ||
| 74654-60010E0 |
KZJ95 TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,REAR |
1 | ||
| Common parts | ||||
| 90164-60034 | ||||
| 90189-06018 | ||||
| 90467-10203 | ||||
| Linked diagrams | ||||
| 6751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
