KZJ95R-GKMNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )KDJ9#,KZJ9#..MTM

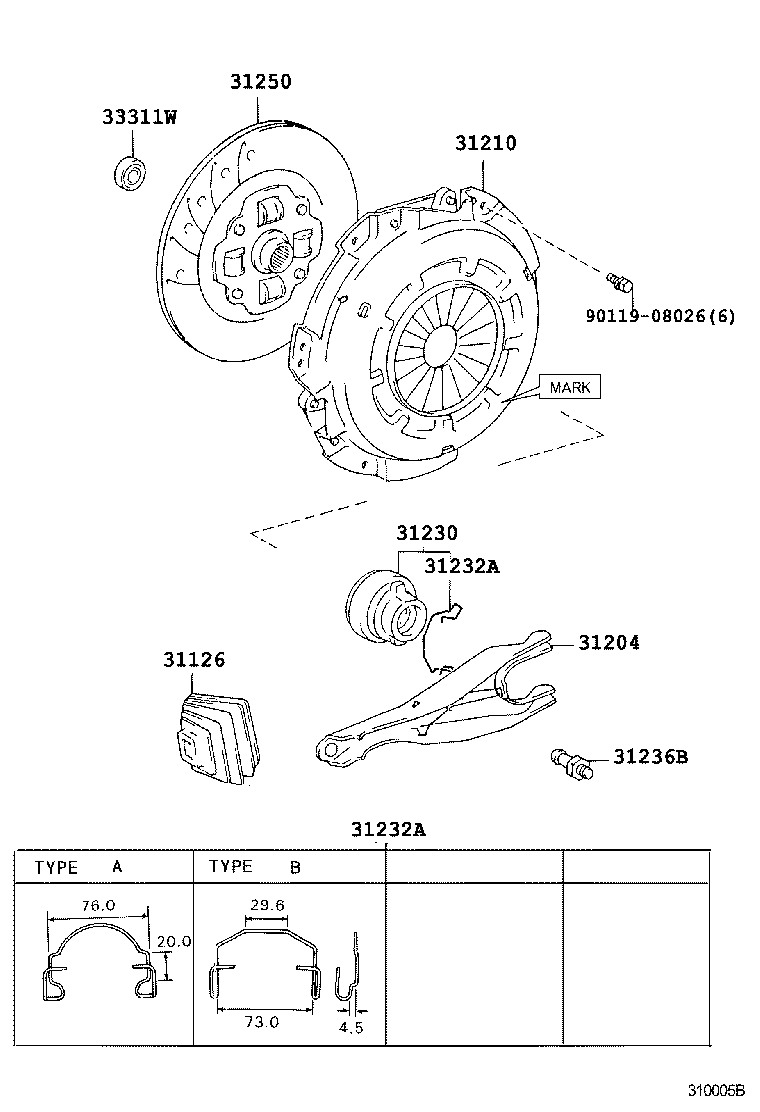

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 33311W 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-60080

KDJ9#,KZJ9#..MTM

 1
31126-60080

KZJ9#..MTM

 1
31126-60081

KDJ9#,KZJ9#..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-60090

KZJ9#..MTM

 1
31204-60090

KDJ9#,KZJ9#..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-35260

KZJ9#..MTM

MARK 31210-35260

 1
31210-26090

KZJ9#..MTM

MARK 31210-26090

 1
31210-26090

KZJ9#..MTM

MARK 31210-26090

 1
31210-60170

KZJ9#..MTM

MARK 31210-60170

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-60170

KDJ9#,KZJ9#..MTM

 1
31230-60170

KZJ9#..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-60030

KZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-60030

KDJ9#,KZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-36030

KZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-36030

KDJ9#,KZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-60030

KZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-60030

KDJ9#,KZJ9#..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232-36030

KZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-36030

KDJ9#,KZJ9#..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-60060

KZJ9#..MTM

 1
31236-60060

KDJ9#,KZJ9#..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-26171

KZJ9#..MTM

PNC 31210 = MARK 31210-26090 OR 31210-35260

 1
31250-35341

KZJ9#..MTM

PNC 31210 = MARK 31210-60170

 1
31250-35340

KZJ9#..MTM

 1
31250-26171

KZJ9#..MTM

PNC 31210 = MARK 31210-26090

 1
33311W - BEARING (FOR INPUT SHAFT)
90363-12002

KZJ9#,VZJ9#..MTM

 1
90363-12002

KZJ90..LHD..MTM;KDJ9#,KZJ95,VZJ9#..MTM

 1
Common parts
90119-08026
