KZJ95L-GKPNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )ATM

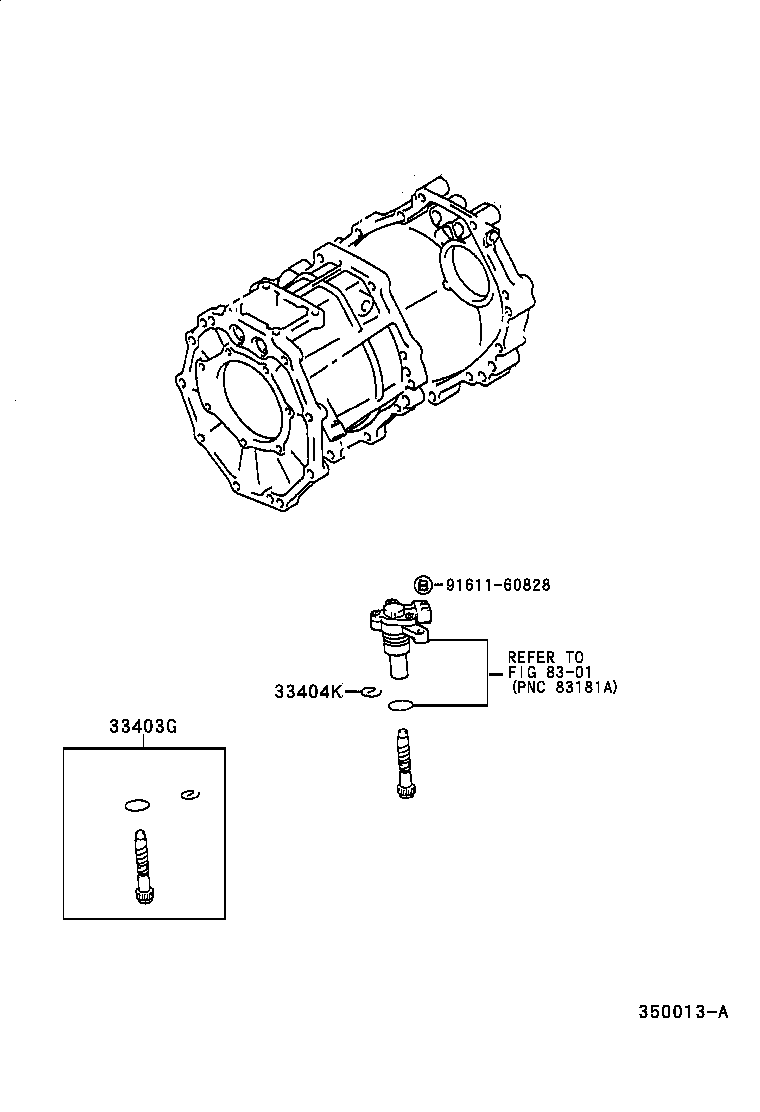

Click highlighted areas on diagram

A343F

diagram 33403G 33404K 8301 9161160828
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39345

KZJ9#,VZJ9#..ATM

N=31,MARK 31:11

 1
33403-39345

KZJ9#,VZJ9#..ATM

N=31,MARK 31:11

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

KZJ9#,VZJ9#..ATM

 1
90468-12005

KDJ9#,KZJ9#,VZJ9#..ATM

 1
Common parts
91611-60828
Linked diagrams
8301
