KZJ90R-GJMNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

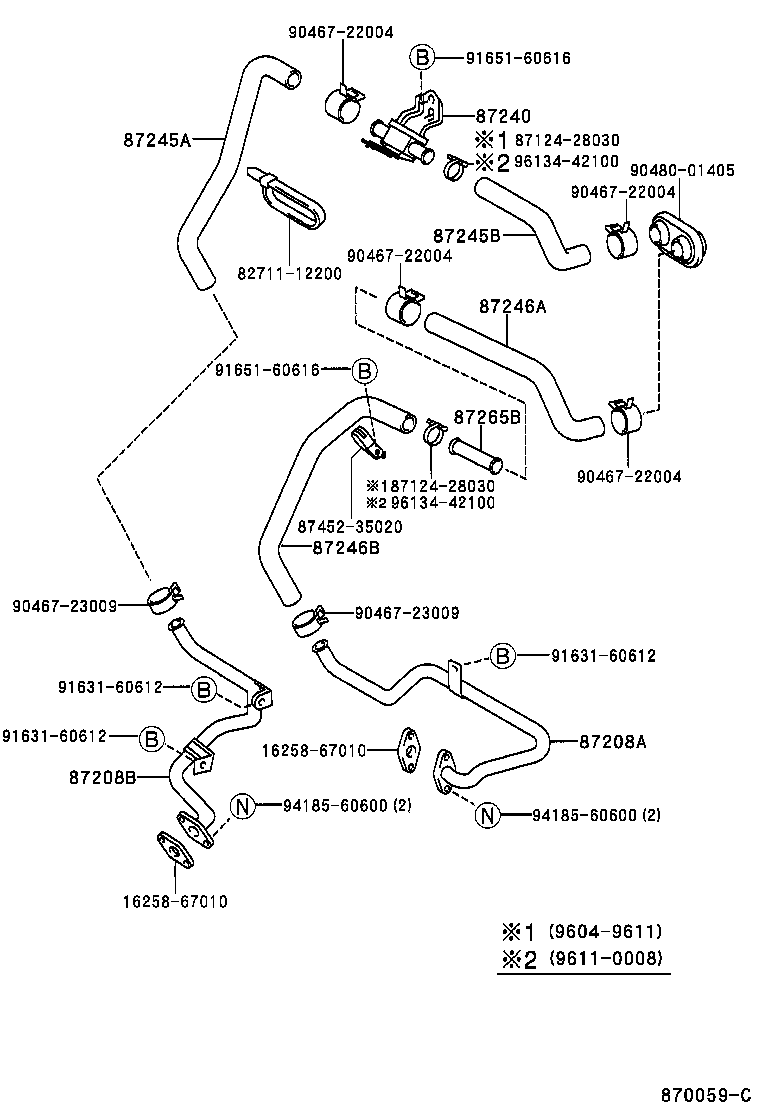

(9604-0008)KZJ9#..RHD

Click highlighted areas on diagram

W/O(REAR HEATER)

diagram 1625867010 1625867010 8271112200 8712428030 8712428030 87208A 87208B 87240 87245A 87245B 87246A 87246B 87265B 8745235020 9046722004 9046722004 9046722004 9046722004 9046723009 9046723009 9048001405 9163160612 9163160612 9163160612 9165160616 9165160616 9418560600 9418560600 9613442100 9613442100
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-35250

KZJ9#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-35260

KZJ9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

KZJ9#..RHD

 1
87240-35030

KZJ9#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35540

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35360

KZJ9#..RHD

 1
87245-35360

KZJ9#..RHD

 1
87245-35540

KZJ9#..RHD

W(REAR HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-35520

KZJ9#..RHD

 1
87245-35530

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35520

KZJ9#..RHD

 1
87245-35530

KZJ9#..RHD

W(REAR HEATER)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35370

KZJ9#..RHD

 1
87245-35370

KZJ9#..RHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-35560

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35560

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35570

KZJ9#..RHD

 1
87245-35570

KZJ9#..RHD

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35250

KZJ9#..RHD

NO.2

 1
87265-35190

KZJ9#..RHD

NO.1

 1
87265-35250

KZJ9#..RHD

NO.2

 1
87265-35190

KZJ9#..RHD

 1
Common parts
16258-67010
82711-12200
87124-28030
87452-35020
90467-22004
90467-23009
90480-01405
91631-60612
91651-60616
94185-60600
96134-42100

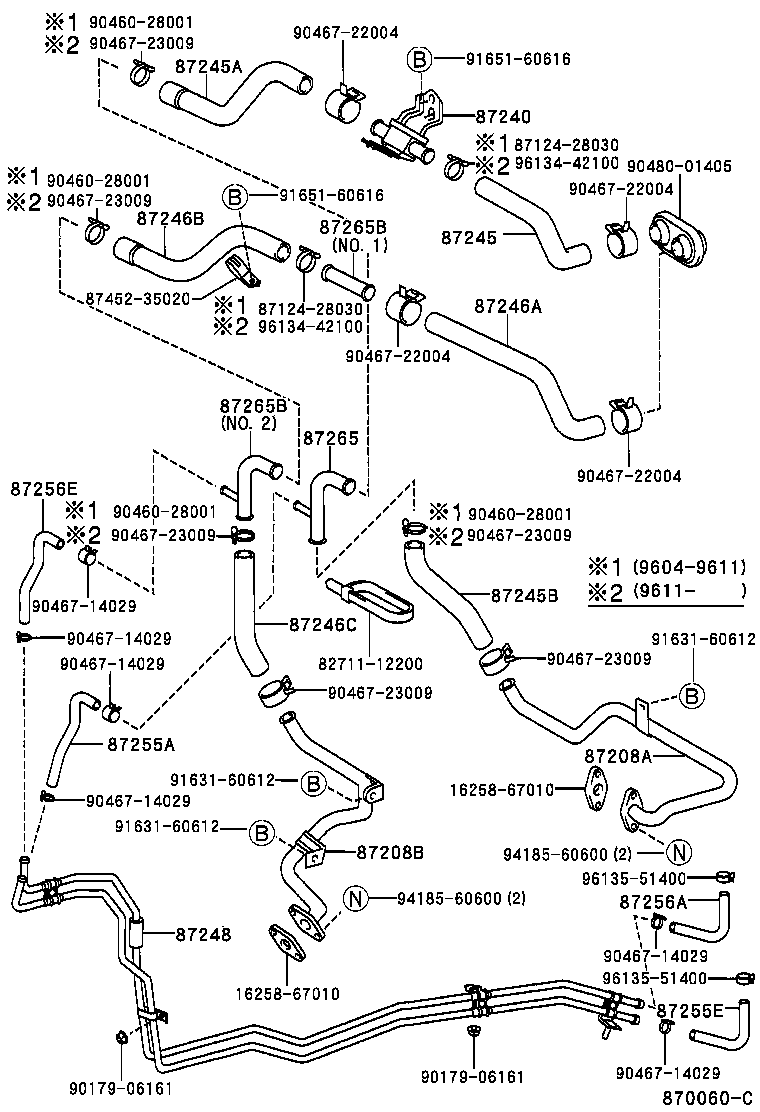

(9604-0008)KZJ9#..RHD

Click highlighted areas on diagram

W(REAR HERTER)

diagram 1625867010 1625867010 8271112200 8712428030 8712428030 87208A 87208B 87240 87245 87245A 87245B 87246A 87246B 87246C 87248 87255A 87255E 87256A 87256E 87265 87265B 87265B 8745235020 9017906161 9017906161 9046028001 9046028001 9046028001 9046028001 9046714029 9046714029 9046714029 9046714029 9046714029 9046714029 9046722004 9046722004 9046722004 9046722004 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 9048001405 9163160612 9163160612 9163160612 9165160616 9165160616 9418560600 9418560600 9613442100 9613442100 9613551400 9613551400
Part # Description Qty Price
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-35250

KZJ9#

 1
87208B - PIPE SUB-ASSY, HEATER WATER, B
87208-35260

KZJ9#

 1
87240 - VALVE ASSY, HEATER WATER
87240-35030

KZJ9#..RHD

 1
87240-35030

KZJ9#..RHD

 1
87245 - HOSE, HEATER WATER, INLET
87245-35520

KZJ9#..RHD

 1
87245-35520

KZJ9#..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35540

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35360

KZJ9#..RHD

 1
87245-35360

KZJ9#..RHD

 1
87245-35540

KZJ9#..RHD

W(REAR HEATER)

 1
87245B - HOSE, HEATER WATER, INLET B
87245-35520

KZJ9#..RHD

 1
87245-35530

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35520

KZJ9#..RHD

 1
87245-35530

KZJ9#..RHD

W(REAR HEATER)

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35370

KZJ9#..RHD

 1
87245-35370

KZJ9#..RHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87245-35560

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35560

KZJ9#..RHD

W(REAR HEATER)

 1
87245-35570

KZJ9#..RHD

 1
87245-35570

KZJ9#..RHD

 1
87246C - HOSE, HEATER WATER, OUTLET C
87245-35550

KZJ9#..RHD

 1
87245-35550

KZJ9#..RHD

 1
87248 - PIPE SUB-ASSY, WATER
87248-35040

KZJ9#..RHD

 1
87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE)
87245-35470

KZJ9#..RHD

 1
87245-35470

KZJ9#..RHD

 1
87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT)
87245-35451

KZJ9#,VZJ9#

 1
87245-35450

KZJ9#,VZJ9#

 1
87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT)
87245-35461

KZJ9#,VZJ9#

 1
87245-35460

KZJ9#,VZJ9#

 1
87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE)
87245-35480

KZJ9#..RHD

 1
87245-35480

KZJ9#..RHD

 1
87265 - CONNECTOR, HEATER WATER HOSE
87265-35250

KZJ9#..RHD

 1
87265-35250

KZJ9#..RHD

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35250

KZJ9#..RHD

NO.2

 1
87265-35190

KZJ9#..RHD

NO.1

 1
87265-35250

KZJ9#..RHD

NO.2

 1
87265-35190

KZJ9#..RHD

 1
87265B - CONNECTOR, HEATER WATER HOSE, NO.2
87265-35250

KZJ9#..RHD

NO.2

 1
87265-35190

KZJ9#..RHD

NO.1

 1
87265-35250

KZJ9#..RHD

NO.2

 1
87265-35190

KZJ9#..RHD

 1
Common parts
16258-67010
82711-12200
87124-28030
87452-35020
90179-06161
90460-28001
90467-14029
90467-22004
90467-23009
90480-01405
91631-60612
91651-60616
94185-60600
96134-42100
96135-51400
