KZJ90R-GJMNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

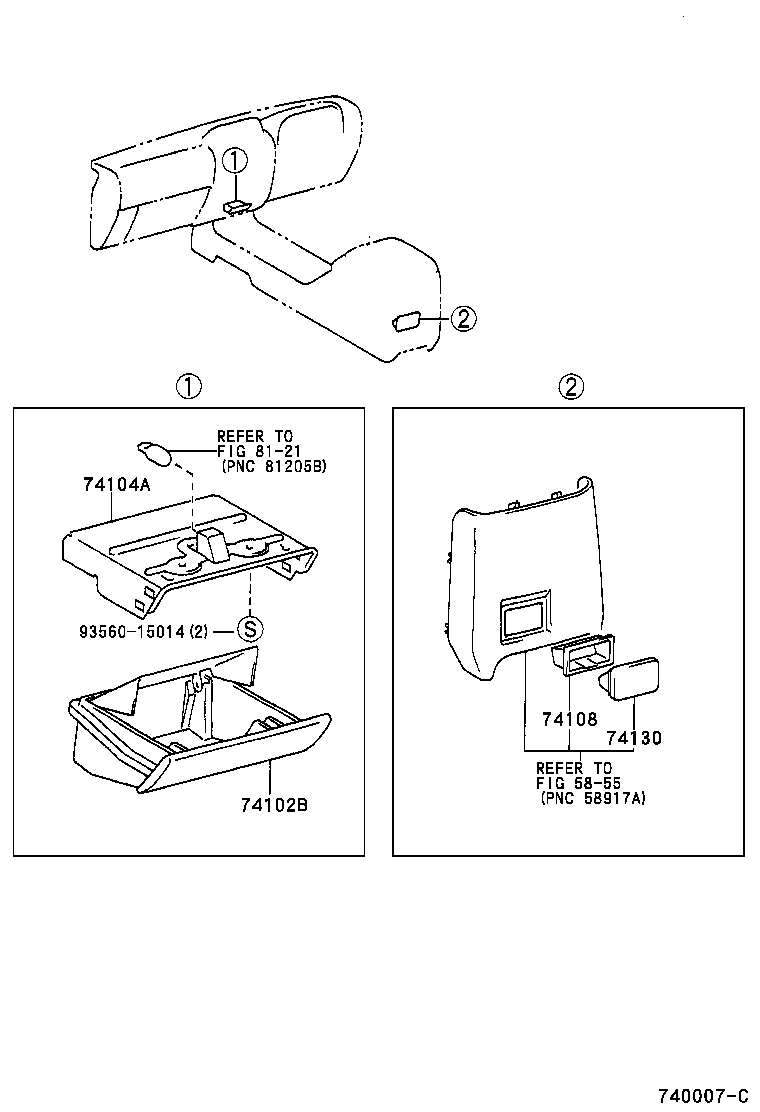

Click highlighted areas on diagram

diagram 5855 74102B 74104A 74108 74130 8121 9356015014
Part # Description Qty Price
74102B - BOX SUB-ASSY, FRONT ASH RECEPTACLE
74102-35010

KZJ9#,VZJ9#

 1
74104A - RETAINER SUB-ASSY, FRONT ASH RECEPTACLE
74104-89108

KZJ9#,VZJ9#

 1
74108 - RETAINER SUB-ASSY, REAR ASH RECEPTACLE
74108-20090

KZJ9#,VZJ9#

 1
74130 - RECEPTACLE ASSY, REAR ASH
74109-20080B1

KZJ9#,VZJ9#

MD.MOON MIST,TRIM1#

 1
Common parts
93560-15014
Linked diagrams
5855
8121
