KZJ90R-GJMNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

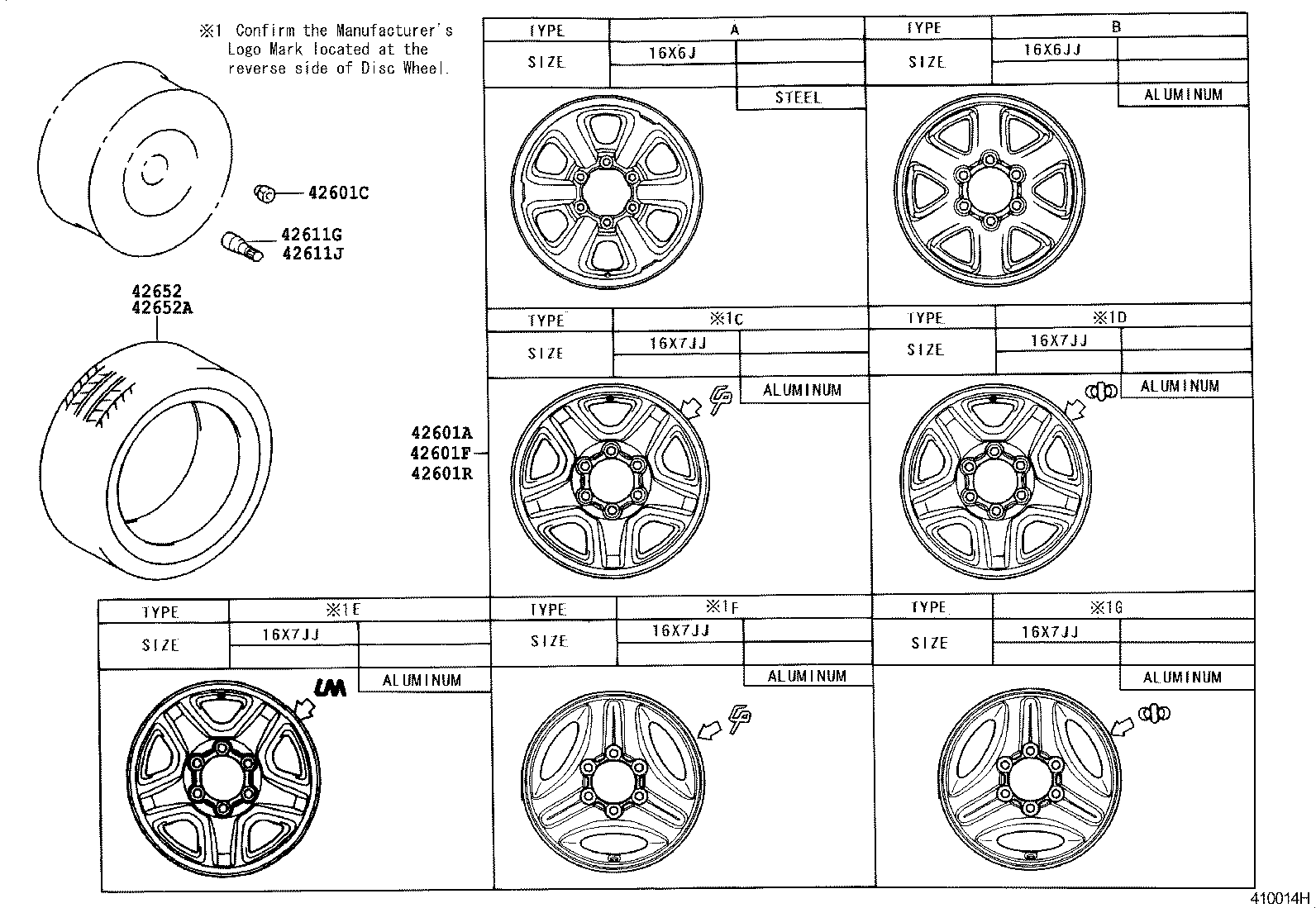

ILLUST NO. 1 OF 3(9604- )

Click highlighted areas on diagram

diagram 42601A 42601C 42601F 42601R 42611G 42611J 42652 42652A
Part # Description Qty Price
42601A - WHEEL, DISC (FOR SPARE)
42611-0W020

KZJ9#,VZJ9#

16X7JJ CAPTIN,TYPE C:REFER TO ILLUSTRATION

 1
42601-60540

KZJ9#,VZJ9#

16X6J,TYPE A:REFER TO ILLUSTRATION

 1
42611-60170

KZJ9#,VZJ9#

16X7JJ U-MOLD,TYPE E:REFER TO ILLUSTRATION

 1
42611-60150

KZJ9#,VZJ9#

16X7JJ CHUO SEIKI,TYPE D:REFER TO ILLUSTRATION

 1
42611-60140

KZJ9#,VZJ9#

16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION

 1
42611-60220

KZJ9#,VZJ9#

16X7JJ,TYPE G:REFER TO ILLUSTRATION

 1
42601C - NUT, HUB (FOR AXLE)
90942-01075

KZJ9#,VZJ9#

TYPE A:REFER TO ILLUSTRATION

 24
90942-01077

KZJ9#,VZJ9#

TYPE B:REFER TO ILLUSTRATION

 24
42601F - WHEEL, DISC (FOR FRONT)
42601-60540

KZJ9#,VZJ9#

16X6J,TYPE A:REFER TO ILLUSTRATION

 2
42611-0W020

KZJ9#,VZJ9#

16X7JJ CAPTIN,TYPE C:REFER TO ILLUSTRATION

 2
42611-60150

KZJ9#,VZJ9#

16X7JJ CHUO SEIKI,TYPE D:REFER TO ILLUSTRATION

 2
42611-60140

KZJ9#,VZJ9#

16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION

 2
42611-60170

KZJ9#,VZJ9#

16X7JJ U-MOLD,TYPE E:REFER TO ILLUSTRATION

 2
42611-60220

KZJ9#,VZJ9#

16X7JJ,TYPE G:REFER TO ILLUSTRATION

 2
42601R - WHEEL, DISC (FOR REAR)
42611-60170

KZJ9#,VZJ9#

16X7JJ U-MOLD,TYPE E:REFER TO ILLUSTRATION

 2
42611-0W020

KZJ9#,VZJ9#

16X7JJ CAPTIN,TYPE C:REFER TO ILLUSTRATION

 2
42611-60150

KZJ9#,VZJ9#

16X7JJ CHUO SEIKI,TYPE D:REFER TO ILLUSTRATION

 2
42601-60540

KZJ9#,VZJ9#

16X6J,TYPE A:REFER TO ILLUSTRATION

 2
42611-60220

KZJ9#,VZJ9#

16X7JJ,TYPE G:REFER TO ILLUSTRATION

 2
42611-60140

KZJ9#,VZJ9#

16X6JJ TOPY,TYPE B:REFER TO ILLUSTRATION

 2
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

KZJ9#,VZJ9#

 4
42611J - VALVE (FOR TUBELESS TIRE SPARE)
90942-05009

KZJ9#,VZJ9#

 1
42652 - TIRE
42652-60320

KZJ9#,VZJ9#

215/80R16,*D/L

 4
42652-60330

KZJ9#,VZJ9#

215/80R16,*B/S

 4
42652-60360

KZJ9#,VZJ9#

265/70R16,*D/L

 4
42652-60370

KZJ9#,VZJ9#

265/70R16,*B/S

 4
42652-60360

KZJ9#,VZJ9#

265/70R16,*D/L

 4
42652A - TIRE (FOR SPARE)
42652-60330

KZJ9#,VZJ9#

215/80R16,*B/S

 1
42652-60320

KZJ9#,VZJ9#

215/80R16,*D/L

 1
42652-60360

KZJ9#,VZJ9#

265/70R16,*D/L

 1
42652-60360

KZJ9#,VZJ9#

265/70R16,*D/L

 1
42652-60370

KZJ9#,VZJ9#

265/70R16,*B/S

 1

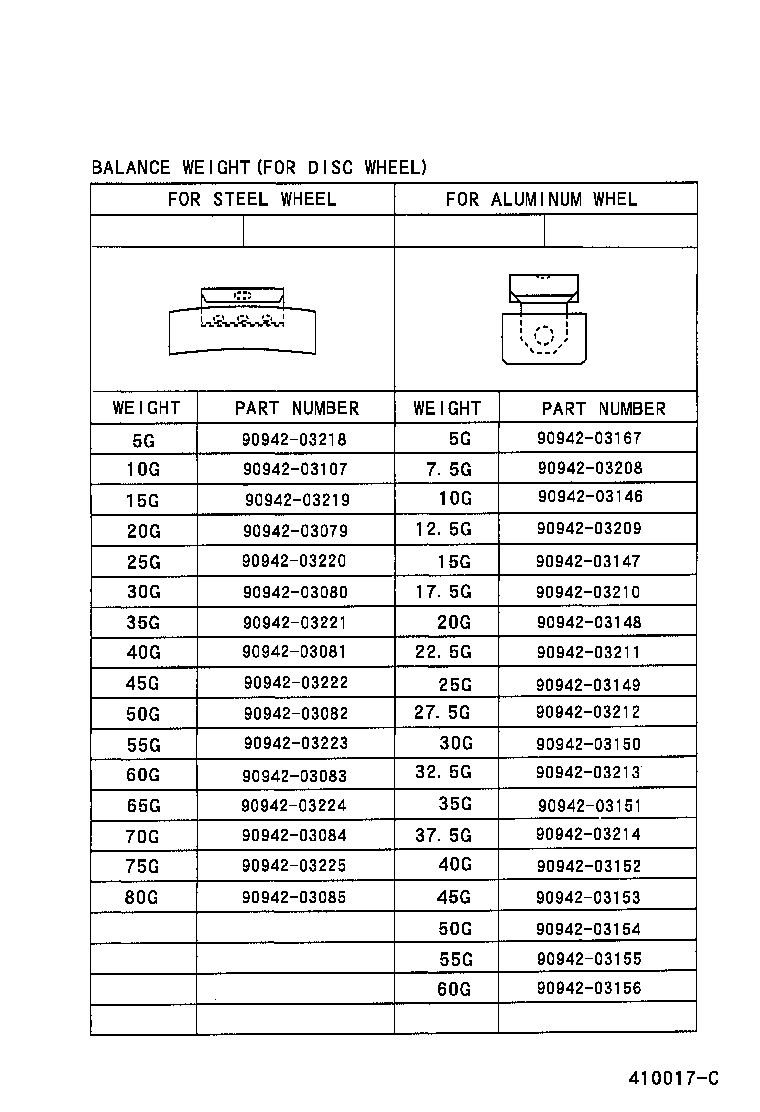

ILLUST NO. 3 OF 3(9604- )

Click highlighted areas on diagram

diagram 9094203079 9094203080 9094203081 9094203082 9094203083 9094203084 9094203085 9094203107 9094203146 9094203147 9094203148 9094203149 9094203150 9094203151 9094203152 9094203153 9094203154 9094203155 9094203156 9094203167 9094203208 9094203209 9094203210 9094203211 9094203212 9094203213 9094203214 9094203218 9094203219 9094203220 9094203221 9094203222 9094203223 9094203224 9094203225
Part # Description Qty Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03107
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03167
90942-03208
90942-03209
90942-03210
90942-03211
90942-03212
90942-03213
90942-03214
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225

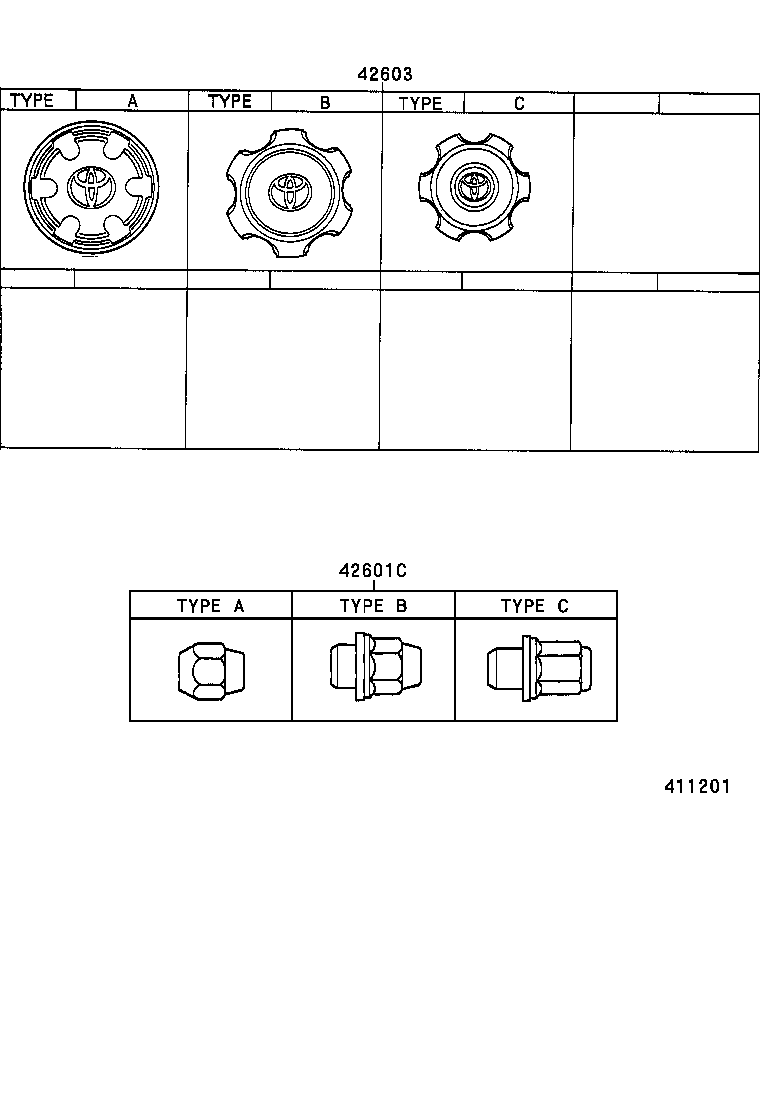

ILLUST NO. 2 OF 3(9604- )

Click highlighted areas on diagram

diagram 42601C 42603
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01075

KZJ9#,VZJ9#

TYPE A:REFER TO ILLUSTRATION

 24
90942-01077

KZJ9#,VZJ9#

TYPE B:REFER TO ILLUSTRATION

 24
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-35630

KZJ9#,VZJ9#

*ALU,TYPE B:REFER TO ILLUSTRATION

 4
42603-60370

KZJ9#,VZJ9#

*ALU,TYPE C:REFER TO ILLUSTRATION

 4
42603-35610

KZJ9#,VZJ9#

*STE,TYPE A:REFER TO ILLUSTRATION

 4
