KZJ90L-GJPNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Aug 2000
Engine 1KZTE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )

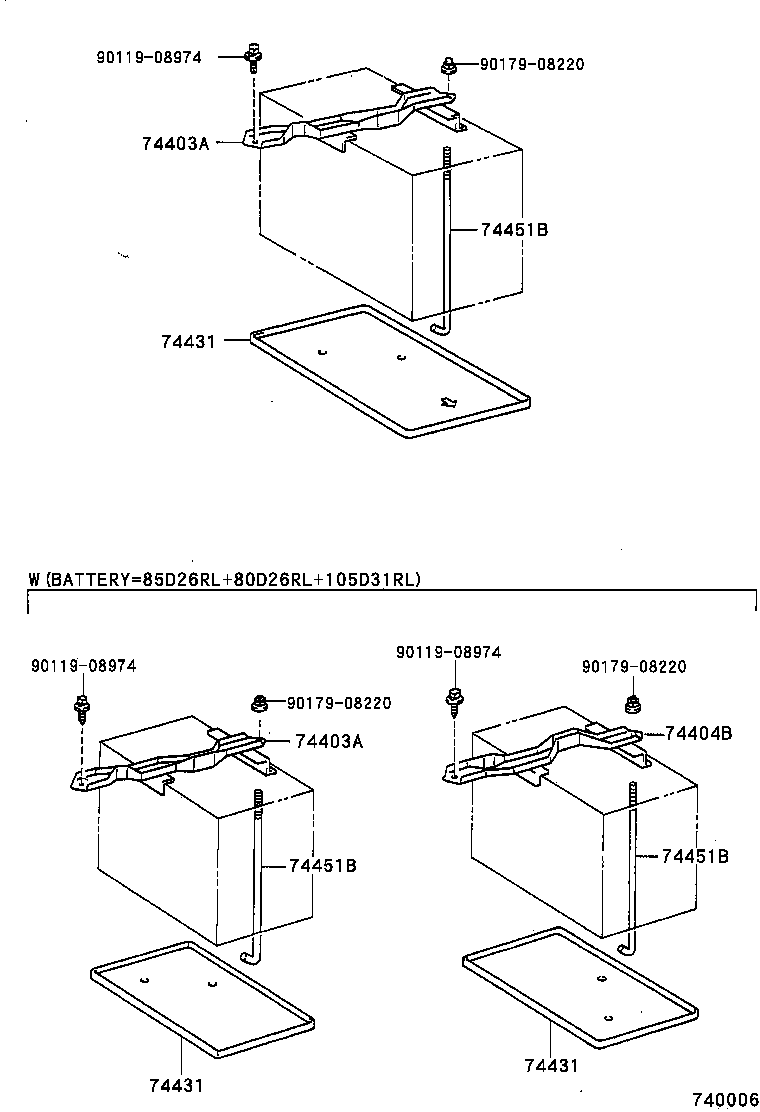

Click highlighted areas on diagram

diagram 74403A 74403A 74404B 74431 74431 74431 74451B 74451B 74451B 9011908974 9011908974 9011908974 9017908220 9017908220 9017908220
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-60180

KZJ9#

 1
74403A - CARRIER SUB-ASSY, BATTERY
74403-60180

KZJ9#

 1
74404B - CLAMP SUB-ASSY, BATTERY
74404-60120

KZJ9#,VZJ9#

 1
74431 - TRAY, BATTERY
74431-35040

KZJ9#..LHD

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

 2
74431-35040

KZJ9#

W(BATTERY=105D31R OR 105D31L)

 1
74431 - TRAY, BATTERY
74431-35040

KZJ9#..LHD

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

 2
74431-35040

KZJ9#

W(BATTERY=105D31R OR 105D31L)

 1
74431 - TRAY, BATTERY
74431-35040

KZJ9#..LHD

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

 2
74431-35040

KZJ9#

W(BATTERY=105D31R OR 105D31L)

 1
74451B - BOLT, BATTERY CLAMP
74451-35060

KZJ9#

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

 2
74451-35060

KZJ9#,VZJ9#

 1
74451B - BOLT, BATTERY CLAMP
74451-35060

KZJ9#

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

 2
74451-35060

KZJ9#,VZJ9#

 1
74451B - BOLT, BATTERY CLAMP
74451-35060

KZJ9#

W(BATTERY=85D26RL + 80D26RL OR 105D31RL)

 2
74451-35060

KZJ9#,VZJ9#

 1
Common parts
90119-08974
90179-08220
