KZJ90L-GJMNTW (1996)

Toyota Land Cruiser 90

Production Apr 1996 - Sep 2002
Engine 1KZTE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9604- )1KZTE

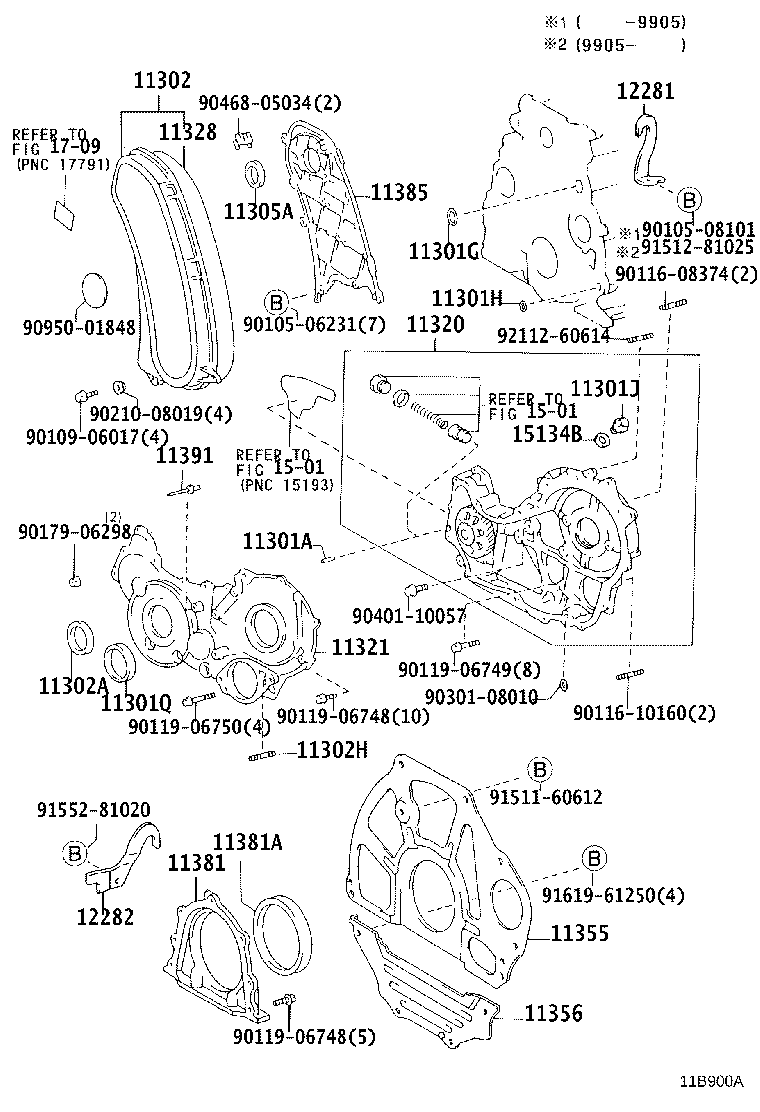

Click highlighted areas on diagram

diagram 11301A 11301G 11301H 11301J 11301Q 11302 11302A 11302H 11305A 11320 11321 11328 11355 11356 11381 11381A 11385 11391 12281 12282 1501 1501 15134B 1709 9010506231 9010508101 9010906017 9011608374 9011610160 9011906748 9011906748 9011906749 9011906750 9017906298 9021008019 9030108010 9040110057 9046805034 9095001848 9151160612 9151281025 9155281020 9161961250 9211260614
Part # Description Qty Price
11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE)
90250-08120

1KZTE..KZJ9#

L=18,OD=8

 1
90250-08120

1K#..KDJ9#,KZJ9#

L=18,OD=8

 1
11301G - RING, O(FOR TIMING GEAR CASE, UPPER)
90301-22007

1K#..KDJ9#,KZJ9#

 1
96721-24022

1KZTE..KZJ9#

 1
90301-22007

1KZTE..KZJ9#

 1
11301H - RING, O(FOR TIMING GEAR CASE, LOWER)
90301-09018

1KZTE..KZJ9#

 1
96721-24010

1KZTE..KZJ9#

 1
90301-09018

1K#..KDJ9#,KZJ9#

 1
11301J - PLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)
90341-18015

1KZTE..KZJ9#

 1
90341-18015

1K#..KDJ9#,KZJ9#

 1
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-58006

1KZTE..KZJ9#

 1
90311-58006

1KZTE..KZJ9#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11302-67010

1KZTE..KZJ9#

 1
11302-67020

1KZTE..KZJ9#

 1
11302-67020

1KZTE..KZJ9#

 1
11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER)
90311-50017

1KZTE..KZJ9#

 1
90311-50017

1K#..KDJ9#,KZJ9#

 1
11302H - BOLT, STUD(FOR TIMING GEAR COVER)
90116-08376

1K#..KDJ9#,KZJ9#

 2
90116-08376

1KZTE..KZJ9#

 2
11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2)
90311-32019

1KZTE..KZJ9#

 1
90311-32017

1KZTE..KZJ9#

 1
90311-32019

1KZTE..KZJ9#

 1
11320 - CASE ASSY, TIMING GEAR
11320-67010

1KZTE..KZJ9#

 1
11320-67010

1KZTE..KZJ9#

 1
11321 - CASE, TIMING GEAR
11321-67031

1KZTE..KZJ9#

 1
11321-67031

1KZTE..KZJ9#

 1
11321-67032

1KZTE..KZJ9#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-67020

1KZTE..KZJ9#

 1
11328-67020

1KZTE..KZJ9#

 1
11355 - PLATE, REAR END
11355-67010

1KZTE..KZJ9#

 1
11355-67010

1K#..KDJ9#,KZJ9#

 1
11356 - PLATE, REAR END, NO.2
11356-67030

1KZTE..KZJ9#

 1
11356-67030

1KZTE..KZJ9#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-67020

1K#..KDJ9#,KZJ9#

 1
11381-67020

1KZTE..KZJ9#

 1
11381A - SEAL, ENGINE REAR OIL
90311-95008

1K#..KDJ9#,KZJ9#

 1
90311-95008

1KZTE..KZJ9#

 1
11385 - RETAINER, CAMSHAFT OIL SEAL
11382-67010

1KZTE..KZJ9#

 1
11382-67010

1KZTE..KZJ9#

 1
11391 - POINTER, TIMING
11391-67010

1KZTE..KZJ9#

 1
11391-67010

1KZTE..KZJ9#

 1
12281 - HANGER, ENGINE, NO.1
12281-67070

1KZTE..KZJ9#

 1
12281-67040

1KZTE..KZJ9#

 1
12281-67070

1KZTE..KZJ9#

 1
12282 - HANGER, ENGINE, NO.2
12282-67030

1KZTE..KZJ9#

 1
12282-67030

1KZTE..KZJ9#

 1
15134B - GASKET, OIL PUMP RELIEF VALVE
15134-67010

1KZTE..KZJ9#

 1
15134-67010

1K#..KDJ9#,KZJ9#

 1
Common parts
90105-06231
90105-08101
90109-06017
90116-08374
90116-10160
90119-06748
90119-06749
90119-06750
90179-06298
90210-08019
90301-08010
90401-10057
90468-05034
90950-01848
91511-60612
91512-81025
91552-81020
91619-61250
92112-60614
