KDJ95R-GKPNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1KDFTV

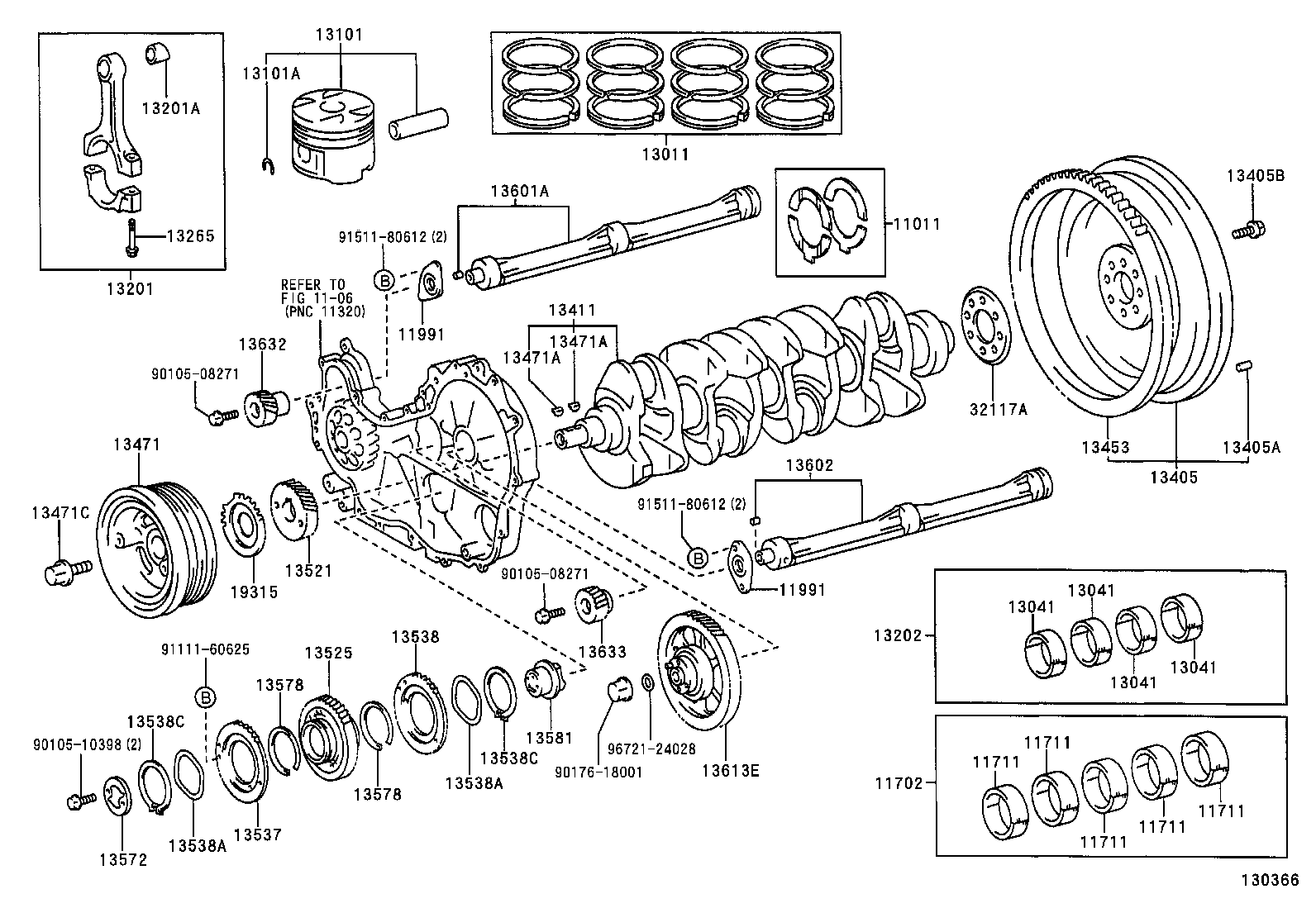

Click highlighted areas on diagram

diagram 11011 1106 11702 11711 11711 11711 11711 11711 11991 11991 13011 13041 13041 13041 13041 13101 13101A 13201 13201A 13202 13265 13405 13405A 13405B 13411 13453 13471 13471A 13471A 13471C 13521 13525 13537 13538 13538A 13538A 13538C 13538C 13572 13578 13578 13581 13601A 13602 13613E 13632 13633 19315 32117A 9010508271 9010508271 9010510398 9017618001 9111160625 9151180612 9151180612 9672124028
Part # Description Qty Price
11702 - BEARING SET, CRANKSHAFT
11705-67021

1K#..KDJ9#,KZJ9#

U/S 0.50

 1
11704-67021

1K#..KDJ9#,KZJ9#

U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-6702102

1K#..KDJ9#,KZJ9#

MARK 2

 5
11701-6702104

1K#..KDJ9#,KZJ9#

MARK 4

 5
11701-6702103

1K#..KDJ9#,KZJ9#

MARK 3

 5
11701-6702105

1K#..KDJ9#,KZJ9#

MARK 5

 5
11701-6702106

1K#..KDJ9#,KZJ9#

MARK 6

 5
11711 - BEARING, CRANKSHAFT
11701-6702102

1K#..KDJ9#,KZJ9#

MARK 2

 5
11701-6702104

1K#..KDJ9#,KZJ9#

MARK 4

 5
11701-6702103

1K#..KDJ9#,KZJ9#

MARK 3

 5
11701-6702105

1K#..KDJ9#,KZJ9#

MARK 5

 5
11701-6702106

1K#..KDJ9#,KZJ9#

MARK 6

 5
11711 - BEARING, CRANKSHAFT
11701-6702102

1K#..KDJ9#,KZJ9#

MARK 2

 5
11701-6702104

1K#..KDJ9#,KZJ9#

MARK 4

 5
11701-6702103

1K#..KDJ9#,KZJ9#

MARK 3

 5
11701-6702105

1K#..KDJ9#,KZJ9#

MARK 5

 5
11701-6702106

1K#..KDJ9#,KZJ9#

MARK 6

 5
11711 - BEARING, CRANKSHAFT
11701-6702102

1K#..KDJ9#,KZJ9#

MARK 2

 5
11701-6702104

1K#..KDJ9#,KZJ9#

MARK 4

 5
11701-6702103

1K#..KDJ9#,KZJ9#

MARK 3

 5
11701-6702105

1K#..KDJ9#,KZJ9#

MARK 5

 5
11701-6702106

1K#..KDJ9#,KZJ9#

MARK 6

 5
11711 - BEARING, CRANKSHAFT
11701-6702102

1K#..KDJ9#,KZJ9#

MARK 2

 5
11701-6702104

1K#..KDJ9#,KZJ9#

MARK 4

 5
11701-6702103

1K#..KDJ9#,KZJ9#

MARK 3

 5
11701-6702105

1K#..KDJ9#,KZJ9#

MARK 5

 5
11701-6702106

1K#..KDJ9#,KZJ9#

MARK 6

 5
13011 - RING SET, PISTON
13011-30020

1KDFTV..KDJ9#

STD

 1
13015-30020

1KDFTV..KDJ9#

O/S 1.00

 1
13013-30020

1KDFTV..KDJ9#

O/S 0.50

 1
13011-30021

1KDFTV..KDJ9#

STD

 1
13013-30021

1KDFTV..KDJ9#

O/S 0.50

 1
13015-30021

1KDFTV..KDJ9#

O/S 1.00

 1
13014-30020

1KDFTV..KDJ9#

O/S 0.75

 1
13014-30021

1KDFTV..KDJ9#

O/S 0.75

 1
13041 - BEARING, CONNECTING ROD
13041-6703103

1K#..KDJ9#,KZJ9#

MARK 3

 4
13041-6703102

1K#..KDJ9#,KZJ9#

MARK 2

 4
13041-6703106

1K#..KDJ9#,KZJ9#

MARK 6

 4
13041-6703104

1K#..KDJ9#,KZJ9#

MARK 4

 4
13041-6703105

1K#..KDJ9#,KZJ9#

MARK 5

 4
13041 - BEARING, CONNECTING ROD
13041-6703103

1K#..KDJ9#,KZJ9#

MARK 3

 4
13041-6703102

1K#..KDJ9#,KZJ9#

MARK 2

 4
13041-6703106

1K#..KDJ9#,KZJ9#

MARK 6

 4
13041-6703104

1K#..KDJ9#,KZJ9#

MARK 4

 4
13041-6703105

1K#..KDJ9#,KZJ9#

MARK 5

 4
13041 - BEARING, CONNECTING ROD
13041-6703103

1K#..KDJ9#,KZJ9#

MARK 3

 4
13041-6703102

1K#..KDJ9#,KZJ9#

MARK 2

 4
13041-6703106

1K#..KDJ9#,KZJ9#

MARK 6

 4
13041-6703104

1K#..KDJ9#,KZJ9#

MARK 4

 4
13041-6703105

1K#..KDJ9#,KZJ9#

MARK 5

 4
13041 - BEARING, CONNECTING ROD
13041-6703103

1K#..KDJ9#,KZJ9#

MARK 3

 4
13041-6703102

1K#..KDJ9#,KZJ9#

MARK 2

 4
13041-6703106

1K#..KDJ9#,KZJ9#

MARK 6

 4
13041-6703104

1K#..KDJ9#,KZJ9#

MARK 4

 4
13041-6703105

1K#..KDJ9#,KZJ9#

MARK 5

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-3002002

1KDFTV..KDJ9#

STD,MARK 2

 4
13101-3002003

1KDFTV..KDJ9#

STD,MARK 3

 4
13103-30020

1KDFTV..KDJ9#

O/S 0.50

 4
13104-30020

1KDFTV..KDJ9#

O/S 0.75

 4
13101-3002001

1KDFTV..KDJ9#

STD,MARK 1

 4
13105-30020

1KDFTV..KDJ9#

O/S 1.00

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-30020

1KDFTV..KDJ9#

 4
13201A - BUSH(FOR CONNECTING ROD SMALL END)
90999-73143

1KDFTV..KDJ9#

 4
13202 - BEARING SET, CONNECTING ROD
13204-67031

1K#..KDJ9#,KZJ9#

U/S 0.25

 1
13205-67031

1K#..KDJ9#,KZJ9#

U/S 0.50

 1
13265 - BOLT, CONNECTING ROD
13265-67021

1K#..KDJ9#,KZJ9#

 8
13471 - PULLEY, CRANKSHAFT
13408-30010

1KDFTV..KDJ9#

 1
13613E - GEAR, INJECTION
13603-30010

1KDFTV..KDJ9#

 1
19315 - PLATE, CRANK ANGLE SENSOR, NO.1
19315-30010

1KDFTV..KDJ9#

 1
Common parts
90105-08271
90105-10398
90176-18001
91111-60625
91511-80612
96721-24028
Linked diagrams
1106
