KDJ95R-GKMNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

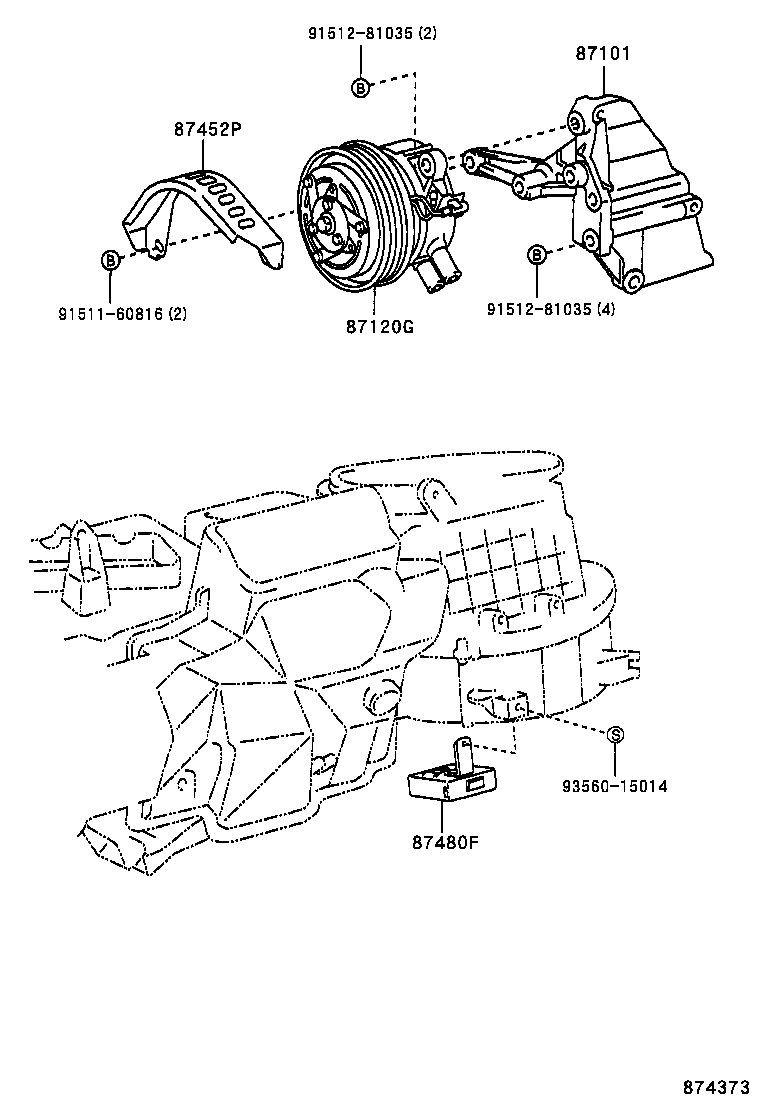

ILLUST NO. 4 OF 4(0008- )KDJ9#

Click highlighted areas on diagram

VISCOUS HEATER

diagram 87101 87120G 87452P 87480F 9151160816 9151281035 9151281035 9356015014
Part # Description Qty Price
87101 - BRACKET SUB-ASSY, VISCOUS HEATER NO.1
87101-35010

KDJ9#

 1
87120G - HEATER ASSY, VISCOUS W/MAGNET CLUTCH
87120-35030

KDJ9#

 1
87452P - BRACKET, VISCOUS HEATER, NO.2
87452-35050

KDJ9#

 1
87480F - AMPLIFIER ASSY, HEATER
87480-60020

KDJ9#

 1
Common parts
91511-60816
91512-81035
93560-15014
