KDJ95R-GKMNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

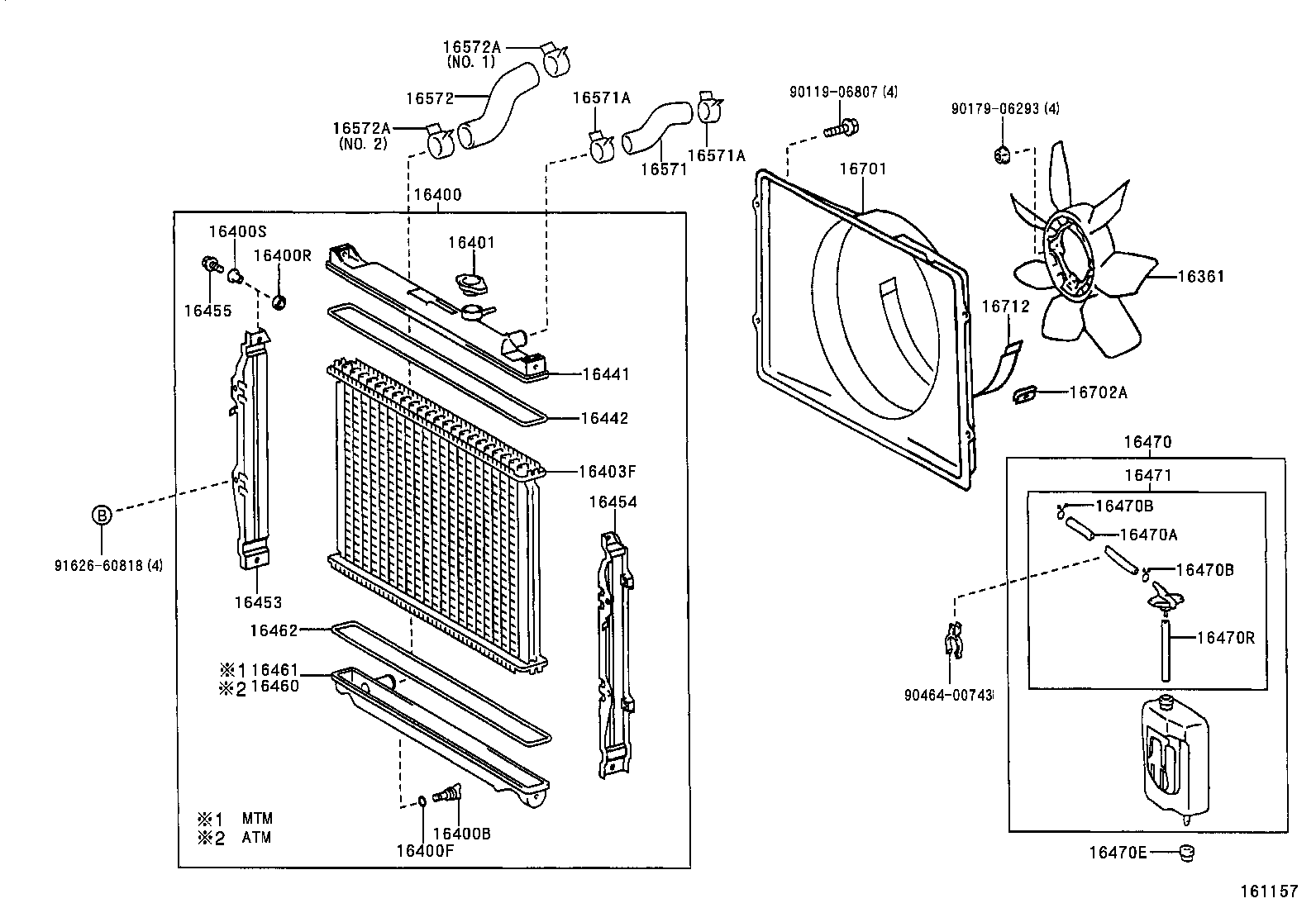

ILLUST NO. 1 OF 2(0008- )1KDFTV

Click highlighted areas on diagram

diagram 16361 16400 16400B 16400F 16400R 16400S 16401 16403F 16441 16442 16453 16454 16455 16460 16461 16462 16470 16470A 16470B 16470B 16470E 16470R 16471 16571 16571A 16571A 16572 16572A 16572A 16701 16702A 16712 9011906807 9017906293 9046400743 9162660818
Part # Description Qty Price
16361 - FAN
16361-67020

1K#..KDJ9#,KZJ90;1KZTE..KZJ95..MTM

 1
16400 - RADIATOR ASSY
16400-67131

1K#..KDJ9#,KZJ9#..MTM

 1
16401 - CAP SUB-ASSY, RADIATOR
16401-67150

1K#..KDJ9#,KZJ9#..MTM

 1
16571 - HOSE, RADIATOR, INLET
16571-30010

1KDFTV..KDJ9#

 1
16572 - HOSE, RADIATOR, OUTLET
16572-30010

1KDFTV..KDJ9#

 1
16701 - SHROUD SUB-ASSY, FAN
16711-67080

1K#..KDJ9#,KZJ90;1KZTE..KZJ95..MTM

 1
16712 - SHROUD, FAN, NO.2
16712-67050

1K#..KDJ9#,KZJ90;1KZTE..KZJ95..MTM

 1
Common parts
90119-06807
90179-06293
90464-00743
91626-60818

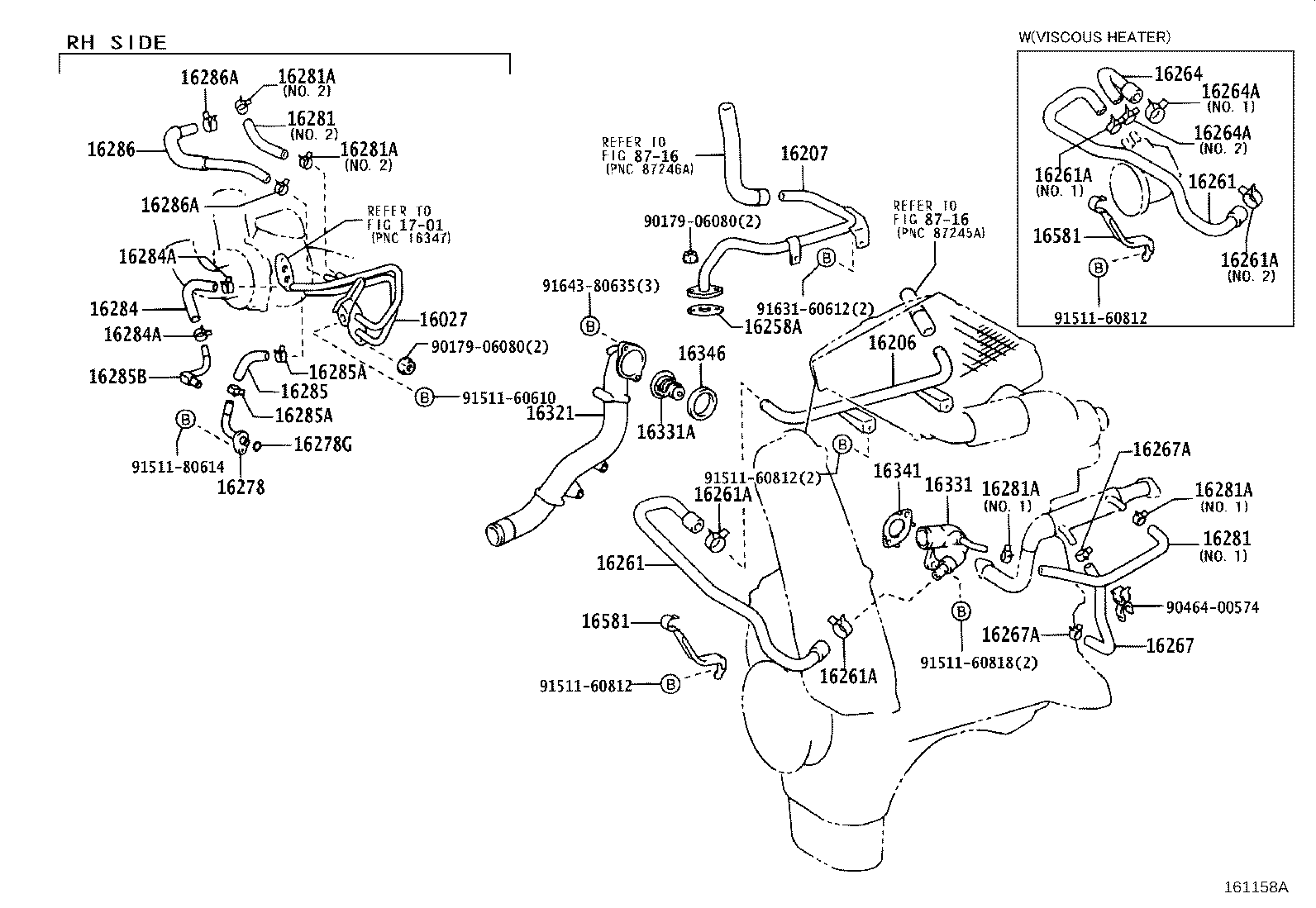

ILLUST NO. 2 OF 2(0008- )1KDFTV

Click highlighted areas on diagram

diagram 16027 16206 16207 16258A 16261 16261 16261A 16261A 16261A 16261A 16264 16264A 16264A 16267 16267A 16267A 16278 16278G 16281 16281 16281A 16281A 16281A 16281A 16284 16284A 16284A 16285 16285A 16285A 16285B 16286 16286A 16286A 16321 16331 16331A 16341 16346 16581 16581 1701 8716 8716 9017906080 9017906080 9046400574 9151160610 9151160812 9151160812 9151160812 9151160818 9151180614 9163160612 9164380635
Part # Description Qty Price
16027 - PIPE SUB-ASSY, TURBO WATER, NO.1
16027-30010

1KDFTV..KDJ9#

 1
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-30010

1KDFTV..KDJ9#

 1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-30010

1KDFTV..KDJ9#

 1
16258A - GASKET(FOR HEATER RETURN)
16258-67010

1KDFTV..KDJ9#

 1
16261 - HOSE, WATER BY-PASS
16261-30010

1KDFTV..KDJ9#

 1
16261-30020

1KDFTV..KDJ9#

W(VISCOUS HEATER)

 1
16261 - HOSE, WATER BY-PASS
16261-30010

1KDFTV..KDJ9#

 1
16261-30020

1KDFTV..KDJ9#

W(VISCOUS HEATER)

 1
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96134-42100

1KDFTV..KDJ9#

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.2

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.1

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96134-42100

1KDFTV..KDJ9#

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.2

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.1

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96134-42100

1KDFTV..KDJ9#

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.2

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.1

 2
16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
96134-42100

1KDFTV..KDJ9#

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.2

 1
90467-23009

1KDFTV..KDJ9#

W(VISCOUS HEATER),NO.1

 2
16264 - HOSE, WATER BY-PASS, NO.2
16264-30010

1KDFTV..KDJ9#

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96134-42100

1KDFTV..KDJ9#

NO.2

 1
90467-23009

1KDFTV..KDJ9#

NO.1

 1
16264A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
96134-42100

1KDFTV..KDJ9#

NO.2

 1
90467-23009

1KDFTV..KDJ9#

NO.1

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-30010

1KDFTV..KDJ9#

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KDJ9#

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KDJ9#

 2
16281 - HOSE, WATER BY-PASS, NO.4
16281-30010

1KDFTV..KDJ9#

NO.1

 1
99555-10080

1KDFTV..KDJ9#

NO.2

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-30010

1KDFTV..KDJ9#

NO.1

 1
99555-10080

1KDFTV..KDJ9#

NO.2

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128

1KDFTV..KDJ9#

NO.2

 2
90467-19022

1KDFTV..KDJ9#

NO.1

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128

1KDFTV..KDJ9#

NO.2

 2
90467-19022

1KDFTV..KDJ9#

NO.1

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128

1KDFTV..KDJ9#

NO.2

 2
90467-19022

1KDFTV..KDJ9#

NO.1

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-13128

1KDFTV..KDJ9#

NO.2

 2
90467-19022

1KDFTV..KDJ9#

NO.1

 2
16284 - HOSE, TURBO WATER, NO.1
16284-30010

1KDFTV..KDJ9#

 1
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

1KDFTV..KDJ9#

 2
16284A - CLIP(FOR TURBO WATER HOSE NO.1)
90467-15022

1KDFTV..KDJ9#

 2
16286 - HOSE, TURBO WATER, NO.3
16286-30010

1KDFTV..KDJ9#

 1
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-13128

1KDFTV..KDJ9#

 2
16286A - CLIP(FOR TURBO WATER HOSE NO.3)
90467-13128

1KDFTV..KDJ9#

 2
16321 - INLET, WATER
16321-30010

1KDFTV..KDJ9#

 1
16331 - OUTLET, WATER
16331-30020

1KDFTV..KDJ9#

 1
16331A - THERMOSTAT
90916-03118

1KDFTV..KDJ9#

*WAX 82-95

 1
16341 - GASKET, WATER OUTLET
16341-30020

1KDFTV..KDJ9#

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-30010

1KDFTV..KDJ9#

 1
16581 - CLAMP, HOSE(FOR WATER HOSE)
16581-30010

1KDFTV..KDJ9#

 1
Common parts
90179-06080
90464-00574
91511-60610
91511-60812
91511-60818
91511-80614
91631-60612
91643-80635
Linked diagrams
1701
8716
