KDJ95L-GKPNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1KDFTV

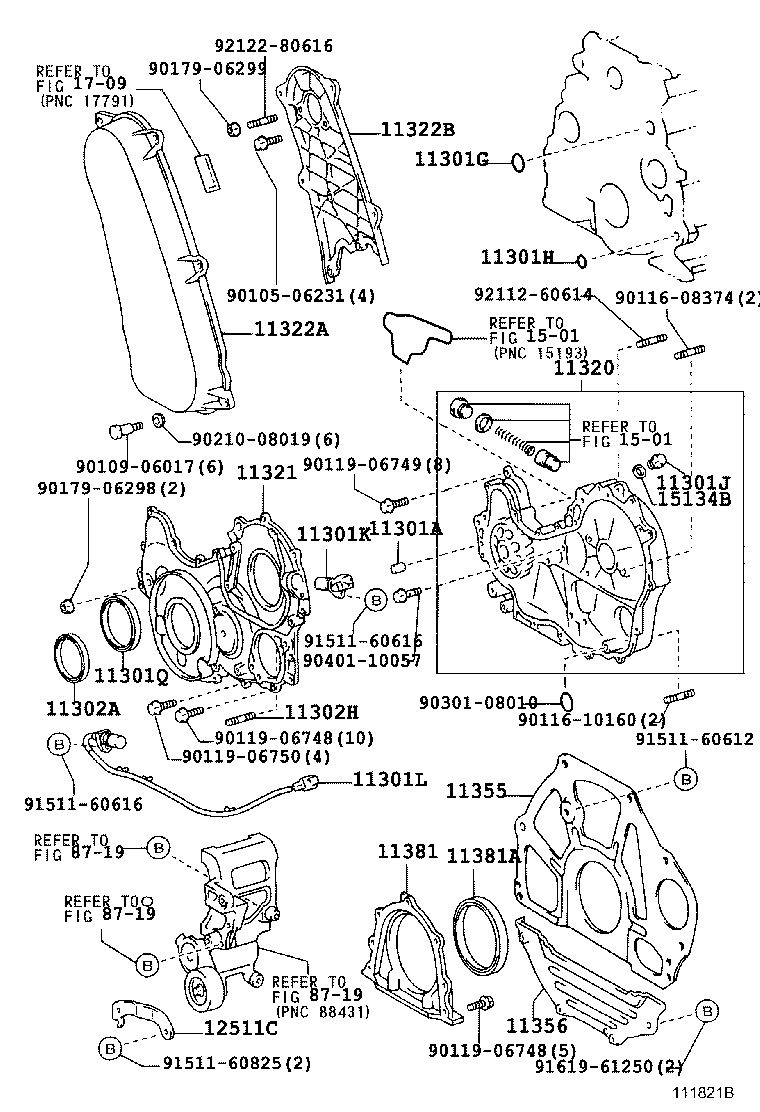

Click highlighted areas on diagram

diagram 11301A 11301G 11301H 11301J 11301K 11301L 11301Q 11302A 11302H 11320 11321 11322A 11322B 11355 11356 11381 11381A 12511C 1501 1501 15134B 1709 8719 8719 8719 9010506231 9010906017 9011608374 9011610160 9011906748 9011906748 9011906749 9011906750 9017906298 9017906299 9021008019 9030108010 9040110057 9151160612 9151160616 9151160616 9151160825 9161961250 9211260614 9212280616
Part # Description Qty Price
11301K - SENSOR, CRANK POSITION
90919-05052

1KDFTV..KDJ9#

 1
11301L - SENSOR, CRANK POSITION NO.2
90919-05050

1KDFTV..KDJ9#

 1
11301Q - SEAL, TYPE T OIL(FOR INJECTION PUMP)
90311-65003

1KDFTV..KDJ9#

 1
11320 - CASE ASSY, TIMING GEAR
11320-30010

1KDFTV..KDJ9#

 1
11321 - CASE, TIMING GEAR
11321-30020

1KDFTV..KDJ9#

 1
11322A - COVER, TIMING BELT, NO.1
11332-30010

1KDFTV..KDJ9#

 1
11322B - COVER, TIMING BELT, NO.2
11322-30010

1KDFTV..KDJ9#

 1
11356 - PLATE, REAR END, NO.2
11356-30010

1KDFTV..KDJ9#

 1
12511C - BRACKET, ALTERNATOR
12511-30020

1KDFTV..KDJ9#

 1
Common parts
90105-06231
90109-06017
90116-08374
90116-10160
90119-06748
90119-06749
90119-06750
90179-06298
90179-06299
90210-08019
90301-08010
90401-10057
91511-60612
91511-60616
91511-60825
91619-61250
92112-60614
92122-80616
Linked diagrams
1501
1709
8719
