KDJ95L-GKMNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1KDFTV

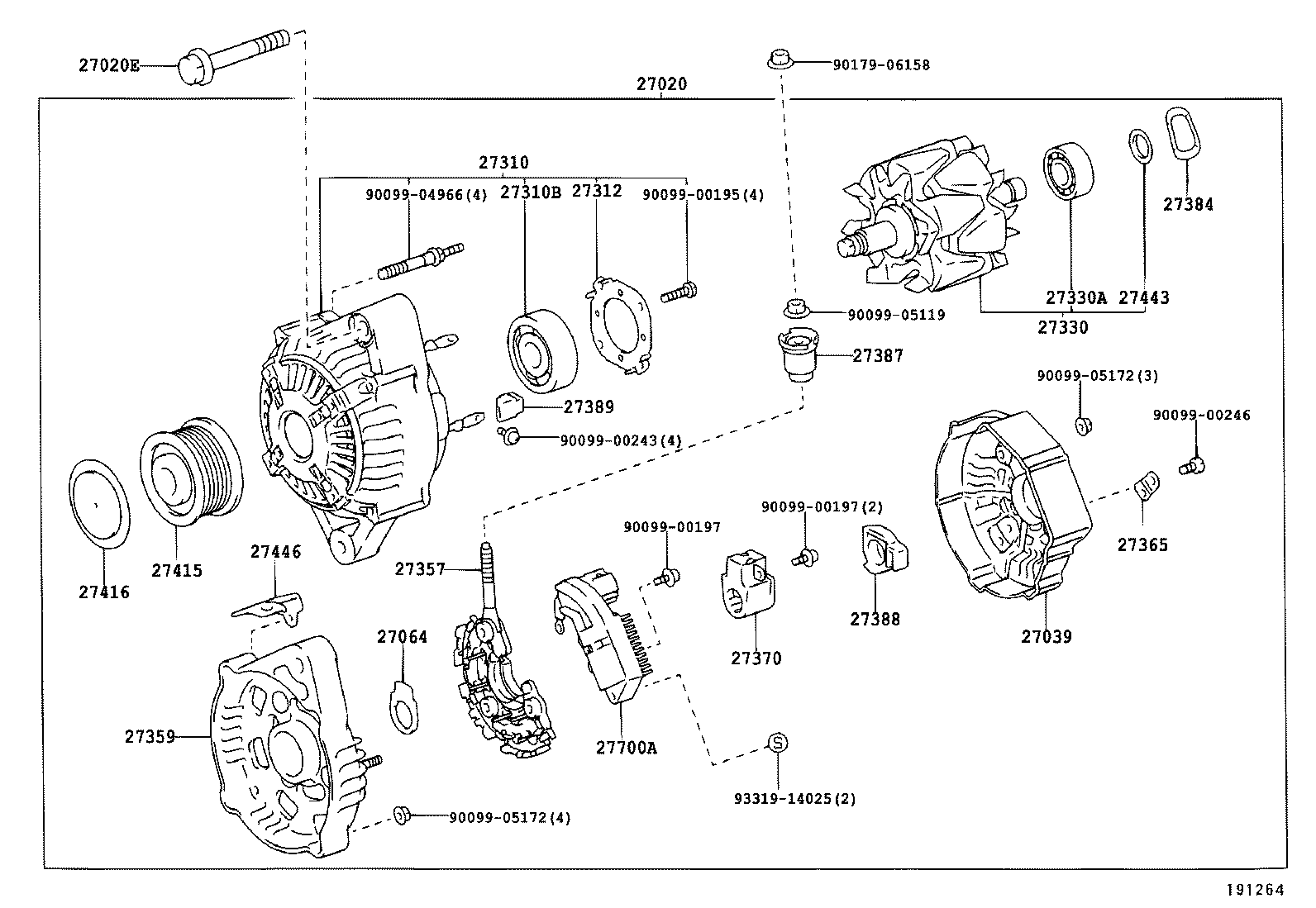

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27039 27064 27310 27310B 27312 27330 27330A 27357 27359 27365 27370 27384 27387 27388 27389 27415 27416 27443 27446 27700A 9009900195 9009900197 9009900197 9009900243 9009900246 9009904966 9009905119 9009905172 9009905172 9017906158 9331914025
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-30010

1KDFTV..KDJ9#

12V 80A

 1
27039 - COVER, ALTERNATOR REAR END
27039-74700

1KDFTV..KDJ9#

 1
27039-30020

1KDFTV..KDJ9#

 1
27064 - SEAL, ALTERNATOR PLATE
27064-42010

1KDFTV..KDJ9#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-30020

1KDFTV..KDJ9#

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10219

1KDFTV..KDJ9#

 1
27312 - PLATE, RETAINER
27312-42010

1KDFTV..KDJ9#

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-74550

1KDFTV..KDJ9#

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

1KDFTV..KDJ9#

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-55080

1KDFTV..KDJ9#

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-30020

1KDFTV..KDJ9#

 1
27365 - PLATE, TERMINAL
27365-55080

1KDFTV..KDJ9#

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060

1KDFTV..KDJ9#

 1
27384 - WASHER
27384-50030

1KDFTV..KDJ9#

 1
27387 - INSULATOR, TERMINAL
27387-42021

1KDFTV..KDJ9#

 1
27388 - COVER, ALTERNATOR BRUSH
27388-42010

1KDFTV..KDJ9#

 1
27389 - INSULATOR, TERMINAL
27389-42010

1KDFTV..KDJ9#

 4
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-30010

1KDFTV..KDJ9#

 1
27416 - CAP, ALTERNATOR PULLEY
27416-30010

1KDFTV..KDJ9#

 1
27700A - REGULATOR ASSY, GENERATOR
27700-30070

1KDFTV..KDJ9#

 1
Common parts
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05172
90179-06158
93319-14025
