KDJ90R-GJMNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )1KDFTV

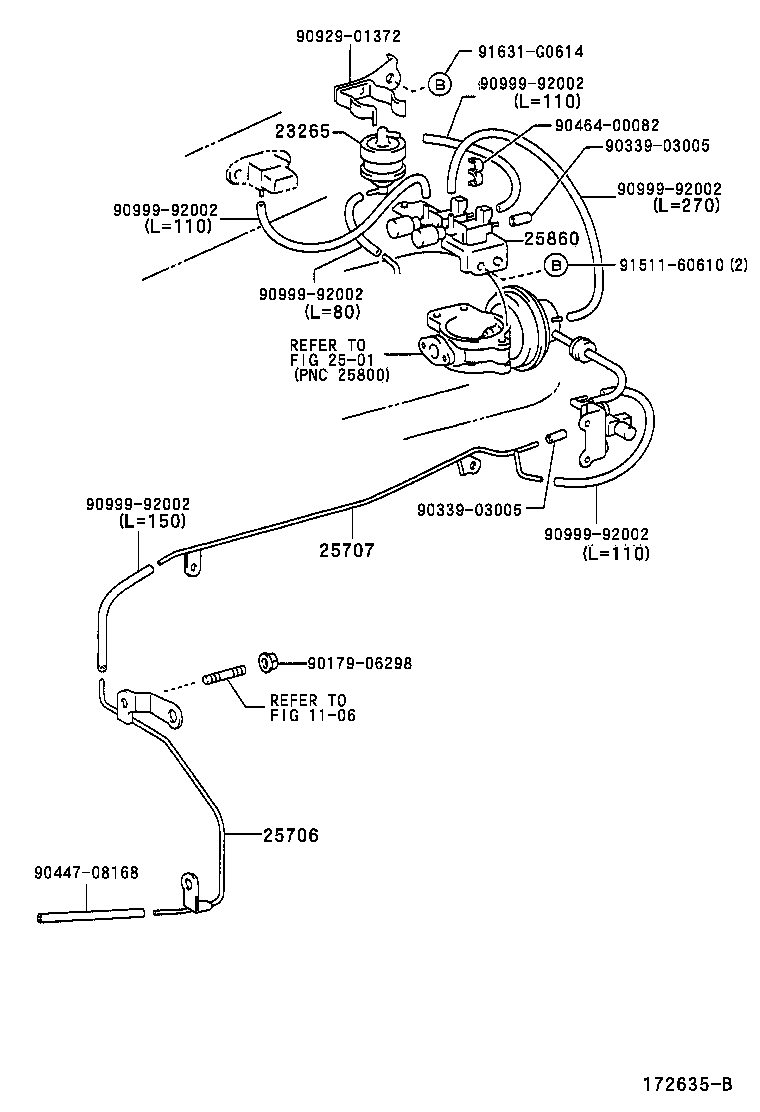

Click highlighted areas on diagram

diagram 1106 23265 2501 25706 25707 25860 9017906298 9033903005 9033903005 9044708168 9046400082 9092901372 9099992002 9099992002 9099992002 9099992002 9099992002 9099992002 9151160610 91631G0614
Part # Description Qty Price
23265 - FILTER, GAS, NO.1
90917-11044

1K#..KDJ9#,KZJ9#

 1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-30010

1KDFTV..KDJ9#

 1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-67011

1K#..KDJ9#,KZJ90;1KZTE..KZJ95..LHD

 1
25860 - VALVE ASSY, VACUUM SWITCHING, NO.1
25860-30010

1KDFTV..KDJ9#

 1
Common parts
90179-06298
90339-03005
90447-08168
90464-00082
90929-01372
90999-92002
91511-60610
91631-G0614
Linked diagrams
1106
2501
