KDJ90L-GJMNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0008- )KDJ9#

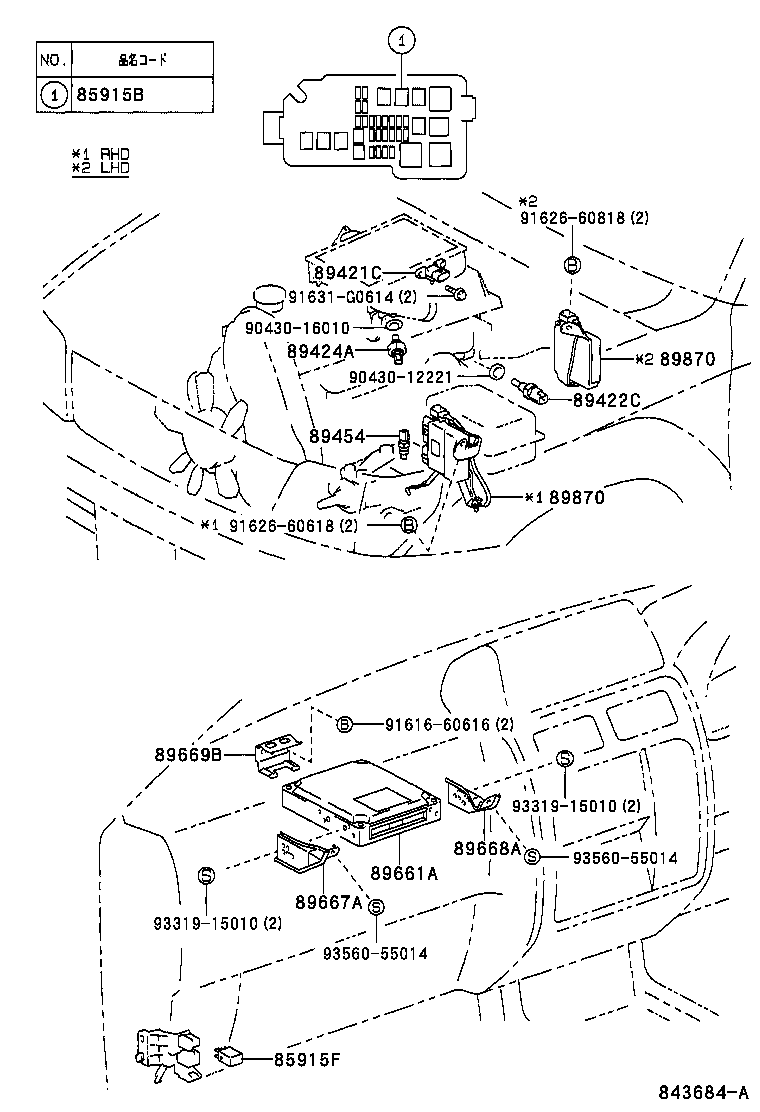

Click highlighted areas on diagram

diagram 85915B 85915F 89421C 89422C 89424A 89454 89661A 89667A 89668A 89669B 89870 89870 9043012221 9043016010 9161660616 9162660618 9162660818 91631G0614 9331915010 9331915010 9356055014 9356055014
Part # Description Qty Price
85915F - RELAY, SPILL VALVE
90987-02012

KDJ9#

 1
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-20210

KDJ9#

 1
89424A - SENSOR, INLET AIR TEMPERATURE (FOR DIESEL TURBO)
89424-60010

KDJ9#

 1
89661A - COMPUTER, ENGINE CONTROL
89666-60510

KDJ9#..MTM

 1
89666-60511

KDJ9#..MTM

 1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-35080

KDJ9#,KZJ9#

 1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-35120

KDJ9#,KZJ9#

 1
89669B - BRACKET, ENGINE CONTROL COMPUTER, NO.3
89669-35060

KDJ9#,KZJ9#

 1
89870 - DRIVER ASSY, SPILL VALVE CONTROL
89870-60030

KDJ9#..LHD

 1
89870 - DRIVER ASSY, SPILL VALVE CONTROL
89870-60030

KDJ9#..LHD

 1
Common parts
90430-12221
90430-16010
91616-60616
91626-60618
91626-60818
91631-G0614
93319-15010
93560-55014
