KDJ90L-GJMNYW (2000)

Toyota Land Cruiser 90

Production Aug 2000 - Sep 2002
Engine 1KDFTV
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

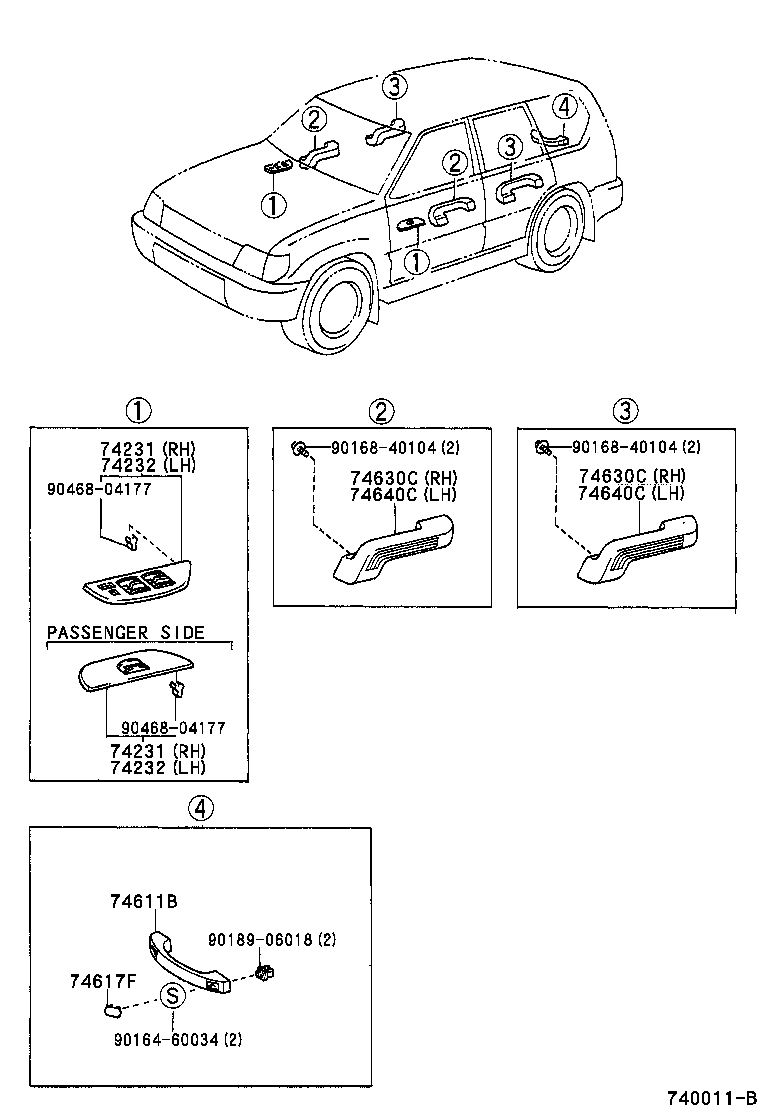

ILLUST NO. 1 OF 2(9604-0209)

Click highlighted areas on diagram

ARMREST(TYPE A)

diagram 74231 74231 74232 74232 74611B 74617F 74630C 74630C 74640C 74640C 9016460034 9016840104 9016840104 9018906018 9046804177 9046804177
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-60330E0

KDJ9#,KZJ9#,VZJ9#..LHD

OAK,TRIM4#

 1
74231-60330E0

KDJ90,KZJ9#,VZJ90..LHD

OAK,TRIM4#

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-60330E0

KDJ9#,KZJ9#,VZJ9#..LHD

OAK,TRIM4#

 1
74231-60330E0

KDJ90,KZJ9#,VZJ90..LHD

OAK,TRIM4#

 1
74611B - GRIP, ASSIST
74610-10020E3

KDJ9#,VZJ9#

OAK,TRIM40,41

 1
74610-10020E3

KDJ9#,VZJ9#

OAK,TRIM4#

 1
74617F - PLUG, ASSIST GRIP
74617-14010E2

KDJ9#,VZJ9#

OAK,TRIM4#

 2
74617-14010E2

KDJ9#,VZJ9#

OAK,TRIM40,41

 2
74630C - GRIP ASSY, DOOR ASSIST, RH
74641-60010E0

KDJ90,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

 1
74641-60010E0

KDJ9#,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

 1
74630C - GRIP ASSY, DOOR ASSIST, RH
74641-60010E0

KDJ90,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

 1
74641-60010E0

KDJ9#,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74642-60010E0

KDJ90,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT

 1
74642-60010E0

KDJ90,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT

 1
74640C - GRIP ASSY, DOOR ASSIST, LH
74642-60010E0

KDJ90,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT

 1
74642-60010E0

KDJ90,VZJ90

TYPE B:REFER TO ILLUSTRATION,OAK,TRIM4#,FRONT

 1
Common parts
90164-60034
90168-40104
90189-06018
90468-04177
