UZJ100R-GNPEKW (1998)
Toyota Land Cruiser 100
Production
Jan 1998
-
Aug 2002
Engine
2UZFE
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9801-0208)

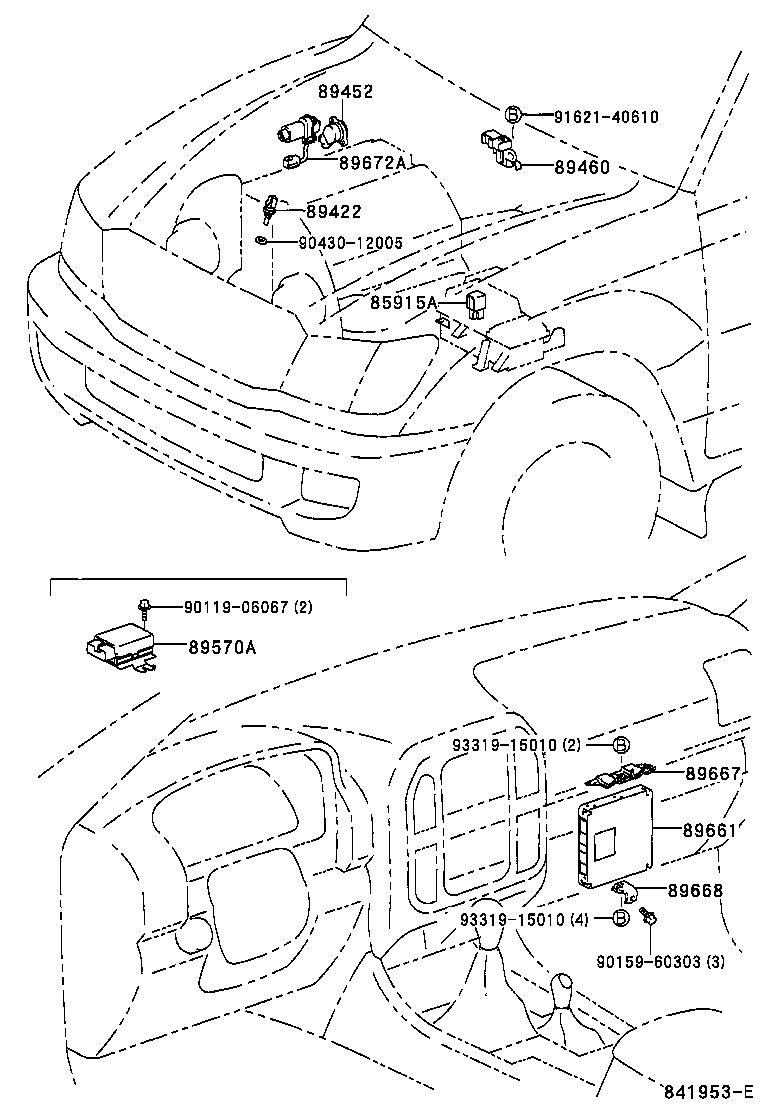

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-06067 | ||||
| 90159-60303 | ||||
| 90430-12005 | ||||
| 91621-40610 | ||||
| 93319-15010 | ||||
(9801-0208)UZJ100..RHD

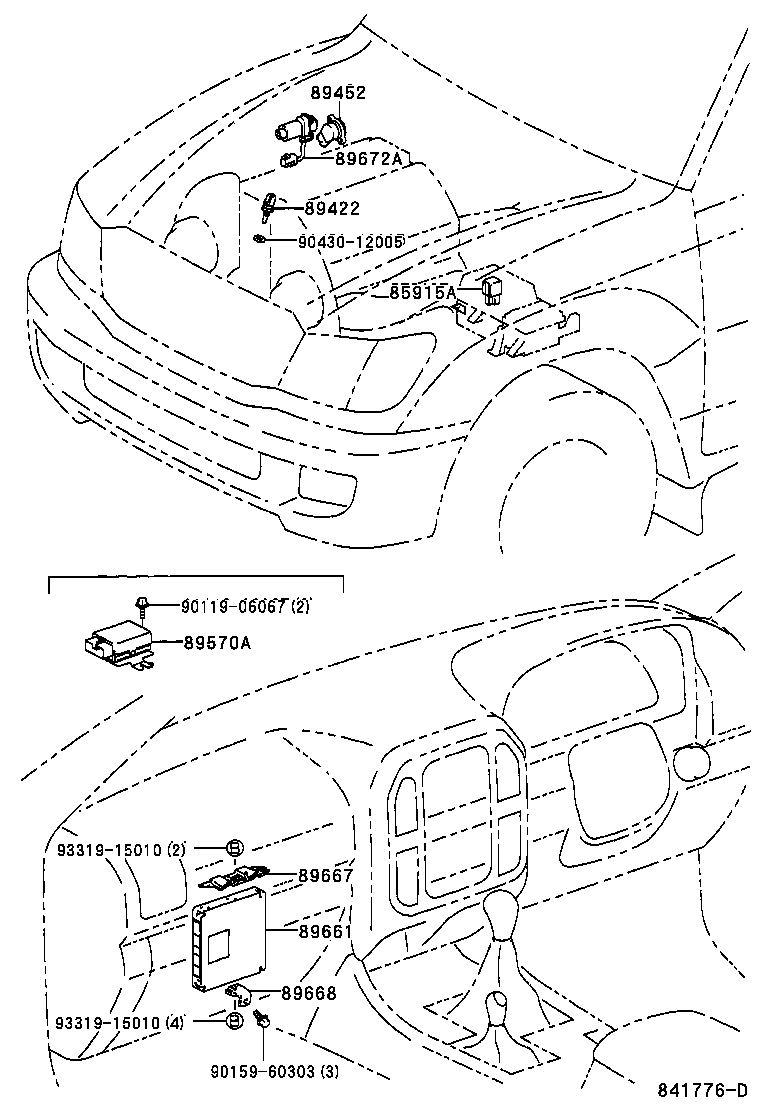

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85915A - RELAY, MAIN | ||||
| 85915-30050 |
UZJ100 |
1 | ||
| 89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.) | ||||
| 89422-20010 |
UZJ100 |
1 | ||
| 89422-30030 |
UZJ100 |
1 | ||
| 89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.) | ||||
| 89452-30140 |
UZJ100 |
1 | ||
| 89570A - COMPUTER ASSY, FUEL PUMP CONTROL | ||||
| 89570-60130 |
UZJ100 |
1 | ||
| 89661 - COMPUTER, ENGINE CONTROL | ||||
| 89666-60180 |
UZJ100 MARK = 89666-60180 |
1 | ||
| 89666-60720 |
UZJ100 MARK = 89666-60720 |
1 | ||
| 89666-60270 |
UZJ100..RHD |
1 | ||
| 89666-60721 |
UZJ100 MARK = 89666-60721 |
1 | ||
| 89661-60620 |
UZJ100 |
1 | ||
| 89667 - BRACKET, ENGINE CONTROL COMPUTER | ||||
| 89667-60140 |
UZJ100 |
1 | ||
| 89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2 | ||||
| 89668-60160 |
UZJ100 |
1 | ||
| 89672A - MOTOR, THROTTLE CONTROL | ||||
| 89672-47010 |
UZJ100 |
1 | ||
| Common parts | ||||
| 90119-06067 | ||||
| 90159-60303 | ||||
| 90430-12005 | ||||
| 93319-15010 | ||||
