UZJ100R-GNPEKW (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801-9908)

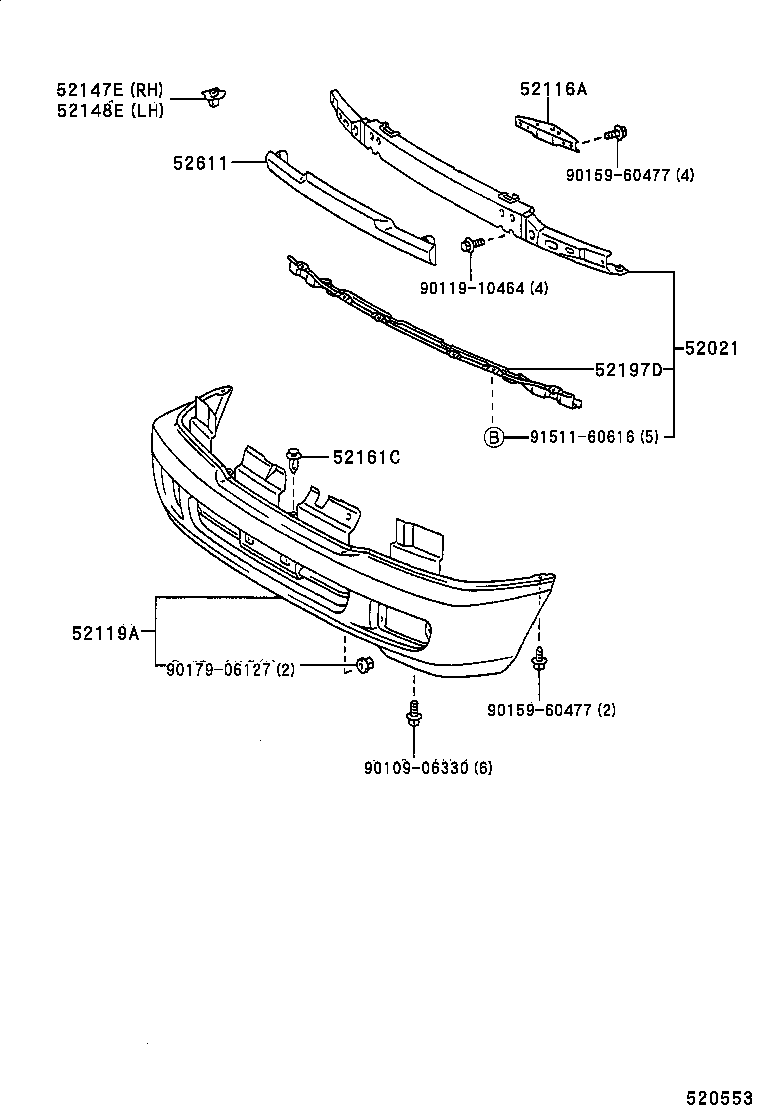

Click highlighted areas on diagram

diagram 52021 52116A 52119A 52147E 52148E 52161C 52197D 52611 9010906330 9011910464 9015960477 9015960477 9017906127 9151160616
Part # Description Qty Price
Common parts
90109-06330
90119-10464
90159-60477
90179-06127
91511-60616

(9908-0208)

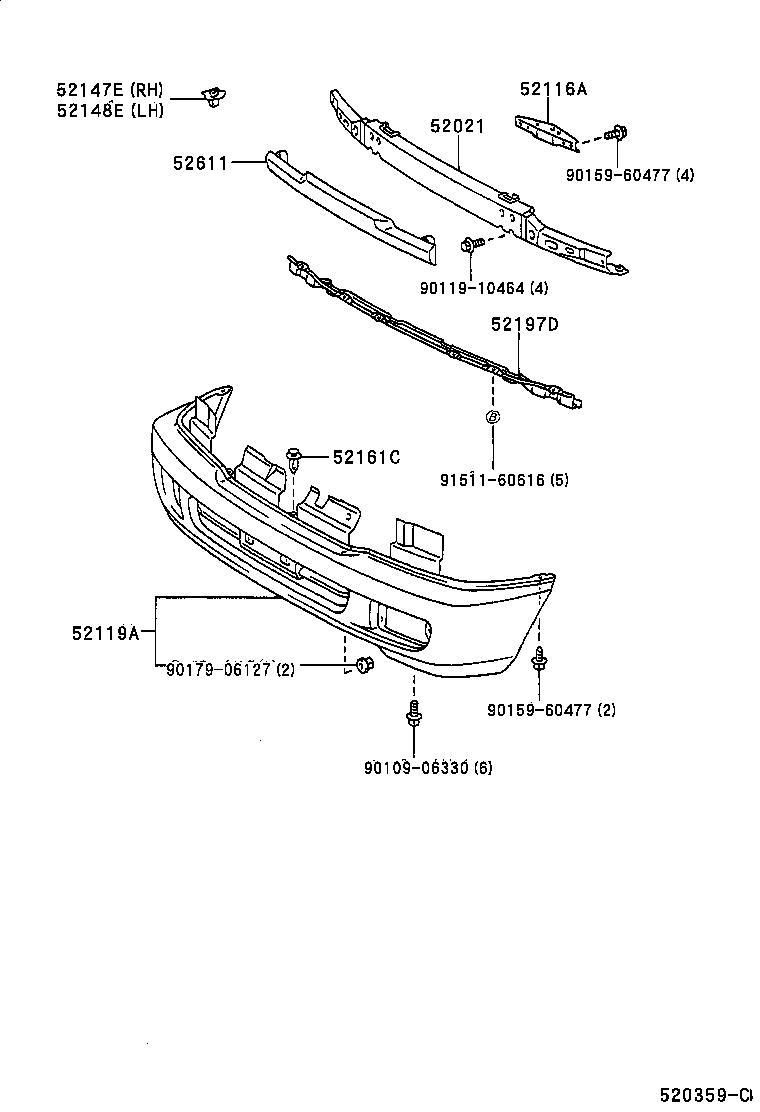

Click highlighted areas on diagram

diagram 52021 52116A 52119A 52147E 52148E 52161C 52197D 52611 9010906330 9011910464 9015960477 9015960477 9017906127 9151160616
Part # Description Qty Price
Common parts
90109-06330
90119-10464
90159-60477
90179-06127
91511-60616

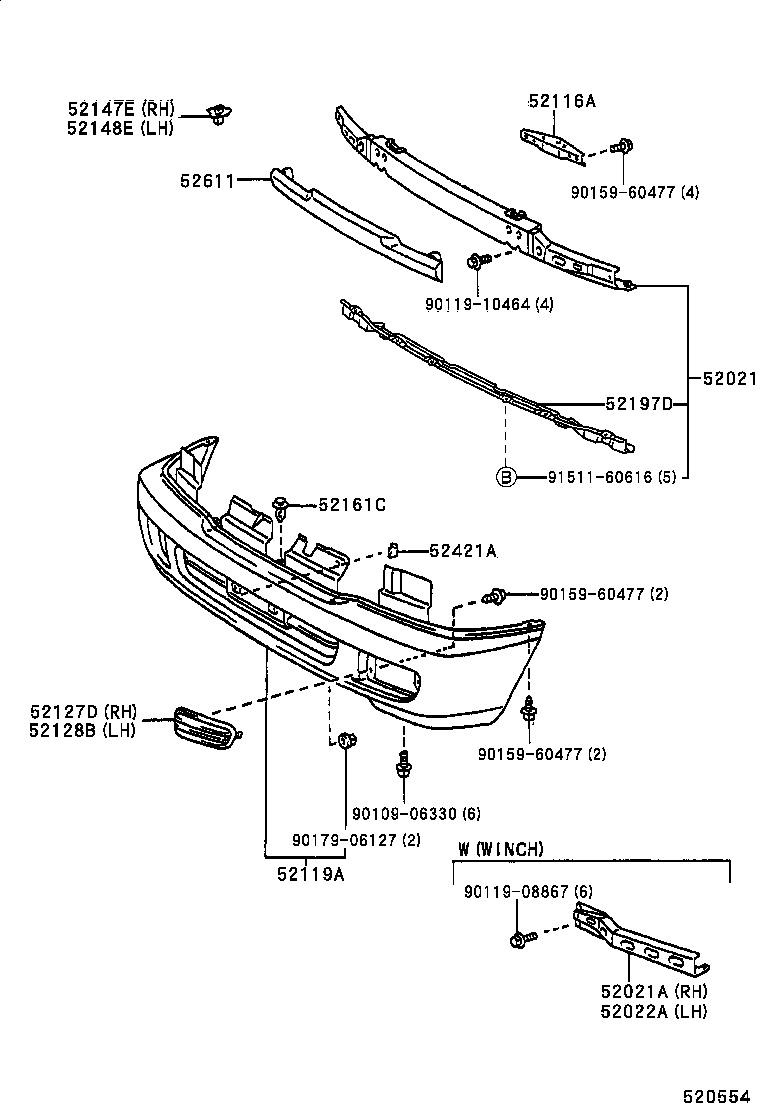

ILLUST NO. 1 OF 2(9801-9908)

Click highlighted areas on diagram

diagram 52021 52021A 52022A 52116A 52119A 52127D 52128B 52147E 52148E 52161C 52197D 52421A 52611 9010906330 9011908867 9011910464 9015960477 9015960477 9015960477 9017906127 9151160616
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-60020

HDJ100,UZJ100

 1
52110-60010

HDJ100,UZJ100

 1
52021A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, RH
52021-60050

HDJ100,UZJ100

 1
52131-60100

HDJ100,UZJ100

 1
52022A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, LH
52132-60070

HDJ100,UZJ100

 1
52022-60030

HDJ100,UZJ100

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-60110

HDJ100,UZJ100

 1
52119A - COVER, FRONT BUMPER
52119-60909

HDJ100,UZJ100..VX

W(HEADLAMP CLEANER)

 1
52119-60910

HDJ100,UZJ100..VX

W(WINCH & HEADLAMP CLEANER)

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-60010

HDJ100,UZJ100..VX

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-60010

HDJ100,UZJ100..VX

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-60050

HDJ100,UZJ100

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-60050

HDJ100,UZJ100

 1
52161C - PIECE, FRONT BUMPER
52161-16010

HDJ100,UZJ100

 3
52197D - REINFORCEMENT, FRONT BUMPER ARM
52197-60010

HDJ100,UZJ100

 1
52421A - PAD, FRONT BUMPER
52421-60050

HDJ100,UZJ100

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-60010

HDJ100,UZJ100

 1
Common parts
90109-06330
90119-08867
90119-10464
90159-60477
90179-06127
91511-60616

ILLUST NO. 1 OF 2(9908-0208)

Click highlighted areas on diagram

diagram 52021 52021A 52022A 52116A 52119A 52127D 52128B 52147E 52148E 52161C 52197D 52421A 52611 9010906330 9011908867 9011910464 9015960477 9015960477 9015960477 9017906127 9151160616
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-60020

HDJ100,UZJ100

 1
52110-60010

HDJ100,UZJ100

 1
52021A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, RH
52021-60050

HDJ100,UZJ100

 1
52131-60100

HDJ100,UZJ100

 1
52022A - REINFORCEMENT SUB-ASSY, FRONT BUMPER, LH
52132-60070

HDJ100,UZJ100

 1
52022-60030

HDJ100,UZJ100

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-60110

HDJ100,UZJ100

 1
52119A - COVER, FRONT BUMPER
52119-60909

HDJ100,UZJ100..VX

W(HEADLAMP CLEANER)

 1
52119-60910

HDJ100,UZJ100..VX

W(WINCH & HEADLAMP CLEANER)

 1
52127D - COVER, FRONT BUMPER HOLE, RH
52127-60010

HDJ100,UZJ100..VX

 1
52128B - COVER, FRONT BUMPER HOLE, LH
52128-60010

HDJ100,UZJ100..VX

 1
52147E - BRACKET, FRONT BUMPER MOUNTING, RH
52147-60050

HDJ100,UZJ100

 1
52148E - BRACKET, FRONT BUMPER MOUNTING, LH
52147-60050

HDJ100,UZJ100

 1
52161C - PIECE, FRONT BUMPER
52161-16010

HDJ100,UZJ100

 3
52197D - REINFORCEMENT, FRONT BUMPER ARM
52197-60010

HDJ100,UZJ100

 1
52421A - PAD, FRONT BUMPER
52421-60050

HDJ100,UZJ100

 2
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-60010

HDJ100,UZJ100

 1
Common parts
90109-06330
90119-08867
90119-10464
90159-60477
90179-06127
91511-60616
