UZJ100R-GNPEKW (1998)

Toyota Land Cruiser 100

Production Jan 1998 - Aug 2002
Engine 2UZFE
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9801- )

Click highlighted areas on diagram

diagram 11401 11415 11415A 11421 11431A 11432M 11434B 11434C 11434D 11434S 11434X 11452 11452B 12101 12101A 12101B 12102A 12121 1301 1301 1501 15301 15708 1601 1601 9010508316 9011006018 9011606098 9011606098 9011610152 9011610152 9011906487 9011906527 9011906755 9017906129 9017906193 9017908153 9091002072 9091002072 91621B0816 91621J0612 91641K0855
Part # Description Qty Price
Common parts
90105-08316
90110-06018
90116-06098
90116-10152
90119-06487
90119-06527
90119-06755
90179-06129
90179-06193
90179-08153
90910-02072
91621-B0816
91621-J0612
91641-K0855
Linked diagrams
1301
1501
1601

(9801- )2UZFE

Click highlighted areas on diagram

diagram 11401 11415 11415A 11421 11431A 11432M 11434B 11434C 11434D 11434S 11434X 11452 11452B 12101 12101A 12101B 12102A 12121 1301 1301 1501 15301 1601 1601 9010508316 9011606098 9011606098 9011610152 9011610152 9011906487 9011906527 9011906528 9011906755 9017906129 9017906193 9017908153 9091002072 9091002072 91621B0816 91621J0612 91641K0855
Part # Description Qty Price

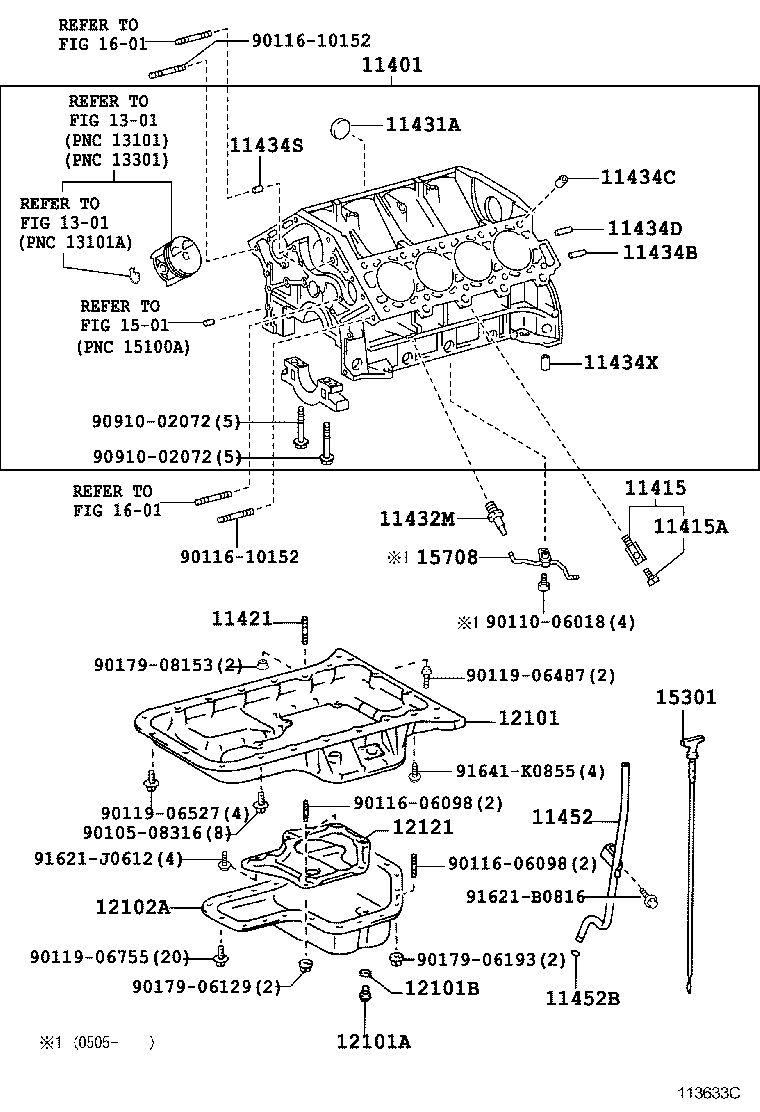

11401 - BLOCK SUB-ASSY, CYLINDER
11401-59676

2UZFE..UZJ100

PNC 13101=MARK 50050

 1
11401-59675

2UZFE..UZJ100

 1
11401-59755

2UZFE..UZJ100

PNC 13101=MARK 50051

 1
11415 - COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)
90910-09095

2UZFE..UZJ100

 2
11415A - PLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)
90910-09087

2UZFE..UZJ100

 2
11421 - BOLT, STUD(FOR OIL PAN)
90126-08030

2UZFE..UZJ100

 2
11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)
96411-63500

2UZFE..UZJ100

 8
11432M - UNION(FOR CYLINDER BLOCK)
90404-53001

2UZFE..UZJ100

 1
90404-53070

2UZFE..UZJ100

 1
11434B - PIN, STRAIGHT(FOR CLUTCH HOUSING SET)
90250-10113

2UZFE..UZJ100

L=22,OD=10

 2
11434C - PIN, STRAIGHT (FOR CYLINDER HEAD SET)
90253-16001

2UZFE..UZJ100

L=20,OD=16

 4
11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)
90250-06003

2UZFE..UZJ100

L=14,OD=6

 2
11434X - PIN, RING(FOR CHAIN CACE)
90253-11021

2UZFE..UZJ100

 2
11452 - GUIDE, OIL LEVEL GAGE
11452-50120

2UZFE..UZJ100

 1
11452B - RING, O(FOR OIL LEVEL GAGE GUIDE)
96721-19010

2UZFE..UZJ100

 1
12101 - PAN SUB-ASSY, OIL
12111-50100

2UZFE..UZJ100

 1
12111-50101

2UZFE..UZJ100

 1
12101A - PLUG(FOR OIL PAN DRAIN)
90341-12023

2UZFE..UZJ100

 1
12101B - GASKET(FOR OIL PAN DRAIN PLUG)
90430-12031

2UZFE..UZJ100

 1
12102A - PAN SUB-ASSY, OIL, NO.2
12102-50090

2UZFE..UZJ100

 1
12121 - PLATE, OIL PAN BAFFLE, NO.1
12121-50100

2UZFE..UZJ100

 1
15301 - GAGE SUB-ASSY, OIL LEVEL
15301-50080

2UZFE..UZJ100

 1
Common parts
90105-08316
90116-06098
90116-10152
90119-06487
90119-06527
90119-06528
90119-06755
90179-06129
90179-06193
90179-08153
90910-02072
91621-B0816
91621-J0612
91641-K0855
Linked diagrams
1301
1501
1601
